•Operating the temporary mobility kit could cause an electrical
disturbance in radio and DVD player operation.
What to do when a tire is punctured
A tire puncture within the tire’s tread area can be repaired in two stages
with the temporary mobility kit:
•In the first stage, the tire will be reinflated with a sealing compound
and air. After the tire has been reinflated, you will need to drive the
vehicle a short distance (approximately 4 miles [6 km]) to distribute
the sealant in the tire.
•In the second stage, you will need to check the tire pressure and
adjust, if necessary, to the vehicle’s tire inflation pressure.
First stage: Reinflating the tire with sealing compound and air
Preparation
Park the vehicle in a safe, level and secure area, away from moving
traffic. Turn the hazard lights on. Apply the parking brake and turn the
engine off. Inspect the flat tire for visible damage.
Sealant compound contains latex. To avoid any allergic reactions, use the
non-latex gloves located in the accessory box on the underside of the
temporary mobility kit housing.
Do not remove any foreign object that has pierced the tire. If a puncture
is located in the tire sidewall, stop and call roadside assistance.
1. Remove the valve cap from the tire valve.
2. Unwrap the clear tube from the compressor housing.
3. Remove the tube cap and fasten the metal connector of the tube to
the tire valve, turning clockwise. Make sure the connection is tightly
fastened.
Roadside Emergencies
297
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Maintenance and Specifications
339
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

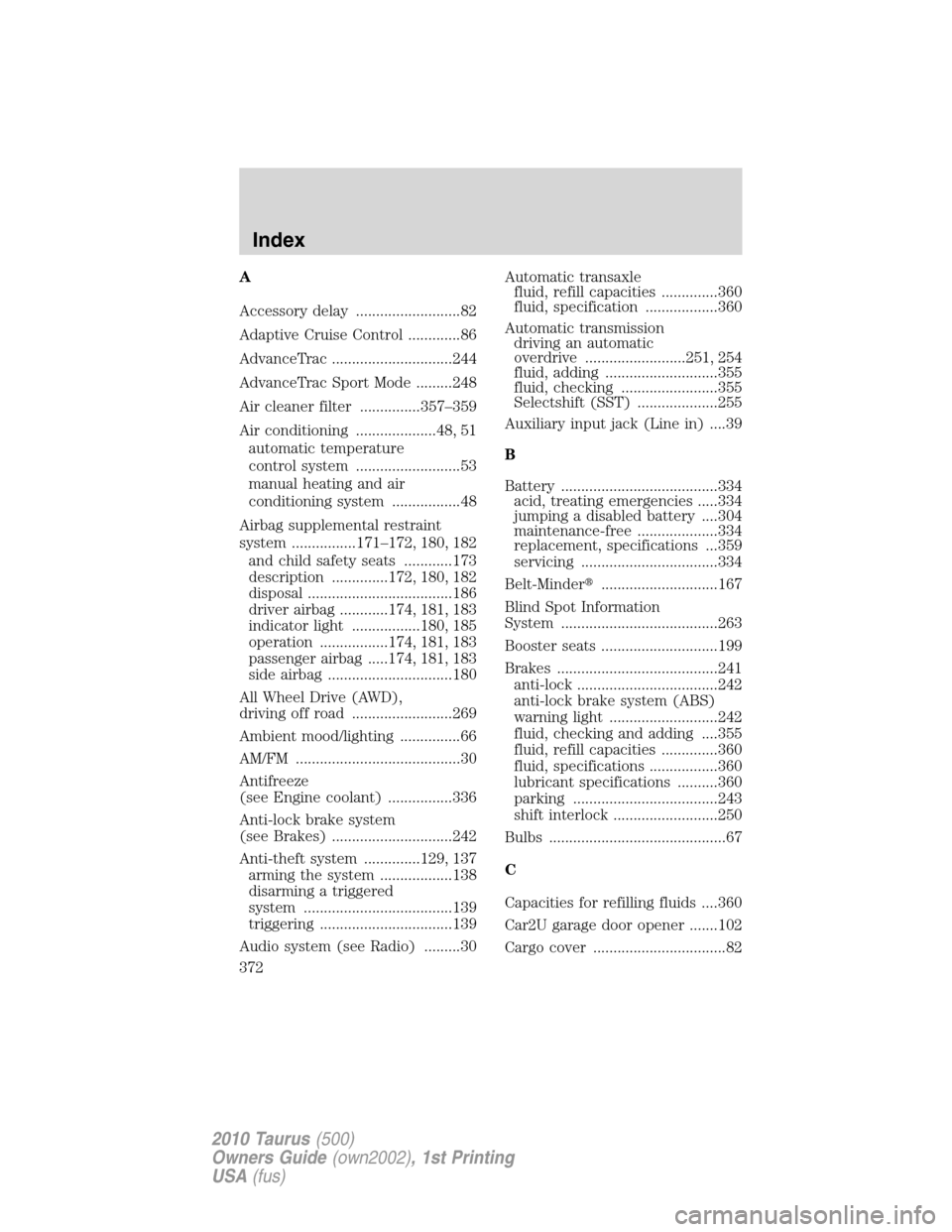

A
Accessory delay ..........................82
Adaptive Cruise Control .............86
AdvanceTrac ..............................244
AdvanceTrac Sport Mode .........248
Air cleaner filter ...............357–359
Air conditioning ....................48, 51
automatic temperature
control system ..........................53
manual heating and air
conditioning system .................48
Airbag supplemental restraint
system ................171–172, 180, 182
and child safety seats ............173
description ..............172, 180, 182
disposal ....................................186
driver airbag ............174, 181, 183
indicator light .................180, 185
operation .................174, 181, 183
passenger airbag .....174, 181, 183
side airbag ...............................180
All Wheel Drive (AWD),
driving off road .........................269
Ambient mood/lighting ...............66
AM/FM .........................................30
Antifreeze
(see Engine coolant) ................336
Anti-lock brake system
(see Brakes) ..............................242
Anti-theft system ..............129, 137
arming the system ..................138
disarming a triggered
system .....................................139
triggering .................................139
Audio system (see Radio) .........30Automatic transaxle
fluid, refill capacities ..............360
fluid, specification ..................360
Automatic transmission
driving an automatic
overdrive .........................251, 254
fluid, adding ............................355
fluid, checking ........................355
Selectshift (SST) ....................255
Auxiliary input jack (Line in) ....39
B
Battery .......................................334
acid, treating emergencies .....334
jumping a disabled battery ....304
maintenance-free ....................334
replacement, specifications ...359
servicing ..................................334
Belt-Minder
.............................167
Blind Spot Information
System .......................................263
Booster seats .............................199
Brakes ........................................241
anti-lock ...................................242
anti-lock brake system (ABS)
warning light ...........................242
fluid, checking and adding ....355
fluid, refill capacities ..............360
fluid, specifications .................360
lubricant specifications ..........360
parking ....................................243
shift interlock ..........................250
Bulbs ............................................67
C
Capacities for refilling fluids ....360
Car2U garage door opener .......102
Cargo cover .................................82
Index
372
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Emergencies, roadside
jump-starting ..........................304
running out of fuel .........303, 347
Emission control system ..........351
Engine ........................................363
cleaning ...................................320
coolant .....................................336
fail-safe cooling .......................341
idle speed control ...................334
lubrication specifications .......360
refill capacities ........................360
service points ..................328–329
Engine block heater .................240
Engine oil ..................................331
change oil soon warning,
message center .......................331
checking and adding ..............331
dipstick ....................................331
filter, specifications ........333, 359
recommendations ...................333
refill capacities ........................360
specifications ..........................360
Event data recording ....................7
Exhaust fumes ..........................239
F
Fail safe cooling ........................341
Fleet MyKey programming ......134
Fluid capacities .........................360
Four-Wheel Drive vehicles
driving off road .......................270
Fuel ............................................342
calculating fuel
economy ............................21, 348
cap ...........................................344
capacity ...................................360
choosing the right fuel ...........345comparisons with EPA fuel
economy estimates .................351
detergent in fuel .....................346
filler funnel .............................347
filling your vehicle with
fuel ...........................342, 344, 348
filter, specifications ........342, 359
improving fuel economy ........348
octane rating ...................346, 363
quality ......................................346
running out of fuel .........303, 347
safety information relating to
automotive fuels .....................342
Fuses ..........................................279
G
Garage door opener ....................97
Gas cap (see Fuel cap) ............344
Gas mileage
(see Fuel economy) .................348
Gauges .........................................17
H
Hazard flashers .........................278
Headlamps ...................................59
aiming ........................................64
autolamp system .......................59
bulb specifications ....................67
daytime running lights .............63
flash to pass ..............................63
high beam .................................60
replacing bulbs .........................68
turning on and off ....................59
Heating
heating and air conditioning
system ...........................48, 51, 53
Homelink wireless control
system ..........................................98
Index
374
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
