2010 FORD TAURUS brake fluid

3.5L V6 SHO engine
1. Engine coolant reservoir
2. Brake fluid reservoir
3. Battery
4. Power distribution box
5. Air filter assembly
6. Automatic transmission fluid dipstick (out of view)
7. Engine oil dipstick
8. Engine oil filler cap
9. Windshield washer fluid reservoir
Maintenance and Specifications
329
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick. (For vehicles with the
EcoBoost engine, move the air filter assembly aside to access the
transmission dipstick. SeeChanging the air filter elementfor more
information).
Maintenance and Specifications
355
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

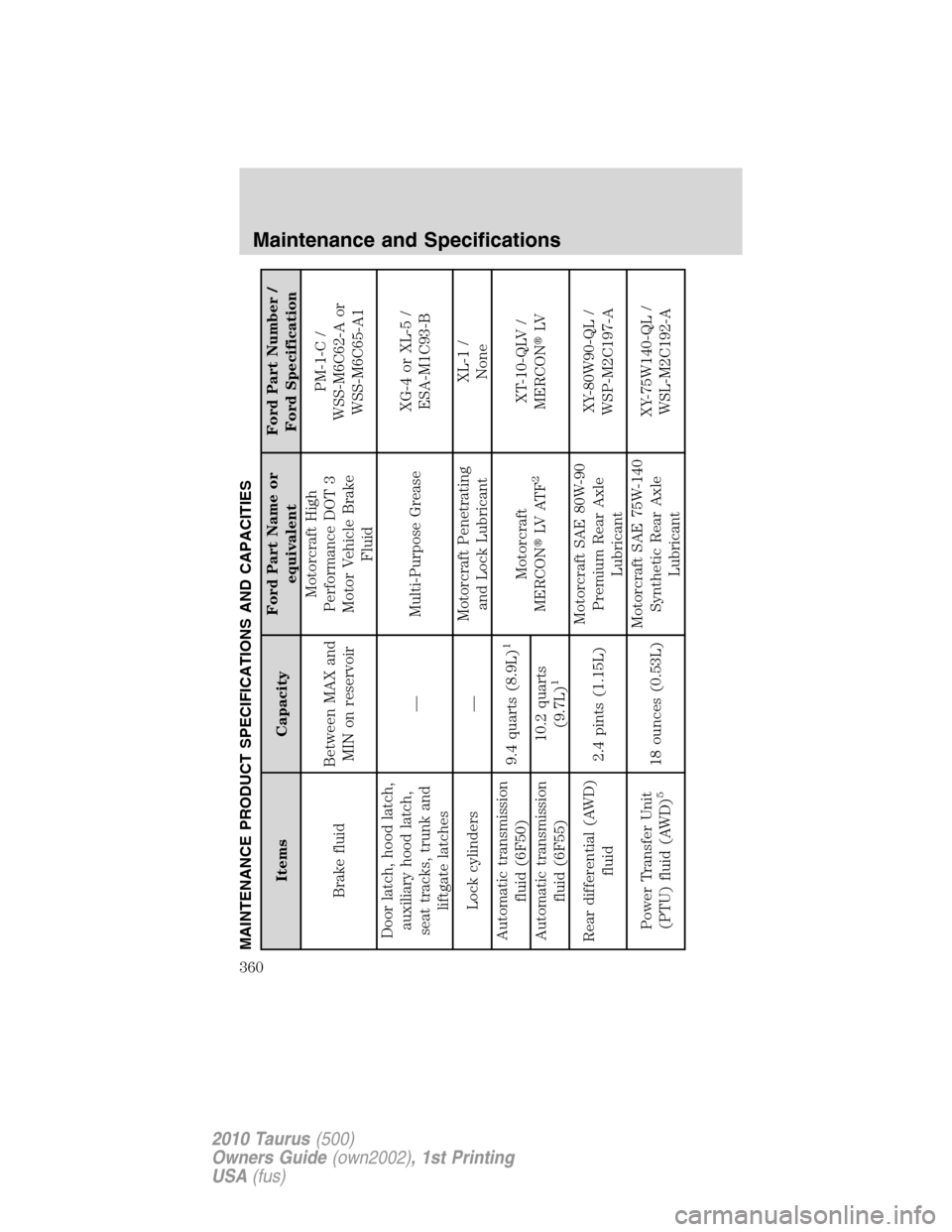

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MAX and
MIN on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches— Multi-Purpose GreaseXG-4 or XL-5 /
ESA-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid (6F50)9.4 quarts (8.9L)
1
Motorcraft
MERCON
LV AT F
2
XT-10-QLV /
MERCON
LV
Automatic transmission
fluid (6F55)10.2 quarts
(9.7L)
1
Rear differential (AWD)
fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
18 ounces (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
360
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

A
Accessory delay ..........................82
Adaptive Cruise Control .............86
AdvanceTrac ..............................244
AdvanceTrac Sport Mode .........248
Air cleaner filter ...............357–359
Air conditioning ....................48, 51
automatic temperature
control system ..........................53
manual heating and air
conditioning system .................48
Airbag supplemental restraint
system ................171–172, 180, 182
and child safety seats ............173
description ..............172, 180, 182
disposal ....................................186
driver airbag ............174, 181, 183
indicator light .................180, 185
operation .................174, 181, 183
passenger airbag .....174, 181, 183
side airbag ...............................180
All Wheel Drive (AWD),
driving off road .........................269
Ambient mood/lighting ...............66
AM/FM .........................................30
Antifreeze
(see Engine coolant) ................336
Anti-lock brake system
(see Brakes) ..............................242
Anti-theft system ..............129, 137
arming the system ..................138
disarming a triggered
system .....................................139
triggering .................................139
Audio system (see Radio) .........30Automatic transaxle
fluid, refill capacities ..............360
fluid, specification ..................360
Automatic transmission
driving an automatic
overdrive .........................251, 254
fluid, adding ............................355
fluid, checking ........................355
Selectshift (SST) ....................255
Auxiliary input jack (Line in) ....39
B
Battery .......................................334
acid, treating emergencies .....334
jumping a disabled battery ....304
maintenance-free ....................334
replacement, specifications ...359
servicing ..................................334
Belt-Minder
.............................167
Blind Spot Information
System .......................................263
Booster seats .............................199
Brakes ........................................241
anti-lock ...................................242
anti-lock brake system (ABS)
warning light ...........................242
fluid, checking and adding ....355
fluid, refill capacities ..............360
fluid, specifications .................360
lubricant specifications ..........360
parking ....................................243
shift interlock ..........................250
Bulbs ............................................67
C
Capacities for refilling fluids ....360
Car2U garage door opener .......102
Cargo cover .................................82
Index
372
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Motorcraft parts ................324, 359
Multi-contour seats ...................144
MyKey ........................................134
N
Navigation system .......................47
O
Octane rating ............................346
Oil (see Engine oil) ..................331
Overdrive ...................................251
P
Parental MyKey
programming .............................134
Parking brake ............................243
Parts (see Motorcraft parts) ....359
Passenger Occupant
Classification Sensor .................159
Pedals (see Power adjustable
foot pedals) .................................84
Power adjustable foot pedals .....84
Power distribution box
(see Fuses) ...............................284
Power door locks ......................111
Power mirrors .............................83
Power point .................................79
Power steering ..........................248
fluid, checking and adding ....354
fluid, refill capacity ................360
fluid, specifications .................360
Power Windows ...........................79Power windows
opening using remote entry
system .....................................121
Push button start system .........237
R
Radio ............................................30
6-CD in dash .............................30
Rear heated seats .....................157
Rear-view camera system .........258
Recommendations for
attaching safety restraints for
children ......................................188
Relays ........................................279
Remote entry system .......118, 120
illuminated entry ....................125
locking/unlocking doors .........121
opening the trunk ...................122
opening the windows .............121
panic alarm .............................122
replacement/additional
transmitters .............................125
replacing the batteries ...........123
Reverse sensing system ...........256
Roadside assistance ..................277
S
Safety belts (see Safety
restraints) ..................158, 161–165
Safety Canopy ...................180, 182
Safety defects, reporting ..........317
Safety restraints ........158, 161–165
Belt-Minder
...........................167
extension assembly ................166
for adults .........................162–165
for children .............................186
Index
376
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Transmission .............................251
brake-shift interlock (BSI) ....250
fluid, checking and adding
(automatic) .............................355
Trunk .........................................117
remote release ................108, 122
Turn signal ..................................65
U
Universal garage door opener ....97
USB port ......................................41
V
Vehicle Identification Number
(VIN) ..........................................365
Vehicle loading ..........................223Ventilating your vehicle ...........239
W
Warning lights (see Lights) .......12
Washer fluid ..............................330
Water, Driving through .............276
Windows
opening using remote entry
system .....................................121
power .........................................79
Windshield washer fluid and
wipers ..........................................73
checking and adding fluid .....330
replacing wiper blades ...........331
Wrecker towing .........................309
Index
378
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
