2. Select the ‘Quick’ tab on the touchscreen to select from the following:
Emergency:Select to find Hospitals
and Police close to the vehicle’s
current location. The system may
list up to 25 locations.
Find nearest POI: Your navigation
system allows you to select up to
five different Point of Interest (POI)
icons which will appear on the
navigation map. You can change
these icons at any time but the
default icons are as follows:
• Gas Station
• AT M
• Restaurant
• Accommodations
• Parking Garage
Once one of these categories is selected, a list will be shown in order of
distance from the vehicle’s current location.
• List all categories: Select to have the system display a list of all
categories. Select the desired category and then the desired
subcategory. The system will show a list with name and your distance
to each POI from the current location. Once a specific location is
selected, the system will display the Destination map screen for
confirmation.
Favorite Destination Presets: This feature will store your home
location as well as five address book entries for quick access. To set a
favorite destination preset: press the desired preset location and follow
the system’s screens to choose the desired selection to store. The system
will display the icon and name associated with the location. Once a
destination has been programmed, the following button will become
available as quick touch button under the ‘Quick Dest’ tab:
• Cancel route: Select to cancel the current route. The system will ask
you for confirmation.
2009 Centerstack (ng1)
Supplement, 2nd Printing
USA (fus)
Setting a destination
85

Edit allows you to name/change the
entry, add/edit a phone number,
add/edit the icon or set the entry as
a favorite destination. (These are
destination presets which work
similarly to the audio presets. Once
set, the favorite destinations appear
at the bottom of the Quick
destination entry screen for
one-touch fast entry.)
Previous Destination:Select to access your ’Previous Destination List’.
The navigation system can store up to 20 recently used destinations and
waypoints. Destinations already present in the list will not be duplicated.
When a new entry is added to the list, the oldest one will be removed.
•Set as Dest:Select this feature to set the current entry as your
destination. The screen will display the destination map screen
showing the selected destination. You can then select to set it as a
final destination or a waypoint.
•Delete:Select to delete individual entries.
•Delete all:Select to delete all entries.
Phone Number:This feature allows
you to search for a destination using
the phone number of a saved POI or
Address Book entry by entering the
phone number on the keypad on the
screen. After the number is entered,
the system will ask you to confirm
the name under which the phone
number is registered.
Map:You can select any point on
the map to set as a destination or
waypoint by using the map cursor.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Setting a destination
87

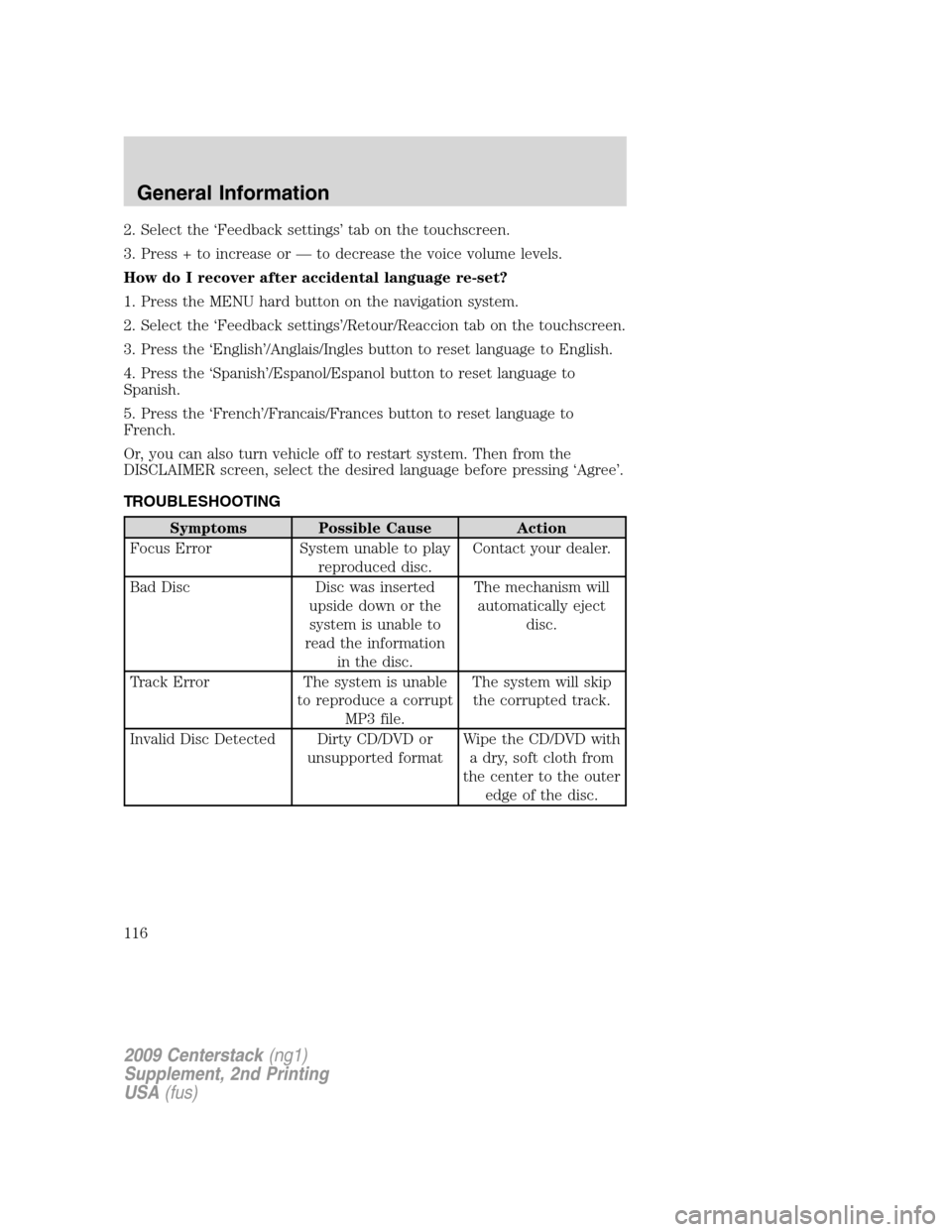

2. Select the ‘Feedback settings’ tab on the touchscreen.
3. Press + to increase or — to decrease the voice volume levels.
How do I recover after accidental language re-set?
1. Press the MENU hard button on the navigation system.
2. Select the ‘Feedback settings’/Retour/Reaccion tab on the touchscreen.
3. Press the ‘English’/Anglais/Ingles button to reset language to English.
4. Press the ‘Spanish’/Espanol/Espanol button to reset language to
Spanish.
5. Press the ‘French’/Francais/Frances button to reset language to
French.
Or, you can also turn vehicle off to restart system. Then from the
DISCLAIMER screen, select the desired language before pressing ‘Agree’.
TROUBLESHOOTING
Symptoms Possible Cause Action
Focus Error System unable to play
reproduced disc.Contact your dealer.
Bad Disc Disc was inserted
upside down or the
system is unable to
read the information
in the disc.The mechanism will
automatically eject
disc.
Track Error The system is unable
to reproduce a corrupt
MP3 file.The system will skip
the corrupted track.
Invalid Disc Detected Dirty CD/DVD or
unsupported formatWipe the CD/DVD with
a dry, soft cloth from
the center to the outer
edge of the disc.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
General Information
116

4. Scroll using/on the
navigation screen to cycle through
the following options:
•Bluetooth On/Off
•911 Assist™(if equipped)
•Vehicle Health Report(if equipped, U.S. only)
•Incoming Call Ringer
•Text Message Notification
•Automatic Download On/Off
•Modify Phonebook
•Provider
•Candidate Lists
•Factory Defaults
•Master Reset
•Install
•System Information
Turning Bluetooth on/off
TurningBluetoothOFF will turn off access to all features to all SYNC
Bluetoothrelated features (i.e., text messaging, hands-free calling,
Bluetoothmedia streaming). Any incoming text or phone messages will
go into their respective missed folders.
To access:
1. Press the PHONE hard button on the navigation system.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
SYNCphone features (if equipped)
128

4. Scroll using/on the
navigation screen and select
‘Candidate Lists’.
5. Select ‘On’ for a higher level of
voice interaction or ‘Off’ to turn off
the voice prompts.
Returning to the factory default settings
SYNCallows you to return to its factory default settings. This selection
will not erase your downloaded phone book/call history, text messages,
etc. If you wish to erase all information, refer toPerforming a master
resetin the following section.
To access:
1. Press the PHONE hard button on the navigation system.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select ‘Advanced’.
4. Scroll using
/on the
navigation screen and select
‘Factory Defaults’.
5. SYNCwill ask you to confirm
your selection. Press YES and the
system will confirm ‘Factory
Defaults Reset’.
Candidate List
Candidate List
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
SYNCphone features (if equipped)
143

Performing a master reset
Performing a master reset will not only return all preference settings to
the factory defaults, but it will also completely erase all phone book, call
history and text messages previously downloaded to SYNC. To access:
1. Press the PHONE hard button on the navigation system.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select ‘Advanced’.
4. Scroll using
/on the
navigation screen and select ‘Master
Reset’.
5. SYNCwill ask you to confirm.
Press YES to continue.
SYNCwill confirm when the
master reset is complete.
Installing a new application
You can download new software applications (if available) and then load
the desired applications onto SYNCthrough your USB port. Please refer
to www.SyncMyRide.com for more information.
To install any downloaded software:
1. Press the PHONE hard button on the navigation system.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
SYNCphone features (if equipped)
144

•Settings:Refer toAdvanced settingsin theSYNCphone features
chapter for information on how to make adjustments to the prompts,
language, master reset, factory defaults, etc.
•Text:Press to view additional information, if available.
What’s playing?
At any time while a track is playing, SYNCwill read the metadata tags
of the track to you (if populated). Simply press
or VOICE. A tone
will sound and SYNCwill say “Main menu”. Say “USER DEVICE” and,
when prompted, ask “What’s playing?”
Supported media players, formats and metadata information
SYNCis capable of hosting nearly any digital media player, including
iPod, Zune™, “Plays from device” players, and most USB drives.
Supported audio formats include MP3, WMA, WAV and AAC.
SYNCis also able to organize and sort your indexed media from your
playing device by metadata tags. Metadata tags are descriptive software
identifiers embedded in your media files which provide information about
the media file. SYNCsupports the following metadata tags:
•Artist
•Album
•Genre
•Track
If your indexed media files contain no information embedded in these
metadata tags, SYNCwill automatically classify the empty metadata tags
as UNKNOWN.
ACCESSING AND USING YOUR USB PORT
Your vehicle is equipped with a USB port. (For exact location, refer to
your vehicle’sOwner’s guide).You can use the USB port to plug in and
access media devices as well as charge devices (if supported by your
device). For a list of compatible media players, refer to
www.SyncMyRide.com.
Note:Since your USB port allows you to charge your device (if
supported by your device), SYNCwill not automatically change media
modes when something is initially plugged into the USB port. To access:
1. Ensure that your digital playing device is plugged into the USB and is
ON.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
SYNCmedia features (if equipped)
155

Map display options ....................21
Map icons ....................................98
Map preferences .......................102
Map updates ..............................108
Message notification .................138
Modifying your phone book
and call history .........................140
N
Navigation end user license
agreement ..................................108
P
Pairing your phone through
your navigation system ............118
Performing a master reset .......144
Phone dependent features .......118
Playing a DVD in the system .....53
Playing a specific track ............162
POI categories .............................90
Q
Quick destination options ..........84
Quick reference chart ................25
Quick touch buttons ...................97
R
Rear DVD voice commands .......63
Returning to factory defaults ..143
Reverse camera ...........................24
Route preferences ....................103
S
Safety information ........................8Satellite Radio (if equipped) .....47
Saving a contact or phone
number as Quick Dial ...............122
Selecting and playing specific
albums .......................................160
Selecting and playing specific
artists .........................................159
Selecting different genres ........160
Setting a destination by voice ...84
Setting a ring tone ....................137
Setting the clock .........................27
SIRIUS Travel Link .....................73
SIRIUS Travel Link voice
commands ...................................78
Standard destination options .....86
Status bars ..................................22
Streaming music from your
phone .........................................156
Supported player, media
formats and metadata
information ................................155
SYNCmedia features .............154
SYNCphone features .............121
System introduction .....................5
System limitations ....................113
System overview ...................14, 18
System settings .........................124
T
Text messaging with your
navigation system .....................146
Troubleshooting ........................116
Turning Bluetooth on/off ..........128
Turning prompts on/off ............142
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Index
184
