2010 FORD MUSTANG sensor

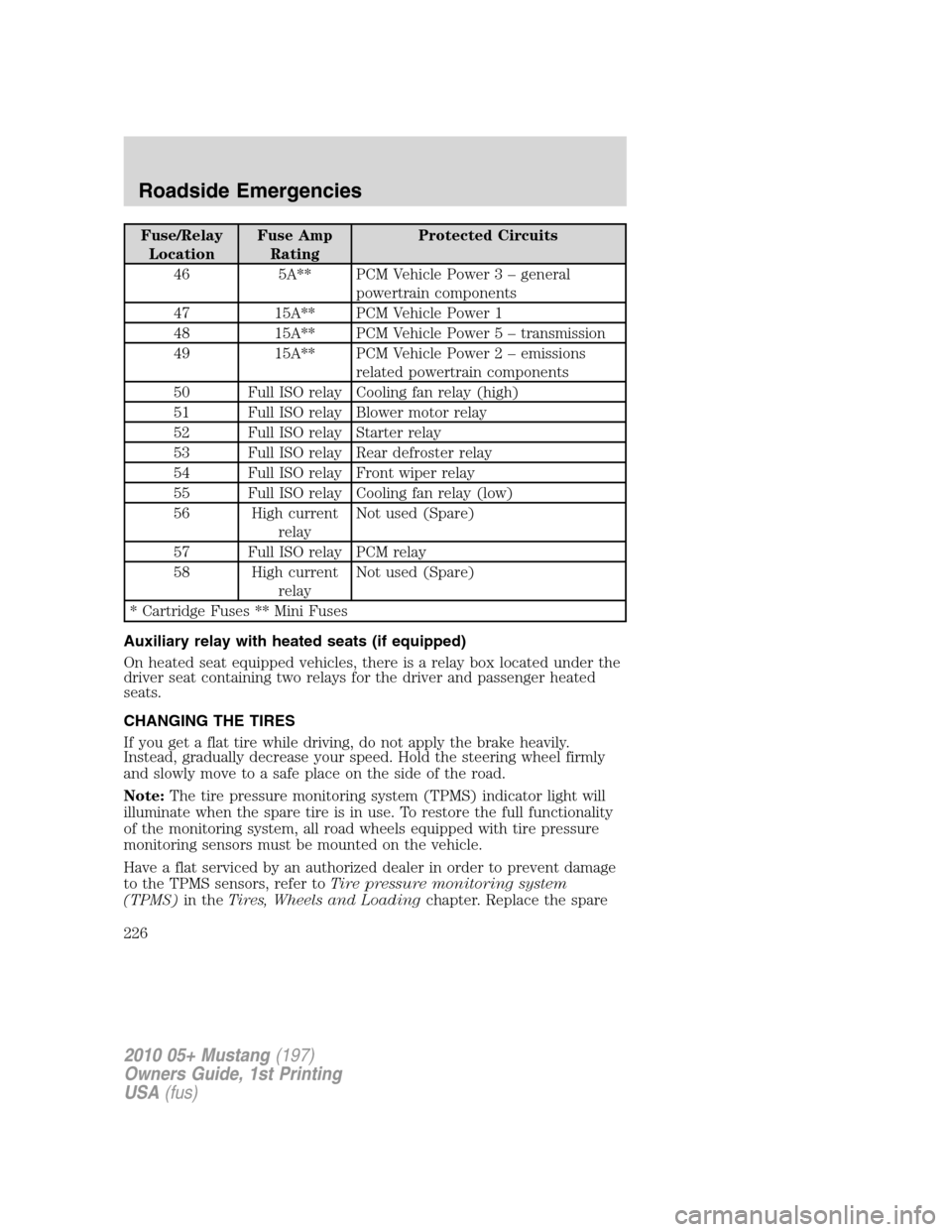

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
46 5A** PCM Vehicle Power 3 – general
powertrain components
47 15A** PCM Vehicle Power 1
48 15A** PCM Vehicle Power 5 – transmission
49 15A** PCM Vehicle Power 2 – emissions
related powertrain components
50 Full ISO relay Cooling fan relay (high)
51 Full ISO relay Blower motor relay
52 Full ISO relay Starter relay
53 Full ISO relay Rear defroster relay
54 Full ISO relay Front wiper relay
55 Full ISO relay Cooling fan relay (low)
56 High current
relayNot used (Spare)
57 Full ISO relay PCM relay
58 High current
relayNot used (Spare)
* Cartridge Fuses ** Mini Fuses
Auxiliary relay with heated seats (if equipped)
On heated seat equipped vehicles, there is a relay box located under the
driver seat containing two relays for the driver and passenger heated
seats.
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
226

tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should only be used if it is
supplied with your vehicle as part of the original temporary mobility
kit.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
227

•Never leave the temporary mobility kit unattended when it is
operating.
•Sealant compound contains latex. Make sure that you use the
non-latex gloves provided to avoid an allergic reaction.
•Keep the temporary mobility kit away from children.
•Only use the temporary mobility kit when the ambient temperature is
between -22°F (–30°C) and 158°F (70°C).
•Only use the sealing compound before the use by date. The use by
date is on the lower right hand corner of the label located on the
sealant canister (bottle).Check the use by date regularly and
replace the canister after four years.
•Do not store the temporary mobility kit unsecured inside the
passenger compartment of the vehicle as it may cause injury during a
sudden stop or collision. Always store the kit in its original location.
•After sealant use, the TPMS sensor and valve stem on the wheel must
be replaced by an authorized Ford dealer.
•When inflating a tire or other objects, use the black air hose only. Do
not use the transparent hose which is designed for sealant application
only.
•Operating the temporary mobility kit could cause an electrical
disturbance in radio and DVD player operation.
What to do when a tire is punctured
A tire puncture within the tire’s tread area can be repaired in two stages
with the temporary mobility kit:
•In the first stage, the tire will be reinflated with a sealing compound
and air. After the tire has been reinflated, you will need to drive the
vehicle a short distance (approximately 4 miles [6 km]) to distribute
the sealant in the tire.
•In the second stage, you will need to check the tire pressure and
adjust, if necessary, to the vehicle’s tire inflation pressure.
First stage: Reinflating the tire with sealing compound and air
Preparation
Park the vehicle in a safe, level and secure area, away from moving
traffic. Turn the hazard lights on. Apply the parking brake and turn the
engine off. Inspect the flat tire for visible damage.
Sealant compound contains latex. To avoid any allergic reactions, use the
non-latex gloves located in the accessory box on the underside of the
temporary mobility kit housing.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
235

Note:After the sealing compound has been used, the maximum vehicle
speed is 50 mph (80 km/h) and the maximum driving distance is
120 miles (200 km). The sealed tire should be inspected immediately.
Note:After sealant use, the TPMS sensor and valve stem on the wheel
must be replaced by an authorized Ford dealer.
You can check the tire pressure any time within the 120 miles (200 km)
by performing the procedure fromSecond stage: Checking tire
pressurelisted previously.
Removal of the Sealant Canister from the Temporary Mobility Kit
1. Unwrap the clear tube from the
compressor housing.
2. Locate the yellow cap at the end
of the clear tube.
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
239

lighting up panel and
interior .......................................61
J
Jack ............................................226
positioning ...............................226
storage .....................................226
Jump-starting your vehicle ......243
K
Keyless entry system
autolock ...............................93, 95
Keys .....................................91, 104
positions of the ignition .........194
L
Lamps
autolamp system .......................59
bulb replacement
specifications chart ..................65
daytime running light ...............61
fog lamps ...................................60
headlamps .................................59
headlamps, flash to pass ..........61
instrument panel, dimming .....61
interior lamps .....................64–65
replacing bulbs .........................66
LATCH anchors .........................152
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........200
Limited slip axle (see Traction
Loc) ............................................207
Load limits .................................184
Locks ............................................92
autolock ...............................93, 95
doors ..........................................92
Lubricant specifications ...........301Lug nuts ....................................241
Lumbar support, seats .............113
M
Manual transmission .................212
fluid capacities ........................301
lubricant specifications ..........301
reverse .....................................213
Message center .....................20–22
display color ..............................24
english/metric button ...............26
MyColor display ........................24
system check button ................22
warning messages .....................29
Mirrors ...................................79–80
automatic dimming rearview
mirror ........................................80
heated ........................................54
side view mirrors (power) .......80
Motorcraft parts ........264, 283, 300

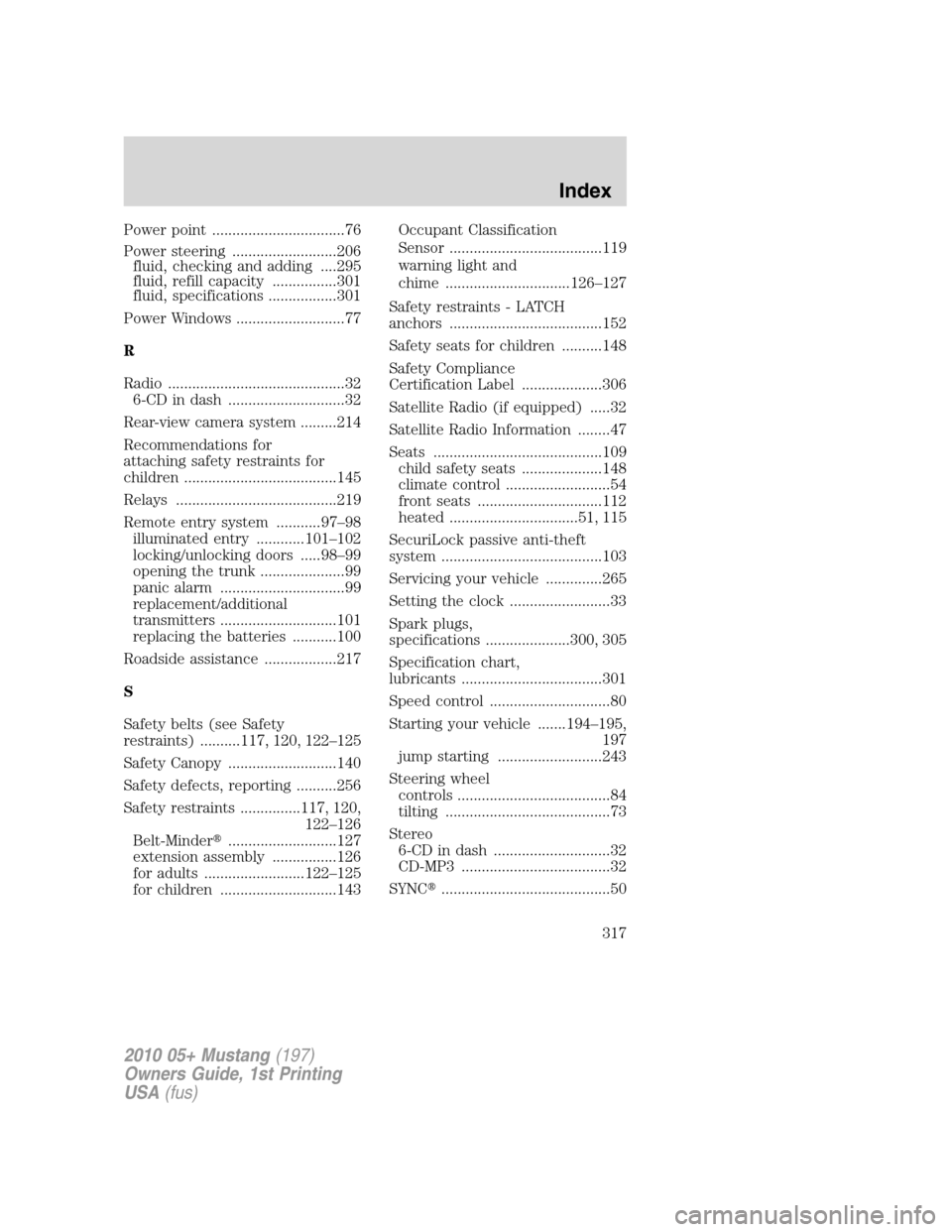

N
Navigation system .......................50
O
Octane rating ............................287
Oil (see Engine oil) ..................270
P
Parking brake ............................200
Parts (see Motorcraft parts) ....300
Passenger Occupant
Classification Sensor .................119
Power distribution box (see
Fuses) ........................................223
Power mirrors .............................80
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Index
316

Power point .................................76
Power steering ..........................206
fluid, checking and adding ....295
fluid, refill capacity ................301
fluid, specifications .................301
Power Windows ...........................77
R
Radio ............................................32
6-CD in dash .............................32
Rear-view camera system .........214
Recommendations for
attaching safety restraints for
children ......................................145
Relays ........................................219
Remote entry system ...........97–98
illuminated entry ............101–102
locking/unlocking doors .....98–99
opening the trunk .....................99
panic alarm ...............................99
replacement/additional
transmitters .............................101
replacing the batteries ...........100
Roadside assistance ..................217
S
Safety belts (see Safety
restraints) ..........117, 120, 122–125
Safety Canopy ...........................140
Safety defects, reporting ..........256
Safety restraints ...............117, 120,
122–126
Belt-Minder
...........................127
extension assembly ................126
for adults .........................122–125
for children .............................143Occupant Classification
Sensor ......................................119
warning light and
chime ...............................126–127
Safety restraints - LATCH
anchors ......................................152
Safety seats for children ..........148
Safety Compliance
Certification Label ....................306
Satellite Radio (if equipped) .....32
Satellite Radio Information ........47
Seats ..........................................109
child safety seats ....................148
climate control ..........................54
front seats ...............................112
heated ................................51, 115
SecuriLock passive anti-theft
system ........................................103
Servicing your vehicle ..............265
Setting the clock .........................33
Spark plugs,
specifications .....................300, 305
Specification chart,
lubricants ...................................301
Speed control ..............................80
Starting your vehicle .......194–195,
197
jump starting ..........................243
Steering wheel
controls ......................................84
tilting .........................................73
Stereo
6-CD in dash .............................32
CD-MP3 .....................................32
SYNC
..........................................50
2010 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
Index
317
