The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Electronically-controlled continuously variable
transmission, eCVTH
Maintenance and Specifications
306
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Company’s specifications, and we stand behind them. Maintenance parts
installed at your Ford or Lincoln Mercury dealership carry a nationwide,
12 months, 12,000 mile (20,000 km) parts and labor limited warranty.
Your dealer can give you details.
Value shopping for your vehicle’s maintenance needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your Ford and
Lincoln Mercury dealers can offer.
WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner Checks and Services
Refer to Mileage Intervals for Additional Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this Owner’s
Guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Maximum Oil Change Interval
❑12 months, 10,000 miles (16,000 km) or 200 hours of engine operation.
Engine Coolant change interval
❑6 years or 100,000 miles (160,000 km) - change engine coolant (whichever comes first)❑After initial change - change engine coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Scheduled Maintenance Guide
311
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
NORMAL SCHEDULED MAINTENANCE AND LOG
The following section contains the “Normal Schedule”. This schedule is
presented at specific mileage (kilometer) intervals with exceptions
noted.
Additional information available on the Web at
www.genuineservice.com or www.ford.ca
To learn more about the importance of routine and dealer-performed
maintenance on your vehicle, please visit the Ford Customer Service
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, air bag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check low voltage (underhood) battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Multi-point inspection - Recommended at every visit
❑Check and top up fluid levels: brake, engine coolant recovery reservoir, motor/electronics reservoir and window washer.❑Inspect tires for wear and correct air pressure.
❑Check exhaust system for leaks, damage, loose parts and foreign materials.
❑Check low voltage (underhood) battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers and heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect half-shaft dust boots.
❑Check shocks, struts and other suspension components for leaks and damage.
Scheduled Maintenance Guide
312
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

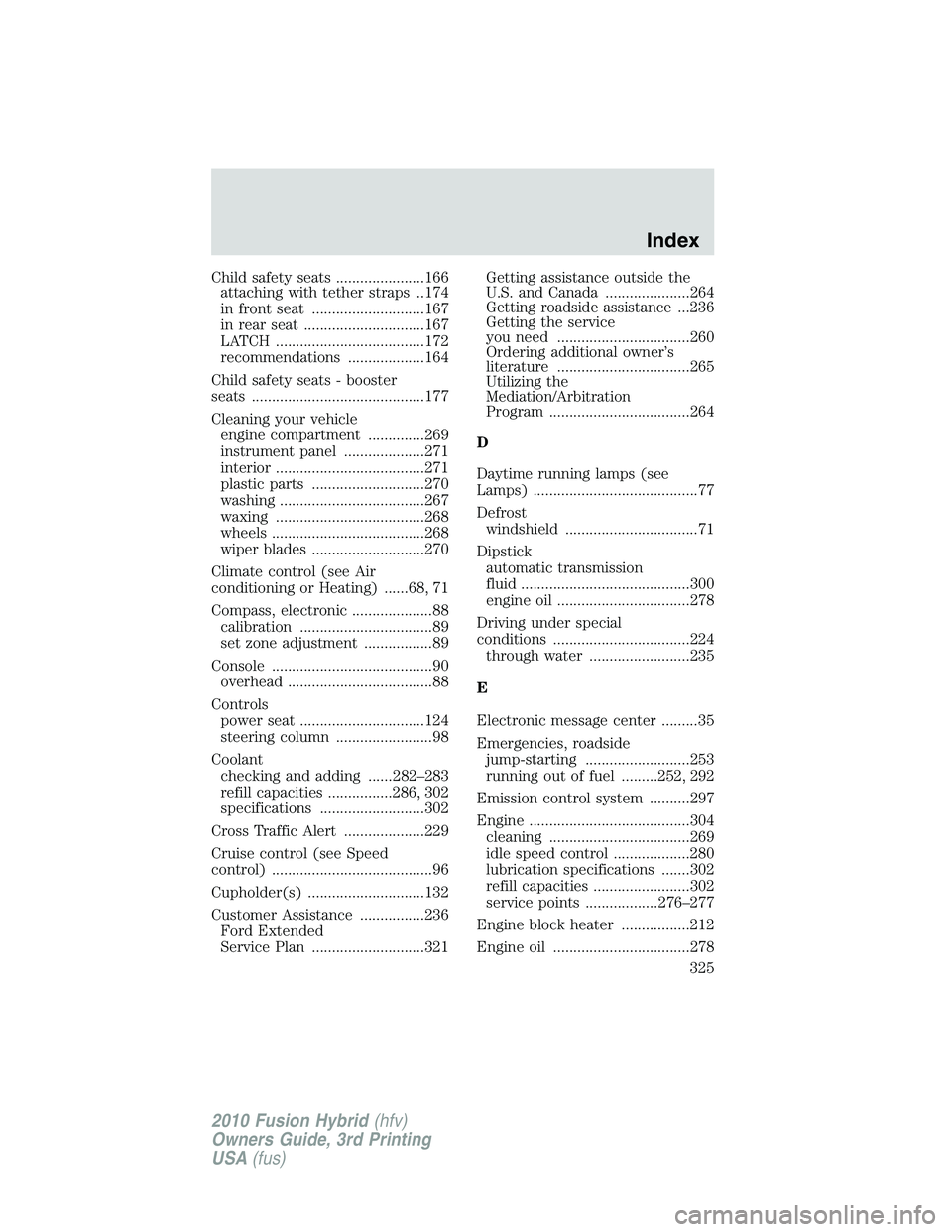

Child safety seats ......................166
attaching with tether straps ..174
in front seat ............................167
in rear seat ..............................167
LATCH .....................................172
recommendations ...................164
Child safety seats - booster
seats ...........................................177
Cleaning your vehicle
engine compartment ..............269
instrument panel ....................271
interior .....................................271
plastic parts ............................270
washing ....................................267
waxing .....................................268
wheels ......................................268
wiper blades ............................270
Climate control (see Air
conditioning or Heating) ......68, 71
Compass, electronic ....................88
calibration .................................89
set zone adjustment .................89
Console ........................................90
overhead ....................................88
Controls
power seat ...............................124
steering column ........................98
Coolant
checking and adding ......282–283
refill capacities ................286, 302
specifications ..........................302
Cross Traffic Alert ....................229
Cruise control (see Speed
control) ........................................96
Cupholder(s) .............................132
Customer Assistance ................236
Ford Extended
Service Plan ............................321Getting assistance outside the
U.S. and Canada .....................264
Getting roadside assistance ...236
Getting the service
you need .................................260
Ordering additional owner’s
literature .................................265
Utilizing the
Mediation/Arbitration
Program ...................................264
D
Daytime running lamps (see
Lamps) .........................................77
Defrost
windshield .................................71
Dipstick
automatic transmission
fluid ..........................................300
engine oil .................................278
Driving under special
conditions ..................................224
through water .........................235
E
Electronic message center .........35
Emergencies, roadside
jump-starting ..........................253
running out of fuel .........252, 292
Emission control system ..........297
Engine ........................................304
cleaning ...................................269
idle speed control ...................280
lubrication specifications .......302
refill capacities ........................302
service points ..................276–277
Engine block heater .................212
Engine oil ..................................278
Index
325
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

K
Keyless entry system
autolock ...................................103
keypad .....................................114
locking and unlocking doors ..115
programming entry code .......114
Keys ...................................102, 117
positions of the ignition .........209
L
Lamps
autolamp system .......................76
bulb replacement
specifications chart ..................82
daytime running light ...............77
fog lamps ...................................77
headlamps .................................76
headlamps, flash to pass ..........78
instrument panel, dimming .....78
interior lamps .....................80, 83
replacing bulbs .........................83
LATCH anchors .........................172
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........214
Load limits .................................201
Locks
autolock ...................................103
childproof ................................107
doors ........................................103
Lubricant specifications ...........302
Lug nuts ....................................252
Lumbar support, seats .............124
M
Message center ...........................35
system check button ................45
warning messages .....................46Mirrors ...................................95–96
automatic dimming rearview
mirror ........................................95
heated ........................................96
side view mirrors (power) .......96
Moon roof ....................................99
Motorcraftparts ..............273, 301
N
Navigation system .......................67
O
Octane rating ............................291
Oil (see Engine oil) ..................278
P
Parking brake ............................215
Parts (see Motorcraft
parts) .........................................301
Passenger Occupant
Classification Sensor .................133
Power distribution box
(see Fuses) ...............................242
Power door locks ......................103
Power mirrors .............................96
Power point .................................91
Power steering ..................220–221
Power Windows ...........................93
R
Radio ............................................51
Rear-view camera system .........227
Index
327
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)
