Seating and Safety Restraints 88
Seating 88
Safety restraints 96
Airbags 110
Child restraints 125
Tires, Wheels and Loading 144
Tire information 144
Tire inflation 146
Tire Pressure Monitoring System (TPMS) 158
Vehicle loading 163
Trailer towing 169
Recreational towing 169
Driving 171
Starting 171
Brakes 176
AdvanceTrac179
Transmission operation 184
Roadside Emergencies 190
Getting roadside assistance 190
Hazard flasher control 191
Fuel pump shut-off switch 192
Fuses and relays 192
Changing tires 199
Wheel lug nut torque 204
Jump starting 205
Wrecker towing 211
Customer Assistance 213
Reporting safety defects (U.S. only) 219
Reporting safety defects (Canada only) 219
Cleaning 220
Table of Contents
2
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

2. To calibrate, press and hold the 7
and 9 radio preset buttons together
for approximately 10 seconds until
CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h])
until the CAL display changes to the
direction value (N, S, E, W, etc.). It
may take up to five circles to
complete calibration.
4. The compass is now calibrated.
CENTER CONSOLE
Your vehicle has a variety of console features. These include:
•Cupholders
•Utility compartment
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlet is designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power points are located near the bottom of the center
stack.
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
Driver Controls
58
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

•Do not fill the power steering fluid reservoir above the MAX mark on
the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brakelamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown and the brakelamps are working properly, the
following procedure will allow you to move the gearshift lever from P
(Park):
Driving
183
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Note:With extended use, the flasher may run down your battery.
FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
This switch is located in the front
passenger’s footwell, behind the kick
panel access cover.
To reset the switch:
1. Turn the ignition off.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pressing in on the reset
button.
4. Turn the ignition to the on position.
5. Wait a few seconds and return the key to off.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
192
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

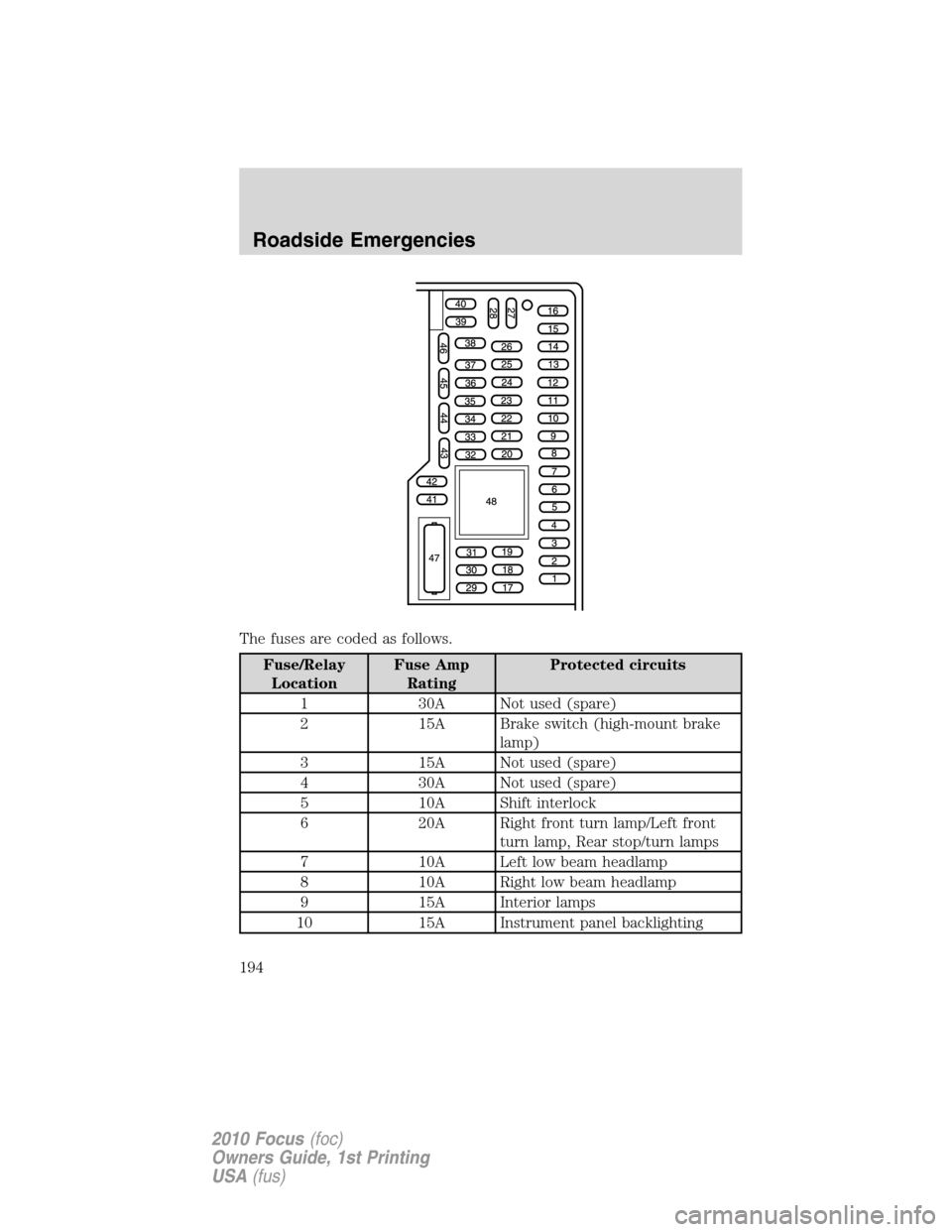

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 30A Not used (spare)
2 15A Brake switch (high-mount brake
lamp)
3 15A Not used (spare)
4 30A Not used (spare)
5 10A Shift interlock
6 20A Right front turn lamp/Left front
turn lamp, Rear stop/turn lamps
7 10A Left low beam headlamp
8 10A Right low beam headlamp
9 15A Interior lamps
10 15A Instrument panel backlighting
Roadside Emergencies
194
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
11 10A Not used (spare)
12 7.5A Power mirrors
13 5A SYNC
14 10A Not used (spare)
15 10A Recirculated air, Air conditioning
16 15A Not used (spare)
17 20A Power locks, Trunk release
18 20A Heated seats
19 25A Not used (spare)
20 15A Data link connector
21 15A Fog lamps, Fog lamp indicator
22 15A Parking lamps
23 15A High beam lamps
24 20A Horn
25 10A Demand lamps, Trunk lamps
26 10A Instrument cluster
27 20A Ignition switch
28 5A Radio (Start)
29 5A Instrument cluster (Run/Start)
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraints control module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Anti-lock brake system (ABS)
36 5A Passive anti-theft system (PATS)
module
37 10A Climate control (Run/Start)
38 20A Subwoofer
39 20A Radio, Center information display,
Electronic finish panel
Roadside Emergencies
195
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
40 20A Not used (spare)
41 15A Door lock/sunroof switch
illumination, Auto dimming rear
view mirror, Ambient lighting
42 10A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Front wipers (logic)
46 7.5A Front passenger sensing system
47 30A (circuit
breaker)Sunroof, Power windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
196
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

To remove a fuse, use the fuse puller tool provided on the inside of the
passenger compartment fuse panel cover.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 15A Heated mirror
2 30A Rear defrost
3 20A Power point
4 20A Fuel pump
5 10A Powertrain control module (PCM)
keep alive power, Canister Vent
6 15A Alt sense
7 10A Reverse lamps
8 — Not used
9 40A Anti-lock brake system (ABS)
motor
10 30A Wipers
11 30A Starter
12 40A Blower
13 10A A/C clutch
14 10A PCM relay coil
15 20A Power point
16 20A Cooling fan—low
17 30A Cooling fan—high
Roadside Emergencies
197
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
