CHANGING A FLAT TIRE
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR). This temporary spare tire is
not equipped with a tire pressure monitoring system (TPMS) sensor.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer toTire Pressure Monitoring System
(TPMS)in theTires, Wheels, and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
WARNING:Refer toTire Pressure Monitoring System (TPMS)
in theTire, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
Roadside Emergencies
199
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

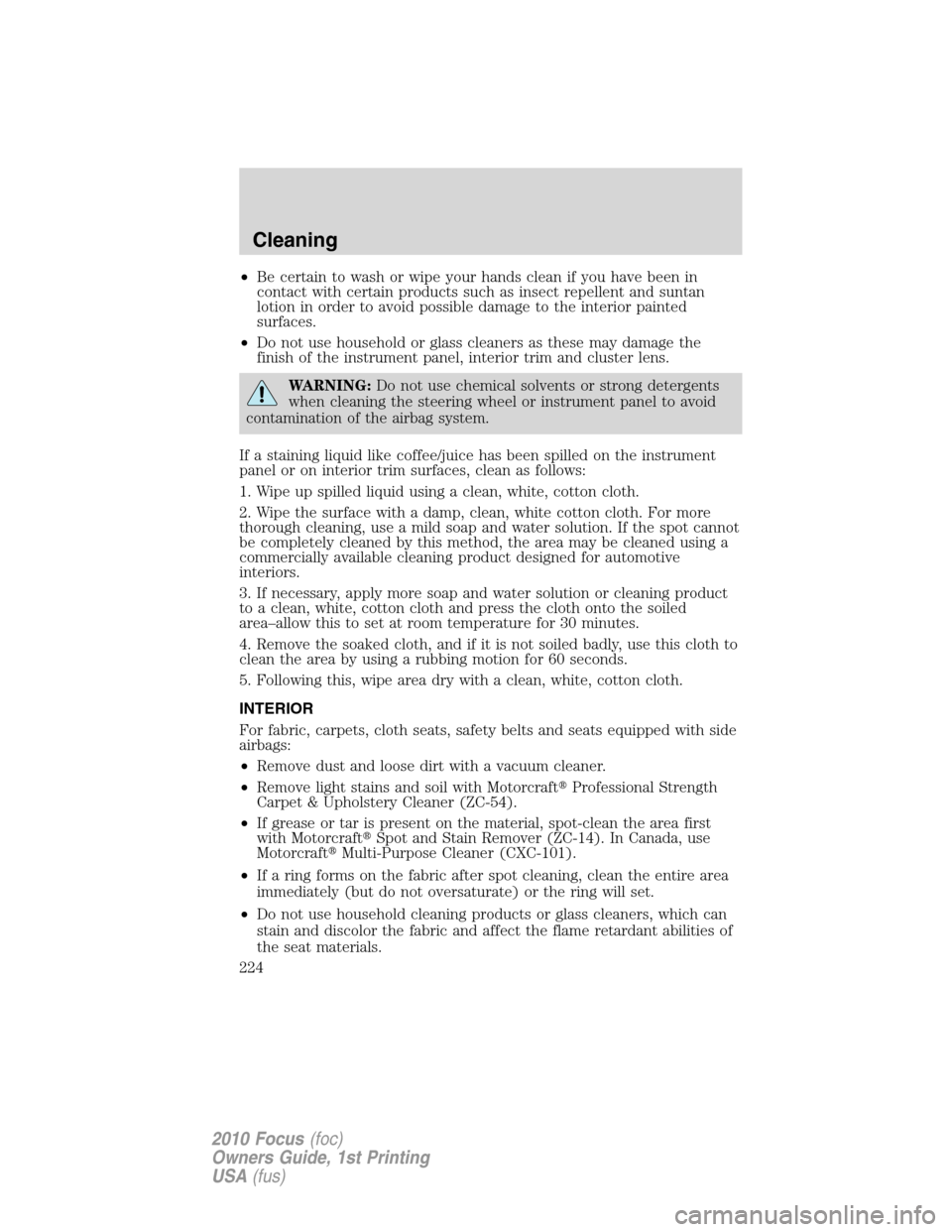

•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
•Do not use household or glass cleaners as these may damage the
finish of the instrument panel, interior trim and cluster lens.
WARNING:Do not use chemical solvents or strong detergents
when cleaning the steering wheel or instrument panel to avoid
contamination of the airbag system.
If a staining liquid like coffee/juice has been spilled on the instrument
panel or on interior trim surfaces, clean as follows:
1. Wipe up spilled liquid using a clean, white, cotton cloth.
2. Wipe the surface with a damp, clean, white cotton cloth. For more
thorough cleaning, use a mild soap and water solution. If the spot cannot
be completely cleaned by this method, the area may be cleaned using a
commercially available cleaning product designed for automotive
interiors.
3. If necessary, apply more soap and water solution or cleaning product
to a clean, white, cotton cloth and press the cloth onto the soiled
area–allow this to set at room temperature for 30 minutes.
4. Remove the soaked cloth, and if it is not soiled badly, use this cloth to
clean the area by using a rubbing motion for 60 seconds.
5. Following this, wipe area dry with a clean, white, cotton cloth.
INTERIOR
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with MotorcraftProfessional Strength
Carpet & Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with MotorcraftSpot and Stain Remover (ZC-14). In Canada, use
MotorcraftMulti-Purpose Cleaner (CXC-101).
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
Cleaning
224
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
1. Engine oil filler cap
2. Brake/Clutch fluid reservoir
3. Power distribution box
4. Battery
5. Air filter
6. Automatic transmission fluid dipstick (if equipped)
7. Engine oil dipstick
8. Power steering fluid reservoir
9. Engine coolant reservoir
10. Windshield washer fluid reservoir
Maintenance and Specifications
230
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
Maintenance and Specifications
241
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

POWER STEERING FLUID
Check the fluid. Refer toscheduled
maintenance information.
1. Start the engine and let it run
until it reaches normal operating
temperature.
2. Turn the steering wheel left and
right several times.
3. Turn the engine off.
4. Check the fluid level.
5. If the fluid is below the MIN line, add fluid in small amounts until it
reaches the correct level (between the MIN and MAX lines). Refer to
Maintenance product specifications and capacitiesin this chapter for
the proper fluid type.
BRAKE/CLUTCH FLUID
Brake and clutch systems are supplied from the same reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Maintenance and Specifications
253
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine oil 4.5 quarts (4.3L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)
3
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant 5.3 quarts (5.0 L)MotorcraftPremium
Gold Engine Coolant
with bittering agent
(yellow-colored)
4
VC-7-B /
WSS-M97B51-A1
Cooling system stop
leak pellets—MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Maintenance and Specifications
259
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Cleaning your vehicle
engine compartment ..............222
instrument panel ....................223
interior .....................................224
plastic parts ............................222
washing ....................................220
waxing .....................................221
wheels ......................................221
wiper blades ............................223
Climate control (see Air
conditioning or Heating) ............42
Clock adjust
AM/FM/CD .................................25
Clutch
fluid ..........................................253
operation while driving ..........187
recommended shift speeds ....188
Compass, electronic ....................56
calibration .................................57
set zone adjustment .................57
Console ........................................58
Controls
steering column ........................64
Coolant
checking and adding ..............236
refill capacities ................239, 258
specifications ..........................258
Cruise control
(see Speed control) ....................61
Customer Assistance ................190
Ford Extended Service
Plan ..........................................267
Getting assistance outside the
U.S. and Canada .....................217
Getting roadside assistance ...190
Getting the service you
need .........................................213
Ordering additional owner’s
literature .................................218Utilizing the
Mediation/Arbitration
Program ...................................217
D
Daytime running lamps
(see Lamps) ................................46
Dipstick
automatic transmission
fluid ..........................................253
engine oil .................................232
Driving under special
conditions ..................................187
through water .........................189
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................205
Emergency Flashers .................191
Emission control system ..........250
Engine ................................261–262
cleaning ...................................222
coolant .....................................236
fail-safe cooling .......................240
idle speed control ...................234
lubrication specifications .......258
refill capacities ........................258
service points ..................230–231
starting after a collision .........192
Engine block heater .................174
Engine fan .................................230
Engine oil ..................................232
change oil soon warning,
message center .......................232
checking and adding ..............232
dipstick ....................................232
Index
271
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

K
Keyless entry system
autolock .....................................69
Keys .............................................79
positions of the ignition .........171
L
Lamps
bulb replacement
specifications chart ..................50
daytime running light ...............46
fog lamps ...................................45
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....46
interior lamps .....................48–50
replacing bulbs .........................51
LATCH anchors .........................135
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........177
Load limits .................................163
Locks
autolock .....................................69
childproof ..................................72
doors ..........................................68
Lubricant specifications ...........258
Lug nuts ....................................204
M
Manual transmission .................187
fluid capacities ........................258
lubricant specifications ..........258
reverse .....................................188
Message center ...........................18
english/metric button ...............21
system check button ................21
warning messages .....................21Mirrors ...................................60–61
automatic dimming rearview
mirror ........................................60
heated ........................................61
side view mirrors (power) .......61
Moon roof ....................................66
Motorcraftparts ..............226, 257
MyKey ..........................................81
O
Octane rating ............................245
Oil (see Engine oil) ..................232
P
Parental MyKey programming ...81
Parking brake ............................178
Parts
(see Motorcraftparts) ...........257
Passenger Occupant
Classification Sensor ...................97
Power distribution box
(see Fuses) ...............................196
Power door locks ........................68
Power mirrors .............................61
Power point .................................58
Power steering ..........................182
fluid, checking and adding ....253
fluid, refill capacity ................258
fluid, specifications .................258
Power Windows ...........................59
R
Radio ............................................25
Index
273
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
