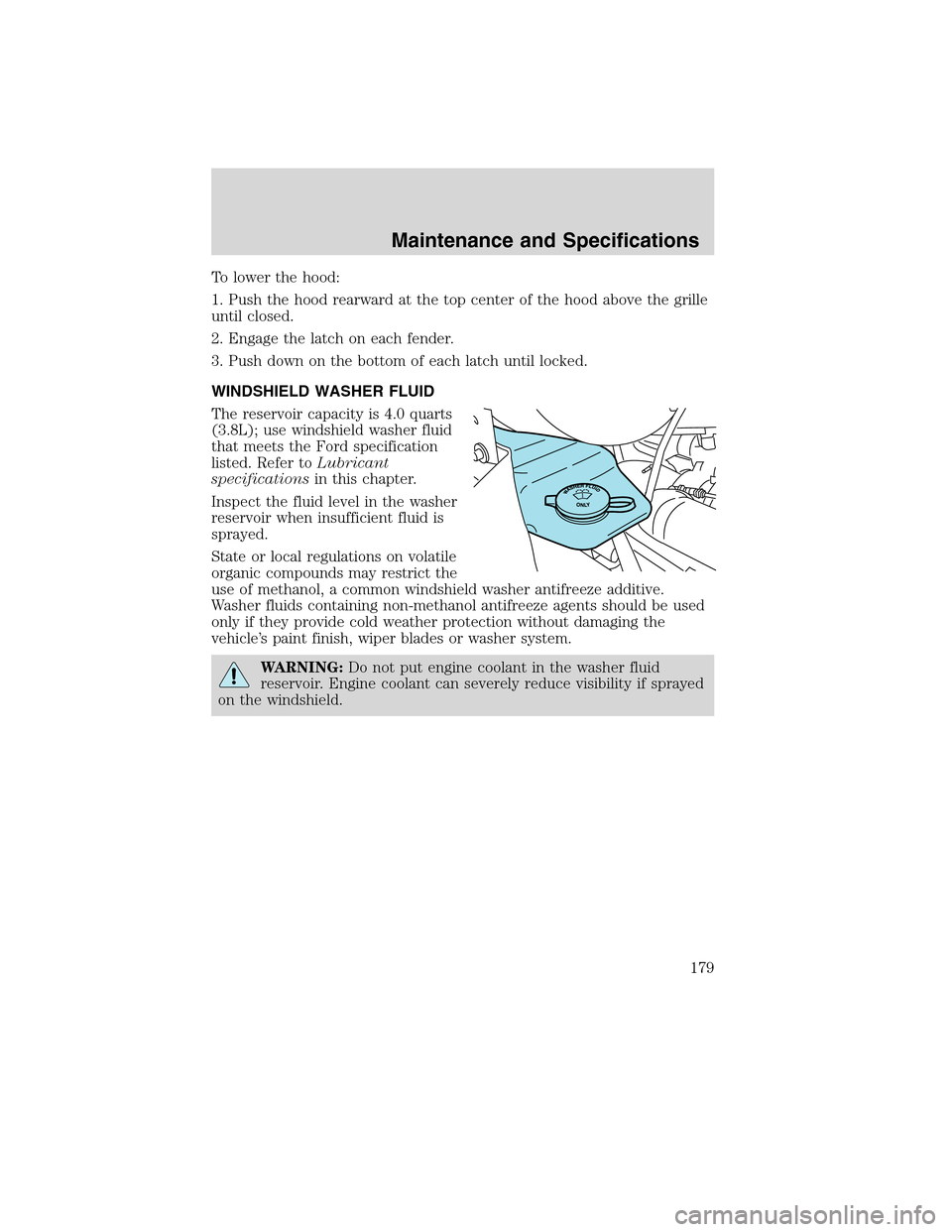

To lower the hood:
1. Push the hood rearward at the top center of the hood above the grille
until closed.
2. Engage the latch on each fender.
3. Push down on the bottom of each latch until locked.
WINDSHIELD WASHER FLUID
The reservoir capacity is 4.0 quarts
(3.8L); use windshield washer fluid
that meets the Ford specification
listed. Refer toLubricant
specificationsin this chapter.
Inspect the fluid level in the washer
reservoir when insufficient fluid is
sprayed.
State or local regulations on volatile
organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:Do not put engine coolant in the washer fluid
reservoir. Engine coolant can severely reduce visibility if sprayed
on the windshield.
Maintenance and Specifications
179
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
Engine coolant and oil
Engine typeEngine coolant
(approximate
capacity) *Engine oil
(approximate
capacity)
Caterpillar57.0 pints
(27.0L)Refer to engine
operator’s
manual.
Cummins52.0 pints
(24.6L)
* Add the coolant type originally equipped in your vehicle.
Power steering system
Steering gear Power steering fluid volume
TAS40 17.6 pints
TAS66 18.4 pints
Transmission
Description Pints (Liters)
Allison 2000 Series 30.0 (14.2)*
Allison 3000 Series 37.6 (17.8)*
FS-5205A 5–speed manual 12.5 (5.9)
FS-5406A/5406N and FS-6406A/FSO–6406A 6–speed
manuals19.5 (9.2)
ES56–7B/ES066–7B 7–speed manual 22.0 (10.4)
*Total fluid capacity (dry transmission and torque converter).
Air conditioner refrigerant - r134a
Lb. (Kg) Oz.
2.50 (1.13) 40
Note:This system uses PAG-type refrigerant oil.
Refrigerant fitting torque
Captured washer nut: 170–190 inch lb. (19–21 N•m)
Note:This system uses mineral based refrigerant oil to lubricate o-rings
and fittings.
Maintenance and Specifications
232
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
Coolant ......................................183
refill capacities ........................232
specifications ..........................218
temperature gauge ...................28
Cruise control
(see Speed control) ....................59
Customer Assistance ........142, 159
Ford accessories for your
vehicle .....................................167
Getting assistance outside
the U.S. and Canada ......159, 161
Getting roadside assistance ...142
Getting the service you
need .........................................159
Ordering additional owner’s
literature .................................162
D
Daytime running lamps
(see Lamps) ................................49
Defrost ...................................46–47
windshield ...........................46–47
with heating and air
conditioning system .................47
with standard heating
system .......................................46
Diesel Particulate Filter
(DPF) ........................................190
Doors
lubricant specifications ..........218
Driving under special
conditions
through water ...........................96
E
Emergencies, roadside
jump-starting ..........................151
Emission control system ..194, 237catalytic converter ..................175
Engine
cleaning ...................................165
coolant .....................................183
idle shutdown ...........................96
lubrication specifications .......218
Engine fan .................................184
Engine oil ..................................180
oil pressure gauge ....................28
refill capacities ........................232
specifications ..........................218
Event data recording ....................6
F
Fan, Engine Cooling .................184
Flashers, hazard ........................143
Fuel ............................................184
calculating fuel economy .......188
capacity ...................................233
choosing the right fuel ...........185
filling your vehicle with fuel ..184
filter, specifications ................184
gauge .........................................28
improving fuel economy ........188
running out of fuel ...........94, 187
safety information relating to
automotive fuels .....................184
Fuses ..................................143, 151
G
Gas mileage
(see Fuel economy) .................188
Gauges .........................................28
battery voltage gauge ...............28
engine coolant temperature
gauge .........................................28
engine oil pressure gauge ........28
fuel gauge ..................................28
Index
271
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
