Trailer tow relays (if equipped)
Fuse/Relay
LocationFuse Amp
RatingDescription
1 30A* Trailer tow ABS feed (non electric trailer
brake vehicles only)
2 30A* Trailer tow park/marker lamps
3 30A* Trailer tow stop lamps
4 30A* Trailer tow turn/stop lamps (combined)
Trailer tow turn lamps (separate)
5 — Not used
R1 — Trailer tow ABS relay (non electric trailer
brake vehicles only)
R2 — Trailer tow marker lamp relay
R3 — Trailer tow stop lamp relay
R4 — Trailer tow tail lamp relay
R5 — Not used
R6 — Not used
R7 — Trailer tow left turn lamp relay
R8 — Trailer tow right turn lamp relay
*Maxi fuse
Roadside Emergencies
150
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

Preparing your vehicle
1.Use only a 12–volt supply to start your vehicle.Do not attach the
jumper cables to the glow plug relay as this could severely damage the
glow plugs, injector driver module and PCM.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle making
sure the two vehiclesdo nottouch. Set the parking brake on both vehicles
and stay clear of the engine cooling fan and other moving parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
+–+–
+–+–
Roadside Emergencies
152
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

ON-HIGHWAY - 60,000 MILES (96,000 KM) OR MORE ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•
Wheel bearing - grease type - repack•••••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check level••••••••••
Park brake relay lever / linkage - lubricate••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•
Power steering filter - replacement Five years or 500,000 miles (800,000 km)
Steering gear Ross TAS - output shaft - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Scheduled Maintenance Guide
248
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

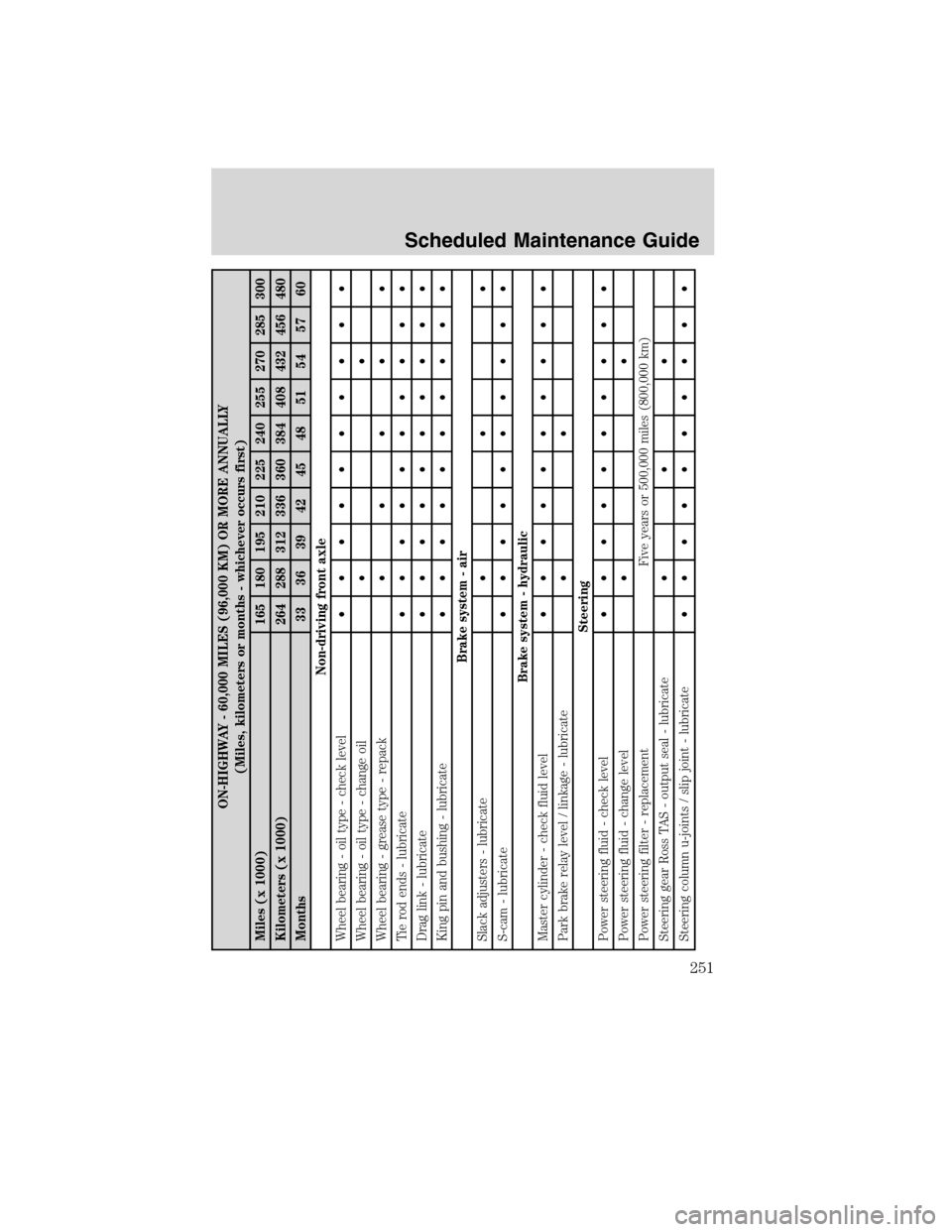

ON-HIGHWAY - 60,000 MILES (96,000 KM) OR MORE ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack•••••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay level / linkage - lubricate••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change level••
Power steering filter - replacement Five years or 500,000 miles (800,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Scheduled Maintenance Guide
251
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Scheduled Maintenance Guide
254
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rode ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Scheduled Maintenance Guide
257
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level•••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check fluid level••••••••••
Power steering fluid - change fluid••
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joints - lubricate••••••••••
Scheduled Maintenance Guide
260
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement•
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Scheduled Maintenance Guide
263
