2010 FORD F650 windshield wipers

MULTI-FUNCTION LEVER
Windshield wiper/washer controls
Rotate the windshield wiper control
to the desired interval, low or high
speed position.
The bars of varying length are for
intermittent wipers. When in this
position rotate the control upward
for fast intervals and downward for
slow intervals.
Press the control on the end of the
stalk to activate washer. Press and
hold for a longer wash cycle. The
washer will automatically shut off
after 10 seconds of continuous use.
TILT STEERING
Pull the tilt steering control toward
you to move the steering wheel up
or down. Hold the control while
adjusting the wheel to the desired
position, then release the control to
lock the steering wheel in position.
Driver Controls
54
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

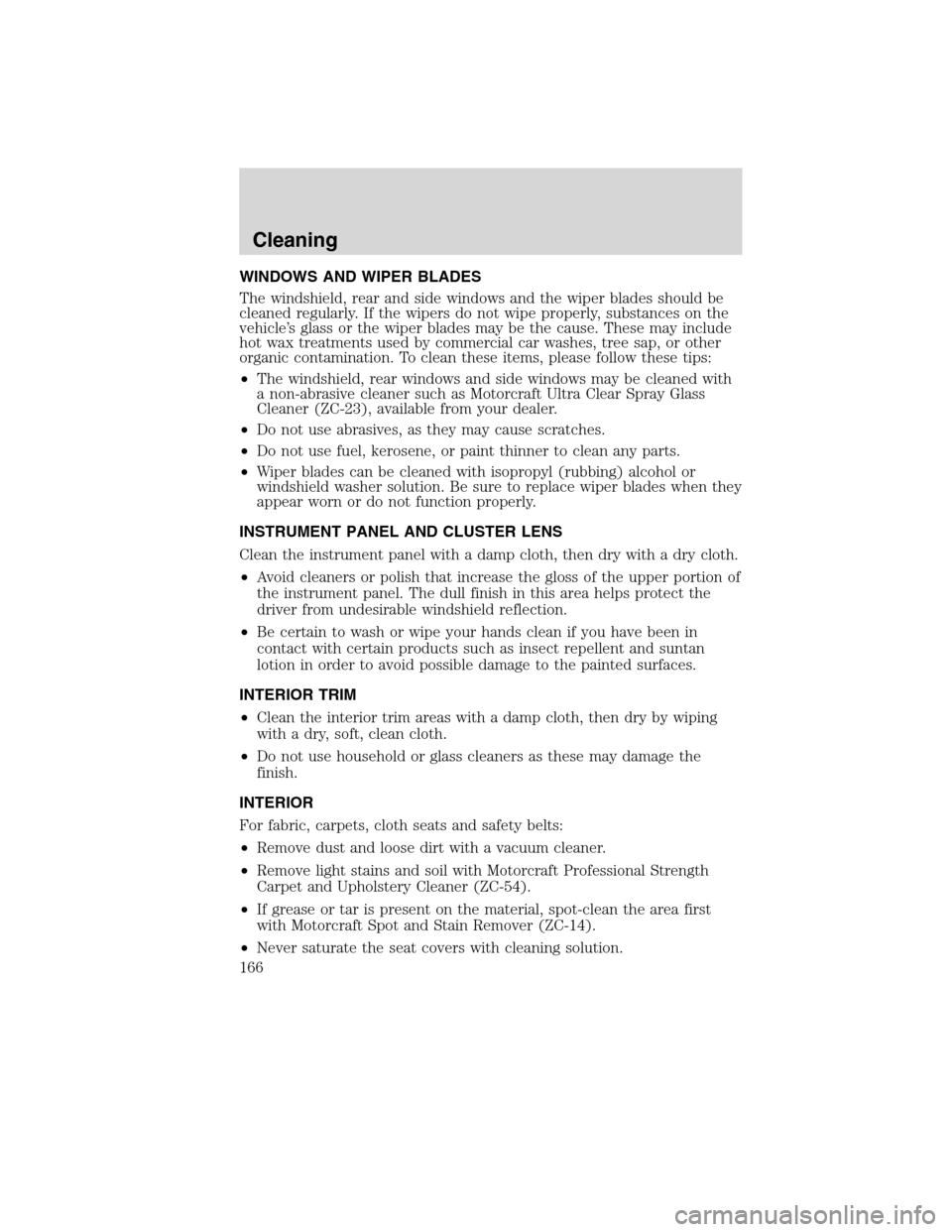

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, tree sap, or other
organic contamination. To clean these items, please follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23), available from your dealer.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
•Wiper blades can be cleaned with isopropyl (rubbing) alcohol or
windshield washer solution. Be sure to replace wiper blades when they
appear worn or do not function properly.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then dry with a dry cloth.
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the painted surfaces.
INTERIOR TRIM
•Clean the interior trim areas with a damp cloth, then dry by wiping
with a dry, soft, clean cloth.
•Do not use household or glass cleaners as these may damage the
finish.
INTERIOR
For fabric, carpets, cloth seats and safety belts:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with Motorcraft Professional Strength
Carpet and Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with Motorcraft Spot and Stain Remover (ZC-14).
•Never saturate the seat covers with cleaning solution.
Cleaning
166
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

Daily owner checks
EngineCheck the air filter restriction gauge.
Check the engine oil.
Inspect the coolant level
Brake systemCheck the air brake system reservoir
automatic drain valve operation.
Drain the air brake system reservoir -
manual valve.
Transmission systemVisually check the automatic
transmission for fluid leakage.
Steering systemCheck the power steering pump fluid
level and check the system for leaks.
Check the entire vehicle for evidence
of fluid leaks.
U.S. Department of
Transportation, Federal
Highway Administration
requirements (ensure that
the entire system is
functioning properly)Check the service brakes.
Check the parking brake.
Check the steering mechanism.
Check the lighting devices and
reflectors.
Check the tires.
Check the horn.
Check the windshield wipers.
Check the rear vision mirrors.
Check the wheels and rims.
Check the emergency equipment.
Scheduled Maintenance Guide
243
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

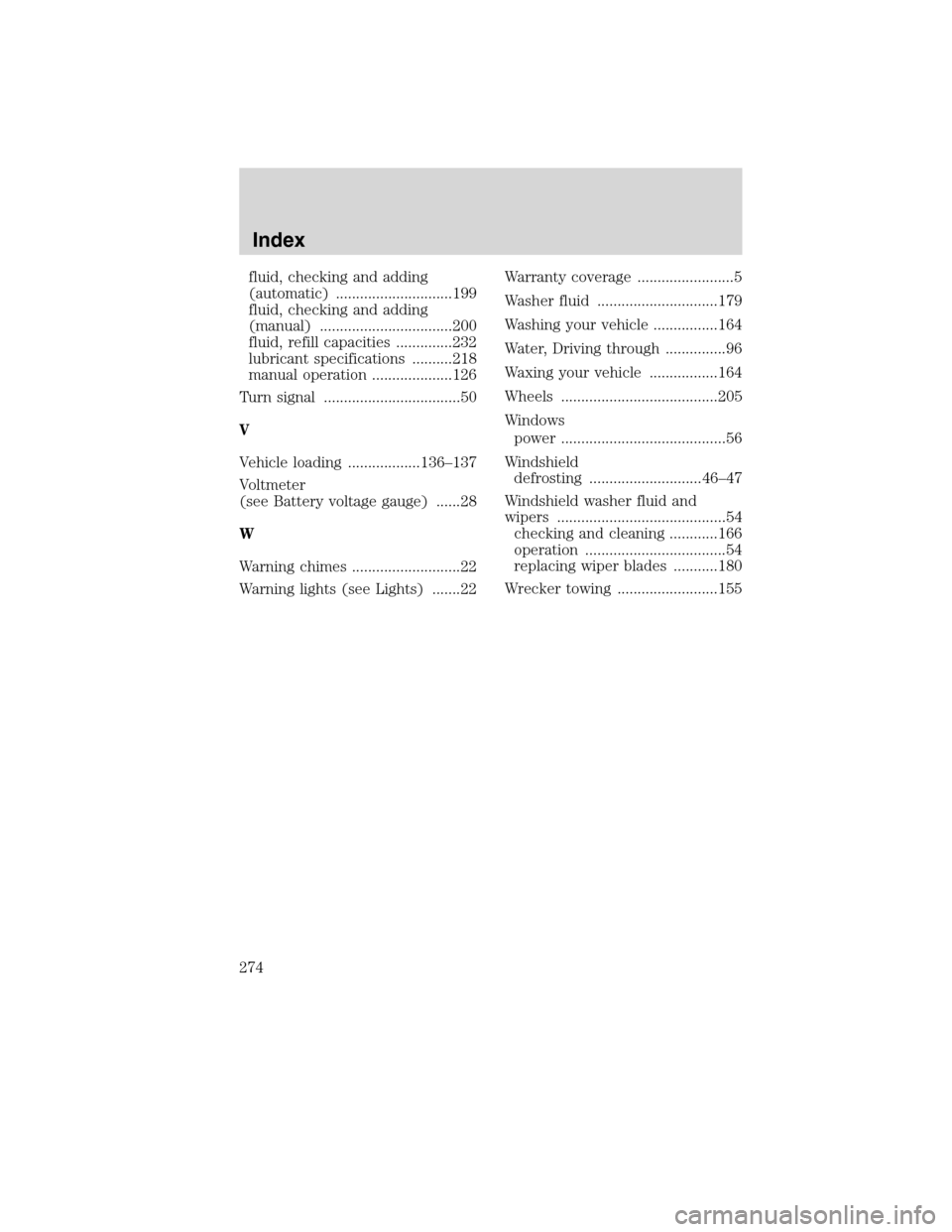

fluid, checking and adding
(automatic) .............................199
fluid, checking and adding
(manual) .................................200
fluid, refill capacities ..............232
lubricant specifications ..........218
manual operation ....................126
Turn signal ..................................50
V
Vehicle loading ..................136–137
Voltmeter
(see Battery voltage gauge) ......28
W
Warning chimes ...........................22
Warning lights (see Lights) .......22Warranty coverage ........................5
Washer fluid ..............................179
Washing your vehicle ................164
Water, Driving through ...............96
Waxing your vehicle .................164
Wheels .......................................205
Windows
power .........................................56
Windshield
defrosting ............................46–47
Windshield washer fluid and
wipers ..........................................54
checking and cleaning ............166
operation ...................................54
replacing wiper blades ...........180
Wrecker towing .........................155
Index
274
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
