2010 FORD F650 cruise control

The mirror heating elements are designed to operate regardless of the
geographic location of the vehicle. There is no switch to turn on, or
other operator involvement required other than to start the vehicle.
The spotter mirror (if equipped) is not heated.
Foldaway mirrors
The mirrors can be manually folded
forward or backwards for narrow
spaces like driving through an
automatic car wash or backing out
of a garage with the trailer tow
mirror.
The telescoping feature (if
equipped) allows the mirror to
extend approximately three inches
(76 mm). This feature is especially
useful to the driver when towing a
trailer.
SPEED CONTROL (IF EQUIPPED)
To turn speed control on
Press CRUISE RPM. If the vehicle is
moving, speed control will be
enabled; if the vehicle is stationary,
engine RPM can be controlled.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery, or unpaved.
Do not shift the gearshift lever into N (Neutral) with the speed
control on.
CRUISE
RPM
OFF
Driver Controls
59
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

To turn speed control off
Press OFF or turn off the ignition.
Once speed control is switched off,
the previously programmed engine
RPM will be erased.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery, or unpaved.
To set a speed
Press SET –. If the vehicle is
moving, this will set the vehicle
speed. If the vehicle is stationary,
this will set the vehicle idle RPM.
If you drive up or down a steep hill, your vehicle speed may vary
momentarily slower or faster than the set speed; this is normal.
Speed control cannot reduce the vehicle speed if it increases above the
set speed on a downhill. If your vehicle speed is faster than the set
speed while driving on a downhill, you may want to shift to the next
lower gear or apply the brakes to reduce your vehicle speed.
If the vehicle speed falls below 30 mph (48 km/h) or engine RPM falls
below 1,000 RPM, your speed control will disengage; this is normal.
Pressing RESUME + will re-engage it.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery, or unpaved.
CRUISE
RPM
OFF
SET RESUME
Driver Controls
60
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

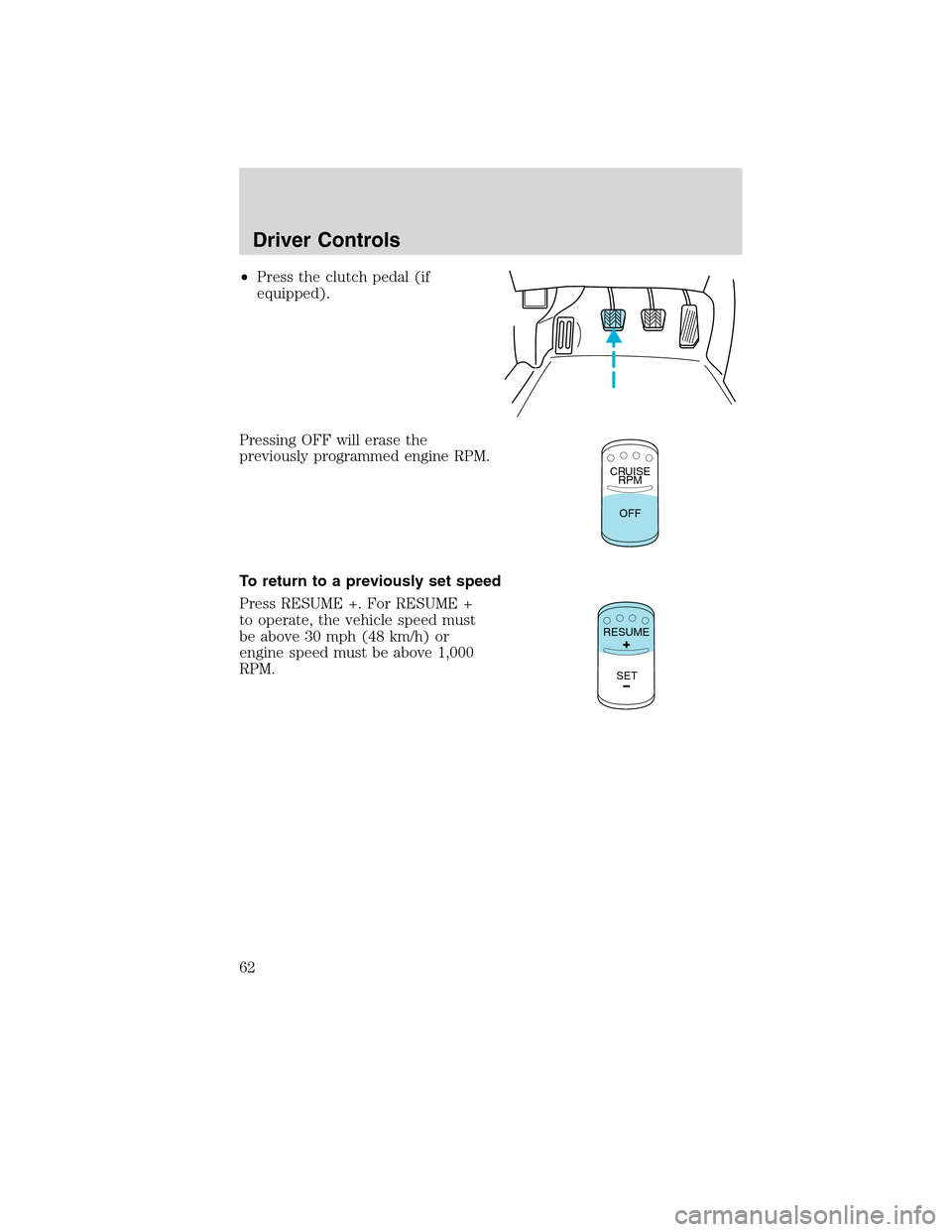

•Press the clutch pedal (if
equipped).
Pressing OFF will erase the
previously programmed engine RPM.
To return to a previously set speed
Press RESUME +. For RESUME +
to operate, the vehicle speed must
be above 30 mph (48 km/h) or
engine speed must be above 1,000
RPM.
CRUISE
RPM
OFF
SET RESUME
Driver Controls
62
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingFuse Description
12 10A Brake pedal position switch, Transmission
shift selector, Stoplamp switch, Cruise
switches
13 20A Cluster, Radio
14 10A Interior lamp relay
15 10A Interior lamp relay, Vanity mirror lamps,
Generic Electronic Module (GEM)
16 15A High beams, Indicator
17 — Not used
18 5A Headlamp switch interior lighting
19 15A Engine control
20 5A Starting system
21 10A DRL resistor
22 15A Air horn, Air suspension dump, Two-speed
axle, Driver-controlled locking differential
23 10A Flasher relay
24 15A Vacuum pump motor, ABS relay, Fuel heater
relay, Air dryer
25 10A Function selector switch assembly
26 10A Right hand low beam headlamp
27 — Not used
28 10A Left hand low beam headlamp
29 10A Cluster, GEM
30 15A Allison electronic transmission
31 — Not used
Relay 1 — Interior lamps
Relay 2 — Not used
Relay 3 — Horn
Relay 4 — One-touch down window
Relay 5 — Not used
Roadside Emergencies
145
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

Coolant ......................................183
refill capacities ........................232
specifications ..........................218
temperature gauge ...................28
Cruise control
(see Speed control) ....................59
Customer Assistance ........142, 159
Ford accessories for your
vehicle .....................................167
Getting assistance outside
the U.S. and Canada ......159, 161
Getting roadside assistance ...142
Getting the service you
need .........................................159
Ordering additional owner’s
literature .................................162
D
Daytime running lamps
(see Lamps) ................................49
Defrost ...................................46–47
windshield ...........................46–47
with heating and air
conditioning system .................47
with standard heating
system .......................................46
Diesel Particulate Filter
(DPF) ........................................190
Doors
lubricant specifications ..........218
Driving under special
conditions
through water ...........................96
E
Emergencies, roadside
jump-starting ..........................151
Emission control system ..194, 237catalytic converter ..................175
Engine
cleaning ...................................165
coolant .....................................183
idle shutdown ...........................96
lubrication specifications .......218
Engine fan .................................184
Engine oil ..................................180
oil pressure gauge ....................28
refill capacities ........................232
specifications ..........................218
Event data recording ....................6
F
Fan, Engine Cooling .................184
Flashers, hazard ........................143
Fuel ............................................184
calculating fuel economy .......188
capacity ...................................233
choosing the right fuel ...........185
filling your vehicle with fuel ..184
filter, specifications ................184
gauge .........................................28
improving fuel economy ........188
running out of fuel ...........94, 187
safety information relating to
automotive fuels .....................184
Fuses ..................................143, 151
G
Gas mileage
(see Fuel economy) .................188
Gauges .........................................28
battery voltage gauge ...............28
engine coolant temperature
gauge .........................................28
engine oil pressure gauge ........28
fuel gauge ..................................28
Index
271
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
