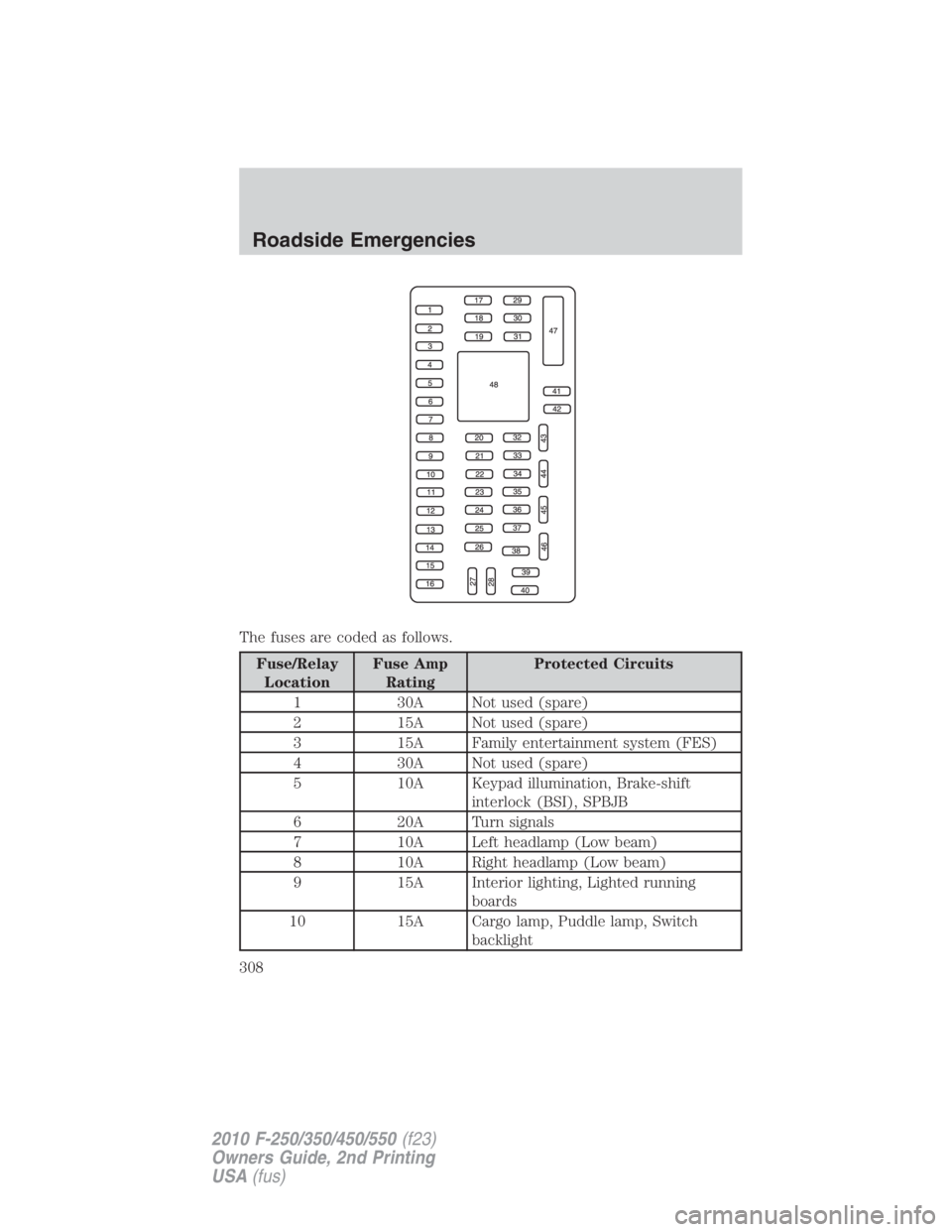

The fuses are coded as follows.
Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
1 30A Not used (spare)
2 15A Not used (spare)
3 15A Family entertainment system (FES)
4 30A Not used (spare)
5 10A Keypad illumination, Brake-shift
interlock (BSI), SPBJB
6 20A Turn signals
7 10A Left headlamp (Low beam)
8 10A Right headlamp (Low beam)
9 15A Interior lighting, Lighted running
boards
10 15A Cargo lamp, Puddle lamp, Switch
backlightRoadside Emergencies
308
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
tilting .......................................121
SYNC ..........................................97
T
Tailgate ......................................143
Temperature control (see
Climate control) ..........................98
Tilt steering wheel ....................121
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....237
Tires ...................................219–220
alignment ................................229
care ..........................................225
changing ..........................318, 320
checking the pressure ............224
inflating ...................................221
label .........................................236
replacing ..................................227
rotating ....................................229
safety practices .......................228
sidewall information ...............231
snow tires and chains ............243
spare tire .................................316
terminology .............................220
tire grades ...............................220
treadwear ........................219, 226
Towing .......................................251
recreational towing .................262
Trailer Brake
Controller-Integrated ..............256
trailer towing ..........................251
wrecker ....................................336
Traction control ........................271
Trailer Brake
Controller-Integrated ................256 Transfer case
fluid checking .........................388
Transmission
automatic operation ...............275
brake-shift interlock (BSI) ....274
fluid, checking and adding
(automatic) .............................384
fluid, checking and adding
(manual) .................................387
fluid, refill capacities ..............391
manual operation ....................278
Turn signal ................................112
U
Upfitter controls .......................137
USB port ......................................60
V
Vehicle Identification Number
(VIN) ..........................................396
Vehicle loading ..........................244
Ventilating your vehicle ...........267
W
Warning lights (see Lights) .......14
Washer fluid ..............................359
Water, Driving through .............299
Windows
power .......................................124
Windshield washer fluid and
wipers ........................................120
checking and adding fluid .....359
replacing wiper blades ...........359
Wrecker towing .........................336Index
408
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
