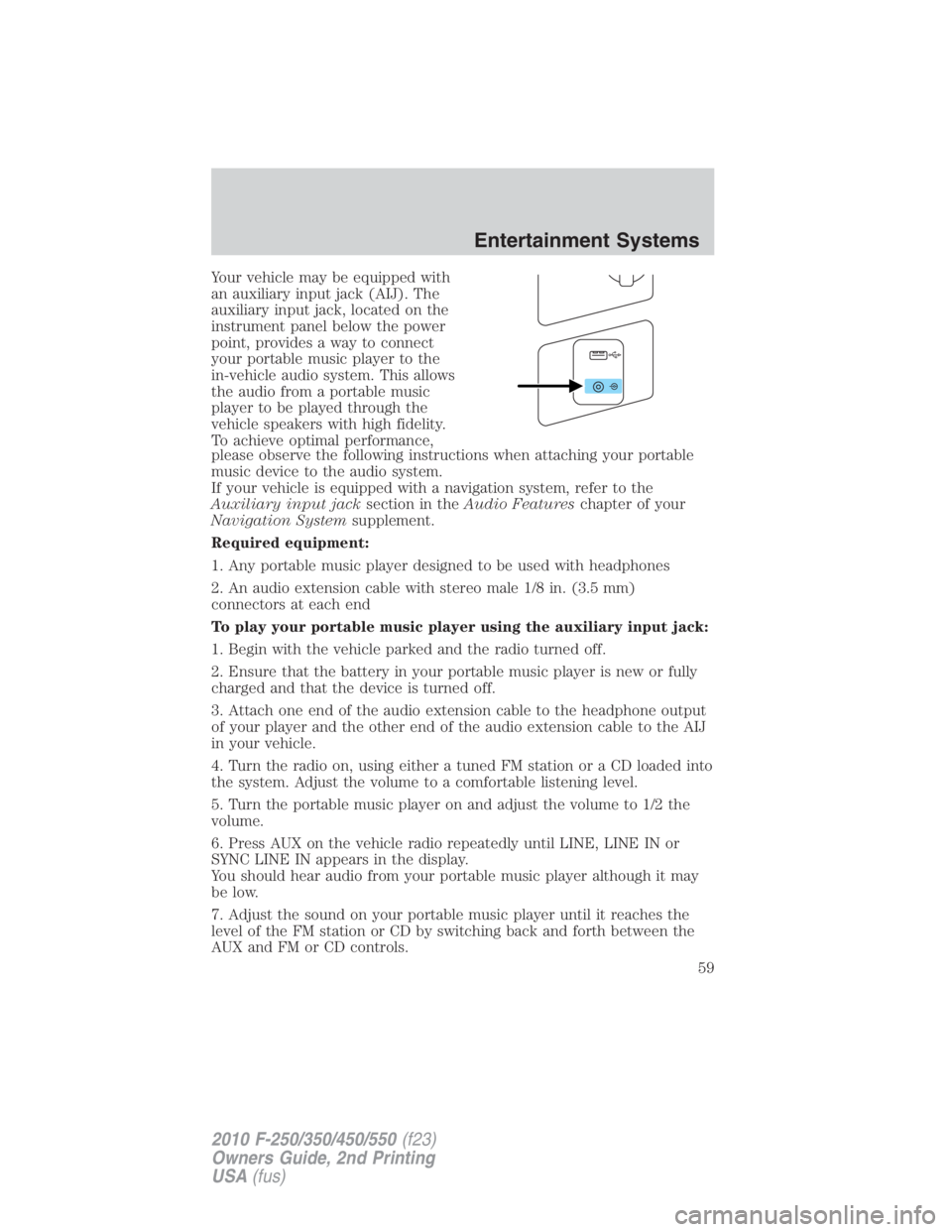

Your vehicle may be equipped with
an auxiliary input jack (AIJ). The
auxiliary input jack, located on the
instrument panel below the power
point, provides a way to connect
your portable music player to the
in-vehicle audio system. This allows
the audio from a portable music
player to be played through the
vehicle speakers with high fidelity.
To achieve optimal performance,
please observe the following instructions when attaching your portable
music device to the audio system.
If your vehicle is equipped with a navigation system, refer to the
Auxiliary input jack section in the Audio Features chapter of your
Navigation System supplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or
SYNC LINE IN appears in the display.
You should hear audio from your portable music player although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls. Entertainment Systems
59
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
The high-current fuses are coded as follows:
Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
1 Relay Blower motor/Variable blower control
(Dual zone climate control)
2 Relay Electronic shift-on-the-fly (ESOF)
Lo-Hi
3 Relay Heater mirror
4 — Not used
5 30A* Trailer brake controller (TBC)
6 40A* Anti-lock brake system (ABS) module
(Pump)
7 30A* Upfitter auxiliary switch #1
8 30A* Upfitter auxiliary switch #2 Roadside Emergencies
311
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

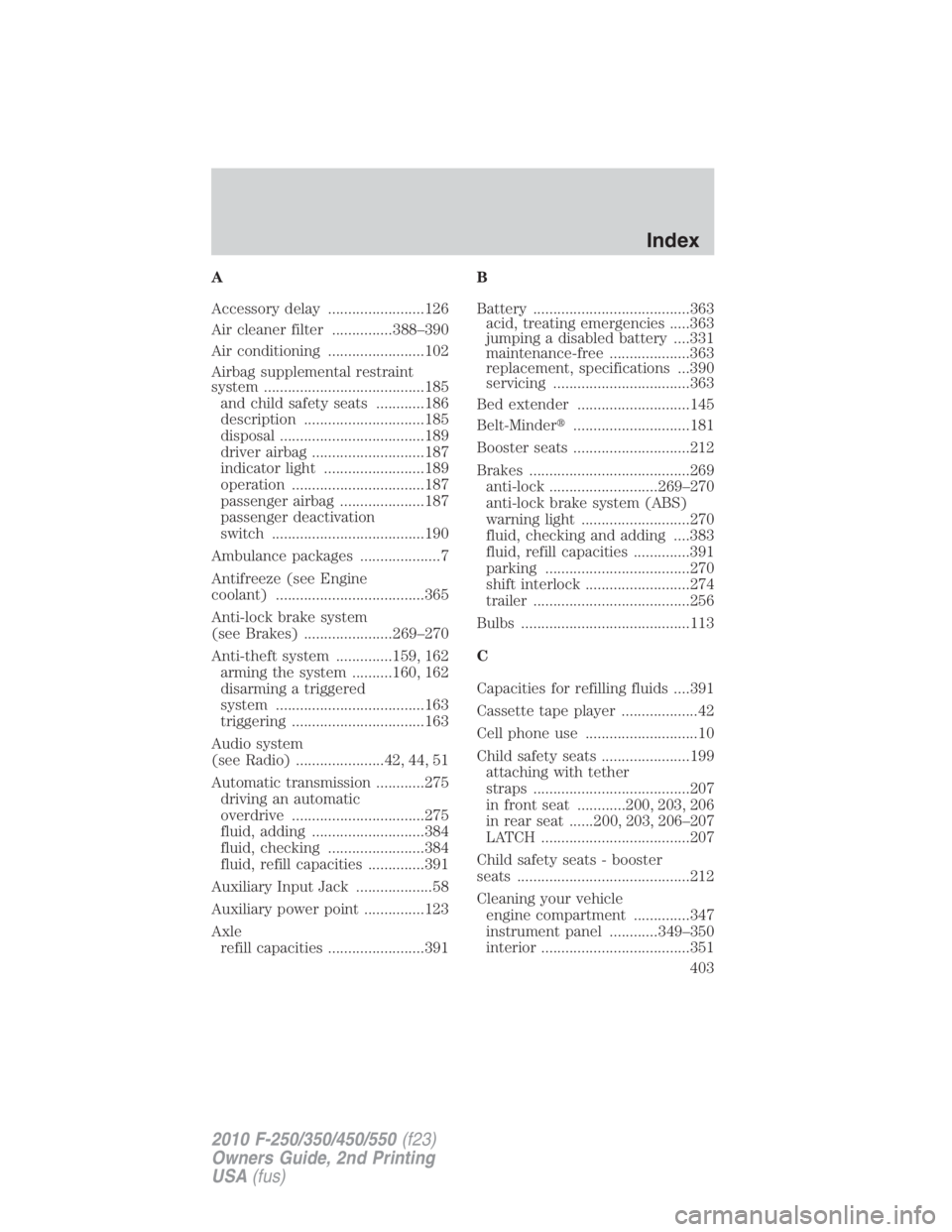

A
Accessory delay ........................126
Air cleaner filter ...............388–390
Air conditioning ........................102
Airbag supplemental restraint
system ........................................185
and child safety seats ............186
description ..............................185
disposal ....................................189
driver airbag ............................187
indicator light .........................189
operation .................................187
passenger airbag .....................187
passenger deactivation
switch ......................................190
Ambulance packages ....................7
Antifreeze (see Engine
coolant) .....................................365
Anti-lock brake system
(see Brakes) ......................269–270
Anti-theft system ..............159, 162
arming the system ..........160, 162
disarming a triggered
system .....................................163
triggering .................................163
Audio system
(see Radio) ......................42, 44, 51
Automatic transmission ............275
driving an automatic
overdrive .................................275
fluid, adding ............................384
fluid, checking ........................384
fluid, refill capacities ..............391
Auxiliary Input Jack ...................58
Auxiliary power point ...............123
Axle
refill capacities ........................391 B
Battery .......................................363
acid, treating emergencies .....363
jumping a disabled battery ....331
maintenance-free ....................363
replacement, specifications ...390
servicing ..................................363
Bed extender ............................145
Belt-Minder .............................181
Booster seats .............................212
Brakes ........................................269
anti-lock ...........................269–270
anti-lock brake system (ABS)
warning light ...........................270
fluid, checking and adding ....383
fluid, refill capacities ..............391
parking ....................................270
shift interlock ..........................274
trailer .......................................256
Bulbs ..........................................113
C
Capacities for refilling fluids ....391
Cassette tape player ...................42
Cell phone use ............................10
Child safety seats ......................199
attaching with tether
straps .......................................207
in front seat ............200, 203, 206
in rear seat ......200, 203, 206–207
LATCH .....................................207
Child safety seats - booster
seats ...........................................212
Cleaning your vehicle
engine compartment ..............347
instrument panel ............349–350
interior .....................................351 Index
