Illuminated entry
The interior lamps and parking lamps illuminate when the remote entry
system is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
• the ignition switch is turned to the on position, or
• the remote transmitter lock control is pressed, or
• the 7 • 8 and the 9 • 0 controls on the keyless entry keypad are
pressed, or
• after 25 seconds of illumination.
The dome lamp control (if equipped) must not be set to the off position
for the illuminated entry system to operate.
The lights will not turn off if:
• they have been turned on with the dimmer control, or
• any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the off position, 10 minutes after if the dome
lamp is off, and 30 minutes after if the dome lamp switch is left on.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry
keypad to lock or unlock the doors
without using a key.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s wallet card in the glove box, is
marked on the computer module, and is available from your authorized
dealer. You can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory seats, mirrors and pedals
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1 • 2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other. Locks and Security
157
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Heated seats (if equipped)
The heated seat control is located on the climate control panel.
WARNING: Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note: Do not do the following:
• Place heavy objects on the seat.
• Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
To operate the heated seats, do the following (engine must be running):
Press to activate; push again to deactivate.
The indicator light on the control will illuminate when activated.
Memory seats/power mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat, power
mirrors, and adjustable pedals to
two programmable positions.
The memory seat control is located
on the driver door.
To save memory positions:
1. Place the key in the ignition to
move the features to the drive
position.
2. Move all the memory features to the desired positions.
3. Press and hold one of the memory buttons for approximately two
seconds.
4. A tone will be heard when the memory save is complete. Seating and Safety Restraints
169
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Insert the tongue into the correct
buckle (the buckle closest to the
direction the tongue is coming
from). To lengthen the belt, turn the
tongue at a right angle to the belt
and pull across your lap until it
reaches the buckle. To tighten the
belt, pull the loose end of the belt
through the tongue until it fits
snugly across the hips.
Shorten and fasten the belt when
not in use.
Safety belt warning light and indicator chime
The safety belt warning light illuminates in the instrument cluster and a
chime sounds to remind the occupants to fasten their safety belts.Seating and Safety Restraints
180
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Conditions of operation
If... Then...
The driver’s safety belt is not
buckled before the ignition switch
is turned to the on position... The safety belt warning light
illuminates 1-2 minutes and the
warning chime sounds
4-8 seconds.
The driver’s safety belt is buckled
while the indicator light is
illuminated and the warning chime
is sounding... The safety belt warning light and
warning chime turn off.
The driver’s safety belt is buckled
before the ignition switch is turned
to the on position... The safety belt warning light and
indicator chime remain off.
Belt-Minder
The Belt-Minder
feature is a supplemental warning to the safety belt
warning function. This feature provides additional reminders to the
driver that the driver’s safety belt is unbuckled by intermittently
sounding a chime and illuminating the safety belt warning lamp in the
instrument cluster.
If... Then...
The driver’s safety belt is not
buckled before the vehicle has
reached at least 3 mph (5 km/h)
and 1-2 minutes have elapsed
since the ignition switch has been
turned to the on position... The Belt-Minder
feature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds
every 30 seconds, repeating for
approximately five minutes or until
safety belt is buckled.
The driver’s safety belt is buckled
while the safety belt indicator light
is illuminated and the safety belt
warning chime is sounding... The Belt-Minder
feature will not
activate.
The driver’s safety belt is buckled
before the ignition switch is turned
to the on position... The Belt-Minder
feature will not
activate.Seating and Safety Restraints
181
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

The following are reasons most often given for not wearing safety belts
(All statistics based on U.S. data):
Reasons given... Consider...
“Crashes are rare
events” 36700 crashes occur every day. The more we
drive, the more we are exposed to “rare” events,
even for good drivers. 1in4ofuswillbe
seriously injured in a crash during our lifetime.
“I’m not going far” 3of4 fatal crashes occur within 25 miles (40 km)
of home.
“Belts are
uncomfortable” We design our safety belts to enhance comfort. If
you are uncomfortable - try different positions for
the safety belt upper anchorage and seatback which
should be as upright as possible; this can improve
comfort.
“I was in a hurry” Prime time for an accident. Belt-Minder

reminds us to take a few seconds to buckle up.
“Safety belts don’t
work” Safety belts, when used properly, reduce risk of
death to front seat occupants by 45% in cars, and
by 60% in light trucks.
“Traffic is light” Nearly 1 of 2 deaths occur in single-vehicle
crashes, many when no other vehicles are around.
“Belts wrinkle my
clothes” Possibly, but a serious crash can do much more
than wrinkle your clothes, particularly if you are
unbelted.
“The people I’m
with don’t wear
belts” Set the example, teen deaths occur 4 times more
often in vehicles with TWO or MORE people.
Children and younger brothers/sisters imitate
behavior they see.
“I have an airbag” Airbags offer greater protection when used with
safety belts. Frontal airbags are not designed to
inflate in rear and side crashes or rollovers.
“I’d rather be
thrown clear” Not a good idea. People who are ejected are 40
times more likely to DIE. Safety belts help
prevent ejection, WE CAN’T “PICK OUR CRASH”.Seating and Safety Restraints
182
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

WARNING: Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minder
chime. To
do so may adversely affect the performance of the vehicle’s airbag
system.
One-time disable
Any time the safety belt is buckled and then unbuckled during an
ignition on cycle, the Belt-Minder
will be disabled for that ignition cycle
only.
Deactivating/activating the Belt-Minder  feature (Driver only)
The Belt-Minder
feature can be deactivated/activated by performing the
following procedure:
Before following the procedure, make sure that the following conditions
are met:
• the parking brake is set
• the gearshift is in P (Park)
• the ignition switch is in the off position
• all vehicle doors are closed
• the driver’s safety belt is unbuckled
• the parklamps/headlamps are in the off position
WARNING: While the design allows you to deactivate your
Belt-Minder
, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Minder
system activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minder
feature while driving the vehicle.
Belt-Minder
activation and deactivation procedure
1. Turn the ignition switch to the on position. (DO NOT START THE
ENGINE)
2. Wait until the safety belt warning light turns off. (approximately one
minute)
• Step 3 must be completed within 60 seconds after the safety belt
warning light turns off. Seating and Safety Restraints
183
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

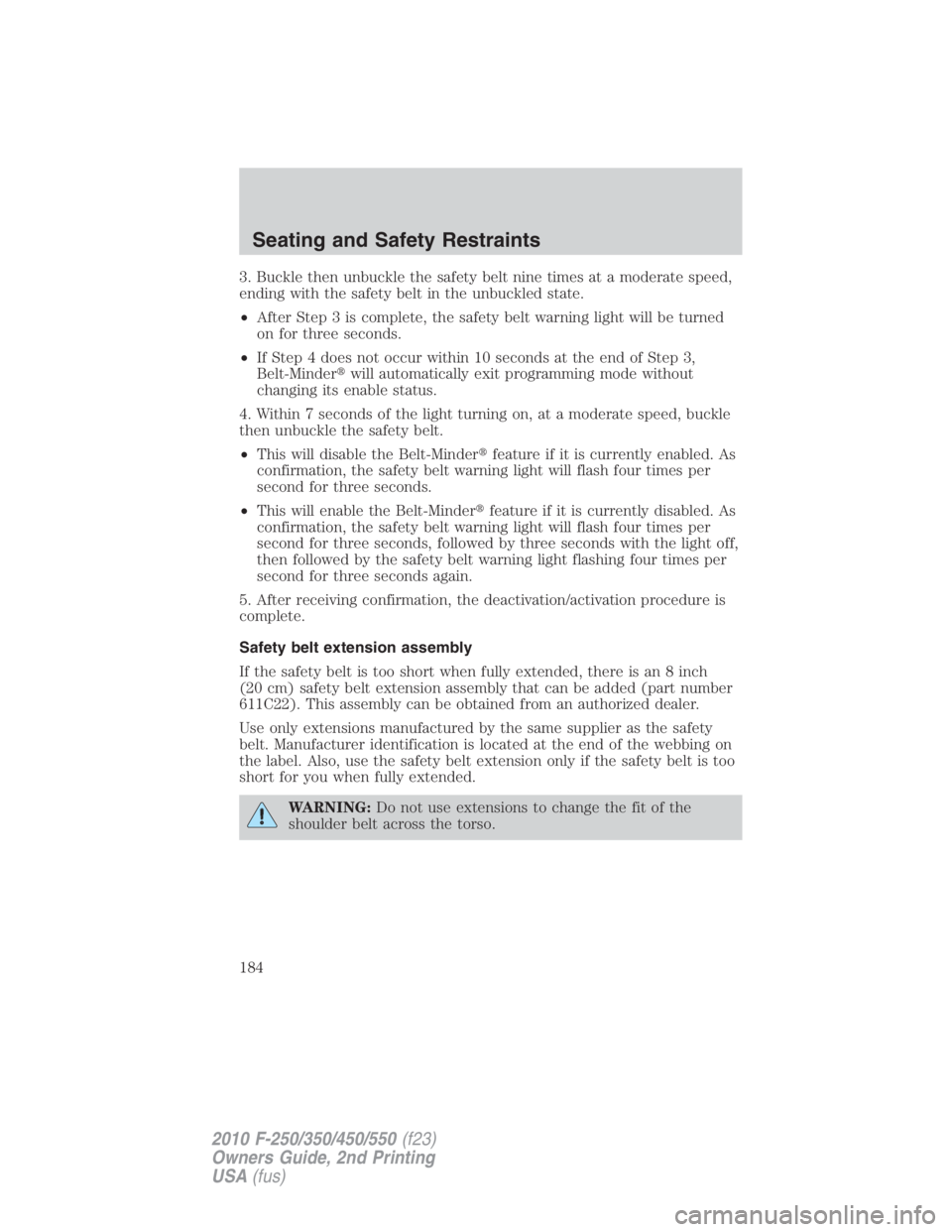

3. Buckle then unbuckle the safety belt nine times at a moderate speed,
ending with the safety belt in the unbuckled state.
• After Step 3 is complete, the safety belt warning light will be turned
on for three seconds.
• If Step 4 does not occur within 10 seconds at the end of Step 3,
Belt-Minder
will automatically exit programming mode without
changing its enable status.
4. Within 7 seconds of the light turning on, at a moderate speed, buckle
then unbuckle the safety belt.
• This will disable the Belt-Minder
feature if it is currently enabled. As
confirmation, the safety belt warning light will flash four times per
second for three seconds.
• This will enable the Belt-Minder
feature if it is currently disabled. As
confirmation, the safety belt warning light will flash four times per
second for three seconds, followed by three seconds with the light off,
then followed by the safety belt warning light flashing four times per
second for three seconds again.
5. After receiving confirmation, the deactivation/activation procedure is
complete.
Safety belt extension assembly
If the safety belt is too short when fully extended, there is an 8 inch
(20 cm) safety belt extension assembly that can be added (part number
611C22). This assembly can be obtained from an authorized dealer.
Use only extensions manufactured by the same supplier as the safety
belt. Manufacturer identification is located at the end of the webbing on
the label. Also, use the safety belt extension only if the safety belt is too
short for you when fully extended.
WARNING: Do not use extensions to change the fit of the
shoulder belt across the torso.Seating and Safety Restraints
184
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

WARNING: Never place your arm over the airbag module as a
deploying airbag can result in serious arm fractures or other
injuries.
To properly position yourself away from the airbag:
• Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
• Recline the seat slightly one or two degrees from the upright position.
WARNING: Do not put anything on or over the airbag module.
Placing objects on or over the airbag inflation area may cause
those objects to be propelled by the airbag into your face and torso
causing serious injury.
WARNING: Do not attempt to service, repair, or modify the
airbag supplemental restraint systems or its fuses. Contact your
authorized dealer as soon as possible.
WARNING: The front passenger airbag is not designed to offer
protection to an occupant in the center front seating position.
WARNING: Modifying or adding equipment to the front end of
the vehicle (including frame, bumper, front end body structure
and tow hooks) may affect the performance of the airbag system,
increasing the risk of injury. Do not modify the front end of the
vehicle.
WARNING: Additional equipment such as snowplow equipment
may effect the performance of the airbag sensors increasing the
risk of injury. Please refer to the Body Builders Layout Book for
instructions about the appropriate installation of additional equipment.
Children and airbags
For additional important safety information, read all information on
safety restraints in this guide.
Children must always be properly restrained. Failure to follow these
instructions may increase the risk of injury in a collision.Seating and Safety Restraints
186
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
