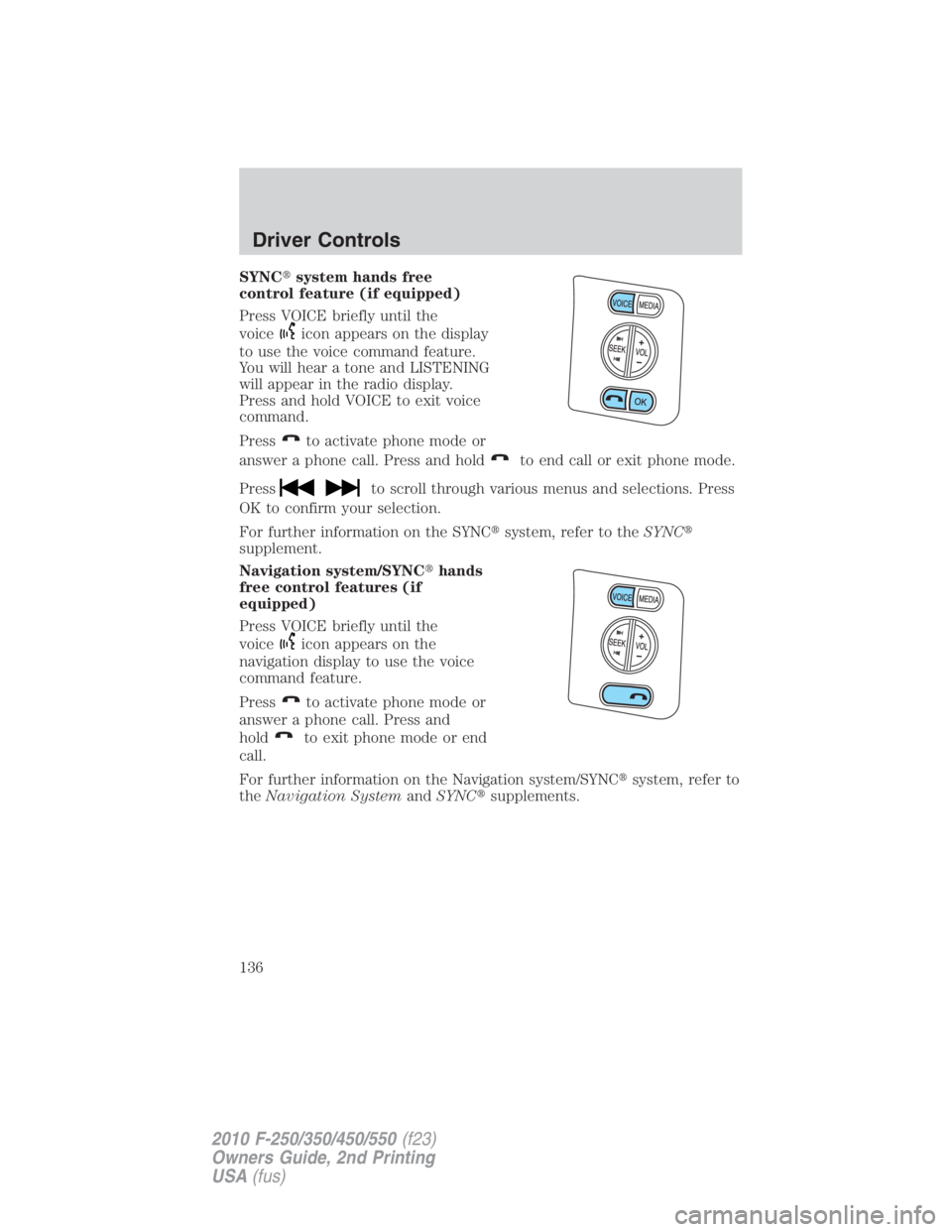

2010 FORD F250 SUPER DUTY navigation

SYNC
system hands free
control feature (if equipped)
Press VOICE briefly until the
voice icon appears on the display
to use the voice command feature.
You will hear a tone and LISTENING
will appear in the radio display.
Press and hold VOICE to exit voice
command.
Press to activate phone mode or
answer a phone call. Press and hold to end call or exit phone mode.
Press to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNC
system, refer to the SYNC

supplement.
Navigation system/SYNC
hands
free control features (if
equipped)
Press VOICE briefly until the
voice icon appears on the
navigation display to use the voice
command feature.
Press to activate phone mode or
answer a phone call. Press and
hold to exit phone mode or end
call.
For further information on the Navigation system/SYNC
system, refer to
the Navigation System and SYNC
supplements.Driver Controls
136
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the tailgate, provides a
video image, which appears in the
rearview mirror or on the navigation
screen (if equipped), of the area
behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the left portion of the rearview mirror or on the
navigation screen (if equipped). The area displayed on the screen may
vary according to the vehicle orientation and/or road condition.
• (1) Rear bumper
• (2) Red zone
• (3) Yellow zone
• (4) Green zone
• (5) Centerline of vehicle
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as they move from the green zone to
the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.Driving
282
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

When shifting out of R (Reverse) and into any other gear, the image will
remain on for a few seconds before it shuts off to assist in parking or
trailer hookup.
If equipped with the navigation system, after shifting out of R (Reverse)
and into any gear other than P (Park), the image will remain until the
vehicle speed reaches 5 mph (8 km/h), only if the rear camera delay
feature is on, or until any navigation radio button is pressed.
Note: The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen (if equipped) to set the
rear camera delay feature to on or off.
When towing, the camera system will only see what is being towed
behind the vehicle; this might not provide adequate coverage as it
usually provides in normal operation and some objects might not be
seen.
The camera lens for the camera is located on the tailgate, near the
tailgate handle. Keep the lens clean so the video image remains clear and
undistorted. Clean the lens with a soft, lint-free cloth and non-abrasive
cleaner.
Note: If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the camera system.
WARNING: The camera system is a reverse aid supplement
device that still requires the driver to use it in conjunction with
the rearview mirror and the side mirrors for maximum coverage.
WARNING: Objects that are close to either corner of the
bumper or under the bumper, might not be seen on the screen
due to the limited coverage of the camera system.
WARNING: Backup as slow as possible since higher speeds
might limit your reaction time to stop the vehicle.
WARNING: Do not use the camera system with the tailgate
open.
If the back end of the vehicle is hit or damaged, then check with your
authorized dealer to have your rear video system checked for proper
coverage and operation. Driving
283
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
32 10A Restraints control module (RCM),
Passenger airbag deactivation
indicator
33 10A Trailer tow brake controller, Trailer
tow battery charge relay coil
34 5A Not used (spare)
35 10A Reverse sensing system (RSS), 4x4
module, 4x4 solenoid, Traction control
switch, Tow/Haul switch (Diesel
engine)
36 5A Passive anti-theft system (PATS)
transceiver, Cluster control
37 10A Climate control, PTC control
38 20A Subwoofer
39 20A Radio, Navigation radio and amplifier
40 20A 4x4 module, Satellite radio module,
SYNC
, GPS
41 15A Radio, Auto dimming rear view mirror,
Lock switch illumination
42 10A Heated seat relay coil, Upfitter switch
relay coils, Heated mirror relay coil
43 10A Fuel tank selector switch, 4x4 module
44 10A Run customer access feed (PTO)
45 5A Front wiper logic, Blower motor relay
coil
46 7.5A Not used (spare)
47 30A Circuit
Breaker Power windows, Moon roof, Power
rear sliding window
48 Relay Delayed accessory
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.Roadside Emergencies
310
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Instrument panel
cleaning ...........................349–350
cluster ........................................14
lighting up panel and
interior .....................................109
J
Jump-starting your vehicle ......331
K
Keyless entry system
autolock ...................................149
keypad .....................................157
locking and unlocking
doors ........................................159
programming entry code .......157
Keys ...................................160–161
positions of the ignition .........264
L
Lamps
autolamp system .....................107
daytime running light .............108
fog lamps .................................107
headlamps ...............................107
headlamps, flash to pass ........108
instrument panel, dimming ...109
interior lamps .........................113
replacing bulbs ...............115–119
LATCH anchors .........................207
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........270
Limited-slip axle .......................273
Load limits .................................244
Loading instructions .................251
Locks
autolock ...................................149 childproof ................................152
doors ........................................148
Lug nuts ....................................330
Lumbar support, seats .....168–169
M
Manual transmission .................278
fluid capacities ........................391
reverse .....................................279
Message center .....................24, 32
english/metric button .........27, 36
system check button ................36
warning messages ...............27, 37
Mirrors ...............................126–127
automatic dimming rearview
mirror ......................................126
fold away .................127, 129–130
side view mirrors (power) .....127
signal .......................................130
Moon roof ..................................138
Motorcraft
parts ..............371, 390
N
Navigation system .......................97
O
Octane rating ............................375
Oil (see Engine oil) ..................360
P
Parking brake ............................270
Parts (see Motorcraft

parts) .........................................390
Pedals (see Power adjustable
foot pedals) ...............................131Index
