2010 FORD F250 SUPER DUTY key

Locks and Security 148Keys 148
Locks 148
Anti-theft system 159
Seating and Safety Restraints 164Seating 164
Safety restraints 173
Airbags 185
Child restraints 195
Tires, Wheels and Loading 217Tire information 219
Tire inflation 221
Tire Pressure Monitoring System (TPMS) 237
Vehicle loading 244
Trailer towing 251
Trailer brake controller-integrated 256
Recreational towing 262
Driving 264Starting 264
Brakes 269
Traction Control™ 271
Transmission operation 275
Reverse sensing system 280
Rear-view camera system 282
Roadside Emergencies 303Getting roadside assistance 303
Hazard flasher control 304
Fuel pump shut-off switch 305
Fuses and relays 306
Changing tires 315
Wheel lug nut torque 330
Jump starting 331
Wrecker towing 336Table of Contents
2
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Anti-theft system: Flashes when
the SecuriLock
passive anti-theft
system has been activated.
Speed control (if equipped):
Illuminates when the speed control
is activated. Turns off when the
speed control system is deactivated.
Turn signal: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the
high beam headlamps are turned on.
If your vehicle is equipped with a diesel engine, it has some unique
warning lights; refer to Instrument Cluster in your Power Stroke 6.0
and 6.4 Liter Direct Injection Turbo Diesel Owner’s Guide
Supplement for detailed information on their function.
Diesel warning lights:
• Glow plug pre-heat
• Waterinfuel
• Low oil pressure
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened. Instrument Cluster
19
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
• Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
• Some messages will appear once and then again when the vehicle is
restarted.
• Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
• Some messages can be acknowledged and reset by pressing the
SELECT/RESET button. This allows you to use the full message
center functionality by clearing the message.
PARK BRAKE ENGAGED — Displayed when the parking brake is
applied (or not fully released).
CHECK BRAKE SYSTEM — Displayed when a fault has been detected
by the ABS module.
DRIVER DOOR AJAR — Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR — Displayed when the passenger’s door is
not completely closed.
REAR LEFT DOOR AJAR — Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR — Displayed when the rear right door is
not completely closed.
XXX MILES TO E FUEL LEVEL LOW — Displayed as an early
reminder of a low fuel condition.
CHECK PARK AID (if equipped) — Displayed when the transmission
is in R (Reverse) and the reverse sensing system (park aid) is disabled.
TO STOP ALARM START VEHICLE (if equipped) — Displayed
when the perimeter alarm system is armed and the vehicle is entered
using the key on the driver’s side door. In order to prevent the perimeter
alarm system from triggering, the ignition must be turned to start or on
before the 12–second chime expires. See Perimeter alarm system in the
Locks and Security chapter.Instrument Cluster
28
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

PARK BRAKE ENGAGED — Displayed when the parking brake is
applied (or not fully released).
CHECK BRAKE SYSTEM — Displayed when a fault has been detected
by the ABS module.
DRIVER DOOR AJAR — Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR — Displayed when the passenger’s door is
not completely closed.
REAR LEFT DOOR AJAR — Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR — Displayed when the rear right door is
not completely closed.
XXX MILES TO E FUEL LEVEL LOW — Displayed as an early
reminder of a low fuel condition.
CHECK PARK AID (if equipped) — Displayed when the transmission
is in R (Reverse) and the reverse sensing system (park aid) is disabled.
TO STOP ALARM START VEHICLE (if equipped) — Displayed
when the perimeter alarm system is armed and the vehicle is entered
using the key on the driver’s side door. In order to prevent the perimeter
alarm system from triggering, the ignition must be turned to start or on
before the 12–second chime expires. See Perimeter alarm system in the
Locks and Security chapter.
WIRING FAULT ON TRAILER (if equipped) — Displayed and
accompanied by a single chime if there are certain faults in the vehicle
wiring and trailer wiring/brake system. Refer to Trailer towing in the
Tires, Wheels and Loading chapter for more information.
TRAILER BRAKE MODULE FAULT (if equipped) — Displayed and
accompanied by a single chime in response to faults sensed by the TBC.
Refer to Trailer towing in the Tires, Wheels and Loading chapter for
more information.
TRAILER CONNECTED (if equipped) — Displayed when a correct
trailer connection (a trailer with electric trailer brakes) is sensed during
a given ignition cycle. Refer to Trailer towing in the Tires, Wheels and
Loading chapter for more information.
TRAILER DISCONNECTED (if equipped) — Displayed and
accompanied by a single chime when a trailer connection becomes
disconnected, either intentionally or unintentionally, and has been sensed
during a given ignition cycle. Refer to Trailer towing in the Tires,
Wheels and Loading chapter for more information.Instrument Cluster
38
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

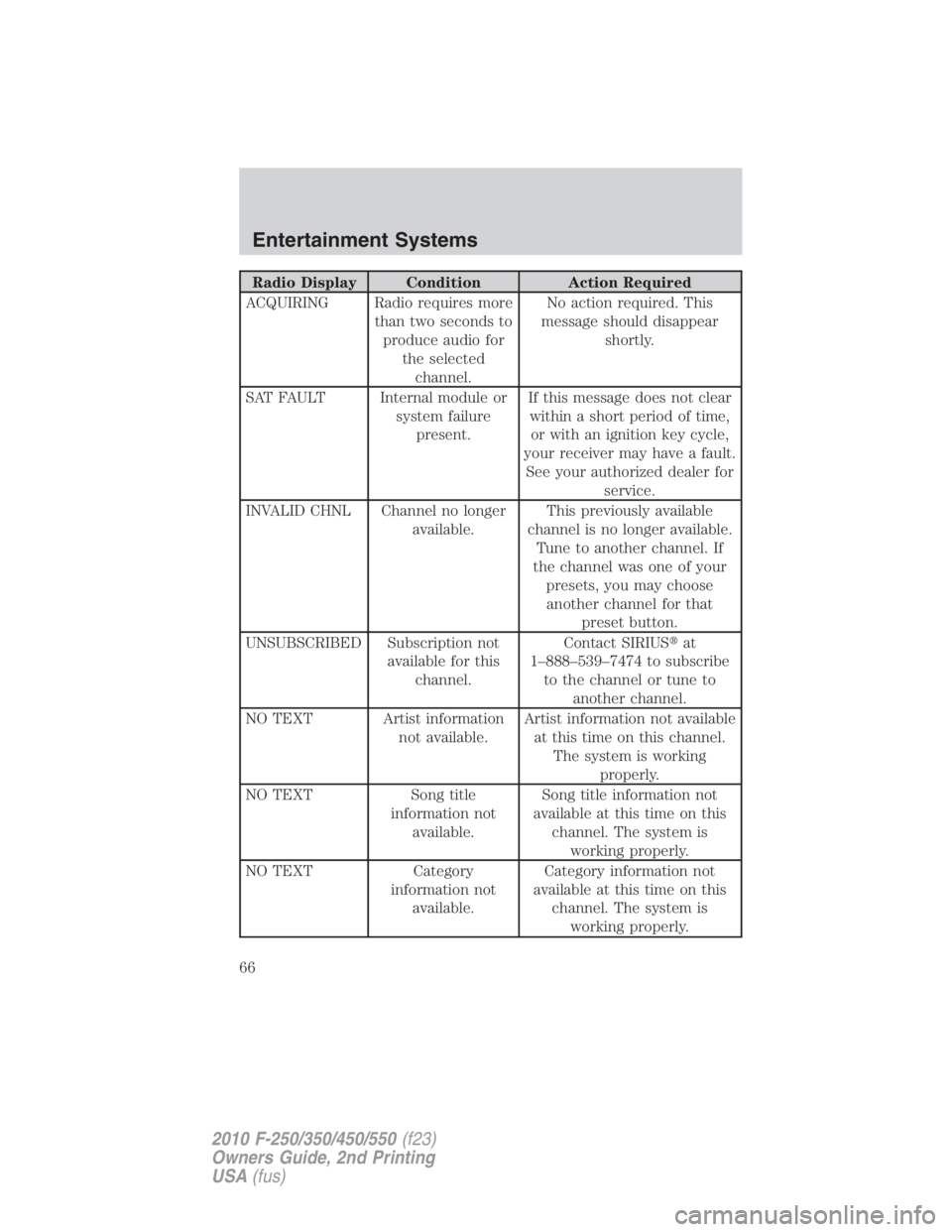

Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for
the selected
channel. No action required. This
message should disappear
shortly.
SAT FAULT Internal module or
system failure
present. If this message does not clear
within a short period of time,
or with an ignition key cycle,
your receiver may have a fault.
See your authorized dealer for
service.
INVALID CHNL Channel no longer
available. This previously available
channel is no longer available.
Tune to another channel. If
the channel was one of your
presets, you may choose
another channel for that
preset button.
UNSUBSCRIBED Subscription not
available for this
channel. Contact SIRIUS
at
1–888–539–7474 to subscribe
to the channel or tune to
another channel.
NO TEXT Artist information
not available. Artist information not available
at this time on this channel.
The system is working
properly.
NO TEXT Song title
information not
available. Song title information not
available at this time on this
channel. The system is
working properly.
NO TEXT Category
information not
available. Category information not
available at this time on this
channel. The system is
working properly.Entertainment Systems
66
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

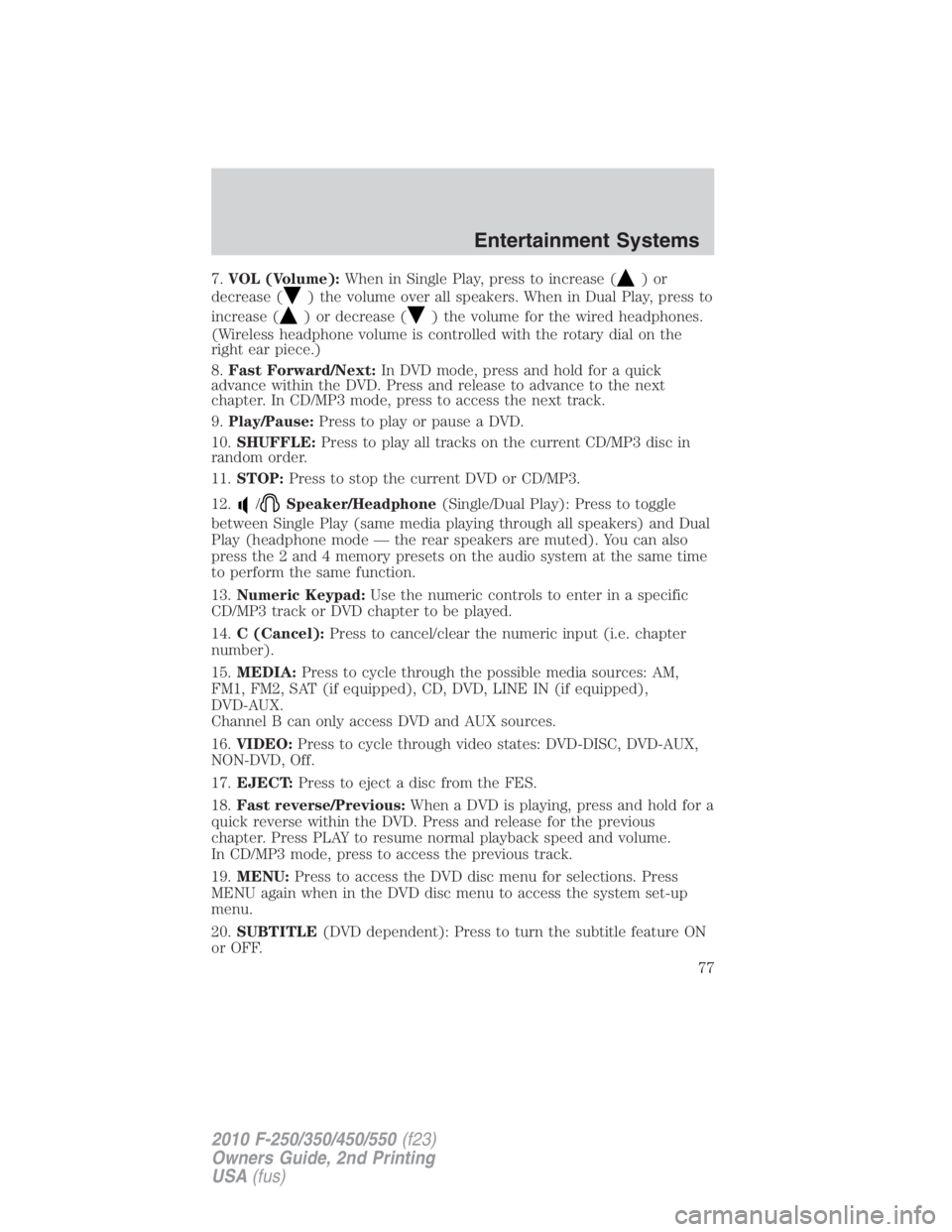

7. VOL (Volume): When in Single Play, press to increase ( )or
decrease ( ) the volume over all speakers. When in Dual Play, press to
increase ( ) or decrease ( ) the volume for the wired headphones.
(Wireless headphone volume is controlled with the rotary dial on the
right ear piece.)
8. Fast Forward/Next: In DVD mode, press and hold for a quick
advance within the DVD. Press and release to advance to the next
chapter. In CD/MP3 mode, press to access the next track.
9. Play/Pause: Press to play or pause a DVD.
10. SHUFFLE: Press to play all tracks on the current CD/MP3 disc in
random order.
11. STOP: Press to stop the current DVD or CD/MP3.
12. / Speaker/Headphone (Single/Dual Play): Press to toggle
between Single Play (same media playing through all speakers) and Dual
Play (headphone mode — the rear speakers are muted). You can also
press the 2 and 4 memory presets on the audio system at the same time
to perform the same function.
13. Numeric Keypad: Use the numeric controls to enter in a specific
CD/MP3 track or DVD chapter to be played.
14. C (Cancel): Press to cancel/clear the numeric input (i.e. chapter
number).
15. MEDIA: Press to cycle through the possible media sources: AM,
FM1, FM2, SAT (if equipped), CD, DVD, LINE IN (if equipped),
DVD-AUX.
Channel B can only access DVD and AUX sources.
16. VIDEO: Press to cycle through video states: DVD-DISC, DVD-AUX,
NON-DVD, Off.
17. EJECT: Press to eject a disc from the FES.
18. Fast reverse/Previous: When a DVD is playing, press and hold for a
quick reverse within the DVD. Press and release for the previous
chapter. Press PLAY to resume normal playback speed and volume.
In CD/MP3 mode, press to access the previous track.
19. MENU: Press to access the DVD disc menu for selections. Press
MENU again when in the DVD disc menu to access the system set-up
menu.
20. SUBTITLE (DVD dependent): Press to turn the subtitle feature ON
or OFF. Entertainment Systems
77
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

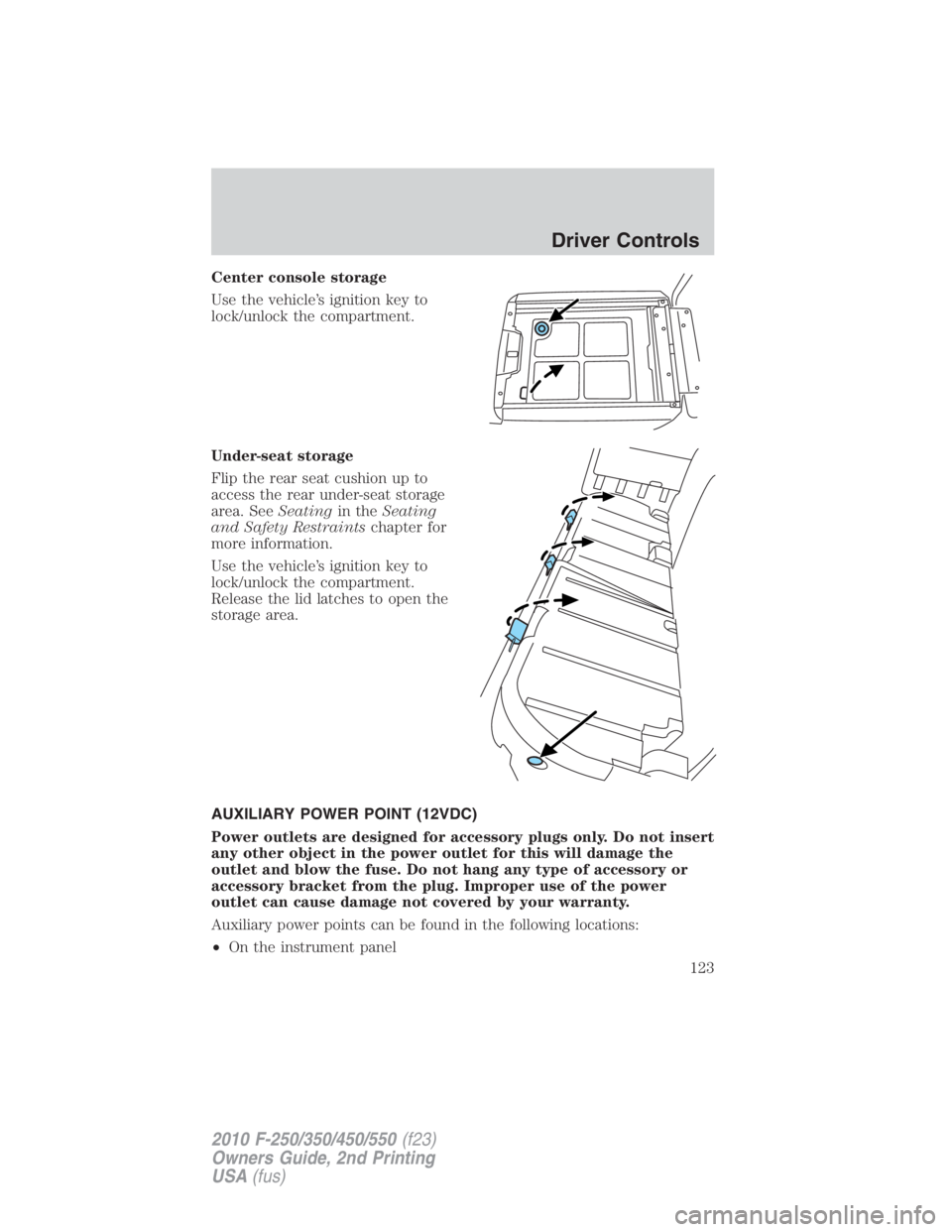

Center console storage
Use the vehicle’s ignition key to
lock/unlock the compartment.
Under-seat storage
Flip the rear seat cushion up to
access the rear under-seat storage
area. See Seating in the Seating
and Safety Restraints chapter for
more information.
Use the vehicle’s ignition key to
lock/unlock the compartment.
Release the lid latches to open the
storage area.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet for this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
• On the instrument panel Driver Controls
123
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

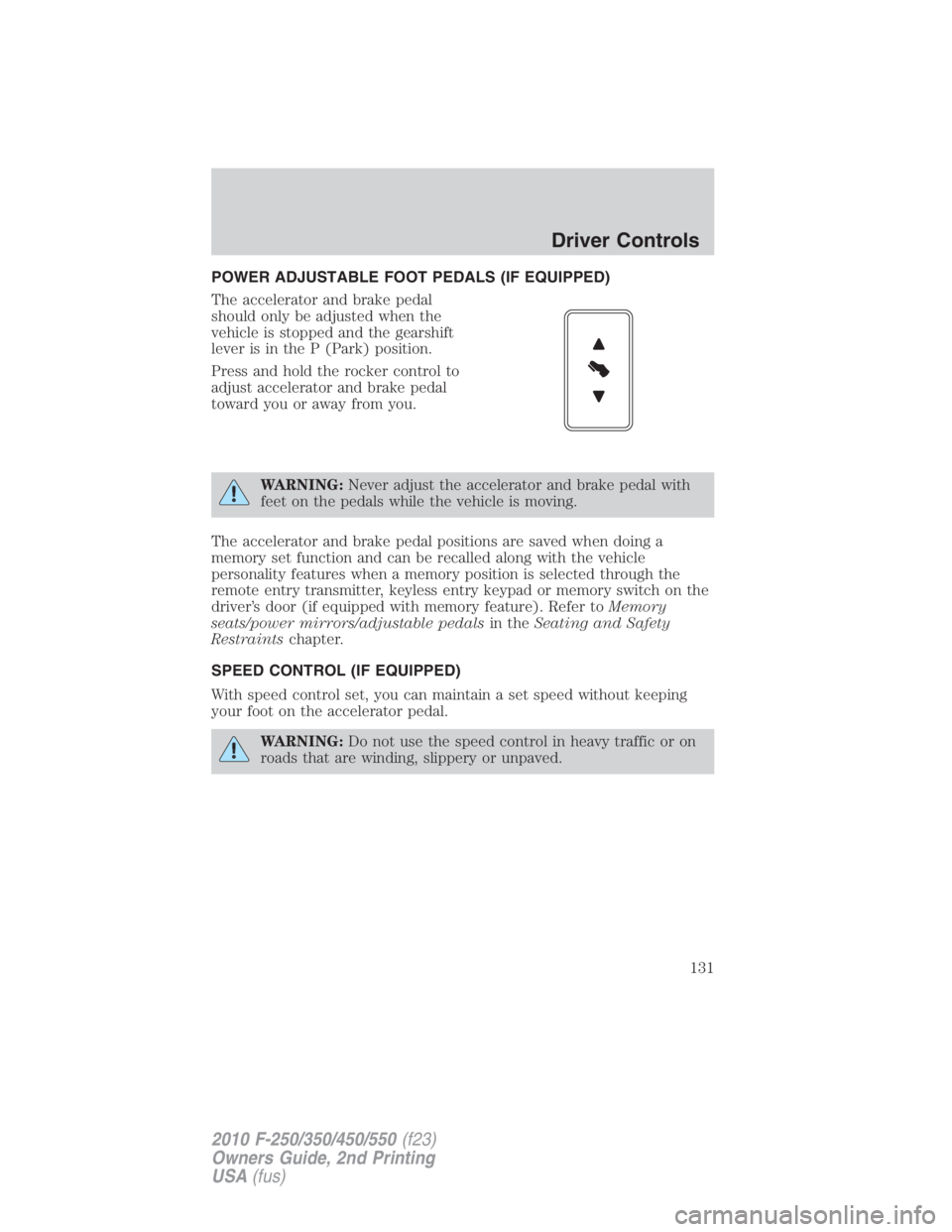

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)
The accelerator and brake pedal
should only be adjusted when the
vehicle is stopped and the gearshift
lever is in the P (Park) position.
Press and hold the rocker control to
adjust accelerator and brake pedal
toward you or away from you.
WARNING: Never adjust the accelerator and brake pedal with
feet on the pedals while the vehicle is moving.
The accelerator and brake pedal positions are saved when doing a
memory set function and can be recalled along with the vehicle
personality features when a memory position is selected through the
remote entry transmitter, keyless entry keypad or memory switch on the
driver’s door (if equipped with memory feature). Refer to Memory
seats/power mirrors/adjustable pedals in the Seating and Safety
Restraints chapter.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING: Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved. Driver Controls
131
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
