2. Poor fuel quality or water in the fuel—the engine may misfire or run
poorly.
3. The fuel fill inlet may not have been properly closed. SeeEasy Fuel™
“no cap” fuel systemin this chapter.
4. Driving through deep water—the electrical system may be wet.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly closing the fuel fill inlet or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, the service engine soon
indicator should stay off the next time the engine is started. A driving
cycle consists of a cold engine startup followed by mixed city/highway
driving. No additional vehicle service is required.
If the service engine soon
indicator remains on, have your vehicle
serviced at the first available opportunity. Although some malfunctions
detected by the OBD-II may not have symptoms that are apparent,
continued driving with the service engine soon
indicator on can
result in increased emissions, lower fuel economy, reduced engine and
transmission smoothness, and lead to more costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the service engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If the service engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
Maintenance and Specifications
391
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer toscheduled maintenance
information.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
Maintenance and Specifications
392
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking 4-speed automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about
30 minutes to allow fluid to cool before checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
Maintenance and Specifications
393
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft
Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) 3.5 pints (1.8L)Motorcraft
SAE 80W-90
Premium Rear Axle
LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear 8.8/9.75 inch axle
fluid5.5 pints (2.6L)
3
Motorcraft
SAE
75W-140 Rear Synthetic
Axle Lubricant
4
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking brake
linkages and pivots,
brake pedal shaft—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches, striker
plates, seat tracks, fuel
filler door hinge and
door check arm—Motorcraft

Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft

MERCON
V
AT FXT-5-QM /
MERCON
V
Transfer case fluid
(4X4 / AWD)1.6 quarts (1.5L)
5
Motorcraft
Transfer
Case FluidXL-12 /
—
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
6
(4.6L 2V engine)Motorcraft

MERCON
LV
AT F
7
XT-10-QLV /
MERCON
LV
Maintenance and Specifications
401
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.5Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.6Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Maintenance and Specifications
403
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
406
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

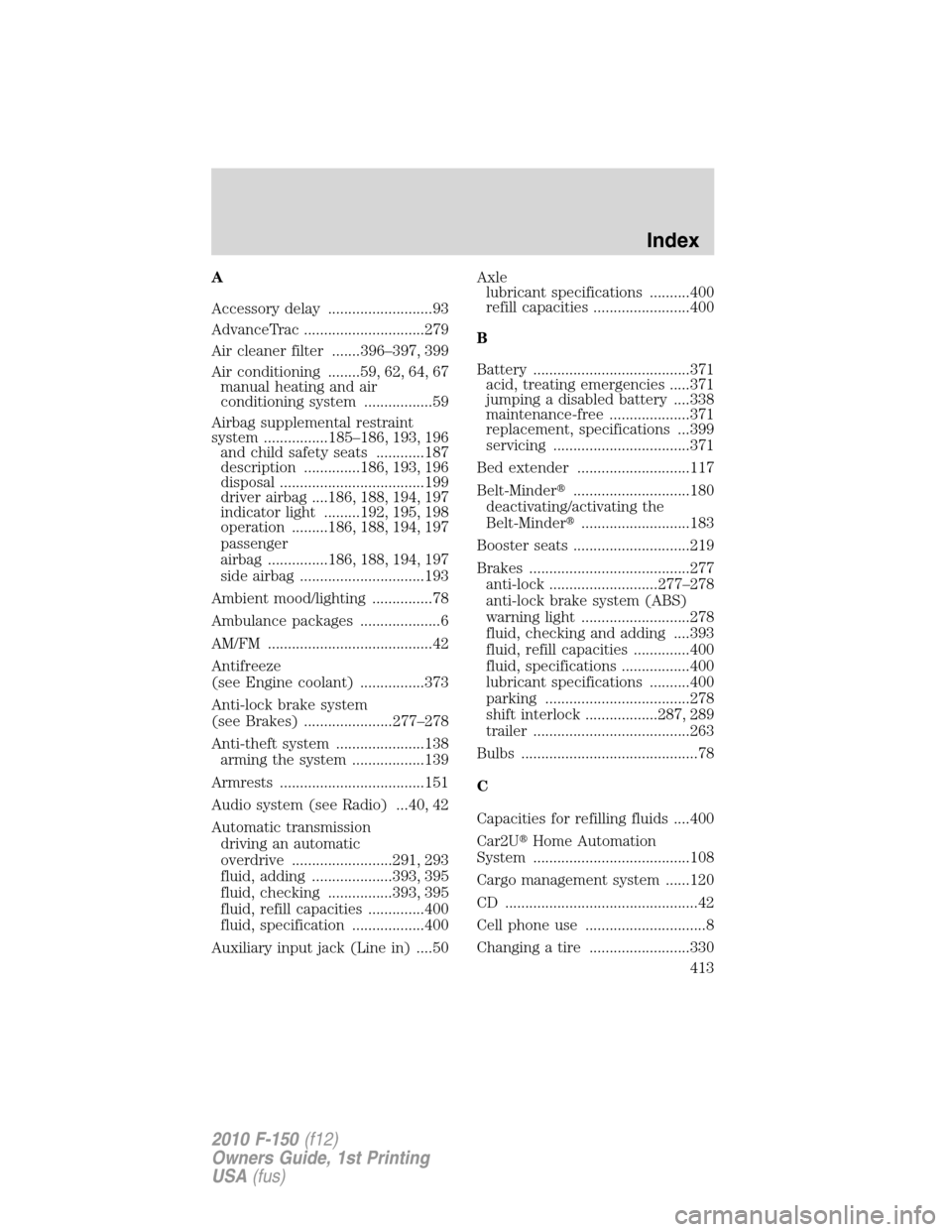

A
Accessory delay ..........................93
AdvanceTrac ..............................279
Air cleaner filter .......396–397, 399
Air conditioning ........59, 62, 64, 67
manual heating and air
conditioning system .................59
Airbag supplemental restraint
system ................185–186, 193, 196
and child safety seats ............187
description ..............186, 193, 196
disposal ....................................199
driver airbag ....186, 188, 194, 197
indicator light .........192, 195, 198
operation .........186, 188, 194, 197
passenger
airbag ...............186, 188, 194, 197
side airbag ...............................193
Ambient mood/lighting ...............78
Ambulance packages ....................6
AM/FM .........................................42
Antifreeze
(see Engine coolant) ................373
Anti-lock brake system
(see Brakes) ......................277–278
Anti-theft system ......................138
arming the system ..................139
Armrests ....................................151
Audio system (see Radio) ...40, 42
Automatic transmission
driving an automatic
overdrive .........................291, 293
fluid, adding ....................393, 395
fluid, checking ................393, 395
fluid, refill capacities ..............400
fluid, specification ..................400
Auxiliary input jack (Line in) ....50Axle
lubricant specifications ..........400
refill capacities ........................400
B
Battery .......................................371
acid, treating emergencies .....371
jumping a disabled battery ....338
maintenance-free ....................371
replacement, specifications ...399
servicing ..................................371
Bed extender ............................117
Belt-Minder
.............................180
deactivating/activating the
Belt-Minder
...........................183
Booster seats .............................219
Brakes ........................................277
anti-lock ...........................277–278
anti-lock brake system (ABS)
warning light ...........................278
fluid, checking and adding ....393
fluid, refill capacities ..............400
fluid, specifications .................400
lubricant specifications ..........400
parking ....................................278
shift interlock ..................287, 289
trailer .......................................263
Bulbs ............................................78
C
Capacities for refilling fluids ....400
Car2U
Home Automation
System .......................................108
Cargo management system ......120
CD ................................................42
Cell phone use ..............................8
Changing a tire .........................330
Index
413
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

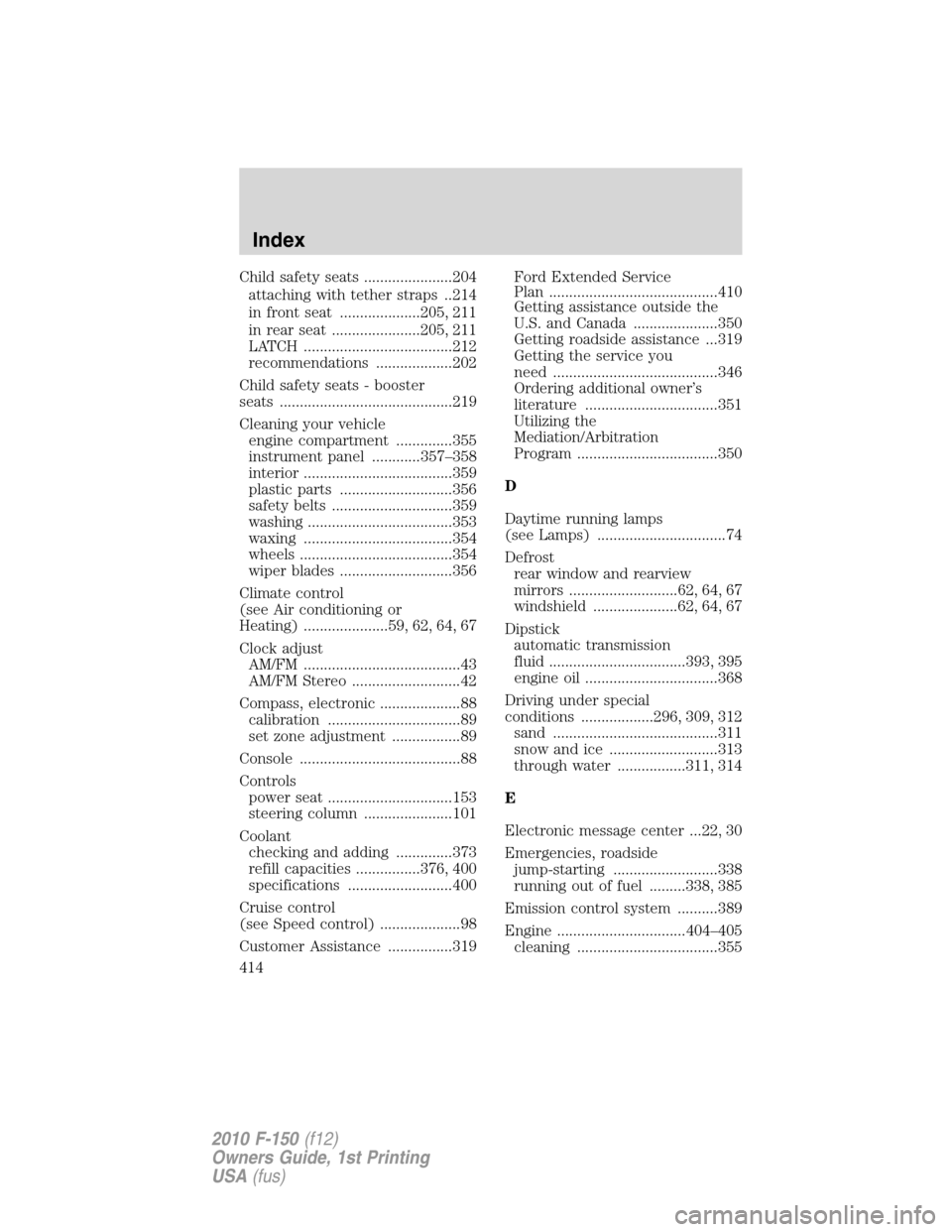

Child safety seats ......................204
attaching with tether straps ..214
in front seat ....................205, 211
in rear seat ......................205, 211
LATCH .....................................212
recommendations ...................202
Child safety seats - booster
seats ...........................................219
Cleaning your vehicle
engine compartment ..............355
instrument panel ............357–358
interior .....................................359
plastic parts ............................356
safety belts ..............................359
washing ....................................353
waxing .....................................354
wheels ......................................354
wiper blades ............................356
Climate control
(see Air conditioning or
Heating) .....................59, 62, 64, 67
Clock adjust
AM/FM .......................................43
AM/FM Stereo ...........................42
Compass, electronic ....................88
calibration .................................89
set zone adjustment .................89
Console ........................................88
Controls
power seat ...............................153
steering column ......................101
Coolant
checking and adding ..............373
refill capacities ................376, 400
specifications ..........................400
Cruise control
(see Speed control) ....................98
Customer Assistance ................319Ford Extended Service
Plan ..........................................410
Getting assistance outside the
U.S. and Canada .....................350
Getting roadside assistance ...319
Getting the service you
need .........................................346
Ordering additional owner’s
literature .................................351
Utilizing the
Mediation/Arbitration
Program ...................................350
D
Daytime running lamps
(see Lamps) ................................74
Defrost
rear window and rearview
mirrors ...........................62, 64, 67
windshield .....................62, 64, 67
Dipstick
automatic transmission
fluid ..................................393, 395
engine oil .................................368
Driving under special
conditions ..................296, 309, 312
sand .........................................311
snow and ice ...........................313
through water .................311, 314
E
Electronic message center ...22, 30
Emergencies, roadside
jump-starting ..........................338
running out of fuel .........338, 385
Emission control system ..........389
Engine ................................404–405
cleaning ...................................355
Index
414
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
