To operate the heated seats:
•Push the indicated side of the
control for maximum heat.
•Push again to deactivate.
•Push the indicated side of the
control for minimum heat.
•Push again to deactivate.
The heated seat module resets at every ignition run cycle. While the
ignition is in the on position, activating the high or low heated seat
switch enables heating mode. When activated, they will turn off
automatically when the engine is turned off.
The indicator light will illuminate when the heated seats have been
activated.
3rd row seats
Ensure that no objects such as books, purses or briefcases are on the
floor in front of the third row seats or on the seat cushion before
lowering them. Ensure that the head restraints are lowered. Ensure that
the second row seats are not reclined.
Seating and Safety Restraints
201
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minder
chime. To
do so may adversely affect the performance of the vehicle’s air bag
system
Deactivating/activating the Belt-Minderfeature (if equipped)
Read Steps1-4thoroughly before proceeding with the
deactivation/activation programming procedure.
Note:If you are using MyKey™, the Belt-Minder
cannot be disabled.
Also, if the Belt-Minder
has been previously disabled, it will be
re-enabled after the use of MyKey™. Refer toMyKey™in theLocks
and securitychapter.
The driver Belt-Minder
feature can be deactivated/activated by
performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set
•The gearshift is in P (Park)
•The ignition switch is in the off position
•The driver and passenger safety belts are unbuckled
WARNING:While the design allows you to deactivate your
Belt-Minder
, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Minder
system activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minder
feature while driving the vehicle.
1. Turn the ignition switch to the on position. DO NOT START THE
ENGINE.
2. Wait until the safety belt warning light turns off (Approximately one
minute).
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. Buckle then unbuckle the safety belt nine times at a moderate speed,
ending in the unbuckled state.
•After Step 3, the safety belt warning light will be turned on for three
seconds.
Seating and Safety Restraints
216
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Power is supplied to all four wheels through a transfer case or power
transfer unit. 4WD vehicles allow you to select different drive modes as
necessary. Information on transfer case operation and shifting procedures
can be found in theDrivingchapter. Information on transfer case
maintenance can be found in theMaintenance and Specifications
chapter. You should become thoroughly familiar with this information
before you operate your vehicle.
On some 4WD models, the initial shift from two-wheel drive to 4WD
while the vehicle is moving can cause a momentary clunk and ratcheting
sound. These sounds are normal as the front drivetrain comes up to
speed and is not cause for concern.
WARNING:Do not become overconfident in the ability of 4WD
and AWD vehicles. Although a 4WD or AWD vehicle may
accelerate better than two-wheel drive vehicle in low traction
situations, it won’t stop any faster than two-wheel drive vehicles.
Always drive at a safe speed.
How your vehicle differs from other vehicles
SUV and trucks can differ from
some other vehicles in a few
noticeable ways. Your vehicle may
be:
•Higher – to allow higher load
carrying capacity and to allow it
to travel over rough terrain
without getting hung up or
damaging underbody components.
•Shorter – to give it the capability
to approach inclines and drive
over the crest of a hill without
getting hung up or damaging
underbody components. All other
things held equal, a shorter
wheelbase may make your vehicle
quicker to respond to steering inputs than a vehicle with a longer
wheelbase.
Tires, Wheels and Loading
247
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

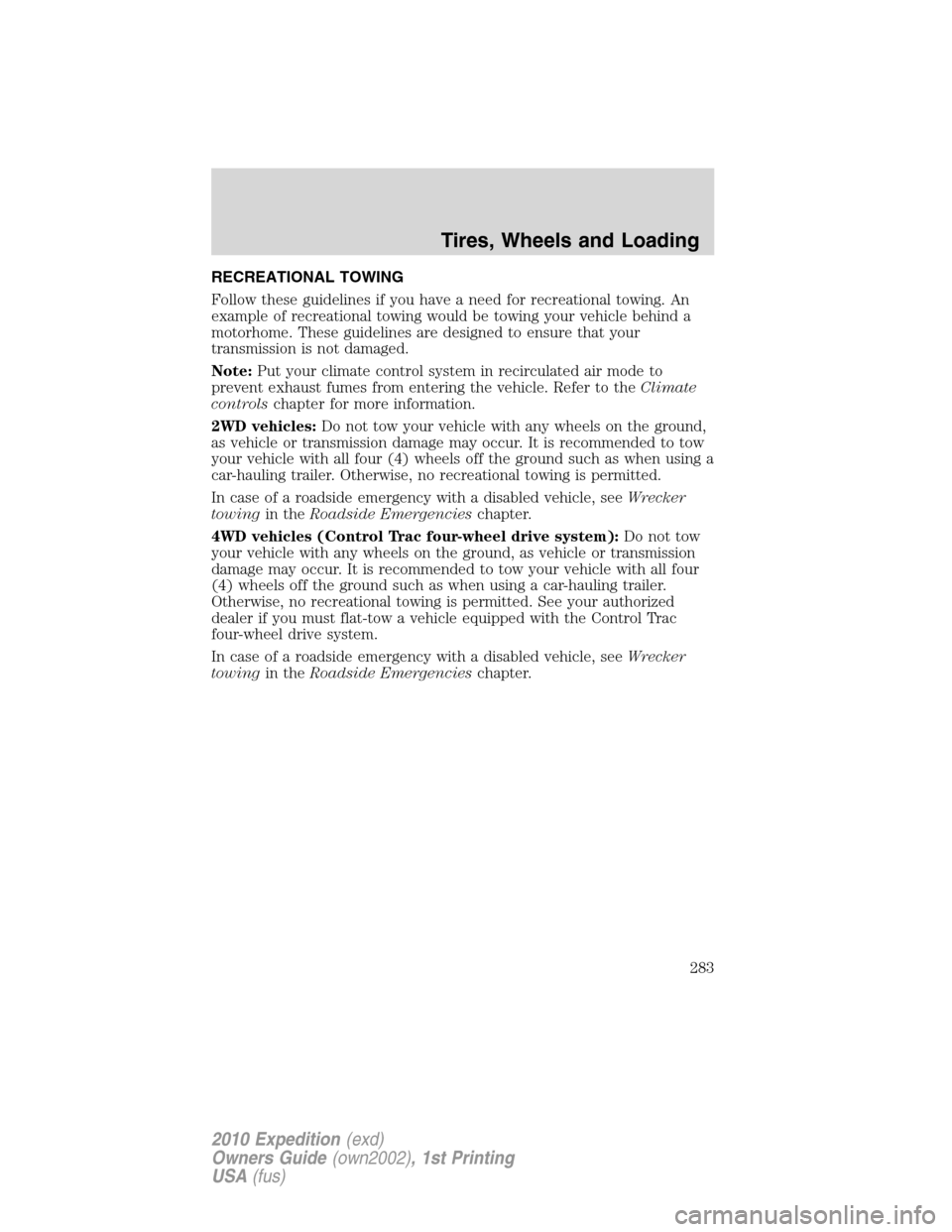

RECREATIONAL TOWING
Follow these guidelines if you have a need for recreational towing. An
example of recreational towing would be towing your vehicle behind a
motorhome. These guidelines are designed to ensure that your
transmission is not damaged.
Note:Put your climate control system in recirculated air mode to
prevent exhaust fumes from entering the vehicle. Refer to theClimate
controlschapter for more information.
2WD vehicles:Do not tow your vehicle with any wheels on the ground,
as vehicle or transmission damage may occur. It is recommended to tow
your vehicle with all four (4) wheels off the ground such as when using a
car-hauling trailer. Otherwise, no recreational towing is permitted.
In case of a roadside emergency with a disabled vehicle, seeWrecker
towingin theRoadside Emergencieschapter.
4WD vehicles (Control Trac four-wheel drive system):Do not tow
your vehicle with any wheels on the ground, as vehicle or transmission
damage may occur. It is recommended to tow your vehicle with all four
(4) wheels off the ground such as when using a car-hauling trailer.
Otherwise, no recreational towing is permitted. See your authorized
dealer if you must flat-tow a vehicle equipped with the Control Trac
four-wheel drive system.
In case of a roadside emergency with a disabled vehicle, seeWrecker
towingin theRoadside Emergencieschapter.
Tires, Wheels and Loading
283
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

4WD indicator lights
The indicator lights illuminate in the message center in the
reconfigurable telltale (RTT) location under the following conditions.
Refer toWarning lights and chimesin theInstrument Clusterchapter.
•4X2- Momentarily illuminates
when 2H is selected.
•4X4 AUTO– Illuminates when
4X4 AUTO is selected.
•4X4– Illuminates when 4X4 is
selected.
•4X4 LOW- Illuminates when 4L
is selected.
Positions of the Control Trac system
The Control Trac system functions
in four modes:
•2H (4X2)delivers power to the
rear wheels only. The message
center will momentarily display
“4x2” when this mode is selected.
This is appropriate for normal
on-road driving on dry pavement
and provides best fuel economy.
•4A (4X4 AUTO)provides
electronic control four-wheel drive with power delivered to all four
wheels, as required, for increased traction. The message center will
display “4X4 AUTO” when this position is selected. This is appropriate
for all on-road driving conditions, such as dry road surfaces, wet
pavement, snow or gravel.
•4H (4X4)provides electronically locked four-wheel drive power to
front and rear wheels. The message center will display “4X4” when
this position is selected. This position is not recommended for use on
4x2
4x4
AUTO
4x4
4x4
LOW
Driving
313
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

dry pavement. This position is only intended for severe winter or
off-road conditions, such as deep snow, ice or shallow sand.
•4L (4X4 LOW)provides electronically locked four-wheel drive when
extra power at reduced speeds is required. The message center will
display “4X4 LOW” when this position is selected. This position is not
recommended for use on dry pavement. Use this position for off-road
low-speed operation or when extra power is required, such as climbing
steep grades, going through deep sand or pulling a boat out of the
water.
Note:If your vehicle is equipped with AdvanceTrac
with RSC
,the
AdvanceTrac
with RSC
system will automatically turn off the stability
enhancement feature when you shift the Control Trac four-wheel drive
system into 4L (4X4 LOW). The brake traction enhancement feature will
still be enabled.
The AdvanceTrac
with RSC
stability enhancement system can be
turned off manually by pressing the AdvanceTrac
with RSC
button
(refer toAdvanceTrac
with Roll Stability Control™ (RSC
) Stability
Enhancement Systemin this chapter) while operating in 2H, 4A or 4H
while driving in deep sand, very deep snow or more strenuous off-road
maneuvers. This will disable the engine management feature, allowing
the vehicle to maintain full power and enhanced momentum through the
obstacle.
WARNING:Utility and four-wheel drive vehicles arenot
designed for cornering at speeds as high as passenger cars any
more than low-slung sports cars are designed to perform satisfactorily
under off-road conditions. Avoid sharp turns or abrupt maneuvers in
these vehicles.
Note:The Control Trac selector knob should not be changed while the
rear wheels are slipping.
Shifting between modes
Shifting between 2H and 4A or 4H
Move the control from 2H to the 4A or 4H position at any forward speed
or at a stop. The message center may display4X4 SHIFT IN
PROGRESSduring the system shift. The message center will then
display “4X4 AUTO” if 4A is selected or “4X4” if 4H is selected. The
message center will momentarily display4X2if 2H is selected.
Driving
314
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Vehicles with a higher center of gravity such as
utility and four-wheel drive vehicles handle differently than
vehicles with a lower center of gravity. Utility and four-wheel drive
vehicles arenotdesigned for cornering at speeds as high as passenger
cars any more than low-slung sports cars are designed to perform
satisfactorily under off-road conditions. Avoid sharp turns, excessive
speed and abrupt maneuvers in these vehicles. Failure to drive
cautiously could result in an increased risk of loss of vehicle control,
vehicle rollover, personal injury and death.
•If the vehicle goes from one type of surface to another (i.e., from
concrete to gravel) there will be a change in the way the vehicle
responds to a maneuver (steering, acceleration or braking). Again,
avoid these abrupt inputs.
Control Trac four–wheel drive system (if equipped)
When a four–wheel drive mode is selected, the Control Trac system uses
all four wheels to power the vehicle. This increases traction, enabling
you to drive over terrain and road conditions that a conventional
two-wheel drive vehicle cannot.
Power is supplied to all four wheels through a transfer case. On
four–wheel drive vehicles, the transfer case allows you to select
four–wheel drive when necessary. Information on transfer case operation
and shifting procedures can be found in this chapter. Information on
transfer case maintenance can be found in theMaintenance and
Specificationschapter. You should become thoroughly familiar with this
information before you operate your vehicle.
Normal characteristics
On some four–wheel drive models, the initial shift from two-wheel drive
to four–wheel drive while the vehicle is moving can cause some
momentary clunk and ratcheting sounds. This is the front drivetrain
coming up to speed and engaging the front wheels, and is not cause for
concern.
Sand
When driving over sand, try to keep all four wheels on the most solid
area of the trail. Avoid reducing the tire pressures but shift to a lower
gear and drive steadily through the terrain. Apply the accelerator slowly
and avoid spinning the wheels.
Note:If air is released from your tires, the Tire Pressure Monitoring
System (TPMS) indicator light may illuminate.
Driving
318
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

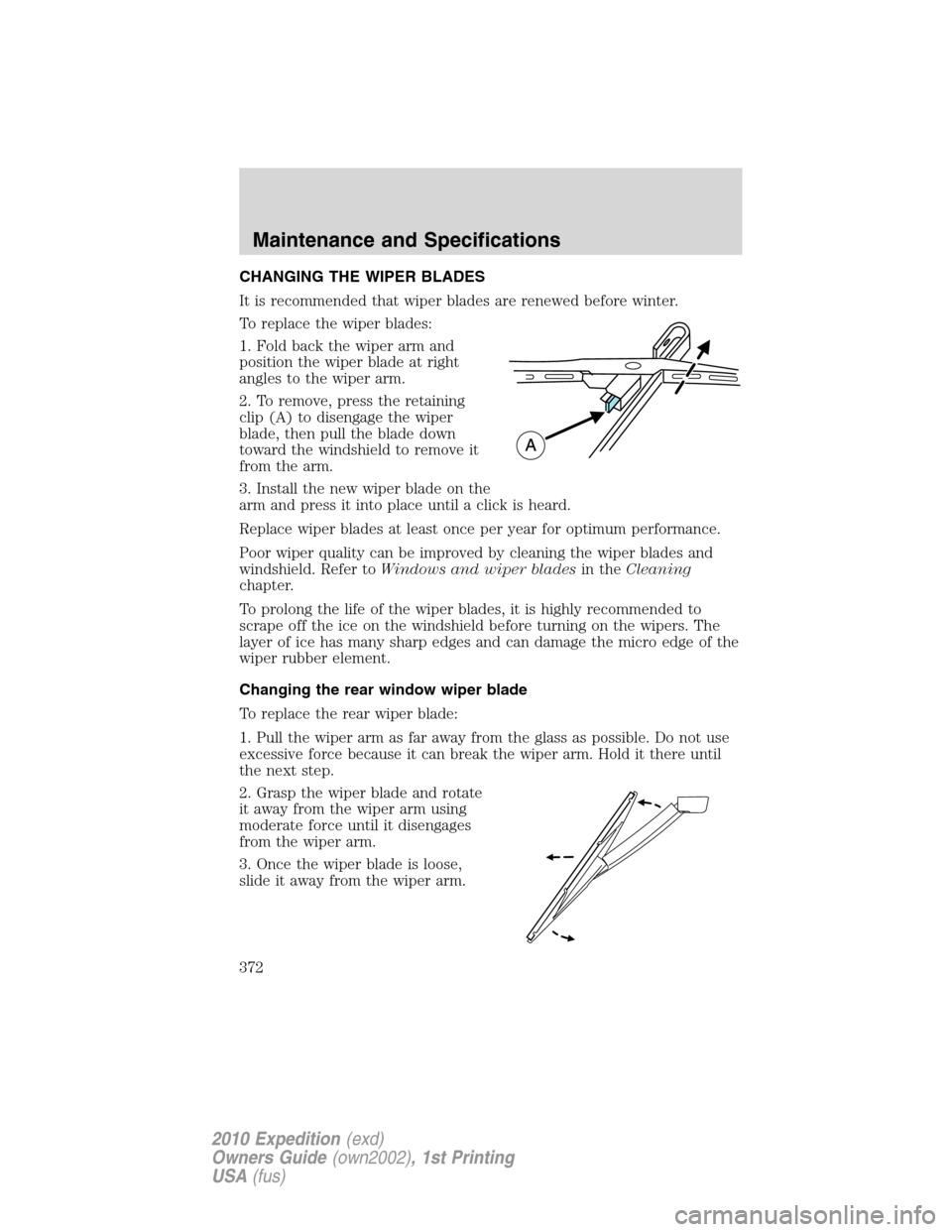

CHANGING THE WIPER BLADES
It is recommended that wiper blades are renewed before winter.
To replace the wiper blades:
1. Fold back the wiper arm and
position the wiper blade at right
angles to the wiper arm.
2. To remove, press the retaining
clip (A) to disengage the wiper
blade, then pull the blade down
toward the windshield to remove it
from the arm.
3. Install the new wiper blade on the
arm and press it into place until a click is heard.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and
windshield. Refer toWindows and wiper bladesin theCleaning
chapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
Changing the rear window wiper blade
To replace the rear wiper blade:
1. Pull the wiper arm as far away from the glass as possible. Do not use
excessive force because it can break the wiper arm. Hold it there until
the next step.
2. Grasp the wiper blade and rotate
it away from the wiper arm using
moderate force until it disengages
from the wiper arm.
3. Once the wiper blade is loose,
slide it away from the wiper arm.
Maintenance and Specifications
372
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
