2010 FORD EXPEDITION fuse

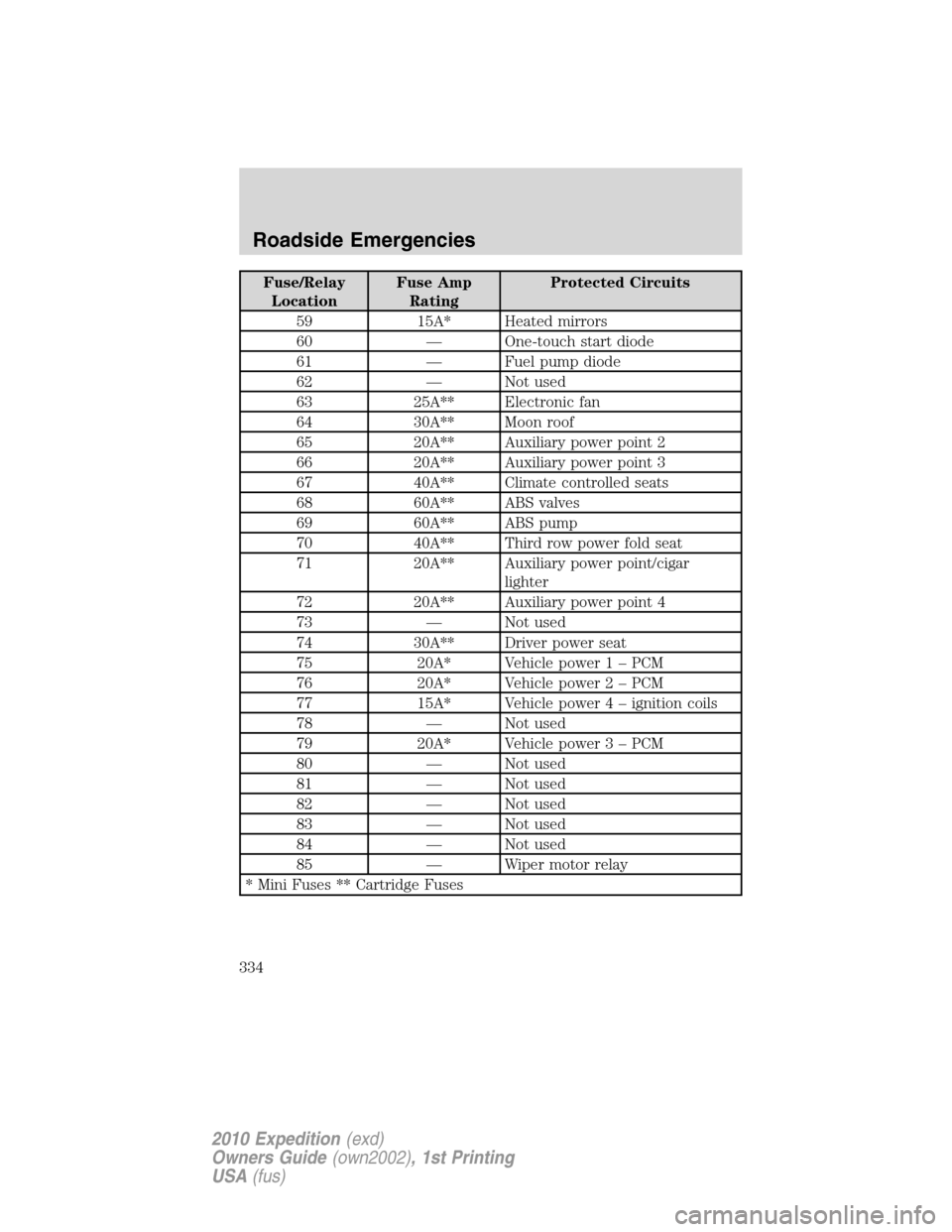

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
59 15A* Heated mirrors
60 — One-touch start diode
61 — Fuel pump diode
62 — Not used
63 25A** Electronic fan
64 30A** Moon roof
65 20A** Auxiliary power point 2
66 20A** Auxiliary power point 3
67 40A** Climate controlled seats
68 60A** ABS valves
69 60A** ABS pump
70 40A** Third row power fold seat
71 20A** Auxiliary power point/cigar
lighter
72 20A** Auxiliary power point 4
73 — Not used
74 30A** Driver power seat
75 20A* Vehicle power1–PCM
76 20A* Vehicle power2–PCM
77 15A* Vehicle power4–ignition coils
78 — Not used
79 20A* Vehicle power3–PCM
80 — Not used
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Wiper motor relay
* Mini Fuses ** Cartridge Fuses
Roadside Emergencies
334
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

change oil soon warning,
message center .......................373
checking and adding ..............373
dipstick ....................................373
filter, specifications ........375, 401
recommendations ...................375
refill capacities ........................402
specifications ..........................402
Event data recording ....................7
Exhaust fumes ..........................288
F
Fail safe cooling ........................382
Family entertainment system ....70
Fleet MyKey programming ......177
Flexible Fuel Vehicle (FFV) ....384
Fluid capacities .........................402
Fog lamps ..................................115
Four-Wheel Drive vehicles .......312
control trac .............................313
description ..............................313
driving off road .......................315
indicator light .........................313
preparing to drive your
vehicle .....................................300
Fuel ............................................384
calculating fuel
economy ......................23, 31, 391
cap ...........................................386
capacity ...................................402
choosing the right fuel ...........388
comparisons with EPA fuel
economy estimates .................394
detergent in fuel .....................389
filler funnel .............................389
filling your vehicle with
fuel ...........................384, 386, 391
filter, specifications ........383, 401fuel pump shut-off switch .....326
improving fuel economy ........391
octane rating ...........388, 405–406
quality ......................................389
running out of fuel .........344, 389
safety information relating to
automotive fuels .....................384
Fuel - flex fuel vehicle
(FFV) .................................384, 388
Fuses ..................................327–328
G
Garage door opener ..................144
Gas cap (see Fuel cap) ............386
Gas mileage (see Fuel
economy) ...................................391
Gauges .........................................17
H
Hazard flashers .........................325
Headlamps .................................114
aiming ......................................116
autolamp system .....................114
bulb specifications ..................120
daytime running lights ...........115
flash to pass ............................115
high beam ...............................115
replacing bulbs .......................122
turning on and off ..................114
Heating
heating and air conditioning
system .............................103–104
Homelink wireless control
system ........................................145
Hood ..........................................369
How to get going ........................39
I
Ignition .......................284, 405–406
Index
416
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Oil (see Engine oil) ..................373
P
Parental MyKey
programming .............................177
Parking brake ............................292
Parts (see Motorcraft parts) ....401
Pedals (see Power adjustable
foot pedals) ...............................136
Power adjustable foot pedals ...136
Power deployable running
boards ........................................137
Power distribution box
(see Fuses) .......................328, 331
Power door locks ......................162
Power liftgate ............................154
Power mirrors ...........................135
Power point ...............................131
Power steering ..................298–299
fluid, checking and adding ....397
fluid, refill capacity ................402
fluid, specifications .................402
Power Windows .........................132
Preparing to drive your
vehicle ........................................300
R
Radio ................................39, 43, 51
Rear heated seats .....................200
Rear seat entertainment
system ..........................................70
Rear-view camera system .........310Recommendations for
attaching safety restraints for
children ......................................229
Relays ........................................327
Remote entry system .......166–167
illuminated entry ....................171
locking/unlocking
doors ................................167–168
opening the trunk ...................168
panic alarm .............................169
replacement/additional
transmitters .............................170
replacing the batteries ...........170
Reverse sensing system ...........307
Roadside assistance ..................324
Roll stability control .................293
S
Safety Belt Maintenance ..........245
Safety belts (see Safety
restraints) ..........204, 206, 208–211
Safety Canopy ...................221, 223
Safety defects, reporting ..........358
Safety
restraints ...........204, 206, 208–211
Belt-Minder
...........................213
extension assembly ................212
for adults .........................208–210
for children .............................227
safety belt maintenance .........245
warning light and
chime ...............................212–213
Safety restraints - LATCH
anchors ......................................235
Safety seats for children ..........231
Safety Compliance
Certification Label ....................406
Index
418
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
