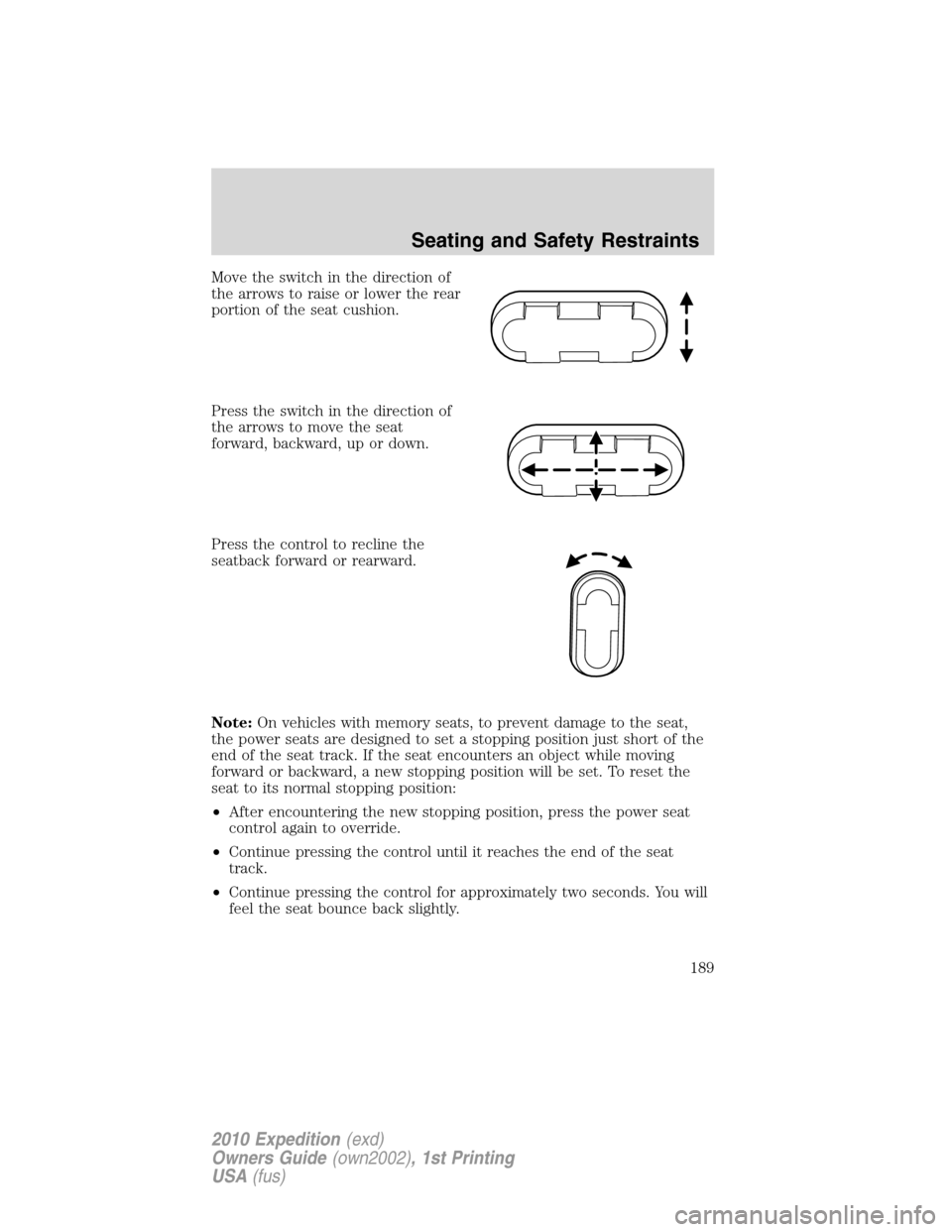

Move the switch in the direction of
the arrows to raise or lower the rear
portion of the seat cushion.
Press the switch in the direction of
the arrows to move the seat
forward, backward, up or down.
Press the control to recline the
seatback forward or rearward.
Note:On vehicles with memory seats, to prevent damage to the seat,
the power seats are designed to set a stopping position just short of the
end of the seat track. If the seat encounters an object while moving
forward or backward, a new stopping position will be set. To reset the
seat to its normal stopping position:
•After encountering the new stopping position, press the power seat
control again to override.
•Continue pressing the control until it reaches the end of the seat
track.
•Continue pressing the control for approximately two seconds. You will
feel the seat bounce back slightly.
Seating and Safety Restraints
189
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Memory seat/power mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat,
outside rearview mirrors and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the outboard side of the seat cushion.
•To program position one, move the driver seat, exterior mirrors and
adjustable pedals to the desired positions using the associated
controls. Press and hold control button 1 for at least two seconds.
•To program position two, repeat the previous procedure using control
button 2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter
(unlock) control and the transmitter is
programmed to a memory seat position or when you enter a valid
customer code 1 or 2 on the keypad.
To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter.
Note: The seat will not travel to its final position if the key is not
in the ignition and the easy entry feature is enabled.
Climate controlled seats (if equipped)
Note:It is recommended for optimal performance that the vehicle air
conditioning system be run in the same mode (either heating or cooling)
as the climate control seat system. During start up of the climate control
seat system, a slight difference in seat surface temperature may be
perceived between the seat cushion and seat back until the cabin and
seat temperatures stabilize. If the vehicle air conditioning system is run
in floor mode, the effect may be more pronounced. Switching between
seat heat and seat cool modes in alternate succession will delay the time
it takes for the seat temperatures (back and cushion) to stabilize.
The controls for the climate controlled seats are located on the dual
electronic automatic temperature control (DEATC) system.
Seating and Safety Restraints
190
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Smart window #1
2 15A Driver side memory module
3 15A Family entertainment system,
Audio rear seat controls, Satellite
radio, SYNC

4 30A Smart window #2
5 10A Keypad illumination, 3rd row seat
enable, Brake shift interlock
(BSI), Passenger compartment
fuse panel
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Switch backlighting, Puddle lamps
11 10A Not used (spare)
12 7.5A Power mirrors, Driver seat
memory switch
13 5A Not used (spare)
14 10A Power liftgate module – keep-alive
power
15 10A Climate control, Global positioning
satellite module
16 15A Not used (spare)
17 20A Door locks, Liftgate release,
Liftglass release
18 20A Second row heated seats
19 25A Rear wiper
20 15A Adjustable pedals, Datalink
21 15A Fog lamps
22 15A Park lamps
Roadside Emergencies
329
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Illuminated visor mirror ...........128
Infant seats
(see Safety seats) .....................231
Inspection/maintenance (I/M)
testing ........................................396
Instrument panel
cleaning ...................................363
cluster ........................................12
lighting up panel and
interior .....................................116
J
Jack ............................................335
positioning ...............................335
storage .....................................335
Jump-starting your vehicle ......345
K
Keyless entry system
autolock ...................................162
keypad .....................................172
locking and unlocking doors ..173
programming entry code .......172
Keys ...................................161, 175
positions of the ignition .........284
L
Lamps
autolamp system .....................114
bulb replacement
specifications chart ................120
daytime running light .............115
fog lamps .................................115
headlamps ...............................114
headlamps, flash to pass ........115
instrument panel, dimming ...116
interior lamps .................118, 121
replacing bulbs ...............122, 124LATCH anchors .........................235
Liftgate ......................154, 158, 168
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........291
Limited-slip axle .......................300
Load limits .................................268
Loading instructions .................275
Locks
autolock ...................................162
childproof ................................166
doors ........................................162
Lubricant specifications ...........402
Lug nuts ....................................343
Lumbar support, seats .....187–188
M
Message center ...............20, 28–29
english/metric button .........25, 35
system check button ................35
warning messages ...............25, 35
Mirrors ...............................134–135
automatic dimming rearview
mirror ......................................134
fold away .................................135
heated ......................................136
programmable memory ..........169
signal .......................................136
Moon roof ..................................143
Motorcraft parts ................367, 401
MyKey ........................................177
N
Navigation system .....................102
O
Octane rating ............................388
Index
417
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Satellite Radio Information ........67
Seats ..........................................183
child safety seats ....................231
cleaning ...................................365
climate control ........................192
heated ......................................200
memory seat ...................169, 190
SecuriCode keyless entry
system ........................................171
SecuriLock passive anti-theft
system ................................173, 175
Servicing your vehicle ..............368
Setting the clock
AM/FM single CD .....................45
AM/FM/In-dash 6 CD ................53
Snowplowing .................................6
SOS Post Crash Alert ...............226
Spark plugs,
specifications .............401, 405–406
Special notice
utility-type vehicles ....................6
Specification chart,
lubricants ...................................402
Speed control ............................138
Stability system .........................293
Starting a flex fuel vehicle .......287
Starting your vehicle ........284–287
jump starting ..........................345
Steering wheel
controls ....................................141
tilting .......................................128
SYNC
........................................102
T
Third-row power fold seat .......203
Tilt steering wheel ....................128Tire Pressure Monitoring
System (TPMS)
Driving .....................................318
Tires, Wheels and Loading ....263
Warning Displays ..........12, 25, 35
Tires ...........................248–250, 335
alignment ................................257
care ..........................................253
changing ..........................335, 339
checking the pressure ............253
inflating ...................................251
label .........................................262
replacing ..................................254
rotating ....................................257
safety practices .......................256
sidewall information ...............258
snow tires and chains ............268
spare tire .................................335
terminology .............................250
tire grades ...............................249
treadwear ........................249, 253
Towing .......................................275
recreational towing .................283
trailer towing ..........................275
wrecker ....................................350
Transmission .............................304
brake-shift interlock
(BSI) ................................301–302
fluid, checking and adding
(automatic) .............................398
fluid, refill capacities ..............402
lubricant specifications ..........402
Turn signal ................................118
U
Universal garage door opener ..144
USB port ......................................61
Index
419
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
