2010 FORD EXPEDITION keyless

Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the key is in the off position, or is
removed from the ignition. Either of the following actions will prearm the
alarm system:
•Press the
control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
When you press the lock control twice within three seconds on the
remote entry transmitter portion of your IKT, the horn will chirp once
to let you know that all doors, the hood and the liftgate are closed. If
any of these are not closed, the horn will chirp twice to warn you that
a door, the hood or the liftgate is still open.
•Press the driver or passenger
interior door lock control while
the door is open, then close the
door.
•Press the 7•8 and 9•0
controls on the keyless entry pad
at the same time to lock the
doors (driver’s door must be
closed).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Each door, the hood, and the liftgate is armed individually, and if any are
open, they must be closed before the open entry point (door, hood, or
liftgate) can enter the 20 second countdown.
The turn signal lamps will flash once when all doors, the hood and the
liftgate are closed indicating the vehicle is locked and entering the
20 second countdown.
Locks and Security
181
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

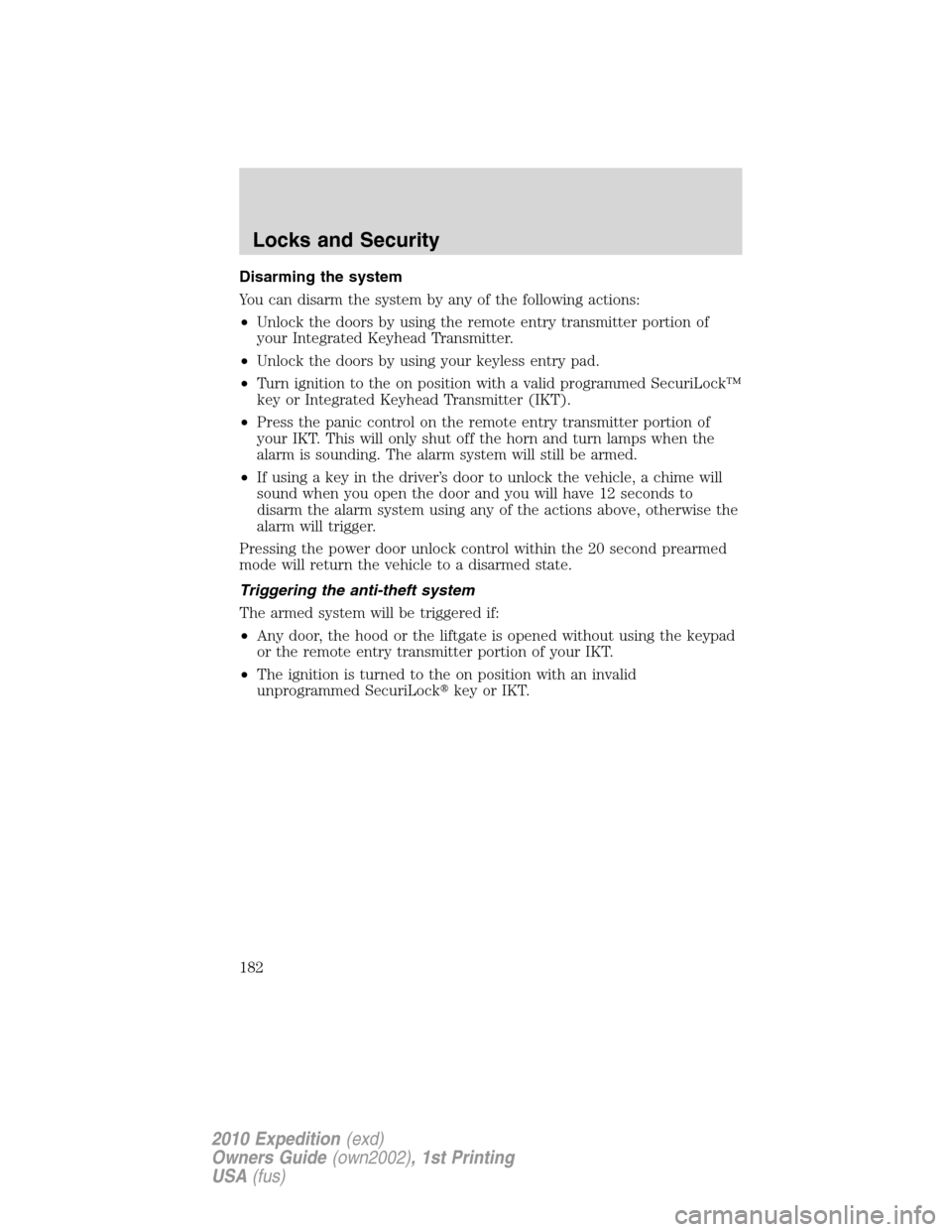

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter portion of
your Integrated Keyhead Transmitter.
•Unlock the doors by using your keyless entry pad.
•Turn ignition to the on position with a valid programmed SecuriLock™
key or Integrated Keyhead Transmitter (IKT).
•Press the panic control on the remote entry transmitter portion of
your IKT. This will only shut off the horn and turn lamps when the
alarm is sounding. The alarm system will still be armed.
•If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, the hood or the liftgate is opened without using the keypad
or the remote entry transmitter portion of your IKT.
•The ignition is turned to the on position with an invalid
unprogrammed SecuriLock
key or IKT.
Locks and Security
182
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

The power fold down seats will operate for 10 minutes after the
ignition switch is in off. The transmission must be in P (Park),
and the liftgate, or liftgate glass must be open. Similar to the
battery saver feature, the power 3rd row seat will be disabled
10 minutes after turning the vehicle off. If the power 3rd row
seat is disabled after 10 minutes, the seat can be enabled by
opening any door, pressing the unlock button on the key fob,
pressing any keyless entry keypad button, or turning the ignition
key.
SAFETY RESTRAINTS
Personal Safety System
The Personal Safety System
provides an improved overall level of
frontal crash protection to front seat occupants and is designed to help
further reduce the risk of airbag-related injuries. The system is able to
analyze different occupant conditions and crash severity before activating
the appropriate safety devices to help better protect a range of
occupants in a variety of frontal crash situations.
Your vehicle’s Personal Safety System
consists of:
•Driver and passenger dual-stage airbag supplemental restraints.
•Front safety belts with pretensioners, energy management retractors,
and safety belt usage sensors.
•Driver’s seat position sensor.
•Front crash severity sensor.
•Restraints Control Module (RCM).
•Restraint system warning light and back-up tone.
•The electrical wiring for the airbags, crash sensor(s), safety belt
pretensioners, front safety belt usage sensors, driver seat position
sensor, and indicator lights.
How does the Personal Safety Systemwork?
The Personal Safety System
can adapt the deployment strategy of your
vehicle’s safety devices according to crash severity and occupant
conditions. A collection of crash and occupant sensors provides
information to the Restraints Control Module (RCM). During a crash, the
RCM may activate the safety belt pretensioners and/or either one or both
stages of the dual-stage airbag supplemental restraints based on crash
severity and occupant conditions.
The fact that the pretensioners or airbags did not activate for both front
seat occupants in a collision does not mean that something is wrong with
Seating and Safety Restraints
204
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Illuminated visor mirror ...........128
Infant seats
(see Safety seats) .....................231
Inspection/maintenance (I/M)
testing ........................................396
Instrument panel
cleaning ...................................363
cluster ........................................12
lighting up panel and
interior .....................................116
J
Jack ............................................335
positioning ...............................335
storage .....................................335
Jump-starting your vehicle ......345
K
Keyless entry system
autolock ...................................162
keypad .....................................172
locking and unlocking doors ..173
programming entry code .......172
Keys ...................................161, 175
positions of the ignition .........284
L
Lamps
autolamp system .....................114
bulb replacement
specifications chart ................120
daytime running light .............115
fog lamps .................................115
headlamps ...............................114
headlamps, flash to pass ........115
instrument panel, dimming ...116
interior lamps .................118, 121
replacing bulbs ...............122, 124LATCH anchors .........................235
Liftgate ......................154, 158, 168
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........291
Limited-slip axle .......................300
Load limits .................................268
Loading instructions .................275
Locks
autolock ...................................162
childproof ................................166
doors ........................................162
Lubricant specifications ...........402
Lug nuts ....................................343
Lumbar support, seats .....187–188
M
Message center ...............20, 28–29
english/metric button .........25, 35
system check button ................35
warning messages ...............25, 35
Mirrors ...............................134–135
automatic dimming rearview
mirror ......................................134
fold away .................................135
heated ......................................136
programmable memory ..........169
signal .......................................136
Moon roof ..................................143
Motorcraft parts ................367, 401
MyKey ........................................177
N
Navigation system .....................102
O
Octane rating ............................388
Index
417
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Satellite Radio Information ........67
Seats ..........................................183
child safety seats ....................231
cleaning ...................................365
climate control ........................192
heated ......................................200
memory seat ...................169, 190
SecuriCode keyless entry
system ........................................171
SecuriLock passive anti-theft
system ................................173, 175
Servicing your vehicle ..............368
Setting the clock
AM/FM single CD .....................45
AM/FM/In-dash 6 CD ................53
Snowplowing .................................6
SOS Post Crash Alert ...............226
Spark plugs,
specifications .............401, 405–406
Special notice
utility-type vehicles ....................6
Specification chart,
lubricants ...................................402
Speed control ............................138
Stability system .........................293
Starting a flex fuel vehicle .......287
Starting your vehicle ........284–287
jump starting ..........................345
Steering wheel
controls ....................................141
tilting .......................................128
SYNC
........................................102
T
Third-row power fold seat .......203
Tilt steering wheel ....................128Tire Pressure Monitoring
System (TPMS)
Driving .....................................318
Tires, Wheels and Loading ....263
Warning Displays ..........12, 25, 35
Tires ...........................248–250, 335
alignment ................................257
care ..........................................253
changing ..........................335, 339
checking the pressure ............253
inflating ...................................251
label .........................................262
replacing ..................................254
rotating ....................................257
safety practices .......................256
sidewall information ...............258
snow tires and chains ............268
spare tire .................................335
terminology .............................250
tire grades ...............................249
treadwear ........................249, 253
Towing .......................................275
recreational towing .................283
trailer towing ..........................275
wrecker ....................................350
Transmission .............................304
brake-shift interlock
(BSI) ................................301–302
fluid, checking and adding
(automatic) .............................398
fluid, refill capacities ..............402
lubricant specifications ..........402
Turn signal ................................118
U
Universal garage door opener ..144
USB port ......................................61
Index
419
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
