2010 FORD EXPEDITION engine

Item Capacity Ford part nameFord part number /
Ford specification
Transfer case fluid (4X4)1.6-1.8 quarts
(1.5-1.7L)Motorcraft Transfer
Case FluidXL–12 /
—
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank
(Expedition EL – U.S. only)33.5 gallons
(126.8L)
Fuel tank
(Expedition Max – Canada
only)33.5 gallons
(126.8L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for complete refill of Ford
Limited Slip rear axles.6Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
Maintenance and Specifications
404
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

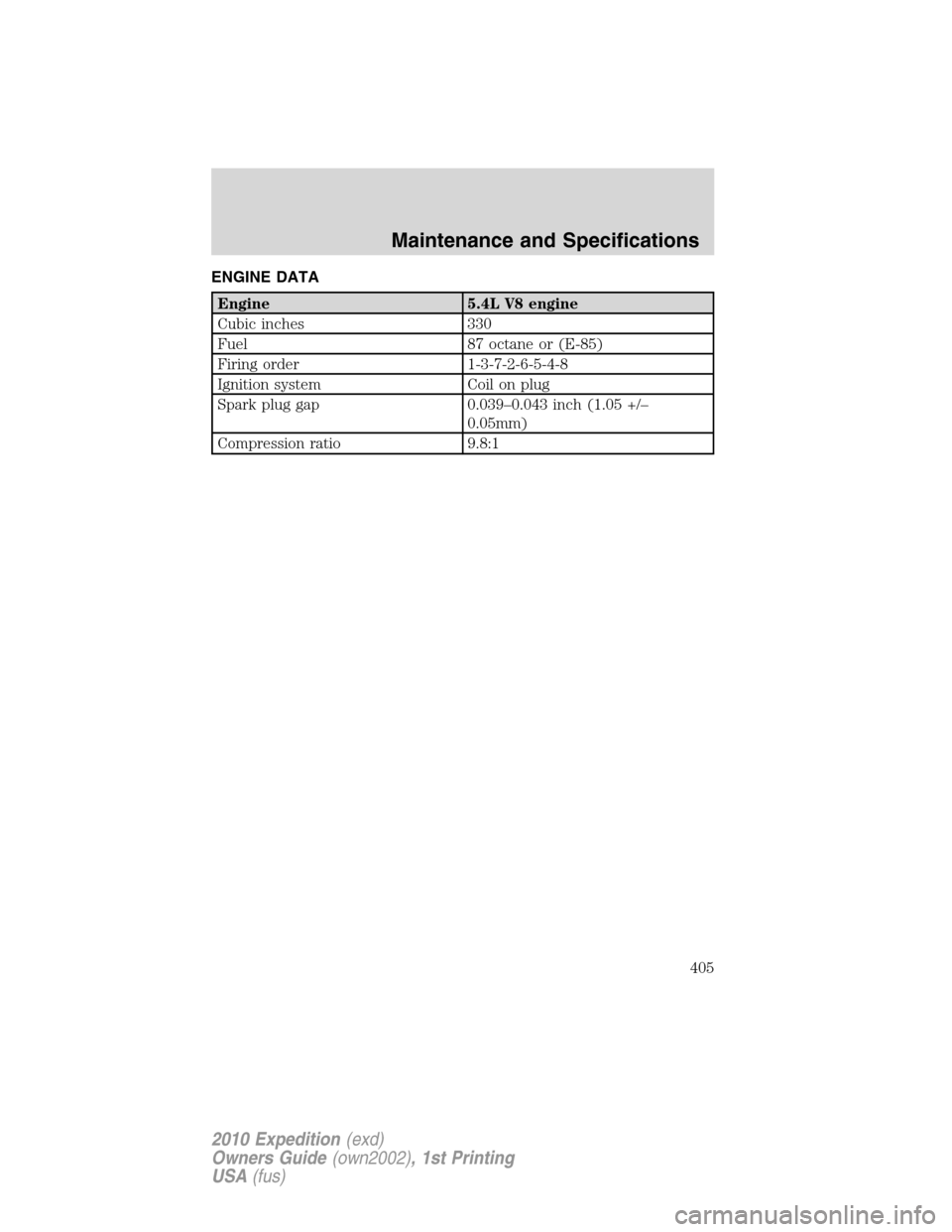

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Fuel 87 octane or (E-85)
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.039–0.043 inch (1.05 +/–
0.05mm)
Compression ratio 9.8:1
Maintenance and Specifications
405
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

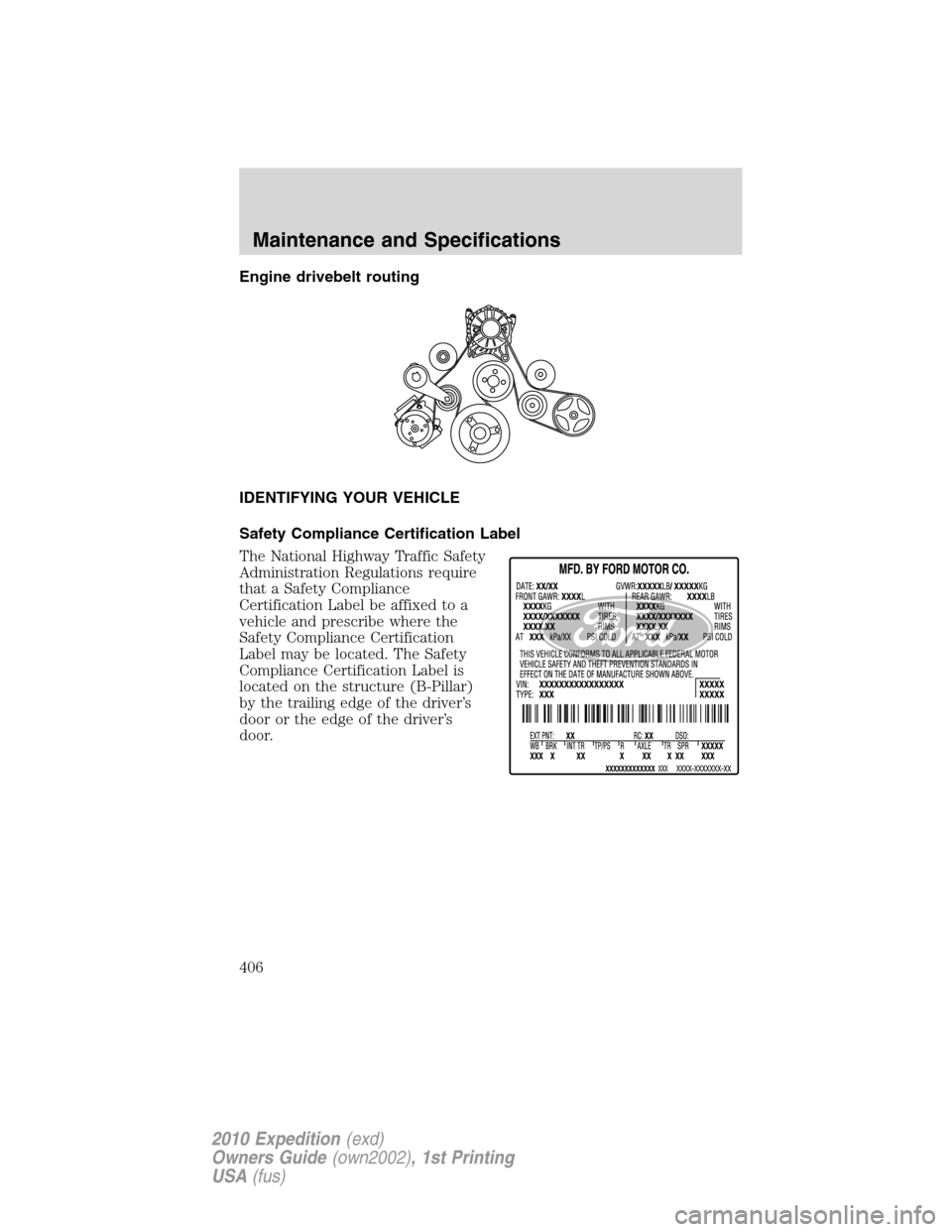

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
406
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

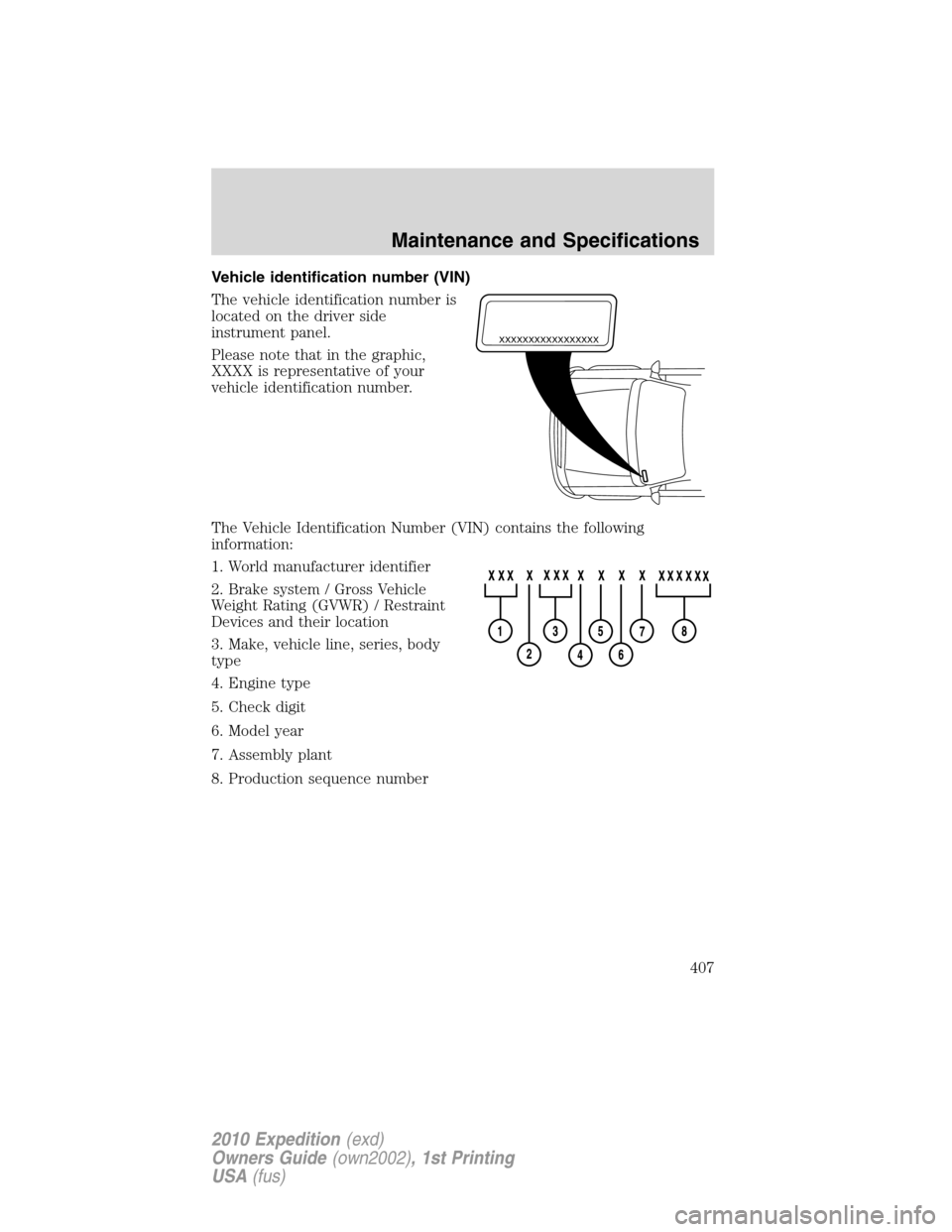

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
407
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

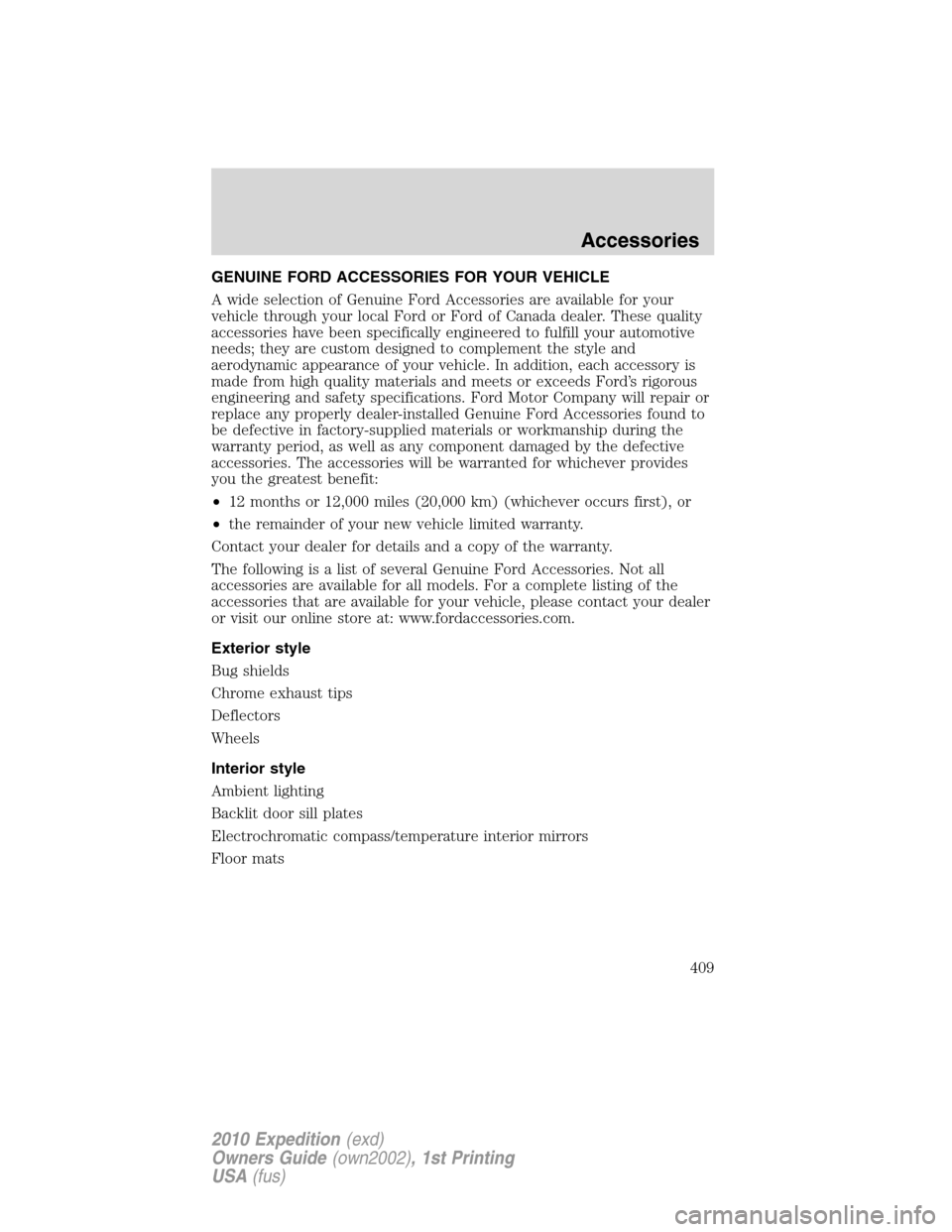

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Wheels
Interior style
Ambient lighting
Backlit door sill plates
Electrochromatic compass/temperature interior mirrors
Floor mats
Accessories
409
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

A
ABS (see Brakes) .....................291
Accessory delay ........................133
AdvanceTrac ..............................293
Air cleaner filter ...............398, 401
Air suspension ...........................299
description ..............................299
Airbag supplemental restraint
system ........................217, 221, 223
and child safety seats ............219
description ..............217, 221, 223
disposal ....................................227
driver airbag ............219, 222, 224
indicator light .................221, 226
operation .................219, 222, 224
passenger airbag .....219, 222, 224
side airbag ...............................221
Antifreeze
(see Engine coolant) ................378
Anti-lock brake system
(see Brakes) ..............................291
Anti-theft system ..............173, 180
arming the system ..................181
disarming a triggered
system .....................................182
Armrests ....................................187
Audio system
(see Radio) ......................39, 43, 51
Automatic transmission
driving an automatic
overdrive .................................304
fluid, adding ............................398
fluid, checking ........................398
fluid, refill capacities ..............402
fluid, specification ..................402
Auxiliary input jack (Line in) ....59
Auxiliary power point ...............131Axle
lubricant specifications ..........402
refill capacities ........................402
B
Battery .......................................376
acid, treating emergencies .....376
jumping a disabled battery ....345
maintenance-free ....................376
replacement, specifications ...401
servicing ..................................376
Belt-Minder
.............................213
Booster seats .............................242
Brakes ........................................290
anti-lock ...................................291
anti-lock brake system (ABS)
warning light ...........................291
fluid, checking and adding ....397
fluid, refill capacities ..............402
fluid, specifications .................402
lubricant specifications ..........402
parking ....................................292
shift interlock ..................301–302
Bulbs ..........................................120
C
Capacities for refilling fluids ....402
Car2U garage door opener .......148
Cargo cover ...............................159
Cargo management system ......159
Cassette tape player ...................43
Cell phone use ..............................8
Changing a tire .........................335
Child safety seats ......................231
in front seat ............................231
in rear seat ..............................231
Index
414
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

LATCH .....................................235
recommendations ...................229
Child safety seats - booster
seats ...........................................242
Cleaning your vehicle
engine compartment ..............361
instrument panel ....................363
interior .....................................364
plastic parts ............................361
washing ....................................359
waxing .....................................360
wheels ......................................360
wiper blades ............................362
Clock adjust
6-CD in dash .............................53
AM/FM/CD .................................45
Compass, electronic ....................23
calibration .................................23
set zone adjustment ...........23, 35
Console ......................................130
overhead ..........................129–130
Controls
power seat ...............................188
steering column ......................141
Coolant
checking and adding ..............378
refill capacities ................381, 402
specifications ..........................402
Cruise control
(see Speed control) ..................138
Customer Assistance ................324
Ford Extended Service
Plan ..........................................411
Getting assistance outside the
U.S. and Canada .....................356
Getting roadside assistance ...324
Getting the service you
need .........................................352Ordering additional owner’s
literature .................................357
Utilizing the
Mediation/Arbitration
Program ...................................356
D
Daytime running lamps
(see Lamps) ..............................115
Dipstick
automatic transmission
fluid ..........................................398
engine oil .................................373
Driving under special
conditions ..................307, 317, 320
sand .........................................318
snow and ice ...........................321
through water .................319, 323
DVD system .................................70
E
Electronic message center ...20, 28
Emergencies, roadside
jump-starting ..........................345
running out of fuel .........344, 389
Emission control system ..........394
Engine ................................405–406
cleaning ...................................361
coolant .....................................378
fail-safe cooling .......................382
idle speed control ...................376
lubrication specifications .......402
refill capacities ........................402
service points ..........................370
starting after a collision .........326
Engine block heater .................288
Engine oil ..................................373
Index
415
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

Oil (see Engine oil) ..................373
P
Parental MyKey
programming .............................177
Parking brake ............................292
Parts (see Motorcraft parts) ....401
Pedals (see Power adjustable
foot pedals) ...............................136
Power adjustable foot pedals ...136
Power deployable running
boards ........................................137
Power distribution box
(see Fuses) .......................328, 331
Power door locks ......................162
Power liftgate ............................154
Power mirrors ...........................135
Power point ...............................131
Power steering ..................298–299
fluid, checking and adding ....397
fluid, refill capacity ................402
fluid, specifications .................402
Power Windows .........................132
Preparing to drive your
vehicle ........................................300
R
Radio ................................39, 43, 51
Rear heated seats .....................200
Rear seat entertainment
system ..........................................70
Rear-view camera system .........310Recommendations for
attaching safety restraints for
children ......................................229
Relays ........................................327
Remote entry system .......166–167
illuminated entry ....................171
locking/unlocking
doors ................................167–168
opening the trunk ...................168
panic alarm .............................169
replacement/additional
transmitters .............................170
replacing the batteries ...........170
Reverse sensing system ...........307
Roadside assistance ..................324
Roll stability control .................293
S
Safety Belt Maintenance ..........245
Safety belts (see Safety
restraints) ..........204, 206, 208–211
Safety Canopy ...................221, 223
Safety defects, reporting ..........358
Safety
restraints ...........204, 206, 208–211
Belt-Minder
...........................213
extension assembly ................212
for adults .........................208–210
for children .............................227
safety belt maintenance .........245
warning light and
chime ...............................212–213
Safety restraints - LATCH
anchors ......................................235
Safety seats for children ..........231
Safety Compliance
Certification Label ....................406
Index
418
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
