2010 FORD E450 wiper fluid

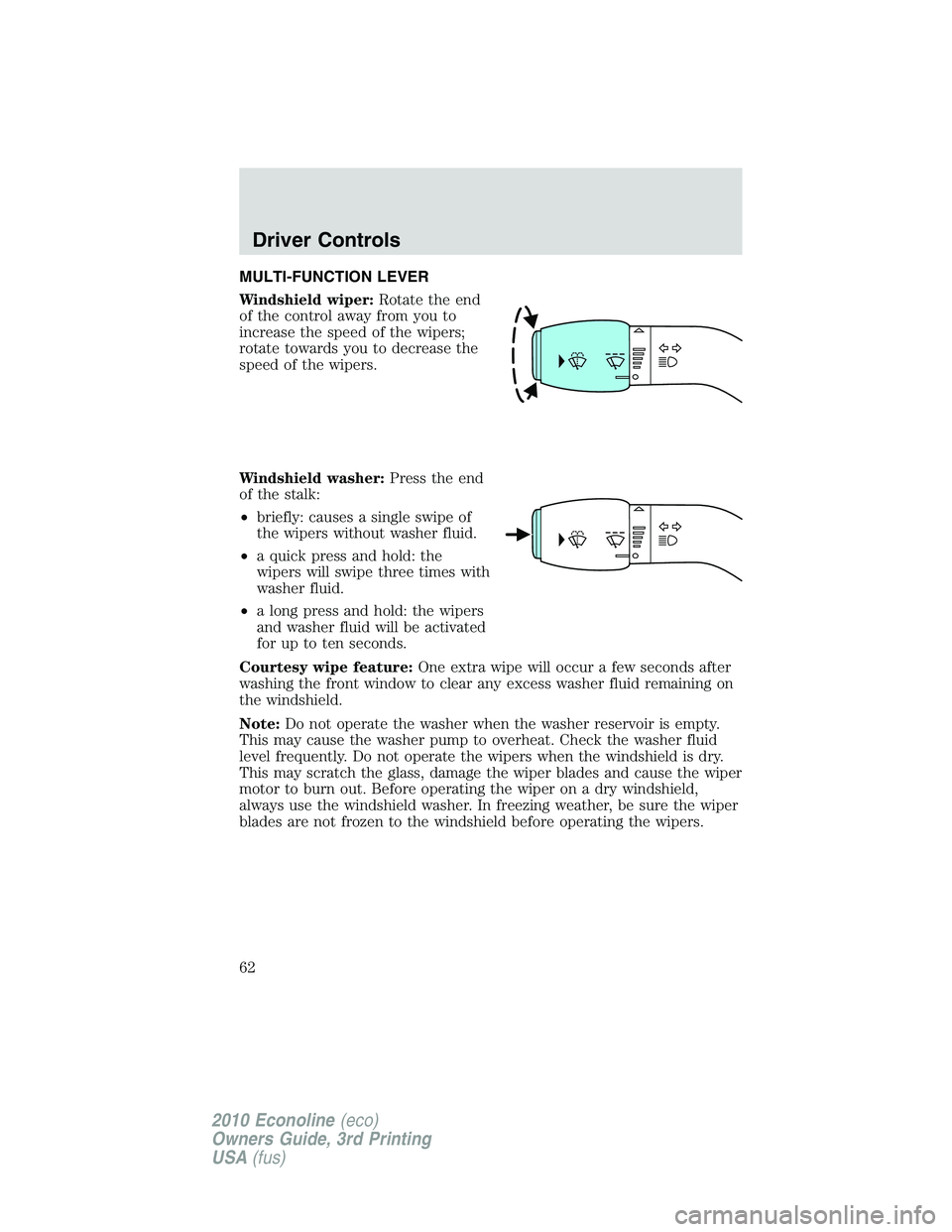

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with
washer fluid.
•a long press and hold: the wipers
and washer fluid will be activated
for up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Driver Controls
62
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If your vehicle is equipped with an auxiliary battery,
disconnecting the primary under-hood battery DOES NOT remove
power from all circuits.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 HC Micro Relay Powertrain control module (PCM)
2 HC Micro Relay Starter solenoid
3 HC Micro Relay Wiper
4 HC Micro Relay Trailer tow battery charge
5 HC Micro Relay Fuel pump
6 HC Micro Relay Trailer tow park lamp
7 HC Micro Relay Upfitter #4
Roadside Emergencies
233
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

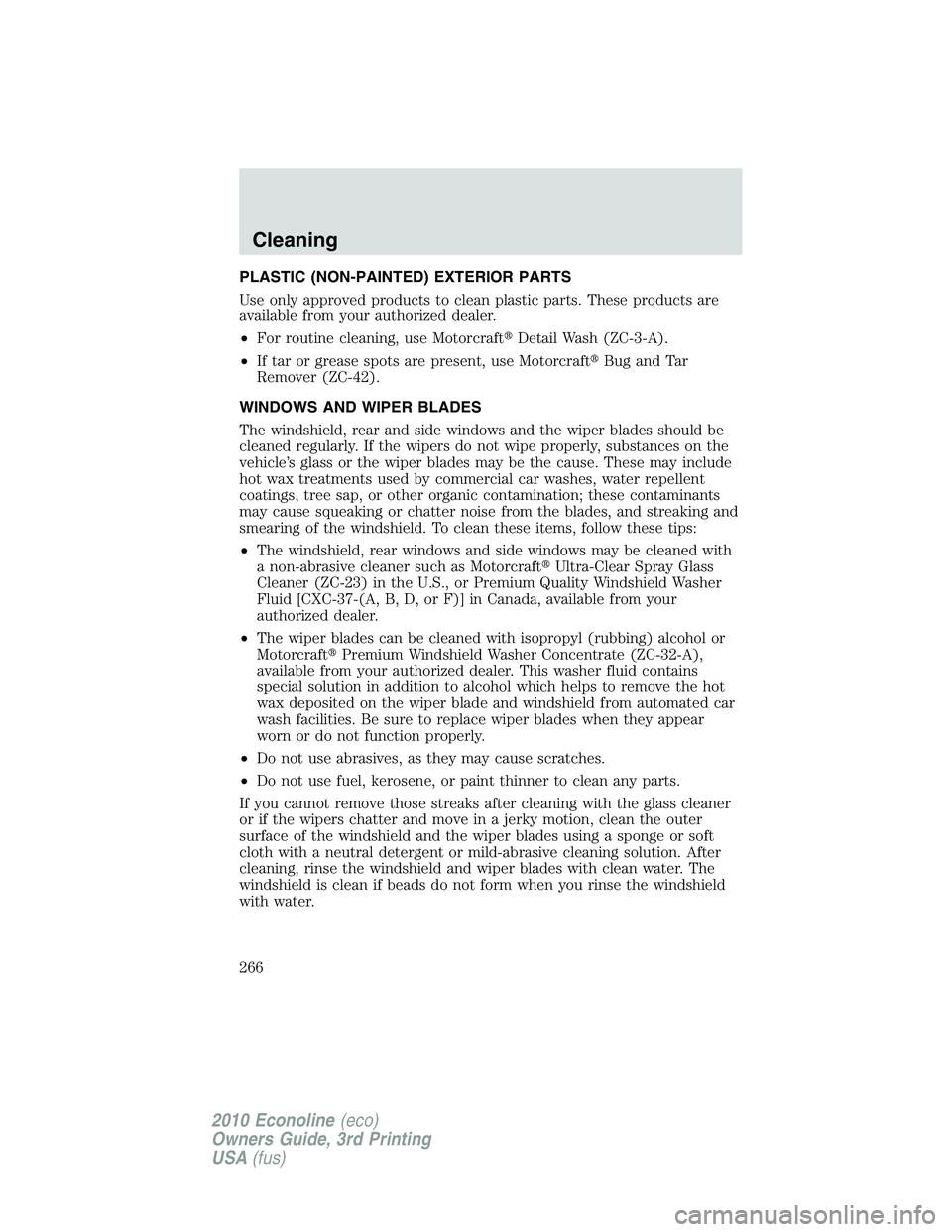

PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use MotorcraftDetail Wash (ZC-3-A).
•If tar or grease spots are present, use MotorcraftBug and Tar
Remover (ZC-42).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as MotorcraftUltra-Clear Spray Glass
Cleaner (ZC-23) in the U.S., or Premium Quality Windshield Washer
Fluid [CXC-37-(A, B, D, or F)] in Canada, available from your
authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
MotorcraftPremium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Cleaning
266
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

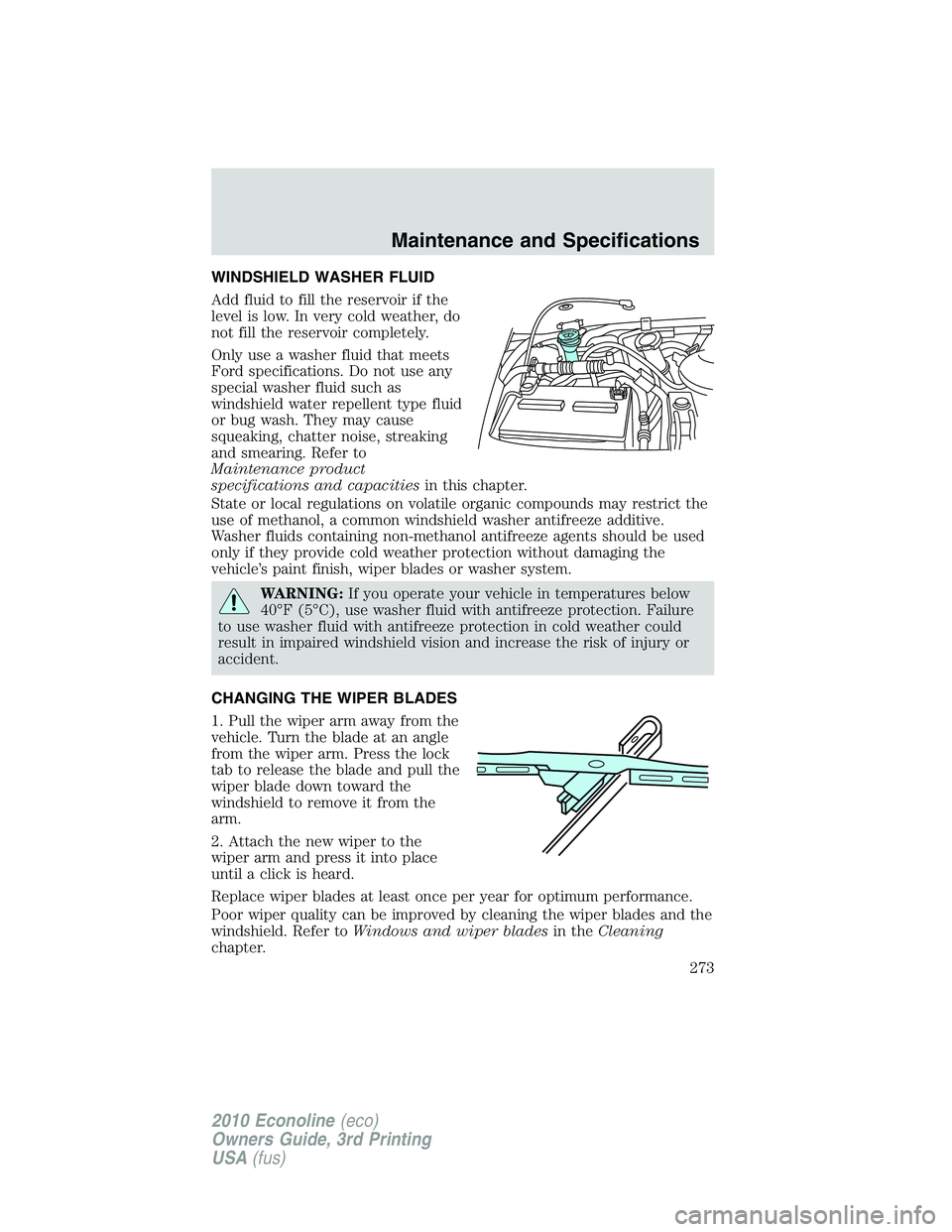

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specifications. Do not use any
special washer fluid such as
windshield water repellent type fluid
or bug wash. They may cause
squeaking, chatter noise, streaking
and smearing. Refer to
Maintenance product
specifications and capacitiesin this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Press the lock
tab to release the blade and pull the
wiper blade down toward the
windshield to remove it from the
arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer toWindows and wiper bladesin theCleaning
chapter.
Maintenance and Specifications
273
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

plastic parts ............................266
safety belts ..............................267
washing ....................................263
waxing .....................................264
wheels ......................................264
wiper blades ............................266
Climate control (see Air
conditioning or Heating)
......47–49
Clock adjust
AM/FM Stereo
...........................30
AM/FM/CD
.................................32
Compass, electronic
....................26
calibration
.................................26
set zone adjustment
.................26
Controls
power seat
.................................87
steering column
........................69
Coolant
checking and adding
..............280
refill capacities
................283, 309
specifications
..........................309
Cruise control
(see Speed control)
....................68
Customer Assistance
................225
Ford Extended Service
Plan
..........................................319
Getting assistance outside the
U.S. and Canada
.....................260
Getting roadside assistance
...225
Getting the service you
need
.........................................255
Ordering additional owner’s
literature
.................................261
Utilizing the
Mediation/Arbitration
Program
...................................259D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................274
Driveline universal joint and
slip yoke ....................................300
Driving under special
conditions
through water .........................224
E
Electronic message center .........21
Emergencies, roadside
jump-starting ..........................247
Emergency Flashers .................226
Emission control system ..........296
Engine ........................................313
cleaning ...................................265
coolant .....................................280
diesel ...........................................6
fail-safe cooling .......................284
idle speed control ...................277
lubrication specifications .......309
refill capacities ........................309
service points ..................272–273
starting after a collision .........227
Engine block heater .................196
Engine oil ..................................274
checking and adding ..............274
dipstick ....................................274
filter, specifications ........276, 308
recommendations ...................276
refill capacities ........................309
specifications ..........................309
Index
323
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

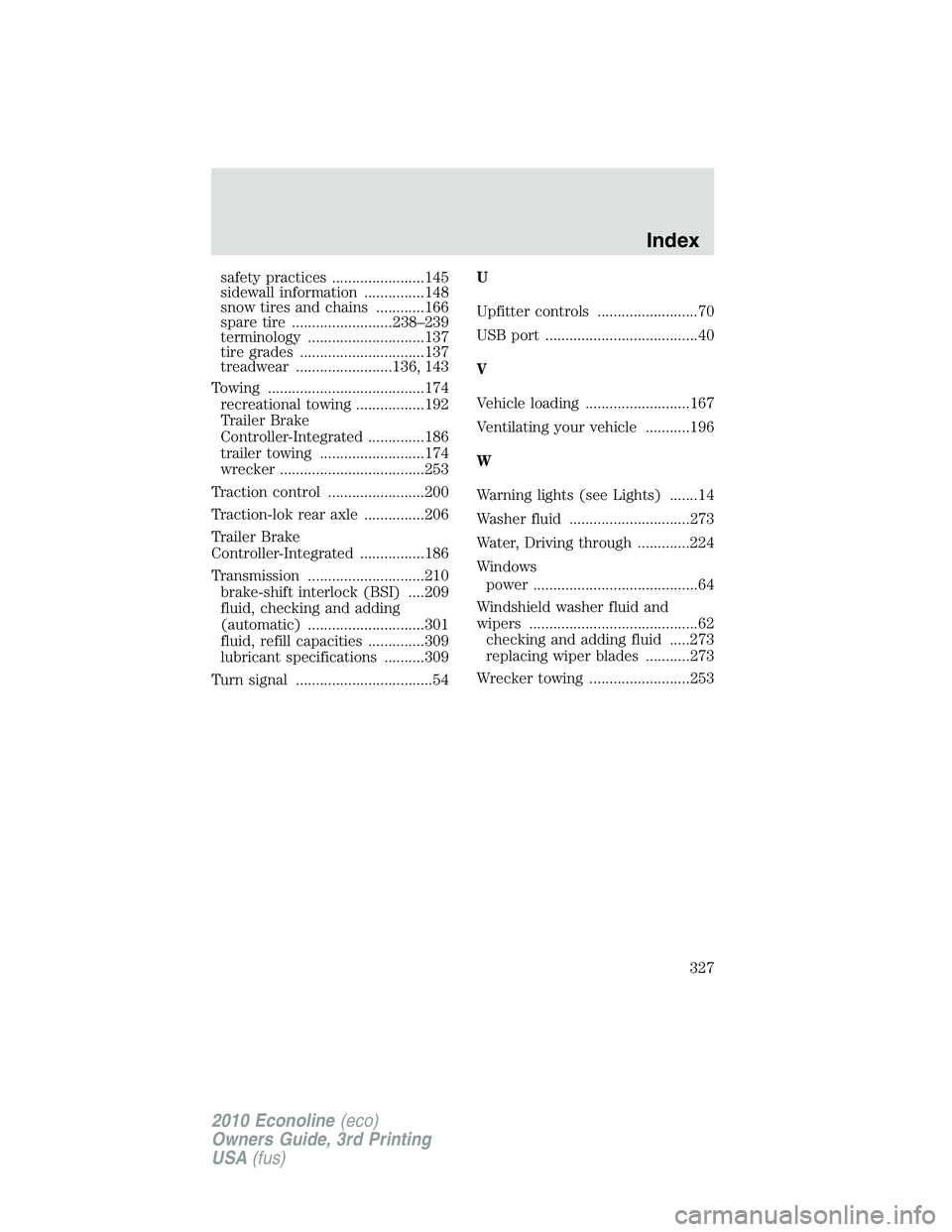

safety practices .......................145
sidewall information ...............148
snow tires and chains ............166
spare tire .........................238–239
terminology .............................137
tire grades ...............................137
treadwear ........................136, 143
Towing .......................................174
recreational towing .................192
Trailer Brake
Controller-Integrated ..............186
trailer towing ..........................174
wrecker ....................................253
Traction control ........................200
Traction-lok rear axle ...............206
Trailer Brake
Controller-Integrated ................186
Transmission .............................210
brake-shift interlock (BSI) ....209
fluid, checking and adding
(automatic) .............................301
fluid, refill capacities ..............309
lubricant specifications ..........309
Turn signal ..................................54U
Upfitter controls .........................70
USB port ......................................40
V
Vehicle loading ..........................167
Ventilating your vehicle ...........196
W
Warning lights (see Lights) .......14
Washer fluid ..............................273
Water, Driving through .............224
Windows
power .........................................64
Windshield washer fluid and
wipers ..........................................62
checking and adding fluid .....273
replacing wiper blades ...........273
Wrecker towing .........................253
Index
327
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
