2010 FORD E450 engine oil capacity

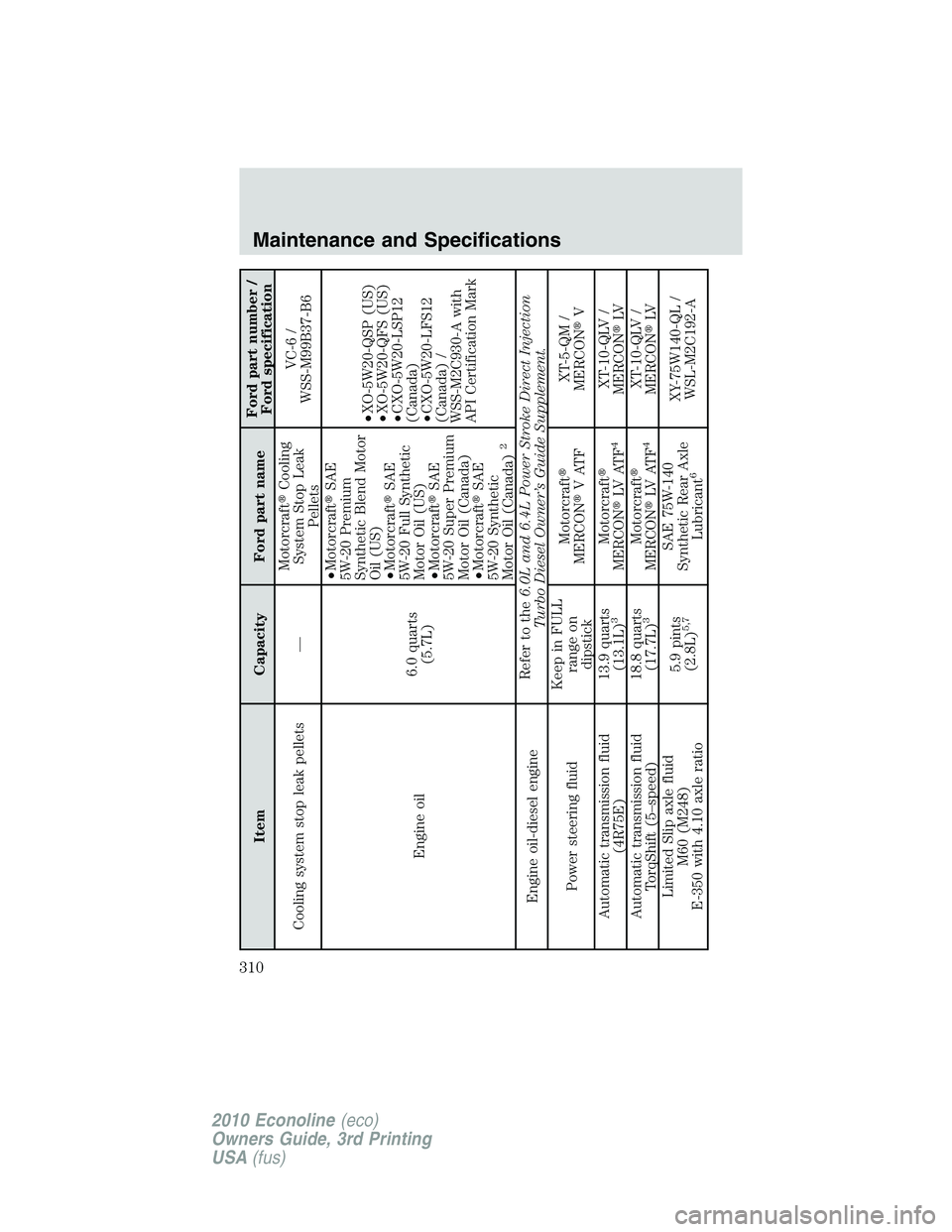

Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop leak pellets —MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil6.0 quarts
(5.7L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic
Motor Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A with
API Certification Mark
Engine oil-diesel engineRefer to the6.0L and 6.4L Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Power steering fluidKeep in FULL
range on
dipstickMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic transmission fluid
(4R75E)13.9 quarts
(13.1L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Automatic transmission fluid
TorqShift (5–speed)18.8 quarts
(17.7L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Limited Slip axle fluid
M60 (M248)
E-350 with 4.10 axle ratio5.9 pints
(2.8L)
5,7
SAE 75W-140
Synthetic Rear Axle
Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
310
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and extended
length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 6 oz. (177 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
Maintenance and Specifications
312
2010 Econoline(eco)
Owners Guide, 3rd Printing
