POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for more information.
Check the fluid level when it is at ambient temperature, 20°-80°F
(-7°-25°C):
1. Check the fluid level on the dipstick. It should be between the arrows
in the FULL COLD range. Do not add fluid if the level is within this
range.
2. If the fluid level is low, start the engine.
3. While the engine idles, turn the steering wheel left and right several
times.
4. Turn the engine off.
WARNING:For E-350 and E-450 vehicles with the Hydro-Boost
Brake System, do not press the brake pedal after the engine has
been turned off. Pressing the brake pedal after the engine has been
turned off will give a false power steering fluid level reading.
5. Recheck the fluid level on the dipstick. Do not add fluid if the level is
between the arrows in the FULL COLD range.
FULL COLD
Maintenance and Specifications
299
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

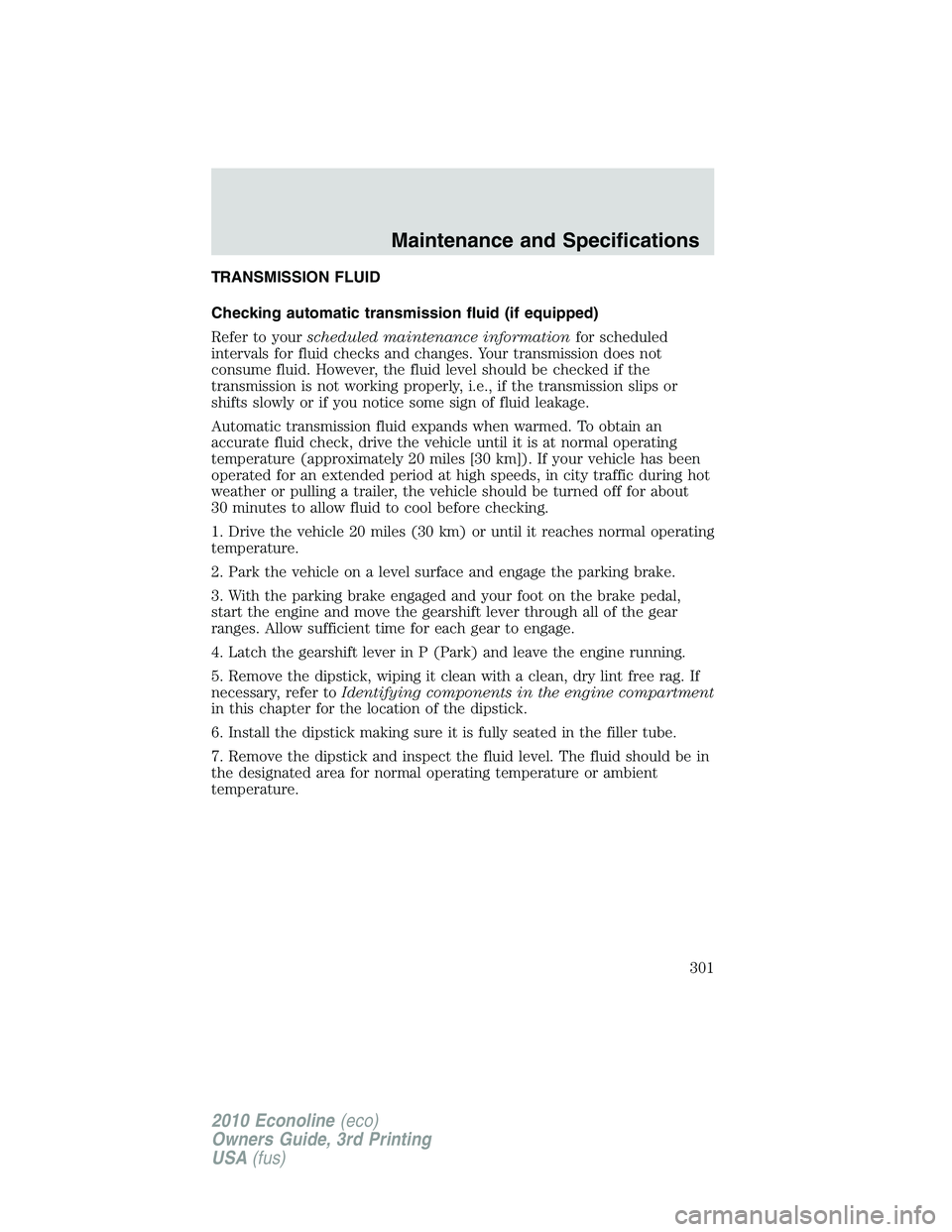

TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about
30 minutes to allow fluid to cool before checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
Maintenance and Specifications
301
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and extended
length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 6 oz. (177 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
Maintenance and Specifications
312
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Vehicle identification number (VIN)
The VIN is located on the driver side instrument panel or on the
certification label. It contains the following information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
Maintenance and Specifications
315
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

A
Accessory delay ..........................65
AdvanceTrac ..............................201
Air cleaner filter ...............306–308
Airbag supplemental restraint
system ................................102–103
and child safety seats ............104
description ..............................103
disposal ....................................107
driver airbag ............................105
indicator light .........................106
operation .................................105
passenger airbag .....................105
passenger deactivation
switch ......................................108
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................280
Anti-lock brake system
(see Brakes) ......................198–199
Anti-theft system ........................81
arming the system ....................82
Audio system (see Radio) ...29, 31
Automatic transmission
driving an automatic
overdrive .................210, 212, 215
fluid, adding ............................301
fluid, checking ........................301
fluid, refill capacities ..............309
fluid, specification ..................309
Auxiliary Input Jack ...................38
Auxiliary power point .................63
Axle
lubricant specifications ..........309
refill capacities ........................309
traction lok ..............................206
B
Battery .......................................277acid, treating emergencies .....277
jumping a disabled battery ....247
maintenance-free ....................277
replacement, specifications ...308
servicing ..................................277
Belt-Minder...............................98
Blind Spot Spotter Mirror ........222
Booster seats .............................130
Brakes ........................................198
anti-lock ...........................198–199
anti-lock brake system (ABS)
warning light ...........................199
fluid, checking and adding ....300
fluid, refill capacities ..............309
fluid, specifications .................309
lubricant specifications ..........309
parking ....................................199
shift interlock ..........................209
trailer .......................................186
Bulbs ............................................55
C
Capacities for refilling fluids ....309
Cell phone use ............................10
Changing a tire .........................237
Child safety seats ......................117
in front seat ............................117
in rear seat ..............................117
LATCH .....................................121
recommendations ...................115
tether anchorage hardware ...127
Child safety seats - booster
seats ...........................................130
Cleaning your vehicle
engine compartment ..............265
exterior ....................................268
instrument panel ....................267
interior .....................................267
Index
322
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

plastic parts ............................266
safety belts ..............................267
washing ....................................263
waxing .....................................264
wheels ......................................264
wiper blades ............................266
Climate control (see Air
conditioning or Heating)
......47–49
Clock adjust
AM/FM Stereo
...........................30
AM/FM/CD
.................................32
Compass, electronic
....................26
calibration
.................................26
set zone adjustment
.................26
Controls
power seat
.................................87
steering column
........................69
Coolant
checking and adding
..............280
refill capacities
................283, 309
specifications
..........................309
Cruise control
(see Speed control)
....................68
Customer Assistance
................225
Ford Extended Service
Plan
..........................................319
Getting assistance outside the
U.S. and Canada
.....................260
Getting roadside assistance
...225
Getting the service you
need
.........................................255
Ordering additional owner’s
literature
.................................261
Utilizing the
Mediation/Arbitration
Program
...................................259D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................274
Driveline universal joint and
slip yoke ....................................300
Driving under special
conditions
through water .........................224
E
Electronic message center .........21
Emergencies, roadside
jump-starting ..........................247
Emergency Flashers .................226
Emission control system ..........296
Engine ........................................313
cleaning ...................................265
coolant .....................................280
diesel ...........................................6
fail-safe cooling .......................284
idle speed control ...................277
lubrication specifications .......309
refill capacities ........................309
service points ..................272–273
starting after a collision .........227
Engine block heater .................196
Engine oil ..................................274
checking and adding ..............274
dipstick ....................................274
filter, specifications ........276, 308
recommendations ...................276
refill capacities ........................309
specifications ..........................309
Index
323
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

K
Keyless entry system
autolock .....................................72
Keys .............................................83
positions of the ignition .........193
L
Lamps
bulb replacement
specifications chart ..................56
daytime running light ...............50
headlamps .................................50
headlamps, flash to pass ..........51
instrument panel, dimming .....51
interior lamps ...........................54
replacing bulbs .........................57
LATCH anchors .........................121
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........199
Load limits .................................167
Loading instructions .................174
Locks
autolock .....................................72
doors ..........................................72
Lubricant specifications ...........309
Lug nuts ....................................246
Lumbar support, seats ...............87
M
Message center ...........................21
english/metric button ...............26
warning messages .....................26
Mirrors ...................................65–66
automatic dimming rearview
mirror ........................................65
fold away ...................................67side view mirrors (power) .......66
Motorcraftparts ..............269, 308
N
Navigation system .......................46
O
Octane rating ............................291
Oil (see Engine oil) ..................274
P
Parking brake ............................199
Parts
(see Motorcraftparts) ...........308
Power distribution box
(see Fuses) ...............................232
Power door locks ........................72
Power mirrors .............................66
Power point .................................63
Power steering ..........................206
fluid, checking and adding ....299
fluid, refill capacity ................309
fluid, specifications .................309
Power Windows ...........................64
Preparing to drive your
vehicle ........................................207
R
Radio ......................................29, 31
Rear-view camera system .........220
Recommendations for
attaching safety restraints for
children ......................................115
Relays ........................................229
Index
325
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
