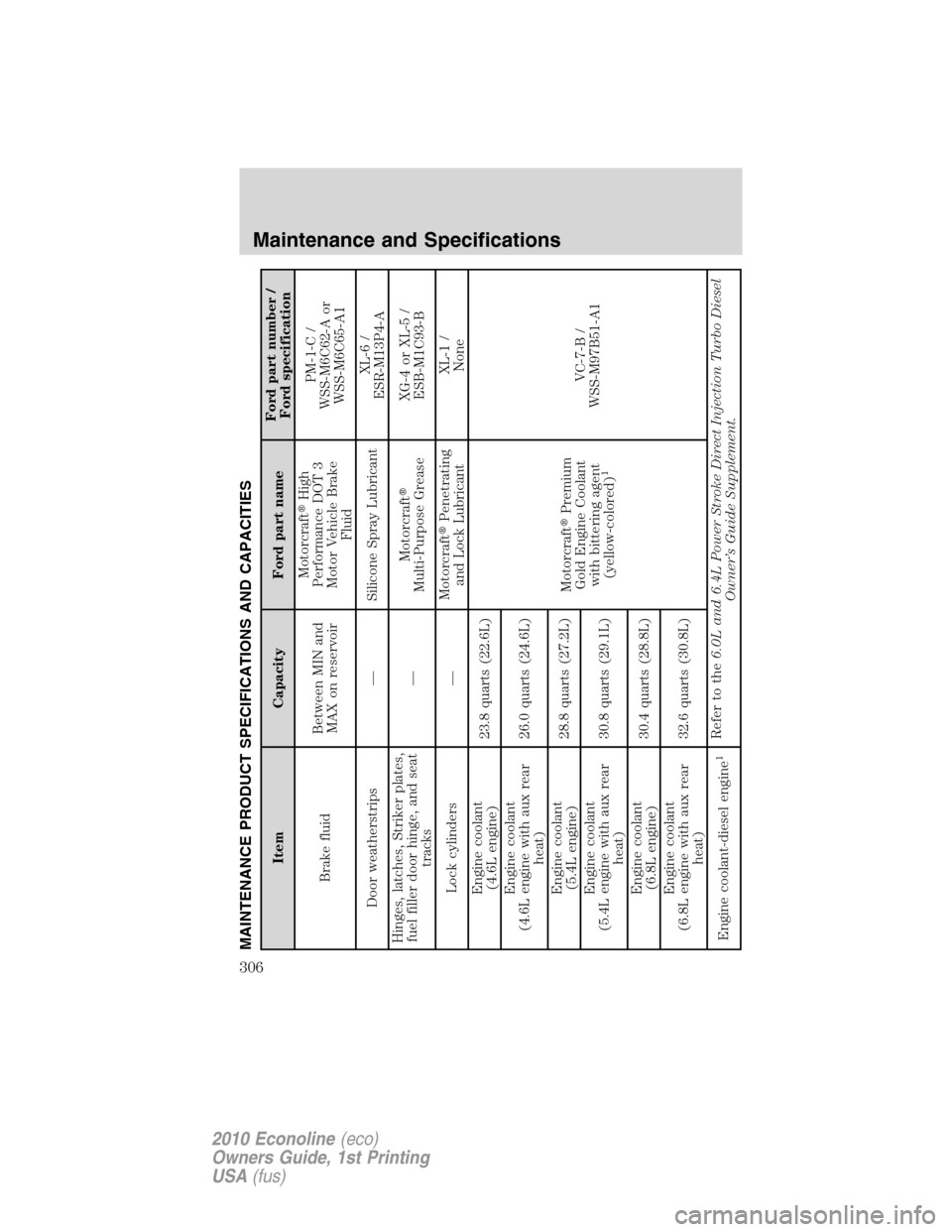

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft
High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches, Striker plates,
fuel filler door hinge, and seat
tracks—Motorcraft

Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft
Penetrating
and Lock LubricantXL-1 /
None
Engine coolant
(4.6L engine)23.8 quarts (22.6L)
Motorcraft
Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant
(4.6L engine with aux rear
heat)26.0 quarts (24.6L)
Engine coolant
(5.4L engine)28.8 quarts (27.2L)
Engine coolant
(5.4L engine with aux rear
heat)30.8 quarts (29.1L)
Engine coolant
(6.8L engine)30.4 quarts (28.8L)
Engine coolant
(6.8L engine with aux rear
heat)32.6 quarts (30.8L)
Engine coolant-diesel engine
1
Refer to the6.0L and 6.4L Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement.
Maintenance and Specifications
306
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and
extended length vans and
wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and
176 inch wheelbase (E-Super
Duty)55.0 gallons
(208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the requirements of Ford
specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if equipped with an in-tank
cooler, if equipped with an oil to air cooler and if equipped with a remote filter assembly. The amount of transmission fluid and
fluid level should be set by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer toscheduled maintenance
informationto determine the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.5Dana limited-slip axle (M60) requires 8 oz. (228 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford
specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated for life. These lubricants do
not need to be checked or changed unless a leak is suspected, service is required or the axle assembly has been submerged in
water. The axle lubricant should be changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
Maintenance and Specifications
309
2010 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
