2010 FIAT DOBLO COMBI technical data

The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
FIATDOBLÓENGLISH
DOBLO LUM GB 26-09-2007 18:38 Pagina 1

20
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SETUP MENU
The menu comprises a series of functions arranged in
a circle which can be selected through buttons ▲and ▼
to access the settings described below. A submenu is pro-
vided for some items (Clock and Unit of measurement).
The setup menu can be activated by pressing SET ESC.
Pressing buttons ▲or ▼scrolls through the setup menu
options. Management modes differ from each other ac-
cording to the option selected. The menu comprises the
following functions:
– LIGHTING
– SPEED BEEP
– TRIP B DATA
– SET TIME
– SET DATE
– RADIO INFO (if present)
– AUTOCLOSE
– UNIT OF MEASUREMENT
– LANGUAGE
– WARNING VOLUME
– BUTTON VOLUME
– SEAT BELT BUZZER
(only if previously disabled)
– SERVICE N.B. Buttons ▲and ▼activate different functions in the
following situations:
Adjusting the vehicle’s interior lighting
– on the standard screen, they adjust the brightness of the
instrument panel and the radio.
Setup menu
– within the menu, they scroll up and down;
– during setting operations they increase or decrease the
value.
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 20

22
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– press ▲or ▼to select;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Setting the time (Clock)
This function allows you to set the clock through two sub-
menus: “Time” and “Mode”.
To carry out the adjustment, proceed as follows:
– press SET ESC: the display shows the two submenus
“Time” and “Mode”;
– press ▲or ▼to move between the two submenus;
– once you have selected a submenu, press SET ESC; – if the function is on, press ▲or ▼to select the required
speed limit and then press SET ESC to confirm;
N.B. The speed may be set anywhere between 30 and
200 km/h or 20 and 125 mph, depending on the previously
chosen unit (see “Setting the unit of measurement (Unit)”).
The setting will increase/decrease by five units each time
button ▲/▼is pressed. Hold down button ▲/▼to in-
crease/decrease the setting rapidly. Complete the setting
with single presses of the button when you approach the
required setting.
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
To cancel the setting, proceed as follows:
– press the SET ESC button: ON flashes in the display;
– press button ▼: OFF flashes in the display;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Trip B data (Activating Trip B)
This function may be used to activate (On) or deactivate
(Off) the Trip B display (partial trip).
For more information see the „Trip computer” section.
For activation/deactivation, proceed as follows:
– press the SET ESC button again: the display flashes On
or Off depending on what was previously set;
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 22

114
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets where provided)
The Diesel Particulate Filter is a mechanical filter, inte-
gral with the exhaust system, that physically traps carbon
particles present in the exhaust gases of Diesel engines.
It is needed to eliminate almost all carbon particles in com-
pliance with current/future legislation. During normal use
of the vehicle, the engine management control unit records
a set of data (e.g. journey time, type of route, tempera-
tures, etc.) and it will then calculate how much particu-
late has been trapped by the filter.Since the filter is a collecting system, it should be regular-
ly regenerated (cleaned) by burning the carbon particles.
The regeneration procedure is controlled automatically by
the engine management control unit according to the fil-
ter conditions and vehicle use conditions.
During regeneration, the following may occur: a limited in-
crease in the engine speed, activation of the fan, a limited
increase in fumes and high temperatures at the exhaust.
These are not faults; they do not impair vehicle perfor-
mance or damage the environment. If the dedicated mes-
sage is displayed, refer to the “Warning lights and mes-
sages” section.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:55 Pagina 114

120
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SEAT BELT MAINTENANCE
Observe the following precautions for correct seat belt
maintenance:
❒always make sure the belt is well stretched and never
twisted; make sure that it is free to run without ob-
structions;
❒replace the belt after a serious accident, even if it does
not appear damaged. Always replace the seat belt if the
pretensioners were deployed;
❒To clean the belt, wash by hand with water and mild
soap, rinse and leave to dry in the shade. Do not use
strong detergents, bleach, paints or any other chemi-
cals which could damage the belt fibres;
❒prevent the reels from getting wet: their correct op-
eration is guaranteed only if water does not get inside;
❒replace the seat belt if it shows significant signs of wear
and tear.
If the belt has been subjected to heavy
stress, for example after an accident, it
should be changed completely together with the
anchors, anchor fastening screws and the preten-
sioner. In fact, even if the belt has no visible de-
fects, it could have lost its resilience.
WARNINGCARRYING CHILDREN SAFELY
For optimum protection in the event of a crash, all pas-
sengers must be seated and wearing adequate restraint
systems.
This is even more important for children.
This prescription is compulsory in all EU countries ac-
cording to EC Directive 2003/20/EC.
Compared with an adult, a child’s head is larger and heav-
ier in proportion to his/her body and the child’s muscu-
lar and bone structures are not fully developed. For this
reason, they require restraint systems which are differ-
ent from those used by adults to protect them in the event
of an accident.
The result of research in relation to the best protection
for children is illustrated in European Regulation ECE-R44,
which divides the restraint systems into five groups in ad-
dition to making their use compulsory:
Group 0 up to 10 kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
As you can see, the groups overlap partly and, in fact, there
are devices on sale that cover more than one weight group.
All restraint devices must bear the type-approval data along
with the control mark on a label firmly secured to the child
seat which must never be removed.
115-132 DOBLO LUM EN 2e 7.0 21-05-2010 11:11 Pagina 120

219
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0115mfig. 189
H Maximum authorised weight on rear
axle.
I Engine type.
L Bodywork version code.
M Number for spare parts.
N Correct smoke opacity index.
TECHNICAL SPECIFICATIONS
IDENTIFICATION DATA
We recommend taking note of the identification codes.
The following identification codes are printed and shown
on the plates:
❒Vehicle identification number (VIN) plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
VEHICLE IDENTIFICATION NUMBER (VIN)
PLATE fig. 189
This plate is fitted to the engine compartment air intake
chamber and contains the following information:
B Type-approval number
C Vehicle type identification code.
D Chassis number.
E Maximum authorised weight of vehicle fully laden.
F Maximum authorised weight of vehicle fully laden plus
trailer.
G Maximum authorised weight on front axle.
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:09 Pagina 219

262
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

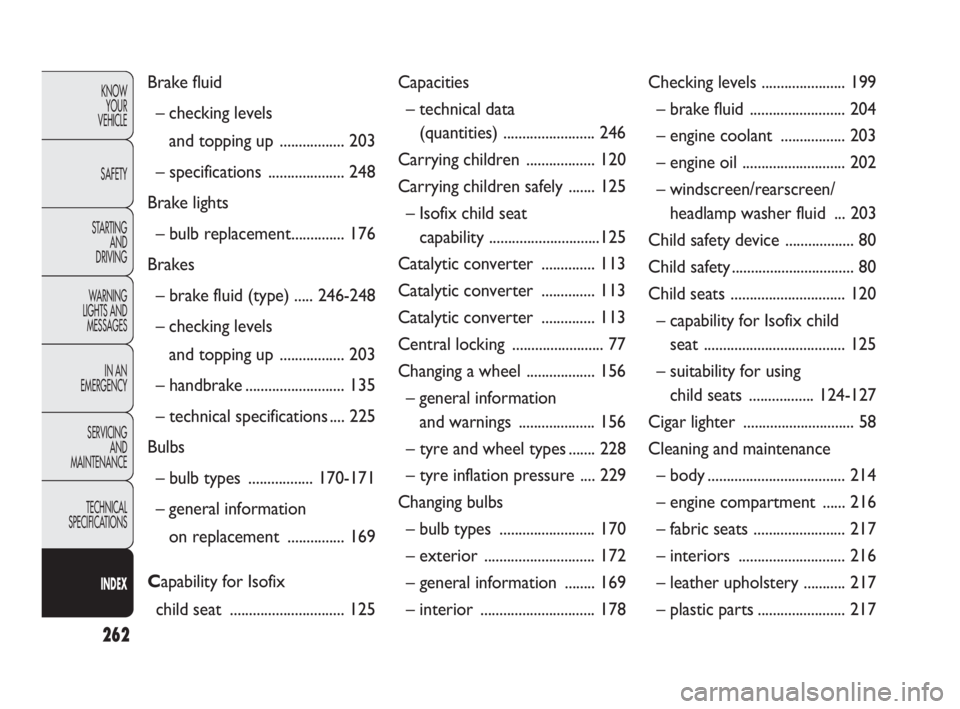

Brake fluid
– checking levels
and topping up ................. 203
– specifications .................... 248
Brake lights
– bulb replacement.............. 176
Brakes
– brake fluid (type) ..... 246-248
– checking levels
and topping up ................. 203
– handbrake .......................... 135
– technical specifications .... 225
Bulbs
– bulb types .................170-171
– general information
on replacement ............... 169
Capability for Isofix
child seat .............................. 125Capacities
– technical data
(quantities) ........................ 246
Carrying children .................. 120
Carrying children safely ....... 125
– Isofix child seat
capability .............................125
Catalytic converter .............. 113
Catalytic converter .............. 113
Catalytic converter .............. 113
Central locking ........................ 77
Changing a wheel .................. 156
– general information
and warnings .................... 156
– tyre and wheel types ....... 228
– tyre inflation pressure .... 229
Changing bulbs
– bulb types ......................... 170
– exterior ............................. 172
– general information ........ 169
– interior .............................. 178Checking levels ...................... 199
– brake fluid ......................... 204
– engine coolant ................. 203
– engine oil ........................... 202
– windscreen/rearscreen/
headlamp washer fluid ... 203
Child safety device .................. 80
Child safety................................ 80
Child seats .............................. 120
– capability for Isofix child
seat ..................................... 125
– suitability for using
child seats .................124-127
Cigar lighter ............................. 58
Cleaning and maintenance
– body.................................... 214
– engine compartment ...... 216
– fabric seats ........................ 217
– interiors ............................ 216
– leather upholstery ........... 217
– plastic parts ....................... 217
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 262

265
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– ignition switch .......................9
– ignition switch .......................9
– procedure for Diesel
versions ..............................134
– procedure for petrol
versions .............................. 133
– stopping the engine ........ 135
– warming up the engine .. 134
Engine
– engine immobiliser
(Fiat CODE) ......................... 4
– identification codes .......... 221
– marking .............................. 220
– technical data ................... 223
Environment
protection ....................113-114
– diesel particulate filter
(DPF) ................................. 114
Environment
– devices for reducing
emissions ..................113-114EOBD (system) ..................... 102
ESP (system) ............................. 98
Expanding the boot ................ 89
Exterior lights
(switching on)................... 59-60
Fiat CODE ................................. 4
Fix&GO automatic
(quick tyre repair kit) ........ 163
Flashing (main beam
headlights) .............................. 60
Fluids and lubricants
(specifications) ............242-243
Fog lights
– bulb replacement.............. 174
– switching on ....................... 70
Fog lights
– bulb replacement.............. 174
– switching on ....................... 70
Follow me home
(headlight device) .................. 60Front air bags ......................... 128
– deactivation ...................... 130
– driver ................................. 129
– passenger .......................... 129
Front armrest .......................... 71
Front courtesy light ................ 65
– bulb replacement.............. 178
Front light clusters
– bulb arrangement ............. 172
Front seats ................................ 31
– adjustments .................. 30-31
– armrest ................................ 71
– cleaning .............................. 216
– headrest .............................. 38
– heating ................................. 32
Fuel consumption ................. 249
Fuel cut-off (system) ............... 70
Fuel economy ........................ 137
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 265
