3rdROW SEAT MOVEMENTS
Proceed as follows:
❒fully lower the rear seat head restraints;
❒move the seat belt to the side, making sure that it is
fully extended and not twisted;
❒lift lever A-fig. 26c retaining the backrest and fold the
latter forwards. When you lift the lever, you will see
a red band;
❒pull the tape B-fig. 26c behind the seat backrests and
fold the seats and the backrests forwards;
N.B. On the split seats, there are rubber bands on the lower
edge of the cushion so you can attach the folded seat to the 2nd
row rear seat head restraint rods.
3rdROW SEAT REMOVAL
Proceed as follows:
❒remove the rear seat head restraints;
❒remove the rolling curtain from its housing;
❒move the seat belt to the side, making sure that it is
fully extended and not twisted;
❒lift lever A-fig. 26c retaining the backrest and fold the
latter forwards. When you lift the lever, you will see
a red band.
❒pull the tape B-fig. 26c behind the seat backrests and
fold the seats and the backrests forwards.
❒position the head restraint using the openings under
the cushion to insert the rods;
❒push the lever as illustrated in fig. 26d;
❒remove the seat from the attachments on the floor.
3
rdROW SEAT REPOSITIONING
Proceed as follows:
❒attach the hooks to the floor fig. 26e;
❒push the lever as illustrated in fig. 26d and pull it to
make sure that the seat is still correctly secured;
❒withdraw the head restraint under the cushion;
B
A
F0V0205mfig. 26cF0V0206mfig. 26d
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:53 Pagina 35

PARTITIONS
(for versions/markets where provided)
CARGO VERSIONS
Plated fixed partition fig. 27
Separates the passenger area from the load compartment.
36
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒fold the cushion and the backrest over;
❒reposition the head restraint;
❒re-position the rolling curtain in its housing.
WARNING Make sure that the seat is properly secured
to the fastenings on the floor and that the lever A-fig. 26c
is tightened (red band not visible).
F0V0219mfig. 29F0V0103mfig. 28F0V0102mfig. 27
F0V0207mfig. 26e
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 36

37
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0170mfig. 31

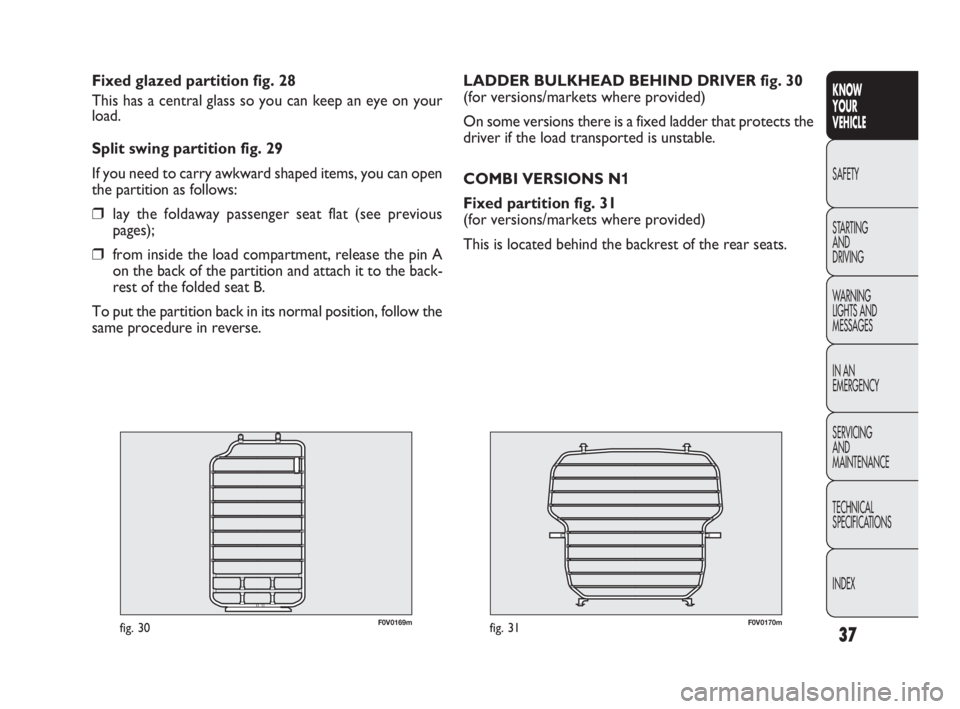

LADDER BULKHEAD BEHIND DRIVER fig. 30
