2010 DODGE DAKOTA fuel filter

E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle’s warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
•operate in a lean mode
•OBD II “Malfunction Indicator Light” on
•poor engine performance
•poor cold start and cold drivability
•increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
•change the engine oil and oil filter
•disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emission system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
gasoline contains MMT. It is even more important to look
for gasolines without MMT in Canada, because MMT can
300 STARTING AND OPERATING

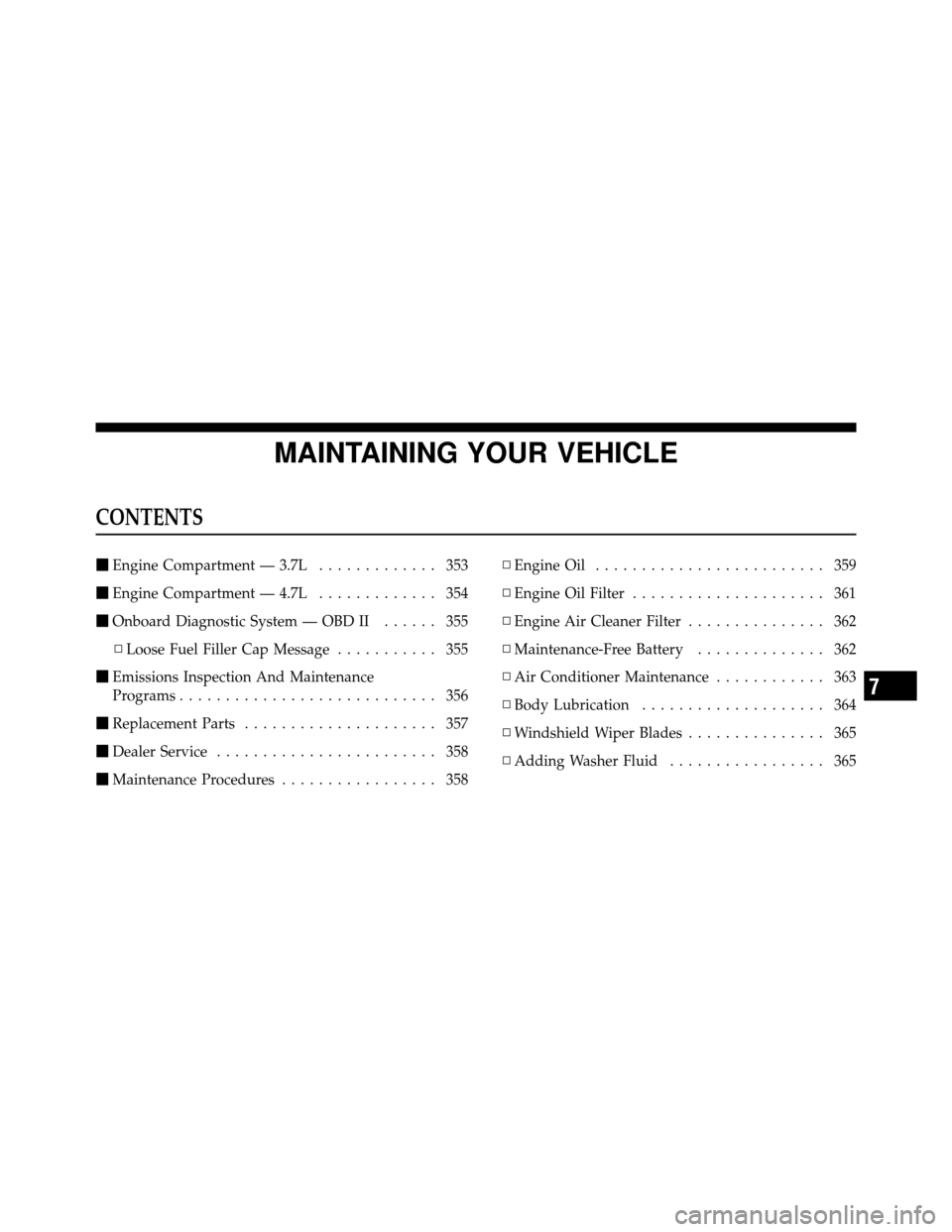

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.7L ............. 353
 Engine Compartment — 4.7L ............. 354
 Onboard Diagnostic System — OBD II ...... 355
▫ Loose Fuel Filler Cap Message ........... 355
 Emissions Inspection And Maintenance
Programs ............................ 356
 Replacement Parts ..................... 357
 Dealer Service ........................ 358
 Maintenance Procedures ................. 358 ▫
Engine Oil ......................... 359
▫ Engine Oil Filter ..................... 361
▫ Engine Air Cleaner Filter ............... 362
▫ Maintenance-Free Battery .............. 362
▫ Air Conditioner Maintenance ............ 363
▫ Body Lubrication .................... 364
▫ Windshield Wiper Blades ............... 365
▫ Adding Washer Fluid ................. 365
7

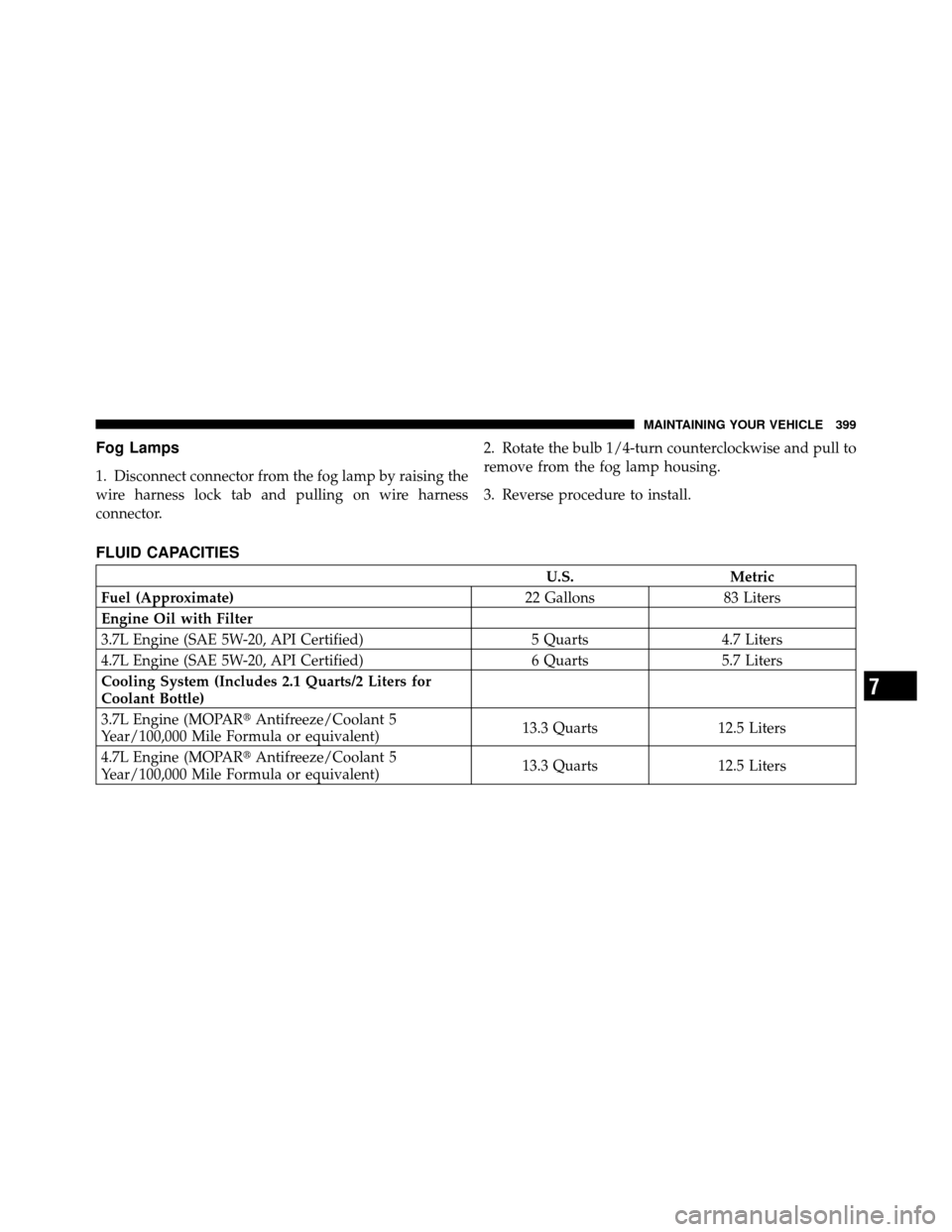

Fog Lamps
1. Disconnect connector from the fog lamp by raising the
wire harness lock tab and pulling on wire harness
connector.2. Rotate the bulb 1/4-turn counterclockwise and pull to
remove from the fog lamp housing.
3. Reverse procedure to install.
FLUID CAPACITIES
U.S.
Metric
Fuel (Approximate) 22 Gallons83 Liters
Engine Oil with Filter
3.7L Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
4.7L Engine (SAE 5W-20, API Certified) 6 Quarts5.7 Liters
Cooling System (Includes 2.1 Quarts/2 Liters for
Coolant Bottle)
3.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 13.3 Quarts
12.5 Liters
4.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 13.3 Quarts
12.5 Liters
7
MAINTAINING YOUR VEHICLE 399

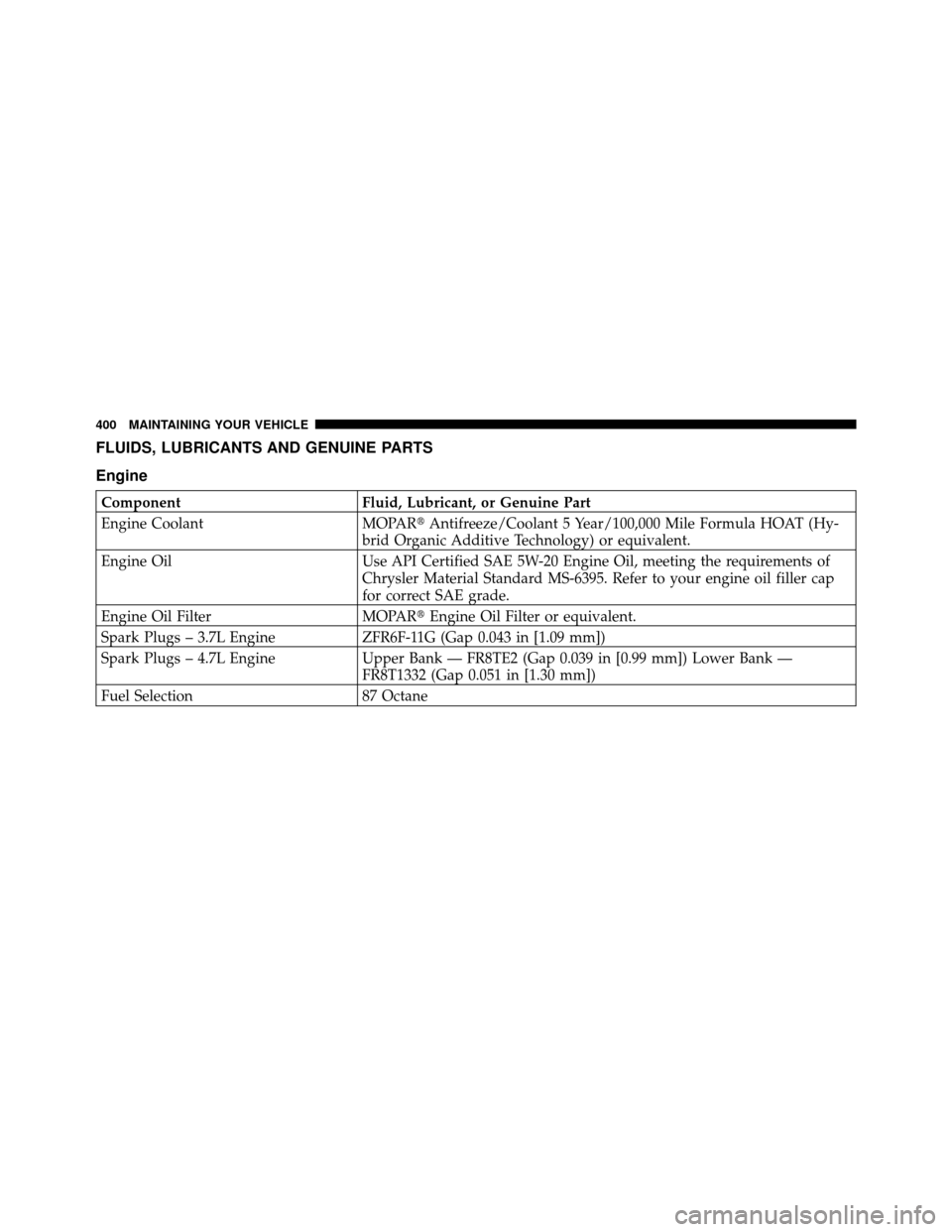

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap
for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 3.7L Engine ZFR6F-11G (Gap 0.043 in [1.09 mm])
Spark Plugs – 4.7L Engine Upper Bank — FR8TE2 (Gap 0.039 in [0.99 mm]) Lower Bank —
FR8T1332 (Gap 0.051 in [1.30 mm])
Fuel Selection 87 Octane
400 MAINTAINING YOUR VEHICLE

Adding Fuel........................... 307
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 362
Air Conditioner Maintenance ............... 363
Air Conditioning ........................ 237
Air Conditioning, Operating Tips ..........237,240
Air Conditioning Refrigerant .............363,364
Air Conditioning System ................237,363
Air Filter .............................. 362
Air Pressure, Tires ....................... 284
Airbag ........................... 46,54,186
Airbag Deployment ....................... 56
Airbag Light ........................ 53,58,76
Airbag Maintenance ....................... 57
Airbag, Side .......................... 52,54
Airbag, Window (Side Curtain) ...........49,52,54
Alarm, Panic ............................ 24
Alarm (Security Alarm) .................19,176
Alarm System (Security Alarm) ............... 19
Alterations/Modifications, Vehicle ............. 7Antenna, Satellite Radio
................... 231
Antifreeze (Engine Coolant) ..............370,399
Disposal ............................ 372
Anti-Lock Brake System (ABS) ............270,271
Anti-Lock Warning Light .................. 176
Anti-Theft Security Alarm (Theft Alarm) ........ 19
Anti-Theft System ..................... 19,176
Appearance Care ........................ 380
Assistance Towing ....................... 101
Auto Unlock, Doors ....................... 32
Automatic Dimming Mirror ................. 84
Automatic Door Locks ..................... 31
Automatic Transaxle .................... 12,252
Interlock System ....................... 15
Automatic Transmission .............249,253,376
Adding Fluid ......................... 376
Fluid Level Check ..................... 376
Fluid Type ........................... 401
Gear Ranges ......................... 253
432 INDEX

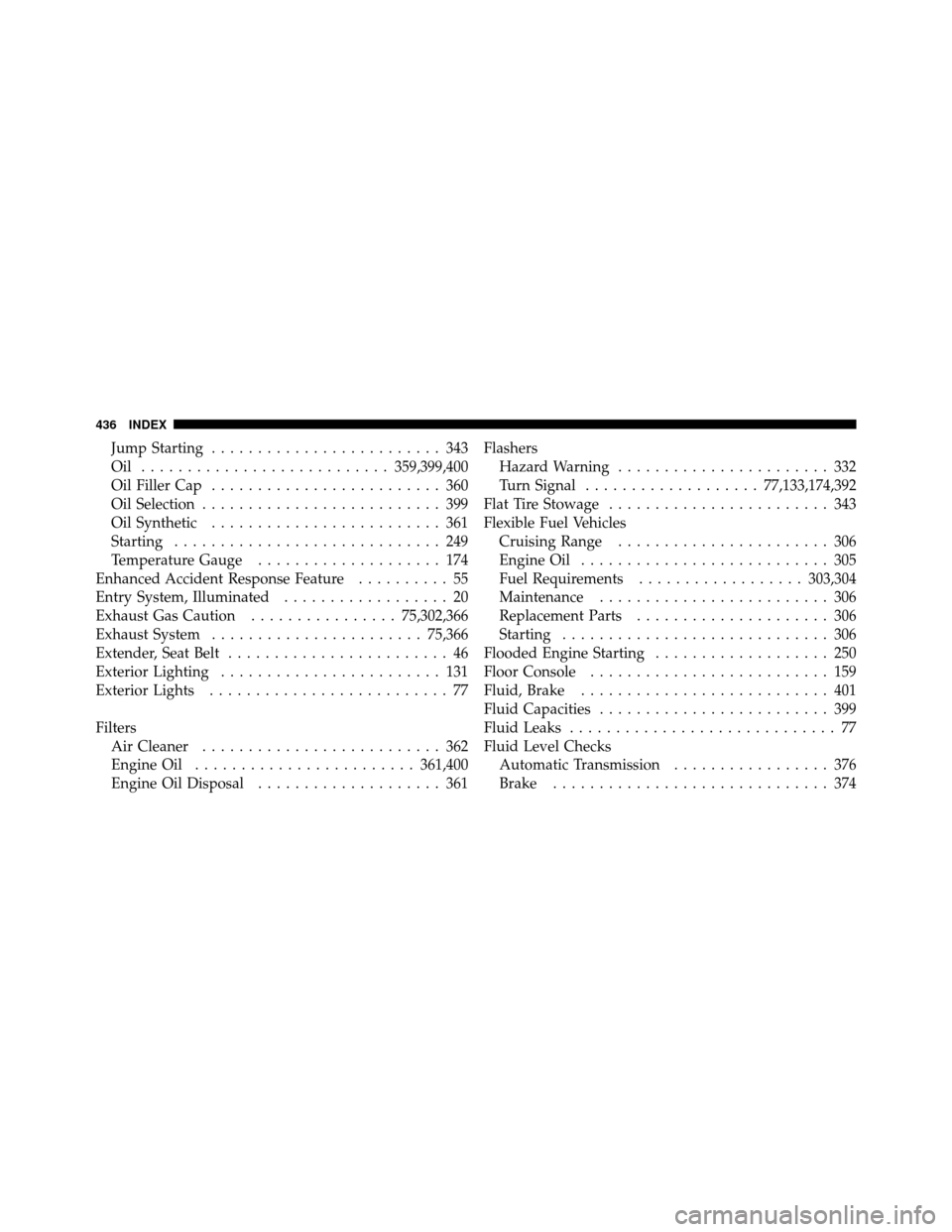

Jump Starting......................... 343
Oil ........................... 359,399,400
Oil Filler Cap ......................... 360
Oil Selection .......................... 399
Oil Synthetic ......................... 361
Starting ............................. 249
Temperature Gauge .................... 174
Enhanced Accident Response Feature .......... 55
Entry System, Illuminated .................. 20
Exhaust Gas Caution ................75,302,366
Exhaust System ....................... 75,366
Extender, Seat Belt ........................ 46
Exterior Lighting ........................ 131
Exterior Lights .......................... 77
Filters Air Cleaner .......................... 362
Engine Oil ........................ 361,400
Engine Oil Disposal .................... 361 Flashers
Hazard Warning ....................... 332
Turn Signal ................... 77,133,174,392
Flat Tire Stowage ........................ 343
Flexible Fuel Vehicles Cruising Range ....................... 306
Engine Oil ........................... 305
Fuel Requirements .................. 303,304
Maintenance ......................... 306
Replacement Parts ..................... 306
Starting ............................. 306
Flooded Engine Starting ................... 250
Floor Console .......................... 159
Fluid, Brake ........................... 401
Fluid Capacities ......................... 399
Fluid Leaks ............................. 77
Fluid Level Checks Automatic Transmission ................. 376
Brake .............................. 374
436 INDEX

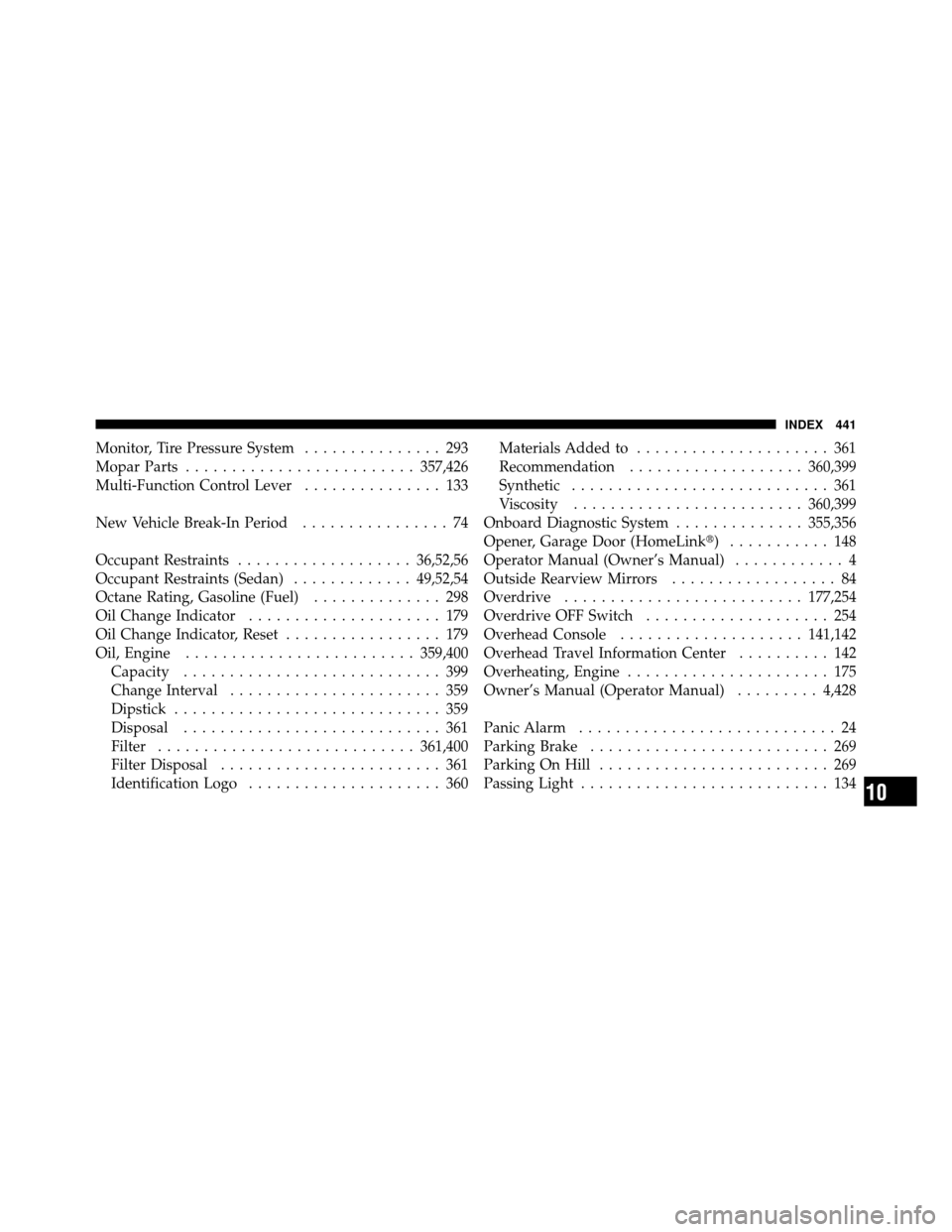

Monitor, Tire Pressure System............... 293
Mopar Parts ......................... 357,426
Multi-Function Control Lever ............... 133
New Vehicle Break-In Period ................ 74
Occupant Restraints ................... 36,52,56
Occupant Restraints (Sedan) .............49,52,54
Octane Rating, Gasoline (Fuel) .............. 298
Oil Change Indicator ..................... 179
Oil Change Indicator, Reset ................. 179
Oil, Engine ......................... 359,400
Capacity ............................ 399
Change Interval ....................... 359
Dipstick ............................. 359
Disposal ............................ 361
Filter ............................ 361,400
Filter Disposal ........................ 361
Identification Logo ..................... 360 Materials Added to
..................... 361
Recommendation ................... 360,399
Synthetic ............................ 361
Viscosity ......................... 360,399
Onboard Diagnostic System ..............355,356
Opener, Garage Door (HomeLink) ........... 148
Operator Manual (Owner’s Manual) ............ 4
Outside Rearview Mirrors .................. 84
Overdrive .......................... 177,254
Overdrive OFF Switch .................... 254
Overhead Console .................... 141,142
Overhead Travel Information Center .......... 142
Overheating, Engine ...................... 175
Owner’s Manual (Operator Manual) .........4,428
Panic Alarm ............................ 24
Parking Brake .......................... 269
Parking On Hill ......................... 269
Passing Light ........................... 134
10
INDEX 441
