2010 DODGE CHARGER rear view mirror

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Things You Should Know About Your Uconnect™
Phone
Uconnect™ Phone Tutorial
To hear a brief tutorial of the system features, press the
button and say “Uconnect™ Tutorial.”
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, the Uconnect™
Phone Voice Training feature may be used. To enter this
training mode, follow one of the two following proce-
dures:
From outside the Uconnect™ Phone mode (e.g., from
radio mode):
•Press and hold thebutton for five seconds until
the session begins, or,
•Press thebutton and say the Setup, Voice
Training command. Repeat the words and phrases when prompted by the
Uconnect™ Phone. For best results, the Voice Training
session should be completed when the vehicle is parked
with the engine running, all windows closed, and the
blower fan switched off.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
To restore the Voice Command system to factory default
settings, enter the Voice Training session via the above
procedure and follow the prompts.
Voice Command
•
For best performance, adjust the rearview mirror to
provide at least12in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

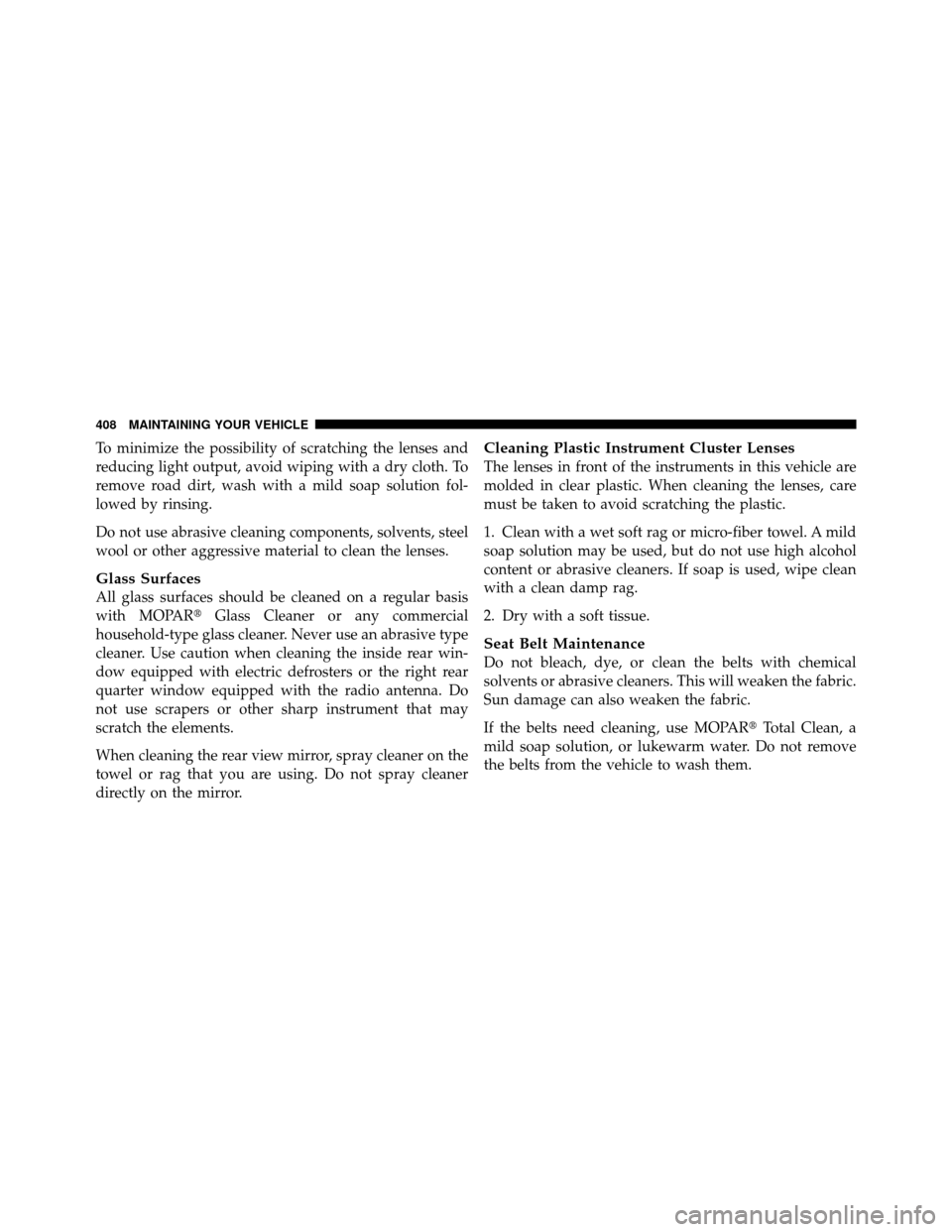

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instrument that may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high alcohol
content or abrasive cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them.
408 MAINTAINING YOUR VEHICLE

Cavity Car-tridge
FuseMini-
Fuse
Description
38 — 10 Amp RedCargo Light/Satellite
Receiver (SDARS) Video
– If Equipped/Vehicle
Information Module – If
Equipped
39 — 10 Amp RedHeated Mirrors – If
Equipped
40 — 5 Amp OrangeAuto Inside Rearview
Mirror – If Equipped/
Heated Seats – If
Equipped/Switch Bank
41———
42 30 Amp Pink— Front Blower Motor
43 30 Amp Pink— Rear Window DefrosterCavity Car-
tridge
FuseMini-
Fuse
Description
44 20 Amp Blue— Amplifier – If
Equipped/Sunroof – If
Equipped
* Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch (if
equipped) are fused by the 25 Amp circuit breaker in
Cavity 11. The passenger seat switch (if equipped) is
fused by the 25 Amp circuit breaker in Cavity 12. The
door modules, the driver power window switch, and the
passenger power window switch are fused by the
25 Amp circuit breaker in Cavity 13. If you experience
temporary or permanent loss of these systems, see your
authorized dealer for service.
416 MAINTAINING YOUR VEHICLE

Automatic........................... 134
Bulb Replacement ...................... 418
Cleaning ............................ 407
Delay .............................. 135
High Beam/Low Beam Select Switch ........ 137
Lights On Reminder .................... 136
On With Wipers .................... 135,142
Passing ............................. 138
Switch .............................. 134
Time Delay .......................... 135
Washers ............................. 390
Heated Mirrors .......................... 90
Heated Seats ........................... 130
Heater ............................... 247
Heater, Engine Block ..................... 265
High Beam/Low Beam Select (Dimmer) Switch . . 137
Hitches Trailer Towing ........................ 338
Holder, Coin ........................... 162 Holder, Cup
........................... 161
HomeLink (Garage Door Opener) Transmitter . . . 149
Hood Release .......................... 132
Ignition ............................... 14
Key ............................... 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 15
Infant Restraint ........................ 67,68
Information Center, Vehicle ................. 186
Inside Rearview Mirror .................... 87
Instrument Cluster .................... 171,173
Instrument Panel and Controls .............. 170
Instrument Panel Lens Cleaning ............. 408
Interior Appearance Care .................. 407
Interior Fuses .......................... 409
Interior Lights .......................... 139
Intermittent Wipers (Delay Wipers) ........... 140
470 INDEX

Warning (Instrument Cluster Description)..... 173
Load Leveling System .................... 166
Loading Vehicle ...................... 333,335
Capacities ........................... 335
Tires ............................... 302
Locks ................................. 29
Auto Unlock .......................... 31
Automatic Door ........................ 30
Child Protection ........................ 33
Door ................................ 29
Power Door ........................... 30
Low Tire Pressure System .................. 315
Lower Anchors and Tether for CHildren
(LATCH) ............................ 71,72
Lubrication, Body ....................... 389
Lumbar Support ........................ 128
Maintenance Free Battery .................. 384
Maintenance, General ..................... 379 Maintenance Procedures
................... 379
Maintenance Schedule .................... 432
Maintenance, Sunroof ..................... 157
Malfunction Indicator Light (Check Engine) . . 185,377
Manual, Service ......................... 457
Manual Transmission ..................... 403
Fluid Level Check ..................... 403
Map/Reading Lights .................. 138,148
Master Cylinder (Brakes) .................. 399
Methanol ............................. 327
Mini-Trip Computer ...................... 190
Mirrors ................................ 87
Automatic Dimming ..................... 88
Electric Powered ....................... 90
Electric Remote ........................ 90
Exterior Folding ........................ 89
Heated .............................. 90
Outside .............................. 88
Rearview ............................. 87
10
INDEX 473

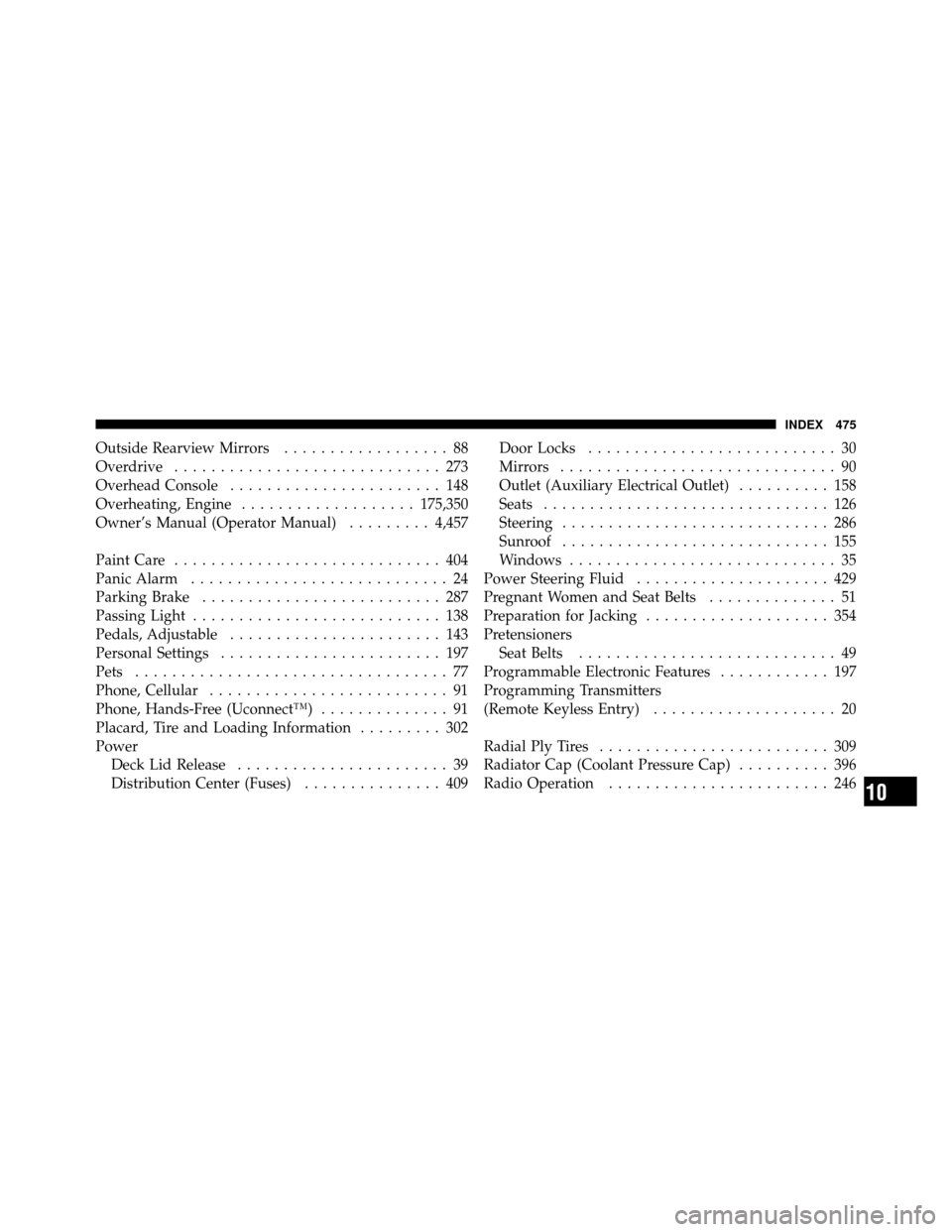

Outside Rearview Mirrors.................. 88
Overdrive ............................. 273
Overhead Console ....................... 148
Overheating, Engine ................... 175,350
Owner’s Manual (Operator Manual) .........4,457
Paint Care ............................. 404
Panic Alarm ............................ 24
Parking Brake .......................... 287
Passing Light ........................... 138
Pedals, Adjustable ....................... 143
Personal Settings ........................ 197
Pets .................................. 77
Phone, Cellular .......................... 91
Phone, Hands-Free (Uconnect™) .............. 91
Placard, Tire and Loading Information ......... 302
Power Deck Lid Release ....................... 39
Distribution Center (Fuses) ............... 409 Door Locks
........................... 30
Mirrors .............................. 90
Outlet (Auxiliary Electrical Outlet) .......... 158
Seats ............................... 126
Steering ............................. 286
Sunroof ............................. 155
Windows ............................. 35
Power Steering Fluid ..................... 429
Pregnant Women and Seat Belts .............. 51
Preparation for Jacking .................... 354
Pretensioners Seat Belts ............................ 49
Programmable Electronic Features ............ 197
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 309
Radiator Cap (Coolant Pressure Cap) .......... 396
Radio Operation ........................ 246
10
INDEX 475
