2010 DODGE CHARGER fog light

Voice Command — If Equipped ........... 119
▫ Voice Command System Operation ........ 119
▫ Commands ........................ 121
▫ Voice Training ...................... 124
 Seats .............................. 124
▫ Manual Seats — If Equipped ............ 125
▫ Power Seats — If Equipped ............. 126
▫ Power Reclining Seats — If Equipped ...... 127
▫ Lumbar Support — If Equipped .......... 128
▫ Head Restraints ..................... 128
▫ Heated Seats — If Equipped ............ 130
▫ Folding Rear Seat — If Equipped ......... 131
 To Open And Close The Hood ............ 132
 Lights ............................. 134 ▫
Headlight Switch .................... 134
▫ Automatic Headlights — If Equipped ...... 134
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 135
▫ Headlight Time Delay ................. 135
▫ Daytime Running Lights — If Equipped .... 136
▫ Lights-On Reminder .................. 136
▫ Fog Lights — If Equipped .............. 136
▫ Multifunction Lever .................. 136
▫ Turn Signals ........................ 137
▫ Lane Change Assist ................... 137
▫ High/Low Beam Switch ............... 137
▫ Flash-To-Pass ....................... 138
▫ Overhead Console Map/Reading Lights .... 138
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming, inte-
rior lights and fog lights. Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Rotate the headlight switch to the second detent for
headlight, parking light and instrument panel light
operation.
Automatic Headlights — If Equipped
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the A
(AUTO) position. When the system is on, the headlight
time delay feature is also on. This means the headlights
will stay on for up to 90 seconds after you turn the
ignition switch OFF. To turn the automatic system off,
move the headlight switch out of the AUTO position.
NOTE:
The engine must be running before the head-
lights will come on in the automatic mode.
Headlight Switch
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

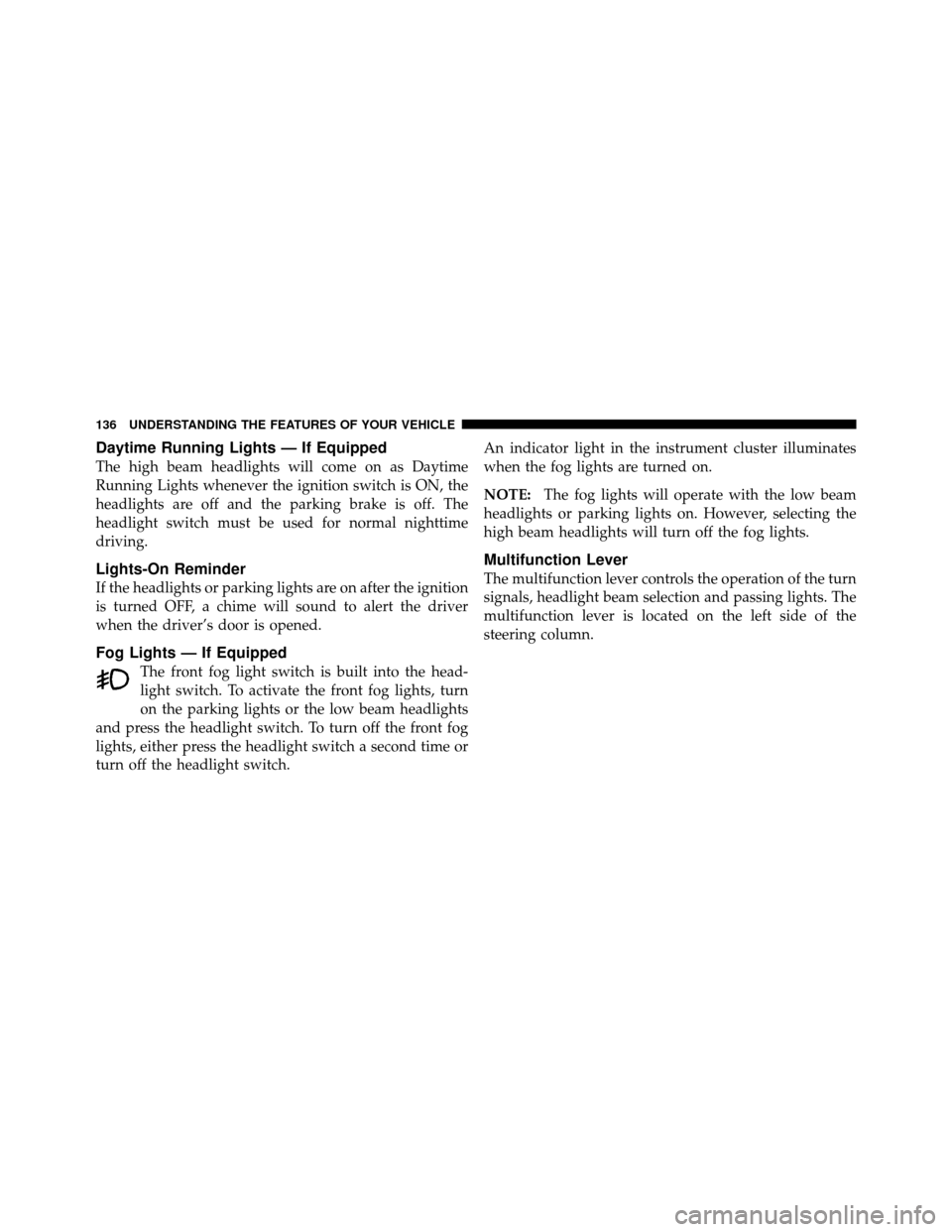

Daytime Running Lights — If Equipped
The high beam headlights will come on as Daytime
Running Lights whenever the ignition switch is ON, the
headlights are off and the parking brake is off. The
headlight switch must be used for normal nighttime
driving.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is built into the head-
light switch. To activate the front fog lights, turn
on the parking lights or the low beam headlights
and press the headlight switch. To turn off the front fog
lights, either press the headlight switch a second time or
turn off the headlight switch. An indicator light in the instrument cluster illuminates
when the fog lights are turned on.
NOTE:
The fog lights will operate with the low beam
headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.
Multifunction Lever
The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the
steering column.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

17.Shift Lever Indicator — Automatic Transmission Only
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
18. Front Fog Light Indicator — If EquippedThis indicator will illuminate when the front fog
lights are on.
19. Odometer / Electronic Vehicle Information Center
(EVIC) Display Area
The odometer shows the total distance the vehicle has
been driven. The trip odometer shows individual trip
mileage. Refer to “Trip Odometer Button” for additional
information.
NOTE: U.S. Federal regulations require that upon trans-
fer of vehicle ownership, the seller certify to the pur-
chaser the correct mileage that the vehicle has been
driven. If your odometer needs to be repaired or serviced,
the repair technician should leave the odometer reading the same as it was before the repair or service. If s/he
cannot do so, then the odometer must be set at zero, and
a sticker must be placed in the door jamb stating what the
mileage was before the repair or service. It is a good idea
for you to make a record of the odometer reading before
the repair/service, so that you can be sure that it is
properly reset, or that the door jamb sticker is accurate if
the odometer must be reset at zero.
Vehicle Odometer Messages
When the appropriate conditions exist, the following
messages will display in the odometer:
ECO
...................... Fuel Saver Indicator
2drivE ........ V ehicle is in Rear Wheel Drive (RWD)
4drivE .......... V ehicle is in All Wheel Drive (AWD
tCASE ..................... AWD System Fault
gASCAP ............ Loose Fuel Filler Cap Message
Lo tirE ...................... LowTirePr essure
noFUSE .......................... Fuse Fault
CHAngE OIL ............... Oil Change Required
178 UNDERSTANDING YOUR INSTRUMENT PANEL

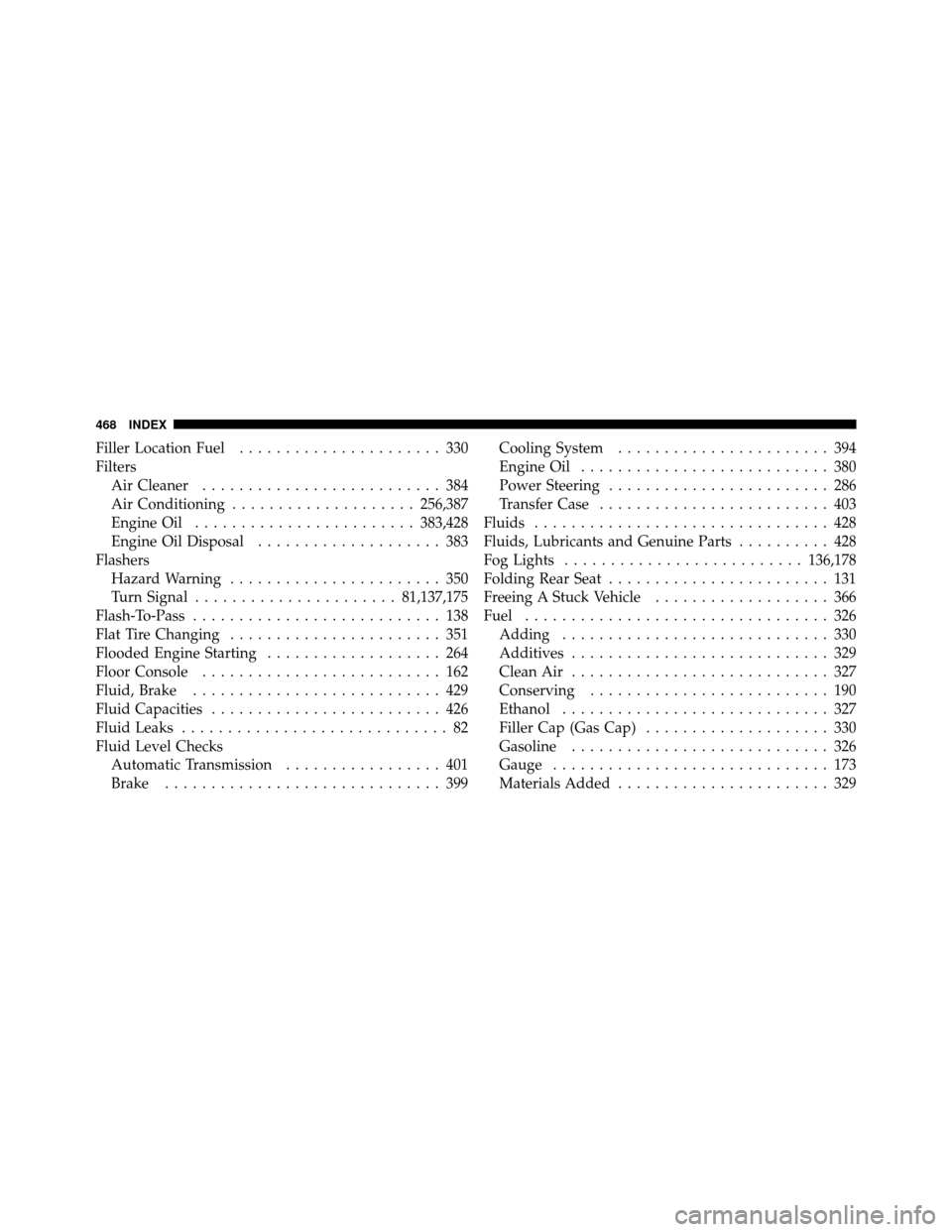

Filler Location Fuel...................... 330
Filters Air Cleaner .......................... 384
Air Conditioning .................... 256,387
Engine Oil ........................ 383,428
Engine Oil Disposal .................... 383
Flashers Hazard Warning ....................... 350
Turn Signal ...................... 81,137,175
Flash-To-Pass ........................... 138
Flat Tire Changing ....................... 351
Flooded Engine Starting ................... 264
Floor Console .......................... 162
Fluid, Brake ........................... 429
Fluid Capacities ......................... 426
Fluid Leaks ............................. 82
Fluid Level Checks Automatic Transmission ................. 401
Brake .............................. 399 Cooling System
....................... 394
Engine Oil ........................... 380
Power Steering ........................ 286
Transfer Case ......................... 403
Fluids ................................ 428
Fluids, Lubricants and Genuine Parts .......... 428
Fog Lights .......................... 136,178
Folding Rear Seat ........................ 131
Freeing A Stuck Vehicle ................... 366
Fuel ................................. 326
Adding ............................. 330
Additives ............................ 329
Clean Air ............................ 327
Conserving .......................... 190
Ethanol ............................. 327
Filler Cap (Gas Cap) .................... 330
Gasoline ............................ 326
Gauge .............................. 173
Materials Added ....................... 329
468 INDEX

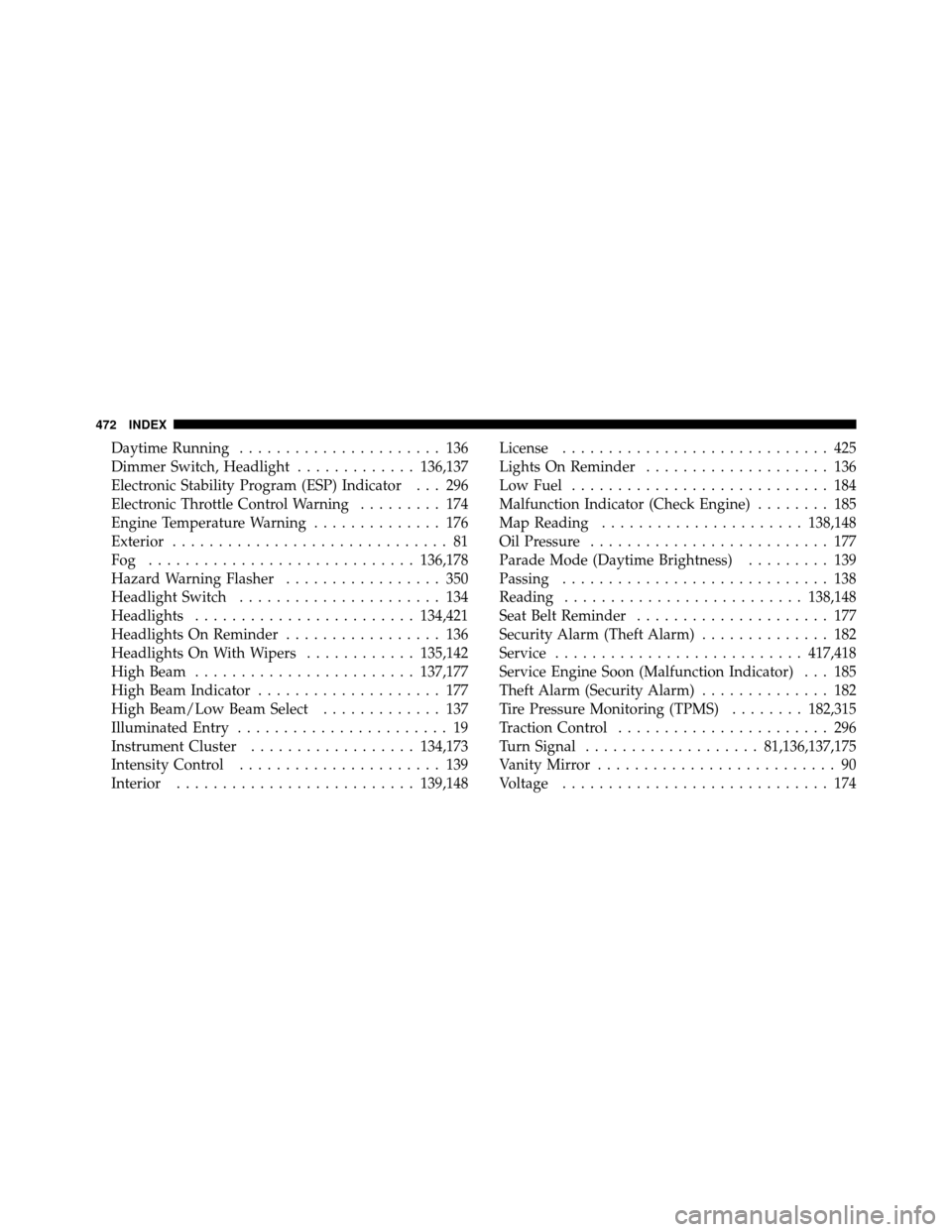

Daytime Running...................... 136
Dimmer Switch, Headlight .............136,137
Electronic Stability Program (ESP) Indicator . . . 296
Electronic Throttle Control Warning ......... 174
Engine Temperature Warning .............. 176
Exterior .............................. 81
Fog ............................. 136,178
Hazard Warning Flasher ................. 350
Headlight Switch ...................... 134
Headlights ........................ 134,421
Headlights On Reminder ................. 136
Headlights On With Wipers ............135,142
High Beam ........................ 137,177
High Beam Indicator .................... 177
High Beam/Low Beam Select ............. 137
Illuminated Entry ....................... 19
Instrument Cluster .................. 134,173
Intensity Control ...................... 139
Interior .......................... 139,148License
............................. 425
Lights On Reminder .................... 136
Low Fuel ............................ 184
Malfunction Indicator (Check Engine) ........ 185
Map Reading ...................... 138,148
Oil Pressure .......................... 177
Parade Mode (Daytime Brightness) ......... 139
Passing ............................. 138
Reading .......................... 138,148
Seat Belt Reminder ..................... 177
Security Alarm (Theft Alarm) .............. 182
Service ........................... 417,418
Service Engine Soon (Malfunction Indicator) . . . 185
Theft Alarm (Security Alarm) .............. 182
Tire Pressure Monitoring (TPMS) ........182,315
Traction Control ....................... 296
Turn Signal ................... 81,136,137,175
Vanity Mirror .......................... 90
Voltage ............................. 174
472 INDEX
