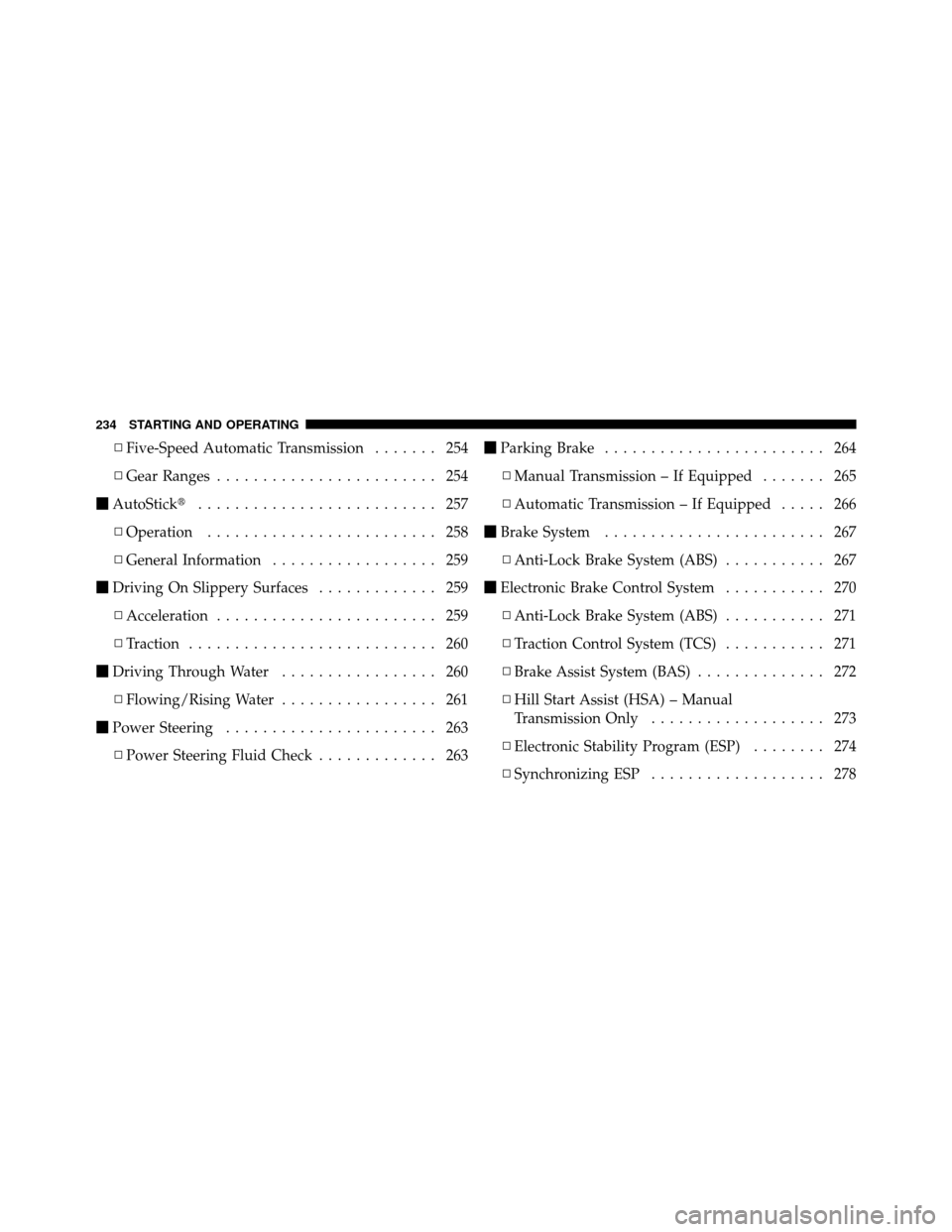

▫Five-Speed Automatic Transmission ....... 254
▫ Gear Ranges ........................ 254
 AutoStick .......................... 257
▫ Operation ......................... 258
▫ General Information .................. 259
 Driving On Slippery Surfaces ............. 259
▫ Acceleration ........................ 259
▫ Traction ........................... 260
 Driving Through Water ................. 260
▫ Flowing/Rising Water ................. 261
 Power Steering ....................... 263
▫ Power Steering Fluid Check ............. 263
Parking Brake ........................ 264
▫ Manual Transmission – If Equipped ....... 265
▫ Automatic Transmission – If Equipped ..... 266
 Brake System ........................ 267
▫ Anti-Lock Brake System (ABS) ........... 267
 Electronic Brake Control System ........... 270
▫ Anti-Lock Brake System (ABS) ........... 271
▫ Traction Control System (TCS) ........... 271
▫ Brake Assist System (BAS) .............. 272
▫ Hill Start Assist (HSA) – Manual
Transmission Only ................... 273
▫ Electronic Stability Program (ESP) ........ 274
▫ Synchronizing ESP ................... 278
234 STARTING AND OPERATING

WARNING! (Continued)
•Do not allow petroleum based fluid to contami-
nate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in an accident.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
Clutch Hydraulic System (Manual Transmission) –
If Equipped
The clutch hydraulic system is fed by a segregated
volume of fluid within the brake system master cylinder
reservoir. In the event of leakage or wear, use only the
manufacturer’s recommended brake fluid. Refer to “Flu-
ids, Lubricants, and Genuine Parts” in “Maintaining Your
Vehicle” for further information.
Manual Transmission – If Equipped
Fluid Level Check
Check the fluid level by removing the fill plug on the left
side of the transmission. The fluid level should be at the
bottom of the fill hole. Add fluid, if necessary, to maintain
the proper level. Refer to “Fluids, Lubricants, and Genu-
ine Parts” in “Maintaining Your Vehicle” for further
information.
Change Transmission Fluid
If contaminated with water, change the fluid immedi-
ately. See your authorized dealer for service.
Refer to “Maintenance Schedule” for further information.
Automatic Transmission – If Equipped
Fluid Level Check
Regular automatic transmission fluid level checks are not
required. For this reason, the dipstick is omitted.
7
MAINTAINING YOUR VEHICLE 361

Parts” in “Maintaining Your Vehicle” for further informa-
tion. It is important that the transmission fluid be main-
tained at the prescribed level using the recommended
fluid. No chemical flushes should be used in any trans-
mission; only the approved lubricant may be used.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
Rear Axle
Fluid Level Check
Check the fluid level by removing the fill plug on the
axle. The fluid level should be at the bottom of the fill
hole. Add fluid, if necessary, to maintain the proper level.
Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further information.
Change Axle Fluid
Refer to “Maintenance Schedule” for further information.
7
MAINTAINING YOUR VEHICLE 363

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped MOPAR ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Automatic Transmission – If
Equipped MOPAR
ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPARDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPAR ATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
Rear Axle MOPARSynthetic Gear Lubricant SAE 75W90 (API GL-5) or equivalent
(with MOPAR Friction Modifier — Hypoid Gear Additive).
384 MAINTAINING YOUR VEHICLE

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Inspect the rear axle fluid.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, and replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the manual transmission fluid (if equipped), add as necessary.
❏ Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏ Flush and replace the engine coolant at 60 months if not done at 102,000 miles
(170 000 km).
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S394 MAINTENANCE SCHEDULES

114,000 Miles (190,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, and replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the CV joints.
❏ Inspect the exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏ Change the automatic transmission fluid and filter.
❏ Change the manual transmission fluid (if equipped) if using your vehicle for any of the
following: Most of your driving is at sustained high speeds during hot weather, above 90°F
(32°C), driving in dusty conditions, or stop and go driving.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 399

Automatic Headlights.................... 124
Automatic Transaxle Special Additives ...................... 363
Automatic Transmission .............254,361,362
Adding Fluid ...................... 362,384
Autostick ............................ 257
Fluid and Filter Changes ................. 362
Fluid Change ......................... 362
Fluid Level Check ..................... 361
Fluid Type ........................... 384
Shifting ............................. 254
Special Additives ...................... 363
Automatic Transmission Limp Home Mode ..... 256
Autostick ............................. 257
Axle Fluid ............................. 384
Axle Lubrication (Axle Fluid) ............... 384
Battery ............................... 346
Keyless Transmitter Replacement (RKE) ....... 24Location
............................ 346
Belts, Seat ............................ 37,71
Body Mechanism Lubrication ............... 349
B-Pillar Location ........................ 285
Brake Assist System ...................... 272
Brake Control System, Electronic ............. 270
Brake Fluid ............................ 384
Brake, Parking .......................... 264
Brake System ........................ 267,359
Anti-Lock (ABS) .................... 267,271
Fluid Check ....................... 359,384
Master Cylinder ....................... 359
Parking ............................. 264
Warning Light ..................... 164,267
Brakes ............................. 267,359
Brake/Transmission Interlock ............... 252
Break-In Recommendations, New Vehicle ........ 68
Brightness, Interior Lights .................. 129
Bulb Replacement ..................... 376,377
10
INDEX 417

Oil ...........................343,382,383
Oil Change Interval .................... 343
Oil Filler Cap ......................... 344
Oil Filter ............................ 345
Oil Filter Disposal ..................... 344
Oil Selection ....................... 344,382
Overheating .......................... 316
Starting ............................. 237
Temperature Gauge .................... 159
Engine Oil Viscosity ...................... 344
Enhanced Accident Response Feature .......... 54
Entry System, Illuminated .................. 20
Ethanol ............................... 305
Exhaust Gas Caution ................70,307,351
Exhaust System ....................... 70,351
Exterior Folding Mirrors ................... 78
Exterior Lighting ........................ 123
Exterior Lights .......................... 72 Filler Location Fuel
...................... 308
Filters Air Cleaner .......................... 345
Engine Oil ........................ 345,383
Engine Oil Disposal .................... 344
Flashers Hazard Warning ....................... 316
Turn Signal ...................... 72,126,160
Flash-To-Pass ........................... 127
Flooded Engine Starting ................... 243
Fluid, Brake ........................... 384
Fluid Capacities ......................... 382
Fluid Leaks ............................. 72
Fluid Level Checks Automatic Transmission ................. 361
Brake .............................. 359
Cooling System ....................... 354
Engine Oil ........................... 343
Power Steering ........................ 263
