2010 DODGE CHALLENGER SRT fuse

Cav-
ityCartridge
Fuse Mini-
FuseDescription
6 — 20 Amp YellowFuel Pump
7 — 15 Amp BlueSub Amp – If Equipped
8 — 15 Amp BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
9 — 20 Amp YellowPower Outlet
10 — — —
11 * ———
12 * ———
13 * ———Cav-
ity Cartridge
Fuse Mini-
FuseDescription
14 — 10 Amp RedAC Heater Control/
Cluster/Security Module
– If Equipped
15 — — —
16 — — —
17 — 20 Amp YellowCluster
18 — 20 Amp YellowSelectable Power Outlet
19 — 10 Amp RedStop Lights
20 — — —
21 — — —
22 — — —
23 — — —
24 — — —
7
MAINTAINING YOUR VEHICLE 373

Cav-
ityCartridge
Fuse Mini-
FuseDescription
25 — — —
26 — — —
27 — 10 Amp RedOccupant Restraint
Controller (ORC)
28 — 10 Amp RedIgnition Run, AC Heater
Control/Occupant Re-
straint Controller (ORC)
29 — 5 Amp OrangeCluster/Electronic Stabil-
ity Program (ESP)/
Powertrain Control Mod-
ule (PCM)/STOP LIGHT
Switch
30 — 10 Amp RedDoor Modules/Power
Mirrors/Steering Control
Module (SCM)
31 — — —
32 — — —Cav-
ity Cartridge
Fuse Mini-
FuseDescription
33 — — —
34 — — —

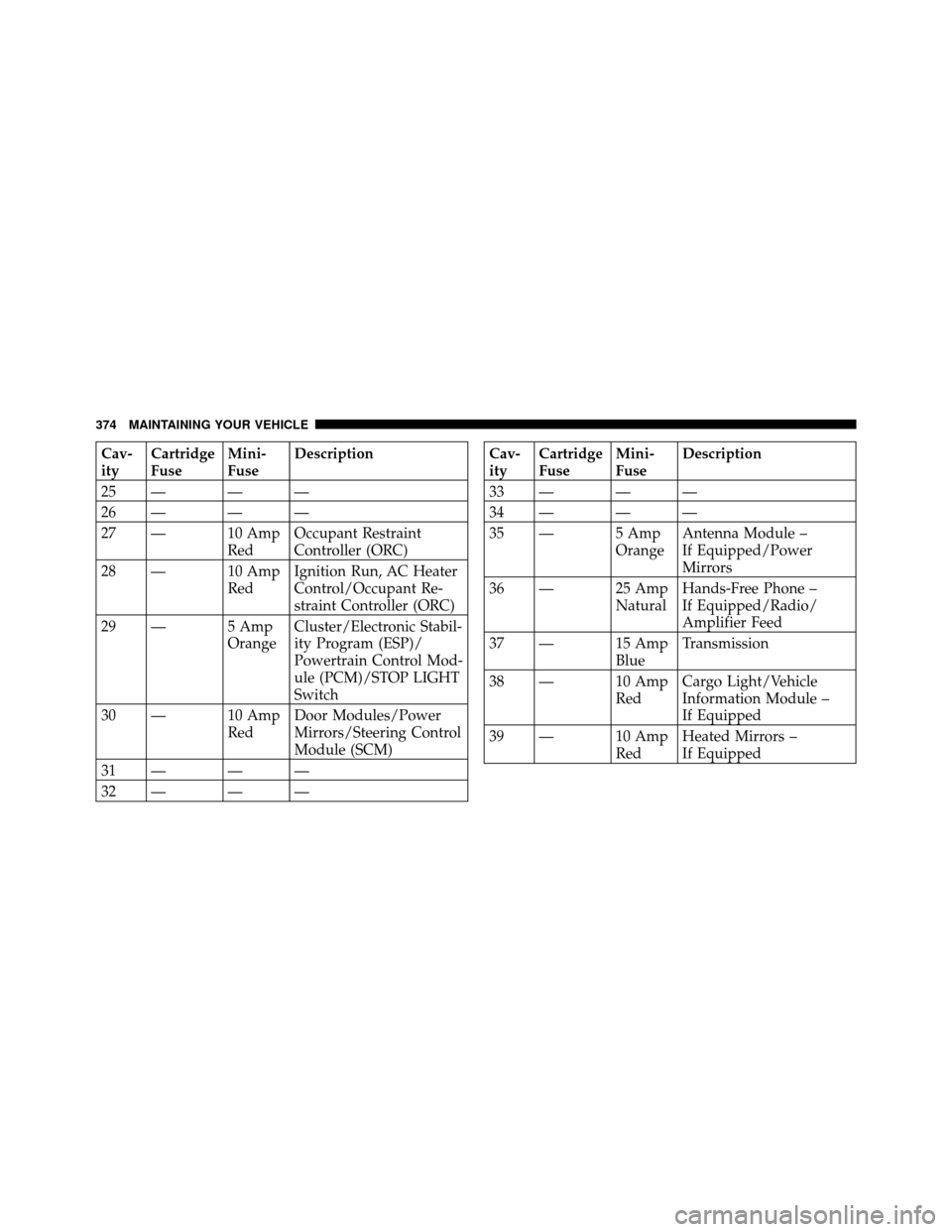

35 — 5 Amp OrangeAntenna Module –
If Equipped/Power
Mirrors
36 — 25 Amp NaturalHands-Free Phone –
If Equipped/Radio/
Amplifier Feed
37 — 15 Amp BlueTransmission
38 — 10 Amp RedCargo Light/Vehicle
Information Module –
If Equipped
39 — 10 Amp RedHeated Mirrors –
If Equipped
374 MAINTAINING YOUR VEHICLE

Cav-
ityCartridge
Fuse Mini-
FuseDescription
40 — 5 Amp OrangeAuto Inside Rearview
Mirror/Heated Seats –
If Equipped/Switch
Bank
41 — — —
42 30 Amp Pink — Front Blower Motor
43 30 Amp Pink — Rear Window Defroster
44 20 Amp Blue — Amplifier/Sunroof –
If Equipped
* Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch are
fused by the 25 Amp circuit breaker in cavity 11. The
passenger seat switch is fused by the 25 Amp circuit
breaker in cavity 12. The door modules, the driver power window switch, and the passenger power window
switch are fused by the 25 Amp circuit breaker in cavity
13. If you experience temporary or permanent loss of
these systems, see your authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
