2010 DODGE CALIBER jump start

WARNING!
Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
5. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
Once the engine is started, remove the jumper cables in
the reverse sequence:
6. Disconnect the negative (-)jumper cable from the
engine ground of the vehicle with the discharged battery.
7. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery. 8. Disconnect the opposite end of the positive
(+)jumper
cable from the positive (+)post of the booster battery.
9. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the discharged vehicle.
10. Reinstall the air intake duct.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
384 WHAT TO DO IN EMERGENCIES

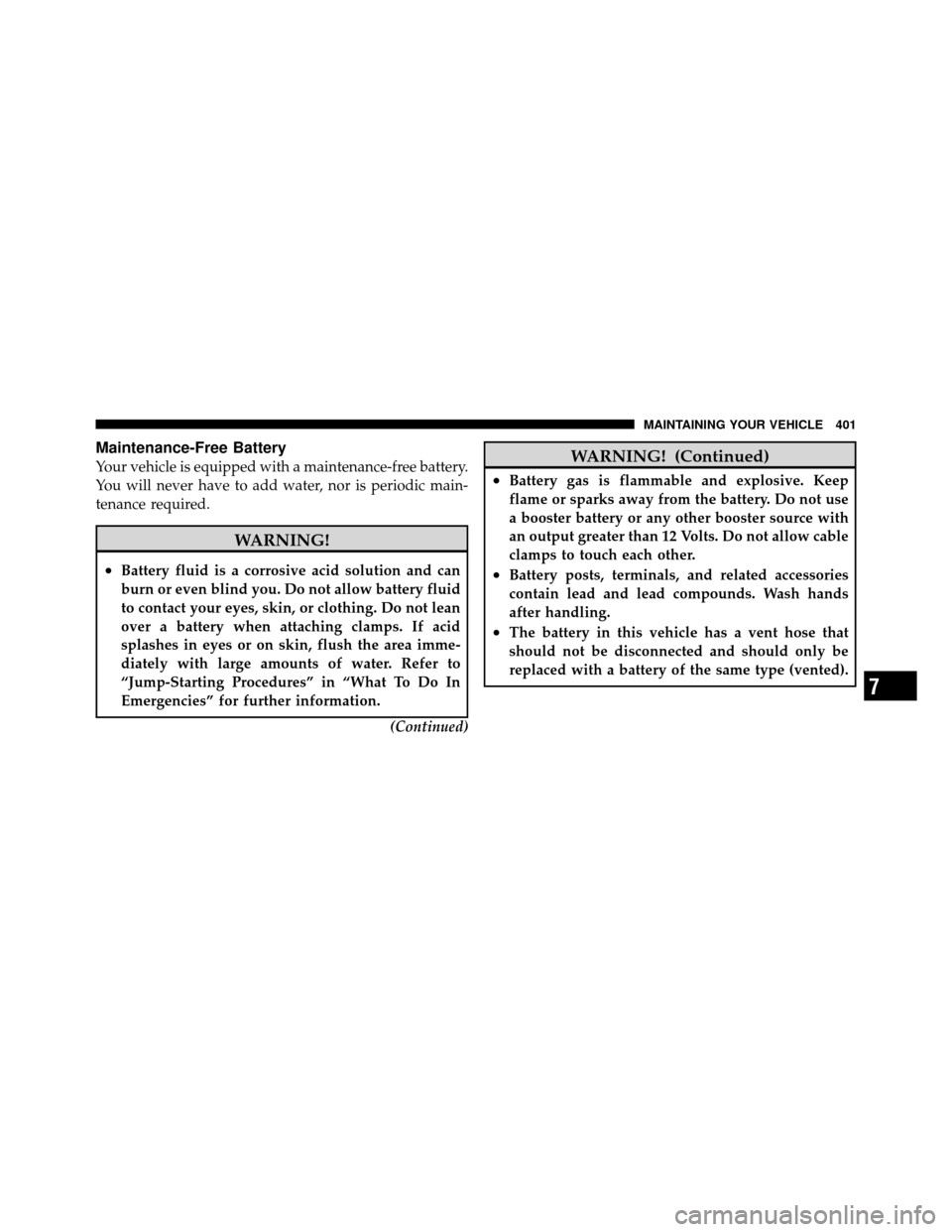

Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
WARNING!
•Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water. Refer to
“Jump-Starting Procedures” in “What To Do In
Emergencies” for further information.(Continued)
WARNING! (Continued)
•Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Do not use
a booster battery or any other booster source with
an output greater than 12 Volts. Do not allow cable
clamps to touch each other.
•Battery posts, terminals, and related accessories
contain lead and lead compounds. Wash hands
after handling.
•The battery in this vehicle has a vent hose that
should not be disconnected and should only be
replaced with a battery of the same type (vented).
7
MAINTAINING YOUR VEHICLE 401

Electronic Stability Program (ESP)............ 318
Electronic Vehicle Information Center (EVIC) .... 206
Emergency, In Case of Jacking ............................. 374
Jump Starting ......................... 380
Towing ............................. 386
Emission Control System Maintenance ......394,438
Engine ............................... 392
Block Heater ......................... 295
Break-In Recommendations ................ 84
Checking Oil Level ..................... 397
Cooling ............................. 407
Exhaust Gas Caution .................. 86,352
Fuel Requirements ..................... 348
Jump Starting ......................... 380
Oil ........................... 397,433,434
Oil Change Interval .................... 398
Oil Filler Cap ...................... 392,399
Oil Filter ............................ 434 Oil Selection
.......................... 398
Oil Synthetic ......................... 399
Overheating .......................... 372
Temperature Gauge .................... 192
Enhanced Accident Response Feature .......... 68
Exhaust Gas Caution ................. 36,86,352
Exhaust System ....................... 86,405
Exterior Lights .......................... 89
Filler Location Fuel ...................... 193
Filters Air Cleaner .......................... 400
Air Conditioning ...................... 286
Engine Oil ........................ 400,434
Flashers .............................. 372
Hazard Warning ....................... 372
Turn Signal ...................... 89,200,429
Flat Tire Stowage ........................ 380
Flooded Engine Starting ................... 294
470 INDEX

Information Center, Vehicle................. 206
Inside Rearview Mirror .................... 95
Instrument Cluster .................... 190,192
Instrument Panel and Controls .............. 189
Instrument Panel Cover ................... 422
Instrument Panel Lens Cleaning ............. 422
Integrated Power Module (Fuses) ............ 423
Interior Appearance Care .................. 420
Intermittent Wipers (Delay Wipers) ........... 152
Introduction ............................. 4
Jack Location ........................... 374
Jack Operation ....................... 374,376
Jacking Instructions ...................... 376
Jump Starting .......................... 380
Key, Programming ........................ 16
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14 Key-In Reminder
......................... 14
Keyless Entry System (Sedan) ................ 18
Keys ................................. 12
Lane Change and Turn Signals .............. 429
Lap/Shoulder Belts ....................... 39
Latches ................................ 89
Hood .............................. 144
Lead Free Gasoline ...................... 348
Leaks, Fluid ............................ 89
Life of Tires ............................ 336
Liftgate (Sedan) .......................... 35
Liftgate Window Wiper/Washer ............. 183
Light Bulbs .......................... 89,427
Lights .............................. 89,146
Airbag ........................ 66,71,87,194
Alarm .............................. 201
Anti-Lock ........................... 204
Back-Up ............................ 429
10
INDEX 473
