2010 DODGE AVENGER mirror controls

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Power Mirrors
Both of the outside mirrors can be adjusted by using the
controls mounted on the driver’s door panel.
A rotary knob selects the left mirror, right mirror, or off
position.
Automatic Dimming Mirror
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

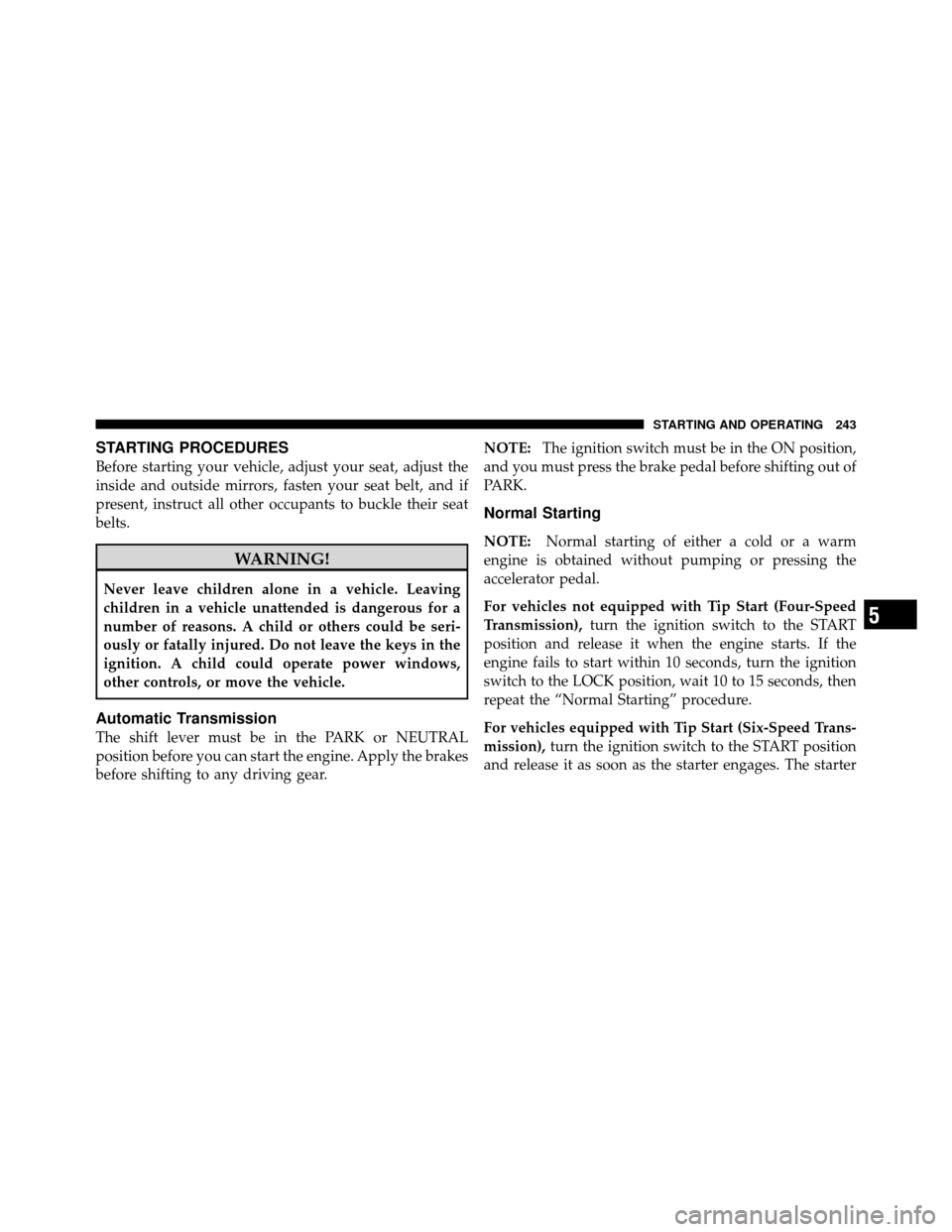

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.NOTE:
The ignition switch must be in the ON position,
and you must press the brake pedal before shifting out of
PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
For vehicles not equipped with Tip Start (Four-Speed
Transmission), turn the ignition switch to the START
position and release it when the engine starts. If the
engine fails to start within 10 seconds, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
For vehicles equipped with Tip Start (Six-Speed Trans-
mission), turn the ignition switch to the START position
and release it as soon as the starter engages. The starter
5
STARTING AND OPERATING 243

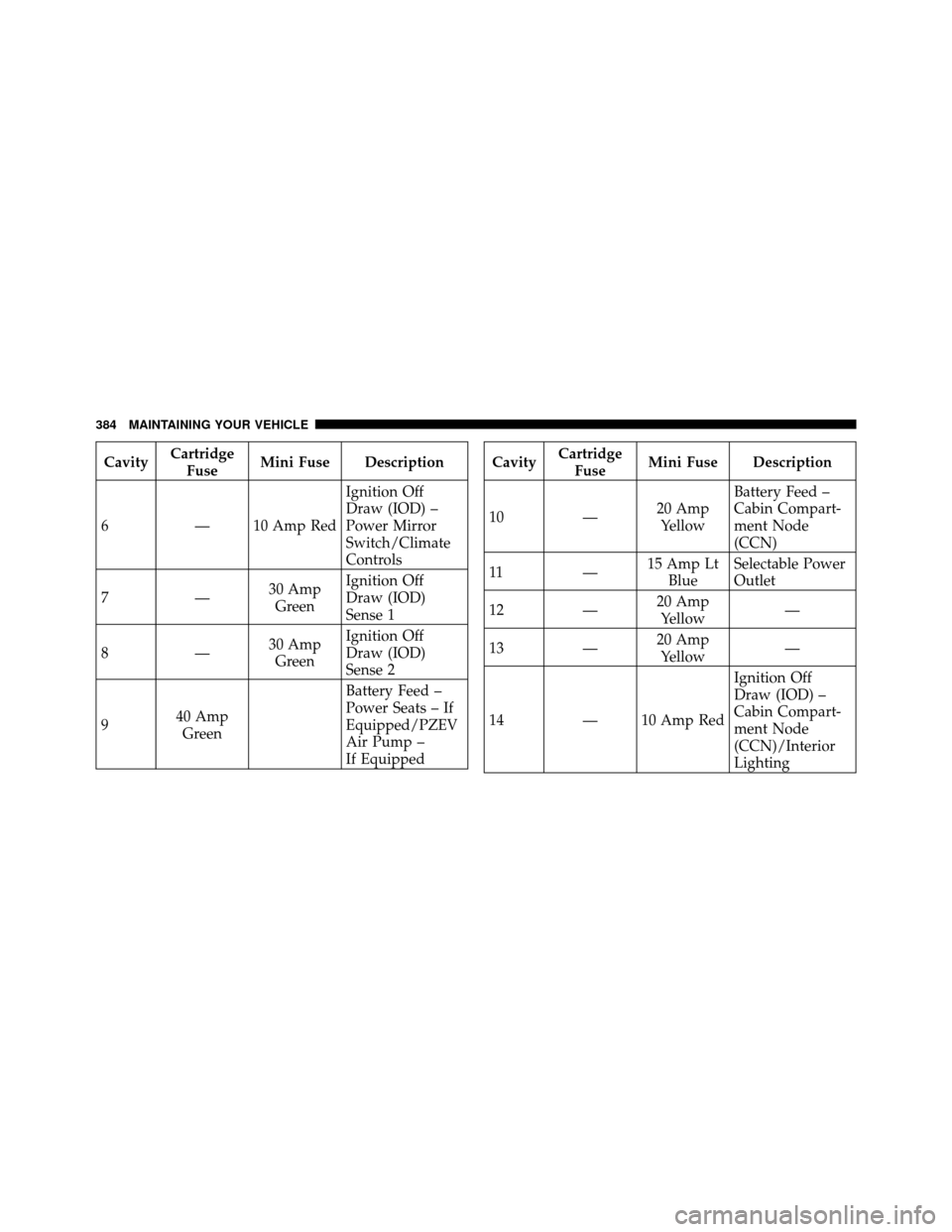

CavityCartridge
Fuse Mini Fuse Description
6 — 10 Amp Red Ignition Off
Draw (IOD) –
Power Mirror
Switch/Climate
Controls
7— 30 Amp
Green Ignition Off
Draw (IOD)
Sense 1
8— 30 Amp
Green Ignition Off
Draw (IOD)
Sense 2
9 40 Amp
Green Battery Feed –
Power Seats – If
Equipped/PZEV
Air Pump –
If EquippedCavity
Cartridge
Fuse Mini Fuse Description
10 —20 Amp
Yellow Battery Feed –
Cabin Compart-
ment Node
(CCN)
11 —15 Amp Lt
Blue Selectable Power
Outlet
12 —20 Amp
Yellow —
13 —20 Amp
Yellow —
14 — 10 Amp Red Ignition Off
Draw (IOD) –
Cabin Compart-
ment Node
(CCN)/Interior
Lighting
384 MAINTAINING YOUR VEHICLE

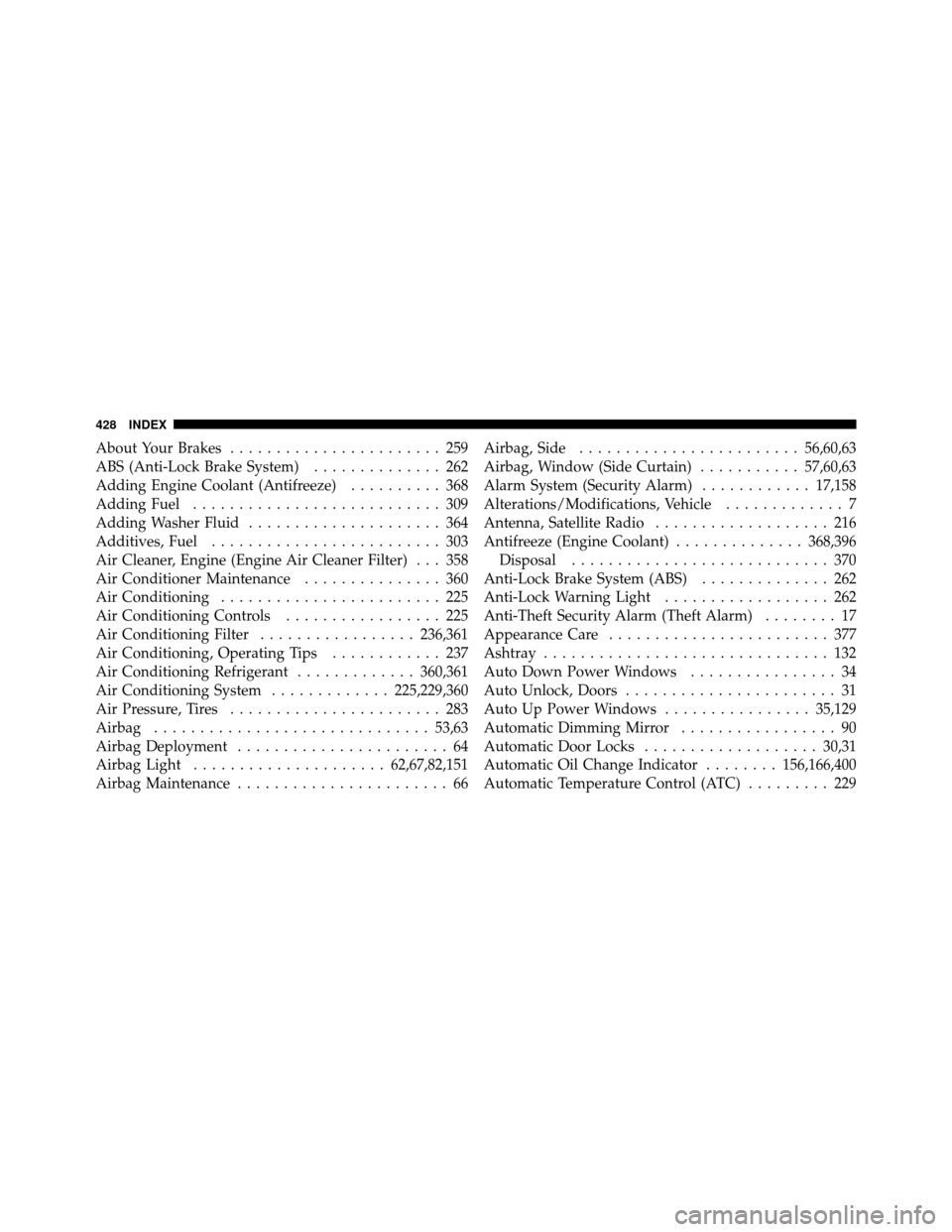

About Your Brakes....................... 259
ABS (Anti-Lock Brake System) .............. 262
Adding Engine Coolant (Antifreeze) .......... 368
Adding Fuel ........................... 309
Adding Washer Fluid ..................... 364
Additives, Fuel ......................... 303
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 358
Air Conditioner Maintenance ............... 360
Air Conditioning ........................ 225
Air Conditioning Controls ................. 225
Air Conditioning Filter .................236,361
Air Conditioning, Operating Tips ............ 237
Air Conditioning Refrigerant .............360,361
Air Conditioning System .............225,229,360
Air Pressure, Tires ....................... 283
Airbag .............................. 53,63
Airbag Deployment ....................... 64
Airbag Light ..................... 62,67,82,151
Airbag Maintenance ....................... 66 Airbag, Side
........................ 56,60,63
Airbag, Window (Side Curtain) ...........57,60,63
Alarm System (Security Alarm) ............17,158
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 216
Antifreeze (Engine Coolant) ..............368,396
Disposal ............................ 370
Anti-Lock Brake System (ABS) .............. 262
Anti-Lock Warning Light .................. 262
Anti-Theft Security Alarm (Theft Alarm) ........ 17
Appearance Care ........................ 377
Ashtray ............................... 132
Auto Down Power Windows ................ 34
Auto Unlock, Doors ....................... 31
Auto Up Power Windows ................35,129
Automatic Dimming Mirror ................. 90
Automatic Door Locks ................... 30,31
Automatic Oil Change Indicator ........156,166,400
Automatic Temperature Control (ATC) ......... 229
428 INDEX

Ignition Key Removal..................... 12
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 14
Infant Restraint ...................... 69,70,71
Information Center, Vehicle ................. 164
Inside Rearview Mirror .................... 89
Instrument Cluster .................... 148,150
Instrument Panel and Controls .............. 147
Instrument Panel Cover ................... 380
Instrument Panel Lens Cleaning ............. 382
Integrated Power Module (Fuses) ............ 383
Interior Appearance Care .................. 380
Interior Lights .......................... 111
Intermittent Wipers (Delay Wipers) ........... 114
Introduction ............................. 4
Jack Location ........................... 329
Jack Operation ....................... 329,330
Jacking Instructions ...................... 330 Jump Starting
.......................... 335
Key, Programming ........................ 16
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14
Key-In Reminder ......................... 14
Keyless Entry System .................... 20,36
Keyless Entry System (Sedan) ..............20,36
Keys ................................. 12
Knee Bolster ............................ 53
Lane Change and Turn Signals ...........158,392
Lane Change Assist ...................... 109
Lap/Shoulder Belts ....................... 40
LATCH
(Lower Anchors and Tether for CHildren) ....... 75
Latches ................................ 84
Hood .............................. 105
Lead Free Gasoline ...................... 300
436 INDEX

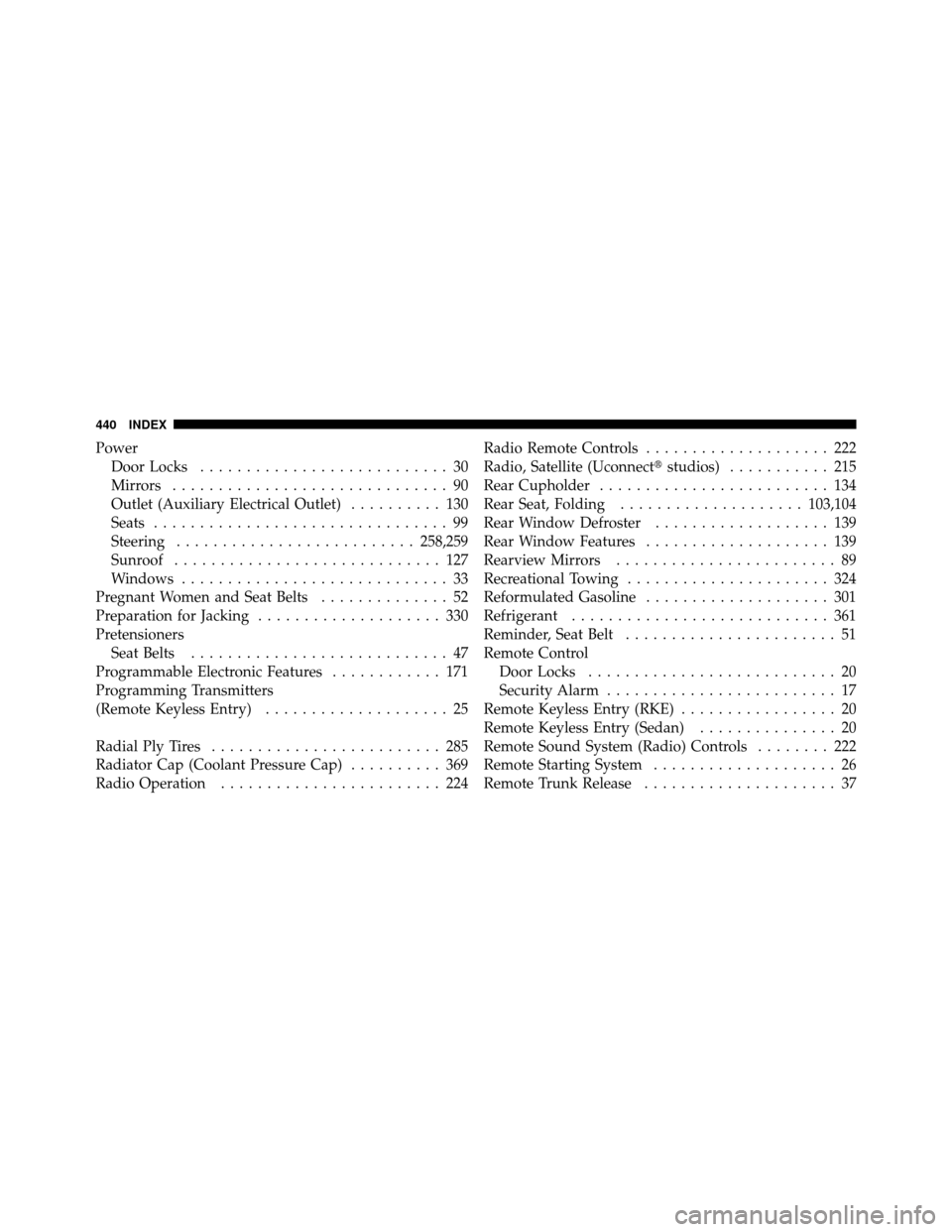

PowerDoor Locks ........................... 30
Mirrors .............................. 90
Outlet (Auxiliary Electrical Outlet) .......... 130
Seats ................................ 99
Steering .......................... 258,259
Sunroof ............................. 127
Windows ............................. 33
Pregnant Women and Seat Belts .............. 52
Preparation for Jacking .................... 330
Pretensioners Seat Belts ............................ 47
Programmable Electronic Features ............ 171
Programming Transmitters
(Remote Keyless Entry) .................... 25
Radial Ply Tires ......................... 285
Radiator Cap (Coolant Pressure Cap) .......... 369
Radio Operation ........................ 224 Radio Remote Controls
.................... 222
Radio, Satellite (Uconnect studios)........... 215
Rear Cupholder ......................... 134
Rear Seat, Folding .................... 103,104
Rear Window Defroster ................... 139
Rear Window Features .................... 139
Rearview Mirrors ........................ 89
Recreational Towing ...................... 324
Reformulated Gasoline .................... 301
Refrigerant ............................ 361
Reminder, Seat Belt ....................... 51
Remote Control Door Locks ........................... 20
Security Alarm ......................... 17
Remote Keyless Entry (RKE) ................. 20
Remote Keyless Entry (Sedan) ............... 20
Remote Sound System (Radio) Controls ........ 222
Remote Starting System .................... 26
Remote Trunk Release ..................... 37
440 INDEX
