2010 DACIA DUSTER control

tailgate ................................................................... (current page)
3.20
ENG_UD20574_2
Coffre à bagages (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Luggage compartment
T AILGATE
Manual control
To open, insert the key in the lock and
turn it (movement A).
Remove the key and press button 1 .
Lift the tailgate.
To close, lower the tailgate using inte-
rior handle 2 to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
Insert the key in the lock and turn it
(movement B).
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open, press the button 1 and lift the
tailgate.
To close, lower the tailgate using inte-
rior handle 2 to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
1
2A
B

5.1
ENG_UD25064_7
Sommaire 5 (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Section 5: Practical advice
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3
Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5
Wheel trims and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14
Front lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17
Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.18
Side indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.25
Battery: troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 5.28
Radio frequency remote control unit: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 5.30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.31
Towing: breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.32
Towing: towbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.35
Fitted audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.36
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.38
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.39

keysreplacing the battery ....................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
battery (remote control) ........................ (up to the end of the DU)
5.30
ENG_UD14146_1
Télécommande à radiofréquence : piles (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

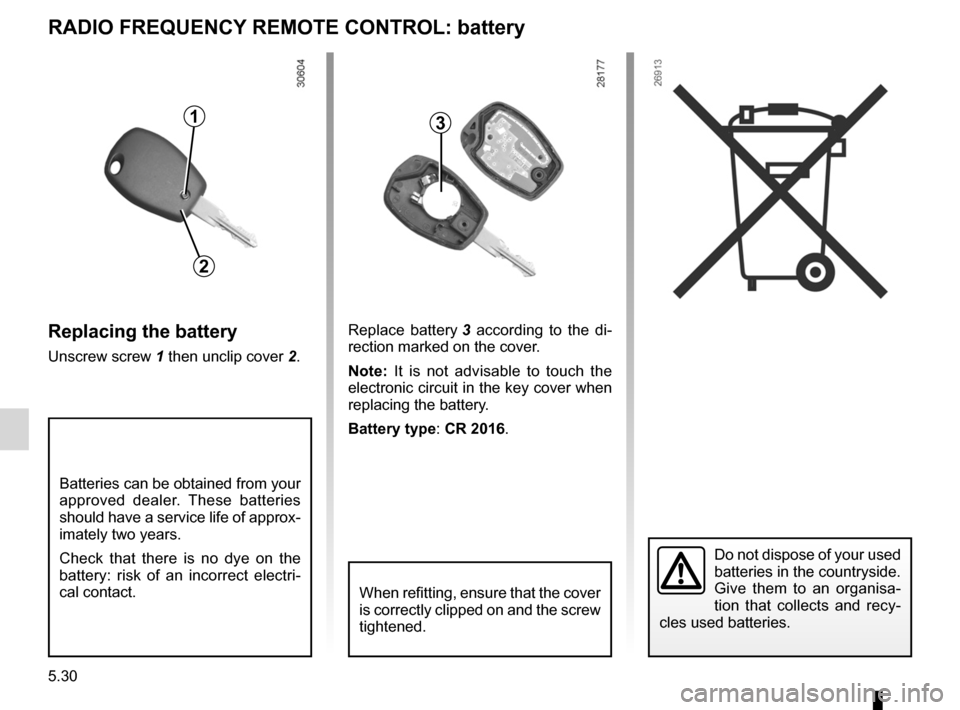

Radio frequency remote control: battery
RADIO FREQUENCY REMOTE CONTROL: battery
Replacing the battery
Unscrew screw 1 then unclip cover 2.
Batteries can be obtained from your
approved dealer. These batteries
should have a service life of approx -
imately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.
Do not dispose of your used
batteries in the countryside.
Give them to an organisa -
tion that collects and recy -
cles used batteries.
31
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
Replace battery 3 according to the di -
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Battery type : CR 2016.

JauneNoirNoir texte
5.43
ENG_UD20968_2
Anomalies de fonctionnement (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
OPERATING FAULTS (5/5)
Electrical equipment POSSIBLE CAUSES WHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly. Blown bulb.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The headlights do not switch on or off. Faulty electrical circuit or control. Consult an approved dealer
Traces of condensation in the lights. This is not a fault. Traces of condensa-
tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.

7.1
FRA_UD25066_7
Index (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_7
AlphAbeticAl index (1/4)
A
ABS ....................................................................... 2.15 → 2.18
accessories........................................................................\
5.38
accessories - installation ................................................... 5.38
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.10, 1.12 → 1.15
advice on antipollution ........................................... 5.25 → 5.27
air bag .................................................................... 1.16 → 1.20
deactivating the front passenger air bags .................... 1.32
air conditioning .......................................................... 3.2 → 3.8
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.14 → 6.18
anti-lock braking system: ABS ...............................2.15 → 2.18
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.19 → 2.21
automatic gearbox selector lever ...........................2.19 → 2.21
b
battery ........................................................................\
........ 4.12
troubleshooting ................................................. 5.28 – 5.29
battery (remote control) ..................................................... 5.30
bodywork (maintenance) ....................................... 4.13 → 4.15
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.7
bulbs changing .......................................................... 5.14 → 5.24
c
capacity of mechanical components ...........................4.4, 4.12
catalytic converter ................................................................ 2.4
central door locking .................................................... 1.5 – 1.6
changing a bulb ..................................................... 5.14 → 5.24
changing a wheel ...................................................... 5.9 – 5.10
changing gear ........................................................ 2.19 → 2.21child booster seat
.................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety ...................................................... 1.7, 1.21 → 1.31
child seats .............................................................. 1.21 → 1.31
children ...................................................................... 1.5 → 1.7
cigar lighter ........................................................................\
3.14
clock ........................................................................\
.......... 1.51
closing the doors ................................................................. 1.7
control instruments ............................ 1.40 → 1.49, 1.54 – 1.55
controls .................................................................. 1.36 → 1.39
courtesy light ..................................................................... 3.12
d
dashboard .............................................................. 1.36 → 1.39
de-icing rear screen ................................................................... 1.59
dipstick........................................................................\
......... 4.4
doors ........................................................................\
.. 1.5 → 1.7
driver’s position ..................................................... 1.36 → 1.39
driving ...................................................................... 2.2 → 2.21
e
electric door locking .................................................... 1.5 – 1.6
electric windows ...................................................... 3.9 → 3.11
emergency brake assist ......................................... 2.16 → 2.18
emergency spare wheel ........................ 5.3 – 5.4, 5.11 → 5.13
engine technical specifications .................................................. 6.5
engine coolant ..................................................................... 4.8
engine immobiliser............................................................... 1.8
engine immobiliser (switch) ................................................. 2.2
engine oil ........................................................................\
..... 4.4
engine oil grade .......................................................... 4.5 – 4.6
engine oil level ..................................................................... 4.5
engine specifications ........................................................... 6.5
environment ........................................................................\
. 2.9

JauneNoirNoir texte
7.3
FRA_UD25066_7
Index (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_7
AlphAbeticAl index (3/4)
adjustment ................................................................... 1.56
lights: adjusting ...................................................................... 1.56
brake lights ....................................................... 5.18 – 5.19
dipped beam headlights ..........................1.54, 5.14 → 5.16
direction indicators ....................... 1.52 – 1.53, 5.14 → 5.16
fog lights ............................................................. 1.55, 5.17
hazard warning ................................................. 1.52 – 1.53
main beam headlights ............................. 1.54, 5.14 → 5.16
reversing lights .................................................. 5.18 – 5.19
side lights ................................................ 1.54, 5.14 → 5.16
locking the doors ................................................................. 1.4
luggage compartment cover ................................... 3.22 – 3.23
M
maintenance: bodywork ......................................................... 4.13 → 4.15
interior trim ........................................................ 4.16 – 4.17
mechanical ..................................4.4, 4.7, 4.12, 6.8 → 6.13
mileage before service ....................................... 6.8 → 6.13
methods of restraint in addition to the front seat belts ..............
1.16 → 1.18, 1.20
mirrors ........................................................................\
....... 3.13
O
oil change ........................................................................\
.... 4.5
opening the doors ................................................................ 1.7
operating faults ...................................................... 5.39 → 5.43
overspeed buzzer .............................................................. 1.44
p
paintwork maintenance ................................................................ 4.13
reference ............................................................... 6.2 – 6.3
power-assisted steering .............................................. 1.50, 4.9
power-assisted steering pump .............................................4.9practical advice
........................................ 5.2 – 5.4, 5.8 → 5.43
puncture .................................................... 5.3 – 5.4, 5.9 – 5.10
R
radio fitting a radio ..................................................... 5.36 – 5.37
rear bench seat .................................................................. 3.19
rear screen demisting ..................................................................... 1.42
rear screen de-icing/demisting ..................................3.4 → 3.7
rear seats functions ...................................................................... 3.19
rear view mirrors ................................................................ 1.35
remote control door locking unit ................................... 1.2, 1.4
replacement parts ................................................................ 6.7
reverse gear selecting ....................................................................... 2.10
roof bars ........................................................................\
.... 3.24
roof rack roof bars ....................................................................... 3.24
running in ........................................................................\
..... 2.2
S
seat belts ............................................................... 1.12 → 1.20
service sheets .......................................................... 6.8 → 6.13
signals and lights .................................................... 1.54 – 1.55
speakers location ............................................................. 5.36 – 5.37
special features of diesel versions .......................................2.5
special features of petrol vehicles ....................................... 2.4
starting ........................................................................\
......... 2.3
starting the engine ...................................................... 2.2 – 2.3
steering wheel adjustment ................................................................... 1.50
storage compartment ............................................. 3.15 → 3.18
storage compartments ........................................... 3.15 → 3.18
