2010 Citroen DS3 DAG ESP

141Safety
Lateral airbags
System which protects the driver and front passenger in the event of a serious side impact in order to limit the risk of injury to the chest, between the hip and the shoulder. Each lateral airbag is fitted in the seat backrest frame, door side.
Activation Impact detection zones
A. Front impact zone. B. Side impact zone.
The lateral airbags are triggered unilaterally in the event of a serious side impact applied to all or par t of the side impact zone B , perpendicular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle. The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle and the corresponding door trim panel.

Curtain airbags
System which protects the driver and passengers (with the exception of the rear centre passenger) in the event of a serious side impact in order to limit the risk of injury to the side of the head. Each cur tain airbag is built into the pillars and the upper passenger compar tment area.
Activation
The cur tain airbag is triggered at the same time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B , perpendicular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle. The cur tain airbag inflates between the front or rear occupant of the vehicle and the windows.
Operating fault
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be triggered. In the event of a rear or front collision, the airbag is not triggered.
If this warning lamp comes on on the instrument panel, accompanied by an audible signal and a message on the multifunction screen, contact a CITROËN dealer to have the system checked. The
airbags may no longer be triggered in the event of a serious impact.

Gear shift indicator *
Operation
The system inter venes only when driving economically.
Depending on the driving situation and your vehicle's equipment, the system may advise you to skip one or more gears. You can follow this instruction without engaging the intermediate gears. The gear engagement recommendations must not be considered compulsory. In fact, the configuration of the road, the amount of traffic and safety remain determining factors when choosing the best gear. Therefore, the driver remains responsible for deciding whether or not to follow the advice given by the system. This function cannot be deactivated.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the instrument panel screen in the form of an arrow accompanied by the suggested gear.
In the case of driving which makes par ticular demands on the per formance of the engine (firm pressure on the accelerator pedal, for example, when over taking...), the system will not recommend a gear change. The system never suggests: - engaging first gear, - engaging reverse gear, - engaging a lower gear.
* According to engine.
Example:
- You are in third gear.
- You press the accelerator pedal moderately.

When you move the lever in the gate to select a position, the corresponding indicator is displayed on the instrument panel. P. Park R. Reverse N. Neutral D. Drive (Automatic driving) S.Spor t programme .Snow programme 1, 2, 3, 4. Gear engaged during manual operation -. Invalid value during manual operation
Displays on the instrument panel
Foot on brake
Press the brake pedal when this indicator lamp is displayed on the instrument panel (e.g.: star ting the engine).
Moving off
If position N is engaged inadver tently while driving, allow the engine to return to idle then engage position D to accelerate.
When the engine is running at idle, with the brakes released, if position R ,
D or M is selected, the vehicle moves even without the accelerator being pressed. When the engine is running, never leave children in the vehicle without super vision. When carrying out maintenance with the engine running, apply the parking brake and select position P . PP
 Apply the parking brake.  Select position P or N .  Star t the engine. If this procedure is not followed, an audible signal is heard, accompanied by a message on the multifunction screen.  With the engine running, press the brake pedal.  Release the parking brake.  Select position R , D or M ,  Gradually release the brake pedal. The vehicle moves off immediately.

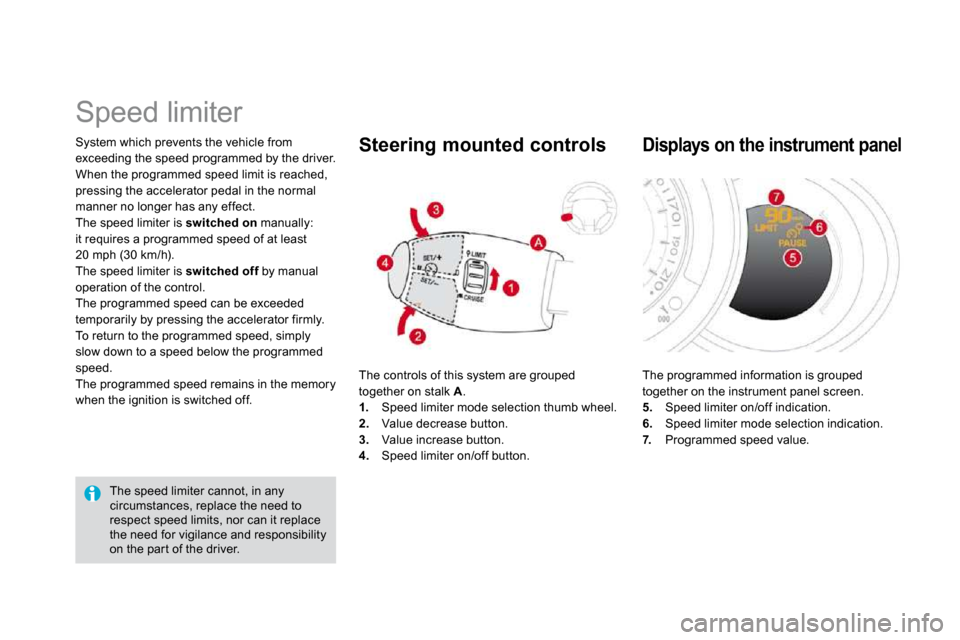

System which prevents the vehicle from exceeding the speed programmed by the driver. When the programmed speed limit is reached, pressing the accelerator pedal in the normal manner no longer has any effect. The speed limiter is switched on manually: it requires a programmed speed of at least 20 mph (30 km/h). The speed limiter is switched off by manual d offoperation of the control. The programmed speed can be exceeded temporarily by pressing the accelerator firmly. To return to the programmed speed, simply slow down to a speed below the programmed speed. The programmed speed remains in the memory when the ignition is switched off.
Speed limiter
The speed limiter cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.
The controls of this system are grouped together on stalk A . 1. Speed limiter mode selection thumb wheel. 2. Value decrease button. 3. Value increase button. 4. Speed limiter on/off button.
Steering mounted controls
The programmed information is grouped together on the instrument panel screen. 5. Speed limiter on/off indication. 6. Speed limiter mode selection indication. 7. Programmed speed value.
Displays on the instrument panel

Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal. The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h), as well as the engagement of: - four th gear on a manual gearbox, - second gear on an automatic gearbox, in sequential mode, - position D on an automatic gearbox. The cruise control is switched off manually d offor by pressing the brake or clutch pedal or on triggering of the ESP system for safety reasons. It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal. Switching off the ignition cancels any programmed speed value.
The controls of this system are grouped together on stalk A . 1. Cruise control mode selection thumb wheel. 2. Value decrease button. 3. Value increase button. 4. Cruise control off/resume button.
Steering mounted controls
The cruise control cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.
The programmed information is grouped together on the instrument panel display. 5. Cruise control off/resume indication. 6. Cruise control mode selection indication. 7. Programmed speed value.
Displays on the instrument panel

Rear parking sensors
System consisting of four proximity sensors, located in the rear bumper. This detects any obstacle (person, vehicle, tree, gate, etc.) behind the vehicle, except obstacles located just below the bumper.
An object, such as a stake, a roadworks cone or any other similar object may be detected at the beginning of the manoeuvre, but may no longer be detected when the vehicle comes close to it.
The parking sensor system cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The system is activated as soon as reverse gear is engaged, accompanied by an audible signal. The proximity information is given by: - an audible signal, which becomes more
rapid as the vehicle approaches the obstacle. - a graphic on the multifunction screen, with
blocks which become increasingly closer to the vehicle.
Activation
When the distance between the rear of the vehicle and the obstacle is less than thir ty centimetres, the audible signal becomes continuous and the "Danger" symbol appears on the multifunction screen. On completion of the manoeuvre, when you exit reverse gear, the system becomes inactive.

161Driving
Programming Operating faults
If there is an operating fault, when reverse gear is engaged this warning lamp comes on on the instrument panel, accompanied by an audible signal (shor t beep) and a message on the multifunction screen.
You can activate or deactivate the system by means of the multifunction screen configuration menu. The system state is memorised when switching off the ignition. For more information on access to the parking sensors menu, refer to "Configuration/ Vehicle parameters" in the "Multifunction screens" section corresponding to your screen.
The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure that the sensors are not covered with mud, frost or snow.
