2010 Citroen DS3 DAG boot

103Visibility

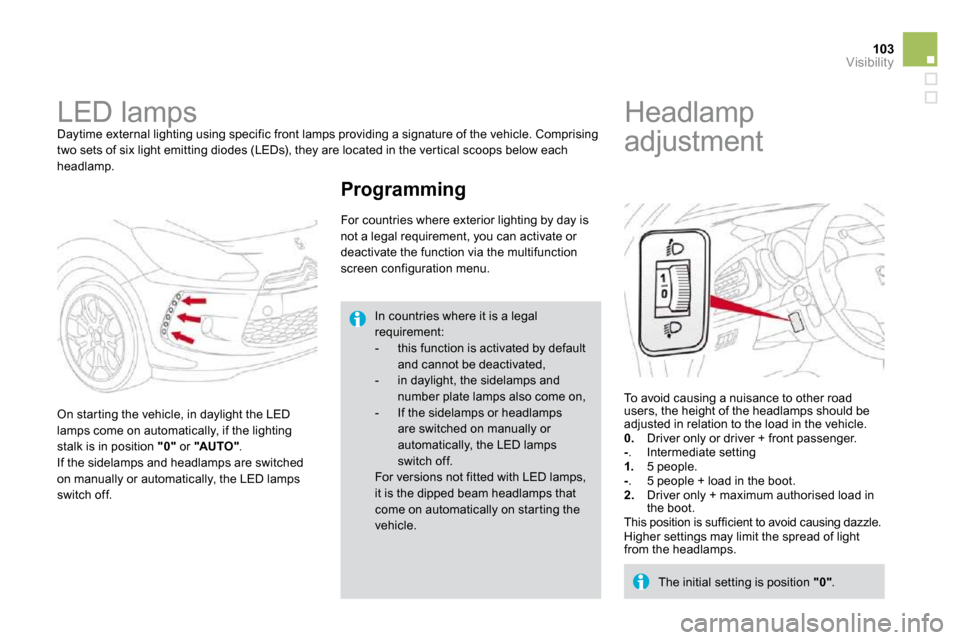

LED lamps
Daytime external lighting using specific front lamp s providing a signature of the vehicle. Comprising two sets of six light emitting diodes (LEDs), they are located in the ver tical scoops below each headlamp.
On star ting the vehicle, in daylight the LED lamps come on automatically, if the lighting stalk is in position "0" or "AUTO" . If the sidelamps and headlamps are switched
on manually or automatically, the LED lamps switch off.
For countries where exterior lighting by day is not a legal requirement, you can activate or deactivate the function via the multifunction screen configuration menu.
Headlamp
adjustment
To avoid causing a nuisance to other road users, the height of the headlamps should be adjusted in relation to the load in the vehicle. 0. Driver only or driver + front passenger. - . Intermediate setting 1. 5 people. - . 5 people + load in the boot. 2. Driver only + maximum authorised load in the boot. This position is sufficient to avoid causing dazzle. Higher settings may limit the spread of light from the headlamps.
The initial setting is position "0" .
Programming
In countries where it is a legal requirement: - this function is activated by default and cannot be deactivated, - in daylight, the sidelamps and number plate lamps also come on, - If the sidelamps or headlamps are switched on manually or
automatically, the LED lamps switch off.
For versions not fitted with LED lamps, it is the dipped beam headlamps that come on automatically on star ting the vehicle.

109Visibility
Interior mood lighting
The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor.
Switching on
At night, the illumination of footwells and the central dashboard storage compar tment comes on automatically when the sidelamps are switched on.
Switching off
The interior mood lighting switches off automatically when the sidelamps are switched off. It can be switched off manually using the instrument panel lighting rheostat button.  With the lighting on, press several times on the left hand button of the instrument panel to progressively reduce the dashboard lighting level.  Press again to reduce the lighting level to the minimum and switch off the interior mood lighting.
This comes on automatically when the boot is opened and switches off automatically when the boot is closed.
Boot lamp
Different lighting times are provided: - when the ignition is off,
approximately ten minutes, - in energy economy mode, approximately thir ty seconds, - when the engine is running, no limit.

Fittings
To remove the shelf:  unhook the two cords,  raise the shelf slightly, then unclip it on each side.
Rear parcel shelf
 Raise the boot carpet by pulling the strap upwards to gain access to the storage box. This has areas for storing a temporary puncture repair kit, a box of spare bulbs, a first aid kit,
two warning triangles, ...
Storage box
 refit the boot floor carpet by folding it slightly in the middle.

Temporary puncture repair kit
and a sealant car tridge which permits temporar y repair of the tyre so that you can pairdrive to the nearest garage. It is designed to repair most punctures which
could affect the tyre, located on the tyre tread or shoulder.
Access to the kit
The speed limit sticker I must be affixed to the vehicle’s steering wheel to remind you that a wheel is in temporary use. Do not exceed a speed of 50 mph (80 km/h) when driving with a tyre repaired using this type of kit.
Description of the kit
A. "Sealant" or "Air" position selector. B. On "I" /off "O" switch. C. Deflation button. D. Pressure gauge (in bar or p.s.i.). E. Compar tment housing: - a cable with adaptor for 12 V socket, - various inflation adaptors for accessories, such as balls, bicycle tyres...
F. Sealant car tridge. G. White pipe with cap for repair. H. Black pipe for inflation. I. Speed limit sticker.
This kit is installed in the storage box, under the boot floor.

181Practical information
Changing a wheel
Procedure for changing a faulty wheel for the spare w heel using the tools provided with the vehicle.
The tools are installed in the boot under the floor. To gain access to them:  open the boot,  lift the boot carpet by pulling the strap upwards,  remove the polystyrene storage box,  unclip and remove the box containing the tools.
Access to the tools
List of tools
All of these tools are specific to your vehicle. Do not use them for other purposes.
Wheel with trim
When removing the wheel , first detach the trim using the wheelbrace 1pulling at the valve passage hole. When refitting the wheel , refit the trim star ting by placing its cut-out at the valve and press around its edge with the palm of your hand.
3. "Bolt cover" tool.
For removing the bolt protectors (covers) on alloy wheels. 4. Socket for the security wheel bolts (located in the glove box).
For adapting the wheelbrace to the special security wheel bolts (if your vehicle is fitted with them).
1. Wheelbrace.
For removing the wheel trim and removing the wheel fixing bolts. 2. Jack with integral handle. For raising the vehicle.

The spare wheel is installed in the boot under the floor. According to country, you will have either a "space saver" spare wheel or a temporary puncture repair kit. For access to it, refer to the paragraph "Access to the tools" on the previous page.
Access to the spare wheel
Fitting the "space-saver" type spare wheel
If your vehicle is fitted with alloy wheels, it is normal to notice, when tightening the bolts on fitting, that the washers do not come into contact with the "space-saver" type spare wheel. The wheel is secured by the conical contact of each bolt.
Taking out the wheel
 Unscrew the yellow central bolt.  Raise the spare wheel towards you from
the rear.  Take the wheel out of the boot.

183Practical information
Putting the wheel back in place
 Put the box back in place in the centre of the wheel and clip it.  Put the polystyrene storage box back in place.  Refit the boot floor carpet by lightly folding it in the middle (refer to the section "Fittings - § Storage box").
 Put the wheel back in its housing.  Unscrew the yellow central bolt by a few turns then place it in the centre of the wheel.  Tighten fully until the central bolt clicks to retain the wheel correctly.
On vehicles equipped with a "space-saver" type spare wheel, the punctured wheel can be stowed in place of the "space-saver" wheel; however the boot
floor will not then be flat.

Fitting the wheel
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" type temporary use spare wheel, do not exceed 50 mph (80 km/h). Have the tightening of the bolts and the pressure of the spare wheel checked by a CITROËN dealer without delay. Have the punctured wheel repaired and replace it on the vehicle as soon as possible. Do not drive with more than one temporary use spare wheel fitted to the vehicle at one time.
List of operations
 Put the wheel in place on the hub.  Screw in the bolts by hand.
 Pre-tighten the security bolt (if your vehicle is fitted with them) using the wheelbrace 1fitted with the socket 4 .  Pre-tighten the other bolts using the wheelbrace 1 only.
