Page 4 of 236
9
1
FAMILIARISATION
Interior
13. Battery/Fuse box.
14. Passenger air bag.
15. Passenger’s lower glove box/RCA
sockets.
16. Air conditioning controls.
17. Lighter/
12 V accessories socket.
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. Fuse box.
25. Handbrake - on the right.
1. Electric mirror controls.
- Electric window controls.
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. Bonnet release under cover -
on the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Bluetooth functions.
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. Front window demisting vents.
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.

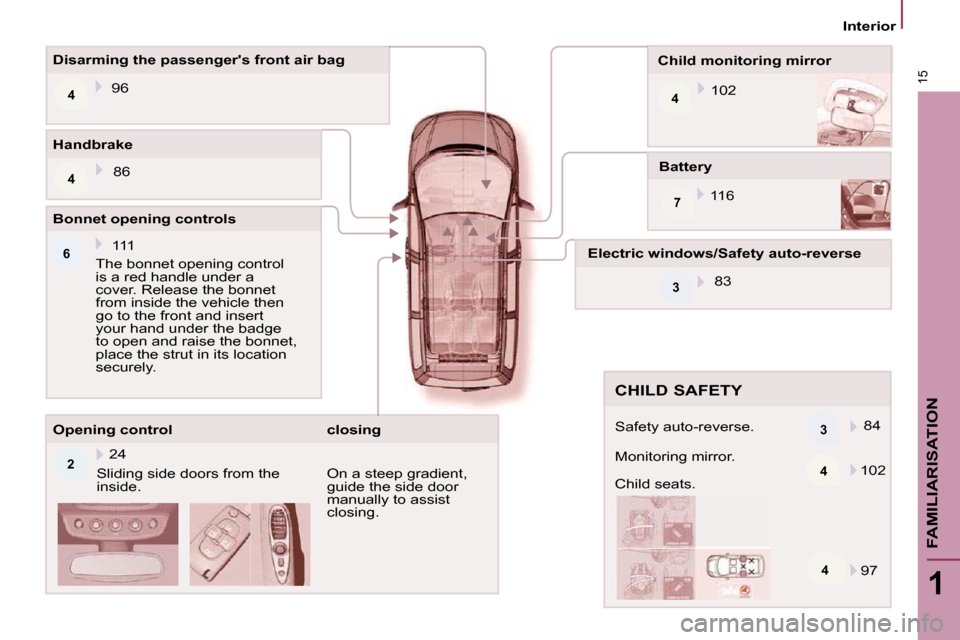

Page 10 of 236
4
2 4
4
7
6
4
3
3
415
1
FAMILIARISATION
Interior
Battery 116
Child monitoring mirror
102
Disarming the passenger's front air bag
96
Opening control Sliding side doors from the
inside. 24
Handbrake
86
Bonnet opening controls The bonnet opening control
is a red handle under a
cover. Release the bonnet
from inside the vehicle then
go to the front and insert
your hand under the badge
to open and raise the bonnet,
place the strut in its location
securely. 111
Safety auto-reverse. 97
102
84
83
Electric windows/Safety auto-reverse
CHILD SAFETY
Monitoring mirror.
Child seats.
closing
O n a s t e e p g r a d i e n t ,
guide the side door
manually to assist
closing.
Page 13 of 236
Accesses
18
REMOTE CONTROL
Deadlocking
KEYS
Deadlocking renders the internal
and external door locking
controls inoperative. Never leave
anyone inside the vehicle when it is
deadlocked.
If the deadlocking is operated from
inside the vehicle, it will change to
normal locking when the vehicle is
started.
ACCESSES Press the closed padlock to
lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d
lighting of the direction
indicators for approximately
two seconds.
Central locking
From the driver's door or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
t a i l g a t e , a s w e l l a s f o l d b a c k t h e
exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work.
The remote control performs the
same functions at a distance. The key allows you to switch on the
ignition and to mechanically operate
t h e l o c k o n t h e f u e l fi l l e r c a p , t h e g l o v e
b o x , t h e p a s s e n g e r a i r b a g d i s a r m i n g
switch and the mechanical child lock. Normal locking
I f y o u r v e h i c l e i s fi t t e d w i t h
deadlocking, a second
press on the closed padlock
w i t h i n fi v e s e c o n d s o f l o c k i n g
changes this to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
approximately two seconds.
Page 15 of 236
Accesses
18
REMOTE CONTROL
Deadlocking
KEYS
Deadlocking renders the internal
and external door locking
controls inoperative. Never leave
anyone inside the vehicle when it is
deadlocked.
If the deadlocking is operated from
inside the vehicle, it will change to
normal locking when the vehicle is
started.
ACCESSES Press the closed padlock to
lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d
lighting of the direction
indicators for approximately
two seconds.
Central locking
From the driver's door or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
t a i l g a t e , a s w e l l a s f o l d b a c k t h e
exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work.
The remote control performs the
same functions at a distance. The key allows you to switch on the
ignition and to mechanically operate
t h e l o c k o n t h e f u e l fi l l e r c a p , t h e g l o v e
b o x , t h e p a s s e n g e r a i r b a g d i s a r m i n g
switch and the mechanical child lock. Normal locking
I f y o u r v e h i c l e i s fi t t e d w i t h
deadlocking, a second
press on the closed padlock
w i t h i n fi v e s e c o n d s o f l o c k i n g
changes this to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
approximately two seconds.
Page 82 of 236
EASE OF USE and COMFORT
3
8 3
Mirrors and windows
ELECTRIC WINDOWS
4. Rear left electric window switch.
5. Rear electric windows disarming
switch (child safety).
- r e d s t r i p v i s i b l e : t h e r e a r s w i t c h e s a r e a c t i v a t e d .
- r e d s t r i p c o v e r e d : t h e r e a r s w i t c h e s a r e d i s a r m e d . Y o u h a v e t w o o p t i o n s :
The electrical functions of the
e l e c t r i c w i n d o w s a r e d i s a r m e d o n e
minute after switching off
the ignition.
Disarming the rear controls
F o r t h e s a f e t y o f y o u r c h i l d r e n , p r e s s
switch 5 t o d i s a r m a l l o f t h e e l e c t r i c a l
controls in the rear:
- e l e c t r i c w i n d o w s ,
- s l i d i n g s i d e d o o r s ,
- sunroofs.
1. Driver's electric window switch.
2. Passenger electric window
switch.
3. Rear right electric window
switch. Manual operation:
- press or pull switch
1 , w i t h o u t g o i n g
b e y o n d t h e p o i n t o f r e s i s t a n c e .
T h e w i n d o w s t o p s w h e n t h e s w i t c h
i s r e l e a s e d .
Automatic operation:
- press or pull switch 1 , b e y o n d t h e
p o i n t o f r e s i s t a n c e : t h e w i n d o w
opens or closes completely when
t h e s w i t c h i s r e l e a s e d . P r e s s i n g t h e
switch again stops the movement
o f t h e w i n d o w .
