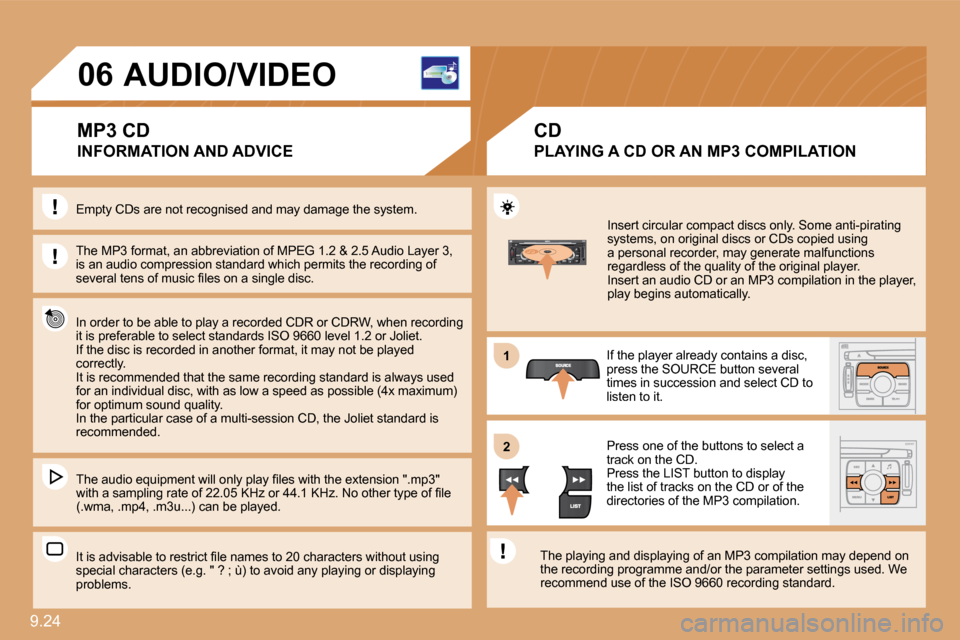

Page 163 of 236
9.24
11
2 2
0 6 AUDIO/VIDEO
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a s a m p l i n g r a t e o f 2 2 . 0 5 K H z o r 4 4 . 1 K H z . N o o t h e r t y p e o f fi l e (.wma, .mp4, .m3u...) can be played.
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g special characters (e.g. " ? ; ù) to avoid any play ing or displaying problems.
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player. Insert an audio CD or an MP3 compilation in the pl ayer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation m ay depend on the recording programme and/or the parameter settin gs used. We recommend use of the ISO 9660 recording standard.
M P 3 C D
P L A Y I N G A C D O R A N M P 3 C O M P I L A T I O N
CD
Empty CDs are not recognised and may damage the s ystem.
Page 166 of 236
9.27
2 2
11
3 3
4 4
5 5
2 2
3 3
11
0 6
USB
COPY USB TO JUKEBOX
COMPLETE DISC
Select USB and press the dial to c o n fi r m .
Select COPY USB TO JUKEBOX and p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE DISC to copy the entire USB stick and press the dial to c o n fi r m .
Select AUDIO FUNCTIONS and press t h e d i a l t o c o n fi r m .
Insert a USB stick in the space provided and press the MENU button.
JUKEBOX
If another source is being played, press the SOURCE button several times in succession and select USB to play it.
Press one of the buttons to select a track on the USB stick. Press the LIST button to display the list of folders on the MP3 USB stick.
To eject the USB stick, use the short-cut menu (press OK) or press the MENU button, select AUDIO FUNCTIONS, USB, then select EJECT USB. The playing and displaying of an MP3 compilation may depend on the parameters programme used.
JUKEBOX
Insert a USB stick in the space provided. ded.
AUDIO/VIDEO
In order to be read, a USB stick must be in FAT 16 or 32 format. The reader only reads USB sticks.
P L A Y I N G A N M P 3 U S B S T I C K C O P Y I N G A N M P 3 U S B S T I C K O N T O T H E H A R D D I S K
Page 169 of 236
9.30
11
2 2
Press the MENU button then select the CONFIGURATION function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the auxiliary input of the NaviDrive.
Connect the portable equipment (MP3 player…) to the audio sockets (white and red, RCA type) located in the glove box using a JACK/RCA audio cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands takes place via the portable equipment.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s c f r o m t h e a u x i l i a r y input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
AUDIO/VIDEO
Page 170 of 236
9.31
11
2 2
3 3
4 4
5 5
6 6
7 7
0 6
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Pressing the "SOURCE" button several times in suc cession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
VIDEO MENU
Videos can only be displayed when stationary.
AUDIO/VIDEO
Page 174 of 236
9.35
1
2 2
3 3
5 5
6 6
4 4
0 7 USING THE TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
You can also press and hold the steering wheel Tel button to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoot h telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Sele ct the n u m b e r r e q u i r e d a n d c o n fi r m t o m a k e t h e c a l l .
DIAL
Page 175 of 236
9.36
0 8 TRIP COMPUTER
- The "vehicle" tab: the range, the current consumption and the distance remaining to the destination. - Tab "1" (route 1) with: the average speed, the average consumption and the distance travelled calculated over route "1". - Tab "2" (route 2) with the same functions for a second route.
A FEW DEFINITIONS
Range: displays the distance which can travelled with the remaining fuel detected in the tank, basd on the average consumpti on over the last few miles (kilometres). T h i s d i s p l a y e d v a l u e m a y v a r y s i g n i fi c a n t l y f o l l o w i n g a c h a n g e i n t h e v e h i c l e speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. After fi l l i n g w i t h a t l e a s t 1 0 l i t r e s o f f u e l , t h e r a n g e i s r e c a l c u l a t e d a n d i s d i s p l a y e d when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of the digits, contact a CITROËN dealer. If, whilst driving, dashes are dng, das
C u r r e n t f u e l c o n s u m p t i o n : only calculated and displayed above 20 mph (30 km/h).
A v e r a g e f u e l c o n s u m p t i o n : this is the average fuel consumption since the last trip computer zero reset.
D i s t a n c e t r a v e l l e d : calculated since the last trip computer zero reset.
D i s t a n c e r e m a i n i n g t o t h e d e s t i n a t i o n : calculated with reference to the fi n a l d e s t i n a t i o n , e n t e r e d b y t h e u s e r . I f g u i d a n c e i s a c t i v a t e d , t h e n a v i g a t i o n system calculates it as a current value.
A v e r a g e s p e e d : this is the average speed calculated since the las t trip computer zero reset (ignition on).
On-board computer
Route
Distance miles
mph
l/100
460
6.519
Page 176 of 236
9.37
1
2
2
2
0 8
VEHICLE DIAGNOSTICS
WARNINGS LOG
STATUS OF FUNCTIONS
T Y R E U N D E R - I N F L A T I O N D E T E C T O R Z E R O R E S E T
TRIP COMPUTER
VEHICLE DIAGNOSTICS
Each press of the button permits displaying of the different trip computer data in succession, depending on the displ ay.
Zero reset When the required route is displayed, press the control for more than two seconds.
C O N T R O L S H O R T - C U T S
On-board computer
Instantaneous info.
Range miles 534
miles
l/100
Page 177 of 236
9.38
2 2
11
0 9
Press the end of the lights stalk to start the voice recognition. Say the words one by one and wait for the audible c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . The list which follows is exhaustive.
To display the list of available voice commands, p ress the end of the lights stalk to start the voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.
VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1 L E V E L 2 L E V E L 3
radio memory autostore previous/next list
1 to 6/*
cd player Jukebox (if activated) USB
previous/next track track number/track scan random play
directory (CD-MP3 inserted) list
1 to 250/* previous/next repeat help/what can I say/cancel
call/guide to "Pre-recorded description"
telephone last number voice box voice mail directory
"Pre-recorded description"
message display read directory
"Pre-recorded description"
navigation stop/resume zoom in/out view
* destination vehicle
t r a f fi c i n f o display read
display audio telephone trip computer Navigation air conditioning
previous/next stop delete yes/no
for all level 1 and 2
* help/what can I say/cancel for all level 1, 2 or *
VOICE COMMANDS
