FAMILIARISATION
Seat belts not fastened/
unfastened warning lamp
This warning lamp informs you if
the driver’s or front passenger’s
seat belt is not fastened (de-
pending on model), and if the
front passenger’s (depending
on model) or the second-row
passengers’ seat belts are unfastened.
The illuminated positions represent
those whose seat belts are not fas-
tened/unfastened.
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
reach approximately 6 mph (10 km/h).
This function can be deactivated by
pressing button A
for more than two
seconds.
Tyre under-inflation detection
This function warns you if a tyre is de-
fl ated or punctured.
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp
comes on, and a vehicle outline
is displayed, accompanied by a
message and an audible signal.
Under-infl ation warning
The STOP
warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture
41
127
89
MONITORING
Automatic central locking
Instrument panel
with multifunction screen A or C
with the MyWay or NaviDrive
multifunction screen
1.
Instrument panel.
2.
Multifunction screen.
3.
Control buttons.
4.
Warning lamps display zone.
31
32
Manual central locking
You can use electrical central locking or
unlocking by pressing on button A
.
If one of the doors is open or is not
closed properly, central locking will not
work.
Page 64 of 352
Downloaded from www.Manualslib.com manuals search engine III
62
COMFORT
5. Air recirculation
)
Press button 5
to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
)
Press button 5
again to allow entry
of air from the outside. The warn-
ing lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of
the rear passenger
controls
Reduction of the
air fl ow for the rear
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents). The rear passengers can use their
adjustment controls at their conve-
nience. The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated.
7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any
button will illuminate the screen
temporarily.
- pressing button 7
deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the
rear screen
This function is active only when the
engine is running.
)
Press on button 8
to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power. This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 65 of 352
Downloaded from www.Manualslib.com manuals search engine III
63
COMFORT

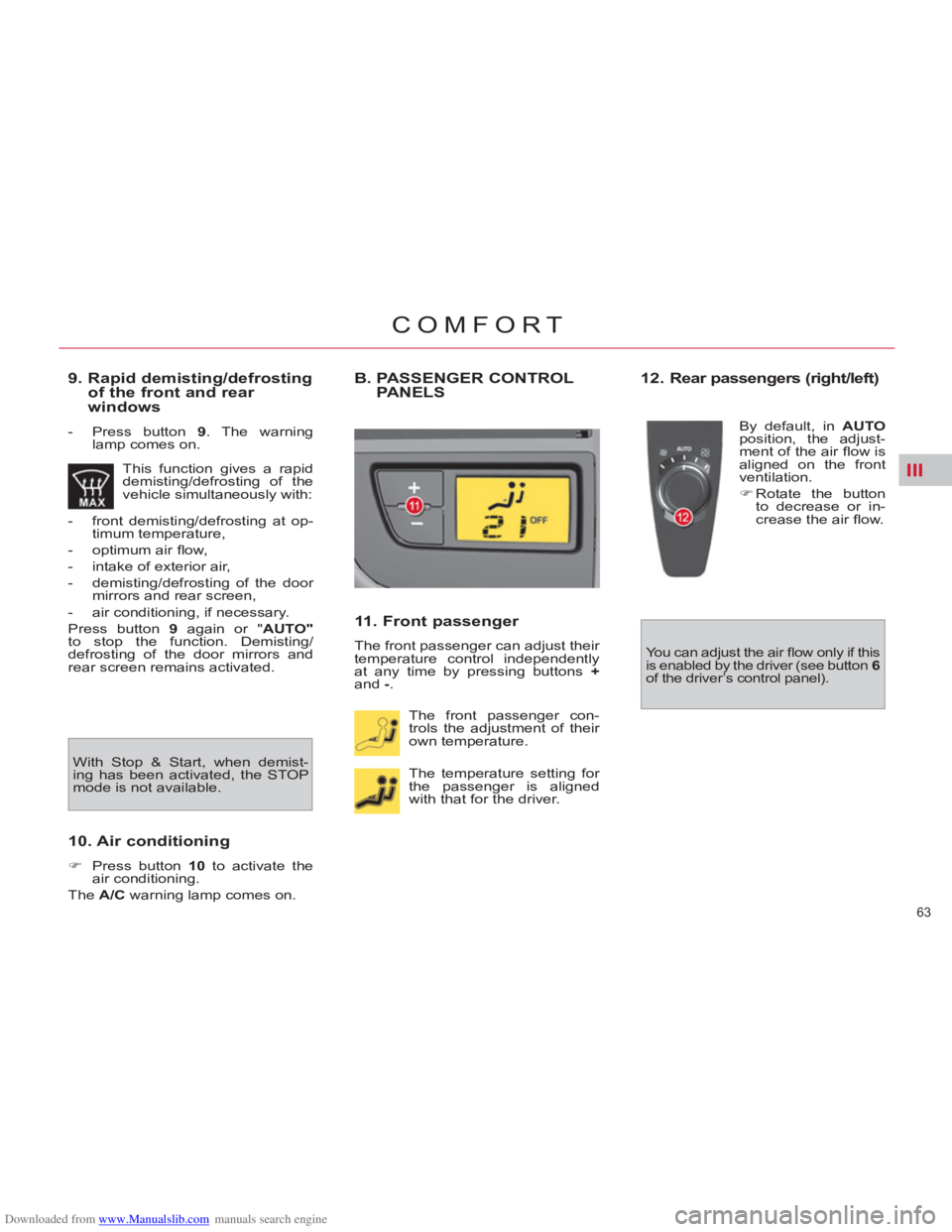

9. Rapid demisting/defrosting

of the front and rear
windows
- Press button 9
. The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op-
timum temperature,
- optimum air fl ow,
- intake of exterior air,
- demisting/defrosting of the door
mirrors and rear screen,
- air conditioning, if necessary.
Press button 9
again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
)
Press button 10
to activate the
air conditioning.
The A/C
warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and -
.
The front passenger con-
trols the adjustment of their
own temperature.
The temperature setting for
the passenger is aligned
with that for the driver.
12. Rear passengers (right/left)
By default, in AUTO
position, the adjust-
ment of the air fl ow is
aligned on the front
ventilation.
)
Rotate the button
to decrease or in-
crease the air fl ow.
You can adjust the air fl ow only if this
is enabled by the driver (see button 6
of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 66 of 352
Downloaded from www.Manualslib.com manuals search engine III
64
COMFORT
ADDITIONAL AIR
CONDITIONING
Additional air conditioning allows you
to optimise comfort levels in warm
weather conditions. It produces ad-
ditional fresh air which is supplied
using the rear air vents. The supply
of warm air via the rear air vents is
not possible using this system.
C. REAR PASSENGER
CONTROL PANELS
(RIGHT/LEFT)
13. Adjustment of
temperature
The rear passengers can adjust their
temperature controls independently
via buttons +
and -
.
Their setting cannot be greater than
that of the driver by more than 2.
Attainment of this maximum setting
is confi rmed by the fl ashing of its
display.
14. Adjustment of air fan
speed
The air fan operates only when the
engine is running.
To adjust the fl ow of air, press on
button:
to increase the air fl ow,
to decrease the air fl ow. The level of air fl ow is indicated on
the display by the progressive fi lling
of the fan blades.
By reducing the fl ow to minimum,
you switch off the air conditioning
system (OFF).
You can adjust the temperature and
the air fl ow only if the driver enables
you to (see button 6
of the driver’s
control panel).
This warning lamp signifi es
that the passenger controls
are locked, you can adjust
neither the temperature nor
the air fl ow, which remain aligned on
the preferences of the driver.
This warning lamp indi-
cates that the supply of air
is cut off
.
This position is recommended in
cold weather conditions, as the air
vents do not supply warm air.
Page 71 of 352
Downloaded from www.Manualslib.com manuals search engine III
69
COMFORT
Storing driving positions
System which registers the electrical
settings of the driver's seat and door
mirrors. It enables you to store and
recall two positions using the but-
tons on the side of the driver's seat.
Storing a position
Using buttons M/1/2
)
Switch on the ignition.
)
Adjust your seat and the door
mirrors.
)
Press button M
, then press but-
ton 1
or 2
within four seconds.
An audible signal indicates that
the position has been stored.
Storing a new position cancels the
previous position.
Recalling a stored position
Ignition on or engine running
)
Press button 1
or 2
to recall the
corresponding position.
An audible signal indicates the end
of the adjustment.
You can interrupt the current move-
ment by pressing button M
, 1
or 2
or
by using one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is deacti-
vated 45 seconds after switching off
the ignition.
Page 85 of 352
Downloaded from www.Manualslib.com manuals search engine IV
83
ACCESS
Lost keys
Visit a CITROËN dealer with the ve-
hicle's registration document, your
personal identifi cation documents
and if possible the key code label.
The CITROËN dealer will be able to
fi nd the key code and the transpon-
der code required to order a new
key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition switch,
even when the ignition is switched
off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition switch when you leave the
vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the pairing of all of the keys
in your possession checked by a
CITROËN dealer, to ensure that
only your keys can be used to open
and start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 114 of 352
Downloaded from www.Manualslib.com manuals search engine VI
112
FITTINGS
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It comprises a shopping trolley and
a fl exible bag (insulated on some
versions) which can be used inde-
pendently of each other depending
on your needs (by detaching the fas-
tenings on each side at the top and
bottom).
To use
)
Unhook the red strap to free the
Modubox.
)
Unhook the black strap then
press on the round buttons on
either side of the Modubox si-
multaneously to unfold it.
Use outside the vehicle
Stowing inside the vehicle
)
Perform the operations in re-
verse to fold and stow inside the
vehicle.
)
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER ROLLER(GRAND C4 PICASSO)
Position 1
5-seat confi guration; installed be-
hind the second-row seats, with the
third-row seats folded away.
)
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this can be used to se-
cure shopping bags.
Installing the roller
)
Position the left-hand end of the
roller in notch A
.
)
Compress the right-hand end of
the roller and place it in notch B
.
)
Pull out the blind until it reaches
the boot pillars.
)
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
)
Carry out these operations in
reverse order.
Page 253 of 352
Downloaded from www.Manualslib.com manuals search engine 251
06
1
2
4
3
1
2
4
3
AUDIO/VIDEO
RADIO
Press the BAND button to select awaveband: FM1, FM2, FMast, AM. Pr
ess the SOURCE button several
times in succession and select RADIO.
Press the LIST button to displa
ythe list of stations received locally(60 maximum).
To update this list, press for more than
tw
o seconds.
Press one of the buttons to carr
y out a
manual search of the radio stations. Brie
fl y press one of the buttons tocarry out an automatic search of the radio stations.
RDS
Select "Audio functions" then press"OK".
Press the MENU button.
RDS, if displayed, enables you to continue listening to the same stationby automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout
the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
Select "Activate RDS" then press "OK". RDS appears on the screen.
Select the "FM waveband preferences" function then press "OK". The external environment
(hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normaleffect of the way in which radio waves are transmitted and does notindicate any failure of the audio equipment.
SELECTING A STATION
FM waveband preferences
Activate RDS
