[x] Cancel search: rear view mirrorPage 12 of 284
15
F A M I L I A R I S A T I O N
Electric windows
64
1. Driver's window control.
2. Passenger's window control.
3. Left-hand rear window control.
4. Right-hand rear window control.
5. Deactivation of the opening of the
rear electric windows
and *
Deactivation of the opening of the rear doors (electric child lock).
* According to version.
S I T T I N G C O M F O R T A B L Y
Door mirror adjustment
A. Select the mirror.
B. Adjust the mirror.
C. Fold-back/Unfold.
54 Rear view mirror adjustment
Manual model
1. Mirror direction.
2.
Selection of the mirror’s "day" position.
Automatic day/night model
1. Automatic detection of the day/night
mode.
2. Adjust the mirror.
55
Page 59 of 284
54
III
C O M F O R T
MIRRORS
Door mirrors
Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded
f o r p a r k i n g i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in one of four
directions to adjust,
return control A to the central
position. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Folding
From outside: lock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Unfolding
From outside: unlock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
The folding and unfolding of the door
mirrors using the remote control can
be deactivated by a CITROËN dealer.
Never fold or unfold the electric folding
mirrors manually. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
S w i t c h i n g o f f
Exit reverse gear and wait
ten seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The demisting/defrosting of the door
mirrors is linked to that of the rear
screen.
Page 60 of 284
55
III
C O M F O R T
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
M a n u a l d a y / n i g h t m o d e l
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
D a y / n i g h t p o s i t i o n
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position. By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduc-
es any driver discomfort caused by
the light beam of following vehicles,
the sun...
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
STEERING WHEEL ADJUSTMENT
The height and reach of the steer-
ing wheel can be adjusted to adapt
the driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
W h e n s t a t i o n a r y , pull the con-
trol lever to unlock the steering
wheel adjustment.
Adjust for height and reach.
Push the control lever to lock the
steering wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
A u t o m a t i c d a y / n i g h t m o d e l
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
Page 82 of 284
73
V I S I B I L I T Y
V
Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic illumination
of headlamps is accompanied by
a message on the multifunction
screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
Guide-me-home lighting
Association with the automatic illu-
mination of headlamps provides the
guide-me-home lighting with the fol-
lowing additional options:
- selection of the lighting duration
to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of guide- me-home lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.
In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
The initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is
adjusted automatically.
Page 84 of 284
73
V I S I B I L I T Y
V
Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic illumination
of headlamps is accompanied by
a message on the multifunction
screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
Guide-me-home lighting
Association with the automatic illu-
mination of headlamps provides the
guide-me-home lighting with the fol-
lowing additional options:
- selection of the lighting duration
to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of guide- me-home lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.
In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
The initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is
adjusted automatically.
Page 87 of 284
76
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by pushing the stalk down-
wards to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position
"0" .
It is accompanied by a message on
the multifunction screen.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
Page 91 of 284
79
VI
F I T T I N G S

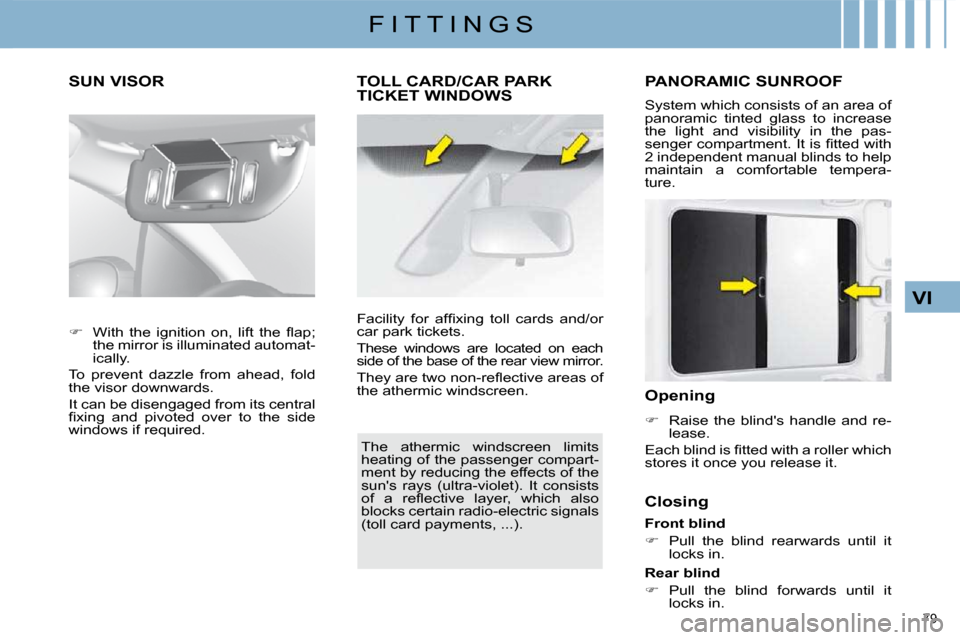

SUN VISOR TOLL CARD/CAR PARK TICKET WINDOWS
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
o f a r e fl e c t i v e l a y e r , w h i c h a l s o
blocks certain radio-electric signals
( t o l l c a r d p a y m e n t s , . . . ) .
F a c i l i t y f o r a f fi x i n g t o l l c a r d s a n d / o r
car park tickets.
These windows are located on each
side of the base of the rear view mirror.
T h e y a r e t w o n o n - r e fl e c t i v e a r e a s o f
the athermic windscreen.
W i t h t h e i g n i t i o n o n , l i f t t h e fl a p ;
the mirror is illuminated automat-
ically.
T o p r e v e n t d a z z l e f r o m a h e a d , f o l d
the visor downwards.
It can be disengaged from its central
fi x i n g a n d p i v o t e d o v e r t o t h e s i d e
windows if required.
PANORAMIC SUNROOF
System which consists of an area of
panoramic tinted glass to increase
the light and visibility in the pas-
s e n g e r c o m p a r t m e n t . I t i s fi t t e d w i t h
2 independent manual blinds to help
maintain a comfortable tempera-
ture.
Opening
Raise the blind's handle and re-
lease.
E a c h b l i n d i s fi t t e d w i t h a r o l l e r w h i c h
stores it once you release it.
Closing
Front blind
Pull the blind rearwards until it
locks in.
Rear blind
Pull the blind forwards until it
locks in.
Page 97 of 284
79
VI
F I T T I N G S
SUN VISOR TOLL CARD/CAR PARK TICKET WINDOWS
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
o f a r e fl e c t i v e l a y e r , w h i c h a l s o
blocks certain radio-electric signals
( t o l l c a r d p a y m e n t s , . . . ) .
F a c i l i t y f o r a f fi x i n g t o l l c a r d s a n d / o r
car park tickets.
These windows are located on each
side of the base of the rear view mirror.
T h e y a r e t w o n o n - r e fl e c t i v e a r e a s o f
the athermic windscreen.
W i t h t h e i g n i t i o n o n , l i f t t h e fl a p ;
the mirror is illuminated automat-
ically.
T o p r e v e n t d a z z l e f r o m a h e a d , f o l d
the visor downwards.
It can be disengaged from its central
fi x i n g a n d p i v o t e d o v e r t o t h e s i d e
windows if required.
PANORAMIC SUNROOF
System which consists of an area of
panoramic tinted glass to increase
the light and visibility in the pas-
s e n g e r c o m p a r t m e n t . I t i s fi t t e d w i t h
2 independent manual blinds to help
maintain a comfortable tempera-
ture.
Opening
Raise the blind's handle and re-
lease.
E a c h b l i n d i s fi t t e d w i t h a r o l l e r w h i c h
stores it once you release it.
Closing
Front blind
Pull the blind rearwards until it
locks in.
Rear blind
Pull the blind forwards until it
locks in.
