2010 Citroen C4 DAG display

29
I
M O N I T O R I N G
Service indicator zero reset Engine oil level indicator
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:

 switch off the ignition,

 press and hold the trip distance
recorder zero reset button,

 switch on the ignition; the dis-
tance recorder display begins a
countdown,

 when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is cor-
rect or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct

Oil level low
This is indicated by the fl ashing of

"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is confi rmed by a
check using the dipstick, it is essential
that the level is topped up to prevent
damage to the engine. Oil level gauge fault
This is indicated by the fl ashing of

"OIL

--" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
cate the dipstick and the oil fi ller cap
on your engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the lev-
el via the oil fi ller cap,
using the type of oil
suited to your engine.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.

30
I
M O N I T O R I N G
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver's door is opened and when
the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.

 With the ignition on, press the
button until zeros appear. Dashboard lighting rheostat
Activation

 Turn control A or press control B
to adjust the brightness of the
dashboard lighting,

 With control B , press until the
brightness is at maximum, release,
press until you reach minimum.
Deactivation
When the vehicle lighting is off, or in
day mode in the case of vehicles fi t-
ted with daytime running lamps, the
button has no effect.
System permitting manual adjustment
of the brightness of the dashboard to
suit the level of ambient light.
The rheostat is active if the side-
lamps are on and applies to:
- the instrument panel,
- the display screens.

31
II
M U L T I F U N C T I O N S C R E E N S

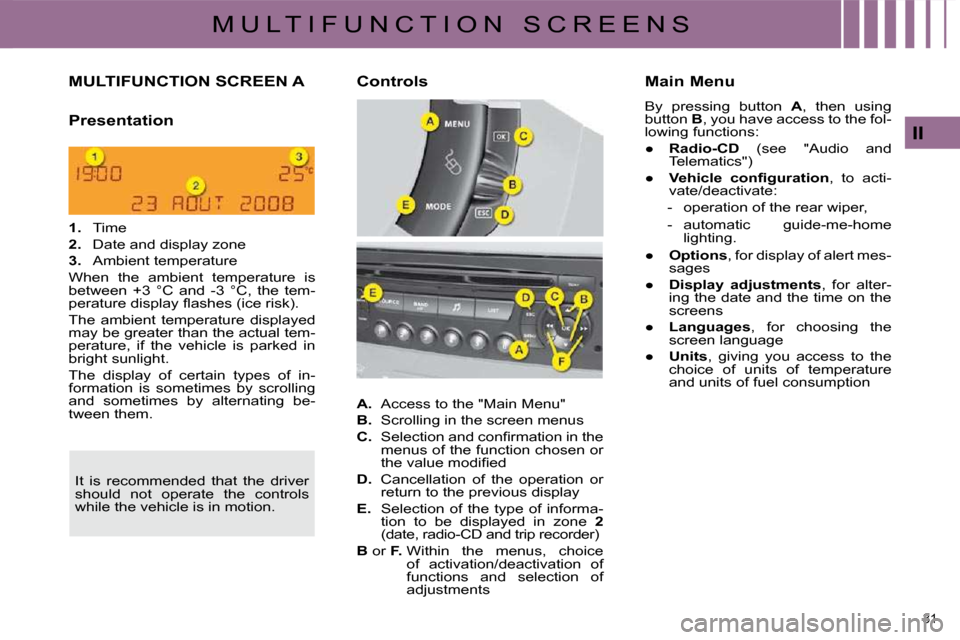

MULTIFUNCTION SCREEN A
Presentation

1. Time

2. Date and display zone

3. Ambient temperature
When the ambient temperature is
between +3 °C and -3 °C, the tem-
perature display fl ashes (ice risk).
The ambient temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
The display of certain types of in-
formation is sometimes by scrolling
and sometimes by alternating be-
tween them.
A. Access to the "Main Menu"

B. Scrolling in the screen menus

C. Selection and confi rmation in the
menus of the function chosen or
the value modifi ed

D. Cancellation of the operation or
return to the previous display

E. Selection of the type of informa-
tion to be displayed in zone 2
(date, radio-CD and trip recorder)

B or F. Within the menus, choice
of activation/deactivation of
functions and selection of
adjustments
Controls Main Menu
By pressing button A , then using
button B , you have access to the fol-
lowing functions:

33
II
M U L T I F U N C T I O N S C R E E N S
MULTIFUNCTION SCREEN C Main Menu
Presentation
Radio-CD
(see "Audio and
Telematics")
Trip computer
This permits:
Bluetooth
®
hands-free
system
(see "Audio and
Telematics")
Controls

1. Time

2. Ambient temperature

3. Date and display zone
When the ambient temperature is
between +3 °C and -3 °C, the tem-
perature display fl ashes (ice risk).
The ambient temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
It is recommended that the driver
should not operate the controls
while the vehicle is in motion.
A. Access to the "Main Menu"

B. Scrolling in the screen menus

C. Selection and confi rmation in the
menus of the function chosen or
the value modifi ed

D. Cancellation of the operation or
return to the previous display

E. Selection of the type of informa-
tion to be displayed permanently
(date, radio-CD, trip computer)
on the right of the screen (See
"Trip computer") Press button
A to view the "Main
Menu" of the multifunction screen.
This menu gives you access to the
following functions:
- entering the distance to your destination,
- access to the log of alerts (recall of alerts signalled previously),
- access to the status of functions, such as the activation/deactiva-
tion of the automatic illumination
of headlamps, of the automat-
ic rain sensitive wipers, of the
ESP...

36
II
M U L T I F U N C T I O N S C R E E N S
NAVIDRIVE MULTIFUNCTION SCREEN
Presentation

1. Ambient temperature

2. Directory

3. Date

4. Telephone

5. Time
When the ambient temperature is
between +3 °C and -3 °C, the tem-
perature display fl ashes (risk of
ice).
The ambient temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
It is recommended that the driver
should not operate the controls
while the vehicle is in motion. Controls Main Menu

Traffi c Information

Navigation/Guidance

Map

Audio Functions

Telematics

Confi guration,
for adjusting various param-
eters (date, time, units)

Video

Vehicle Diagnostics

A. Access to the "Main Menu"

B. Scrolling in the screen menus

C. Selection and confi rmation in the
menus of the function chosen or
the value modifi ed

D. Cancellation of the operation or
return to the previous display

E. Selection of the type of informa-
tion to be displayed permanently
(date, radio-CD, trip computer)
on the right of the screen Press on the button
A to view the
"Main Menu" of the multifunction
screen.
This menu gives you access to the
following functions (see "NaviDrive
Instructions"):

37
II
M U L T I F U N C T I O N S C R E E N S
TRIP COMPUTER
System which provides current infor-
mation concerning the trip travelled
(range, fuel consumption...).
Monochrome screen A Information displays

 Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the aver-
age speed.
Zero reset
The trip computer provides the fol-
lowing information:
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.

 The next press then returns you
to the normal display.

 Press the button, located at the
end of the wiper stalk , to display
the various items of trip comput-
er data in succession.

38
II
M U L T I F U N C T I O N S C R E E N S
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption, …).
Monochrome screen C
NaviDrive colour screen Display of information
Trip zero reset

 Press the button, located at the
end of the wiper stalk , to display
the various trip computer infor-
mation groups in succession:
- the current information group with:

38
II
M U L T I F U N C T I O N S C R E E N S
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption, …).
Monochrome screen C
NaviDrive colour screen Display of information
Trip zero reset

 Press the button, located at the
end of the wiper stalk , to display
the various trip computer infor-
mation groups in succession:
- the current information group with:
