142
XI
P R A C T I C A L I N F O R M A T I O N If the headlamp bears this
s y m b o l , a n y o p e r a t i o n t o
change the Xenon dual-
function directional head-
l a m p ( D 1 S - 3 5 W ) m u s t b e c a r r i e d
o u t b y p r o f e s s i o n a l s ( r i s k o f e l e c -
t r o c u t i o n ) .
C o n s u l t a C I T R O Ë N d e a l e r .
It is recommended to change both
bulbs at the same time if one of
t h e m i s f a u l t y .
Dual-function Xenon headlamps
(dipped/main beam)
Additional main beams
R e m o v e t h e r u b b e r c o v e r .
Rotate the bulb-holder a quarter
turn anti-clockwise and remove it
f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
q u a r t e r t u r n c l o c k w i s e .
R e fi t t h e r u b b e r c o v e r . When using a high-pres-
sure washer on persistent
marks, do not direct the jet
at the lamps or their edges for too
long, so as to avoid damaging their
p r o t e c t i v e c o a t i n g a n d s e a l s .
Model with Xenon headlamps
and directional headlamps
1. Dual-function Xenon
headlamps (dipped/main beam)
2. Additional main beams
(H7-
55W
)
3. Sidelamps (H6W-
6W
)
( s e e p r e v i o u s p a g e )
4. Direction indicators
(H21-
21W
)
( s e e p r e v i o u s p a g e ) Changing foglamp bulbs
C o n s u l t a C I T R O Ë N d e a l e r .
Page 179 of 284
154
XI
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
S y s t e m w h i c h m a n a g e s t h e d u r a t i o n
of use of certain functions to con-
s e r v e a s u f fi c i e n t l e v e l o f c h a r g e i n
t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u
can still use functions such as the
a u d i o a n d t e l e m a t i c s s y s t e m , w i n d -
screen wipers, dipped beam head-
l a m p s , c o u r t e s y l a m p s , e t c . f o r a
maximum combined duration of
t h i r t y m i n u t e s . Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
screen indicating that the vehicle has
s w i t c h e d t o e c o n o m y m o d e a n d t h e
a c t i v e f u n c t i o n s a r e p u t o n s t a n d b y .
Exiting economy mode
These functions are reactivated au-
t o m a t i c a l l y n e x t t i m e t h e v e h i c l e i s
d r i v e n .
In order to resume the use of these
f u n c t i o n s i m m e d i a t e l y , s t a r t t h e e n -
gine and let it run:
- for less than ten minutes to use
the equipment for an equivalent
duration,
- for more than ten minutes to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
t h i r t y m i n u t e s .
A fl a t b a t t e r y p r e v e n t s t h e
e n g i n e f r o m s t a r t i n g ( r e f e r
to the corresponding para-
g r a p h ) .

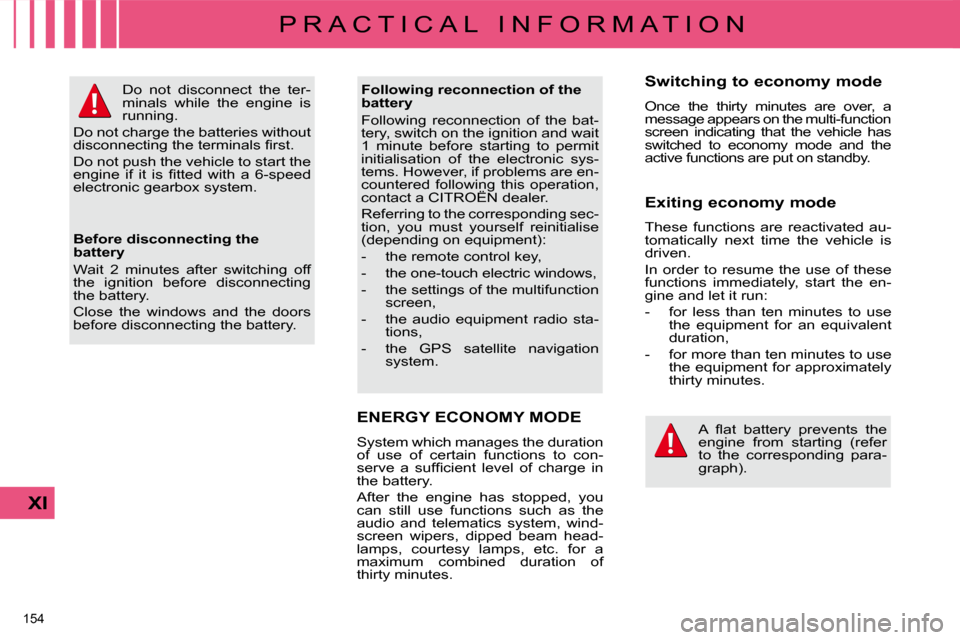

Following reconnection of the
battery
Following reconnection of the bat-
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t
1 minute before starting to permit
i n i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s -
t e m s . H o w e v e r , i f p r o b l e m s a r e e n -
countered following this operation,
c o n t a c t a C I T R O Ë N d e a l e r .
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e
( d e p e n d i n g o n e q u i p m e n t ) :
- t h e r e m o t e c o n t r o l k e y ,
- the one-touch electric windows,
- the settings of the multifunction
screen,
- the audio equipment radio sta- tions,
- the GPS satellite navigation s y s t e m .
D o n o t d i s c o n n e c t t h e t e r -
minals while the engine is
r u n n i n g .
D o n o t c h a r g e t h e b a t t e r i e s w i t h o u t
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
D o n o t p u s h t h e v e h i c l e t o s t a r t t h e
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r b o x s y s t e m .
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
t h e b a t t e r y .
Close the windows and the doors
b e f o r e d i s c o n n e c t i n g t h e b a t t e r y .
Page 180 of 284
154
XI
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
S y s t e m w h i c h m a n a g e s t h e d u r a t i o n
of use of certain functions to con-
s e r v e a s u f fi c i e n t l e v e l o f c h a r g e i n
t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u
can still use functions such as the
a u d i o a n d t e l e m a t i c s s y s t e m , w i n d -
screen wipers, dipped beam head-
l a m p s , c o u r t e s y l a m p s , e t c . f o r a
maximum combined duration of
t h i r t y m i n u t e s . Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
screen indicating that the vehicle has
s w i t c h e d t o e c o n o m y m o d e a n d t h e
a c t i v e f u n c t i o n s a r e p u t o n s t a n d b y .
Exiting economy mode
These functions are reactivated au-
t o m a t i c a l l y n e x t t i m e t h e v e h i c l e i s
d r i v e n .
In order to resume the use of these
f u n c t i o n s i m m e d i a t e l y , s t a r t t h e e n -
gine and let it run:
- for less than ten minutes to use
the equipment for an equivalent
duration,
- for more than ten minutes to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
t h i r t y m i n u t e s .
A fl a t b a t t e r y p r e v e n t s t h e
e n g i n e f r o m s t a r t i n g ( r e f e r
to the corresponding para-
g r a p h ) .
Following reconnection of the
battery
Following reconnection of the bat-
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t
1 minute before starting to permit
i n i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s -
t e m s . H o w e v e r , i f p r o b l e m s a r e e n -
countered following this operation,
c o n t a c t a C I T R O Ë N d e a l e r .
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e
( d e p e n d i n g o n e q u i p m e n t ) :
- t h e r e m o t e c o n t r o l k e y ,
- the one-touch electric windows,
- the settings of the multifunction
screen,
- the audio equipment radio sta- tions,
- the GPS satellite navigation s y s t e m .
D o n o t d i s c o n n e c t t h e t e r -
minals while the engine is
r u n n i n g .
D o n o t c h a r g e t h e b a t t e r i e s w i t h o u t
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
D o n o t p u s h t h e v e h i c l e t o s t a r t t h e
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r b o x s y s t e m .
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
t h e b a t t e r y .
Close the windows and the doors
b e f o r e d i s c o n n e c t i n g t h e b a t t e r y .
Page 183 of 284
157
XI
P R A C T I C A L I N F O R M A T I O N
ROOF BARS
T h e d e s i g n o f y o u r v e h i c l e r e q u i r e s
the use of roof bars and roof box-
e s t h a t a r e t e s t e d a n d a p p r o v e d b y
C I T R O Ë N , f o r y o u r s a f e t y a n d t o a v o i d
damage to the roof and tailgate
R e g a r d l e s s o f t h e t y p e o f l o a d i n g
equipment to be transported on the
r o o f ( r o o f b o x , b i c y c l e c a r r i e r , s k i
c a r r i e r . . . ) , y o u m u s t a d d t r a n s v e r s e
r o o f b a r s .
Recommendations
D i s t r i b u t e y o u r l o a d e v e n l y , a v o i d i n g
o v e r l o a d i n g o n o n e s i d e .
Arrange the heaviest part of the
load as close as possible to the
r o o f .
A n c h o r t h e l o a d s e c u r e l y a n d
s i g n a l i f a n y p a r t o f i t i s o v e r -
h a n g i n g .
D r i v e g e n t l y , a s t h e v e h i c l e w i l l
be more liable to the effects of
s i d e w i n d s ( v e h i c l e s t a b i l i t y m a y
b e a l t e r e d ) .
Remove the roof bars as soon
a s t h e y a r e n o l o n g e r n e e d e d . Bicycle carrier
T h e i n s t a l l a t i o n o f a b i c y c l e c a r r i e r
on the tailgate of the 3-door model is
s t r i c t l y p r o h i b i t e d . Maximum load that can be
distributed on the roof bars
( f o r a l o a d i n g h e i g h t n o t e x -
c e e d i n g 4 0 c m ; e x c e p t b i c y c l e c a r -
r i e r ) : 8 0 k g .
If the height exceeds 40 cm, adapt
y o u r s p e e d t o t h e p r o fi l e o f t h e r o a d
to avoid damaging the roof bars
a n d t h e fi x i n g s o n t h e r o o f .
Please refer to national legislation
i n o r d e r t o c o m p l y w i t h t h e r e g u l a -
tions concerning the transportation
of objects which are longer than
t h e v e h i c l e .
* A c c o r d i n g t o c o u n t r y .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow
a t t h e r a d i a t o r c o o l i n g f a n .
Fitting
O f f e r u p t h e v e r y c o l d c l i m a t e
screen to the front of the lower
s e c t i o n o f t h e f r o n t b u m p e r .
Press around its edge to engage
i t s fi x i n g c l i p s o n e b y o n e .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
D o n o t f o r g e t t o r e m o v e t h e v e r y
cold climate screen:
- when the ambient temperature exceeds 10 °C,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Page 187 of 284
161
T E C H N I C A L D A T A

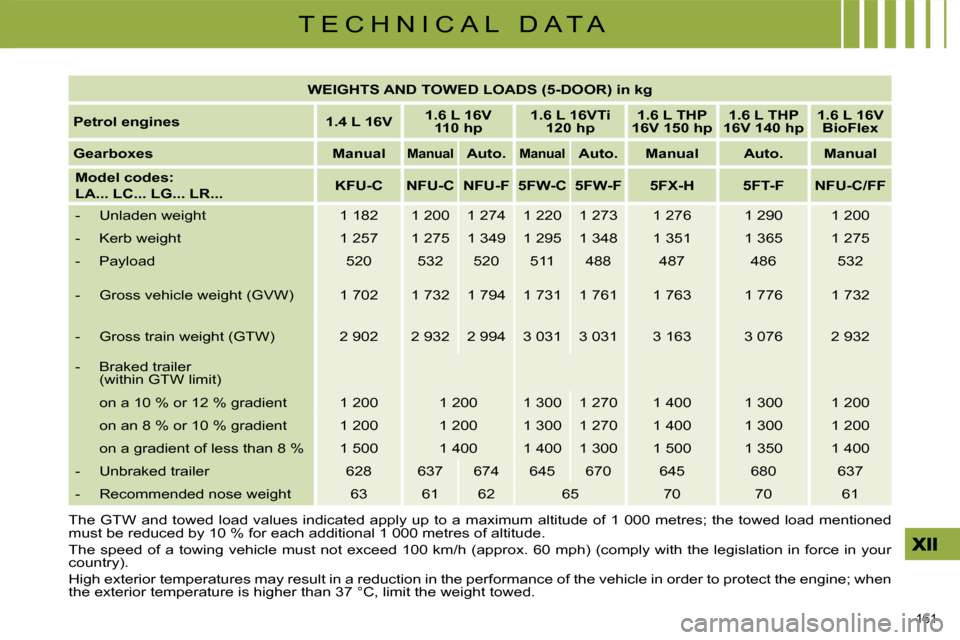

WEIGHTS AND TOWED LOADS (5-DOOR) in kg
Petrol engines 1.4 L 16V
1.6 L 16V
110 hp
1.6 L 16VTi
120 hp
1.6 L THP
16V 150 hp
1.6 L THP
16V 140 hp
1.6 L 16V
BioFlex
Gearboxes Manual
Manual
Auto.
Manual
Auto. Manual Auto. Manual
Model codes:
LA... LC... LG... LR...
KFU-C NFU-C NFU-F 5FW-C 5FW-F 5FX-H 5FT-F NFU-C/FF
- Unladen weight 1 182 1 200 1 274 1 220 1 273 1 276 1 290 1 200
- Kerb weight 1 257 1 275 1 349 1 295 1 348 1 351 1 365 1 275
- Payload 520 532 520 511 488 48 7 486 532
- Gross vehicle weight (GVW) 1 702 1 732 1 794 1 731 1 761 1 763 1 776 1 732
- Gross train weight (GTW) 2 902 2 932 2 994 3 031 3 031 3 163 3 076 2 932
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 300 1 200
on an 8 % or 10 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 300 1 200
on a gradient of less than 8 % 1 500 1 400 1 400 1 300 1 500 1 350 1 400
- Unbraked trailer 628 637 674 645 67 0 645 680 637
- Recommended nose weight 63 61 62 65 70 70 61
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
Page 188 of 284
162
XII
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (3-DOOR) in kg
Petrol engines 1.4 L 16V 1.6 L 16V 110 hp 1.6 L 16VTi 120 hp
1.6 L THP
16V 150 hp
1.6 L 16V
BioFlex
Gearboxes Manual Manual Auto. Manual Auto. Manual Manual
Model codes:
LA... LC... LG... LR...
KFU-C NFU-C NFU-F 5FW-C 5FW-F 5FX-H NFU-C/FF
- Unladen weight 1 181 1 200 1 278 1 217 1 273 1 271 1 200
- Kerb weight 1 256 1 275 1 353 1 292 1 348 1 346 1 275
- Payload 520 520 520 510 484 48 3 520
- Gross vehicle weight (GVW) 1 701 1 720 1 798 1 727 1 757 1 754 1 720
- Gross train weight (GTW) 2 901 2 920 2 998 3 027 3 027 3 154 2 920
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 200
on an 8 % or 10 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 200
on a gradient of less than 8 % 1 500 1 400 1 400 1 300 1 500 1 400
- Unbraked trailer 628 637 676 645 67 0 645 637
- Recommended nose weight 63 61 63 65 65 70 61
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
Page 190 of 284
164
XII
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
WEIGHTS AND TOWED LOADS (5-DOOR) in kg
Diesel engines
1.6 L HDi
16V 92 hp
1.6 L HDi 16V
92 hp PEF
1.6 L HDi
16V 110 hp
1.6 L HDi 16V
110 hp PEF
2 L HDi 16V
138 hp
2 L HDi 16V
140 hp
Gearboxes Manual Manual Manual Manual
Electronic
Gearbox System
Auto. Manual
Model codes:
LA... LC... LG... LR...
9HX-C 9HV-C
9HY-B
9HY-C
9HZ-C 9HZ-H/P RHR-J RHF-8
- Unladen weight 1 257 1 280 1 270 1 280 1 293 1 416 1 381
- Kerb weight 1 332 1 355 1 345 1 355 1 368 1 491 1 456
- Payload 520 520 530 520 507 46 4 468
- Gross vehicle weight (GVW) 1 777 1 800 1 800 1 800 1 800 1 880 1 849
- Gross train weight (GTW) 3 077 3 100 3 100 3 100 3 350 3 449
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on an 8 % or 10 % gradient 1 300 1 300 1 300 1 300 1 570 1 500
on a gradient of less than 8 % 1 300 1 300 1 300 1 300 1 570 1 800
- Unbraked trailer 666 677 672 677 67 5 740 738
- Recommended nose weight 66 66 66 66 65 70 73
Page 191 of 284
165
XII
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (3-DOOR) in kg
Diesel engines
1.6 L HDi
16V 92 hp
1.6 L HDi 16V
92 hp PEF
1.6 L HDi
16V 110 hp
1.6 L HDi 16V
110 hp PEF
2 L HDi 16V
138 hp
2 L HDi 16V
140 hp
Gearboxes Manual Manual Manual Manual
Electronic
Gearbox System
Auto. Manual
Model codes:
LA... LC... LG... LR...
9HX-C 9HV-C
9HY-B
9HY-C
9HZ-C 9HZ-H/P RHR-J RHF-8
- Unladen weight 1 255 1 279 1 269 1 279 1 293 1 410 1 379
- Kerb weight 1 330 1 354 1 344 1 354 1 368 1 485 1 454
- Payload 520 520 521 520 497 47 0 456
- Gross vehicle weight (GVW) 1 775 1 799 1 790 1 799 1 790 1 880 1 835
- Gross train weight (GTW) 3 075 3 099 3 090 3 099 3 090 3 450 3 335
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on an 8 % or 10 % gradient 1 300 1 300 1 300 1 300 1 570 1 500
on a gradient of less than 8 % 1 300 1 300 1 300 1 300 1 570 1 800
- Unbraked trailer 665 677 672 677 67 5 740 727
- Recommended nose weight 66 66 66 66 65 70 73
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
