1
MONITORING
Indicator and warning lamps
Visual indicators informing the driver that a system is in operat ion (operation or
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehi cle's ignition is
switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation. The warning lamps may come
o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Certain warning lamps may
come on in two different modes.
Only by relating the type of light-
ing to the operating status of the
vehicle can it be ascertained
whether the situation is normal
or whether a fault has occurred.
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato
r fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator fl a s h i n g w i t h
buzzer. The lighting stalk is pushed up.
Sidelamps fi x e d . The lighting stalk is in the
"Sidelamps" position. Turn the stalk to the desired position.
Dipped beam
headlamps fi x e d . The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the stalk to the desired position.
Page 9 of 205
1
MONITORING
Airbags temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
switches off. This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
fi x e d . One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a CITROËN dealer.
Seat belt not
fastened/
unfastened fi x e d t h e n
fl a s h i n g
accompanied by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Water in
Diesel fi x e d . T h e d i e s e l fi l t e r c o n t a i n s
water. Risk of damage to the injection system on Diesel
engines.
Contact a CITROËN dealer without delay.
Power
steering fi x e d . The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer.
+
Particle
emissions
fi l t e r ( D i e s e l )
fi x e d , a s s o c i a t e d
temporarily with lighting of the
service warning lamp. This indicates that the
p a r t i c l e e m i s s i o n s fi l t e r i s
starting to become
saturated. As soon as driving conditions allow, regenerate
t h e fi l t e r b y d r i v i n g a t a s p e e d o f a t l e a s t 3 5 m p h
(60 km/h) until the service warning lamp switches
off.
fi x e d , a s s o c i a t e d
temporarily with
lighting of the service warning lamp. This indicates the minimum
level for the Diesel fuel
additive reservoir. Have the reservoir topped up as soon as possible
by a CITROËN dealer.
Warning lamp is on Cause Action/Observations
Page 43 of 205
4
ACCESS
Folding the key
First press this button to fold the key.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning
lamp, an audible signal
and a message on the multifunction
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Ignition switch
- Position 1: Stop
- Position 2: Ignition
- Position 3: Starting
Locating your vehicle
Press the closed padlock
to locate your locked ve-
hicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Deadlocking using the remote
control
Press the closed padlock to
lock the vehicle completely.
Press the closed padlock
a g a i n w i t h i n fi v e s e c o n d s t o
deadlock the vehicle.
Deadlocking using the key
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Turn the key to the left again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g r e n d e r s t h e e x t e r i o r
and interior door controls inop-
erative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
p r o x i m a t e l y t w o s e c o n d s .
According to version, the door mirrors
fold at the same time. This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Page 44 of 205
4
ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Changing the battery
Battery ref.: CR1620/3 volts.
This replacement battery is available
from CITROËN dealers.
I f t h e b a t t e r y i s fl a t , y o u
are informed by light-
ing of this warning lamp,
an audible signal and a
message on the multi-
function screen.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release the
key.
Page 46 of 205
4
ACCESS
Folding the key
First press this button to fold the key.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning
lamp, an audible signal
and a message on the multifunction
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Ignition switch
- Position 1: Stop
- Position 2: Ignition
- Position 3: Starting
Locating your vehicle
Press the closed padlock
to locate your locked ve-
hicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Deadlocking using the remote
control
Press the closed padlock to
lock the vehicle completely.
Press the closed padlock
a g a i n w i t h i n fi v e s e c o n d s t o
deadlock the vehicle.
Deadlocking using the key
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Turn the key to the left again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g r e n d e r s t h e e x t e r i o r
and interior door controls inop-
erative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
p r o x i m a t e l y t w o s e c o n d s .
According to version, the door mirrors
fold at the same time. This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Page 47 of 205
4
ACCESS
Folding the key
First press this button to fold the key.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning
lamp, an audible signal
and a message on the multifunction
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Ignition switch
- Position 1: Stop
- Position 2: Ignition
- Position 3: Starting
Locating your vehicle
Press the closed padlock
to locate your locked ve-
hicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Deadlocking using the remote
control
Press the closed padlock to
lock the vehicle completely.
Press the closed padlock
a g a i n w i t h i n fi v e s e c o n d s t o
deadlock the vehicle.
Deadlocking using the key
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Turn the key to the left again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g r e n d e r s t h e e x t e r i o r
and interior door controls inop-
erative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
p r o x i m a t e l y t w o s e c o n d s .
According to version, the door mirrors
fold at the same time. This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Page 55 of 205
4
ACCESS

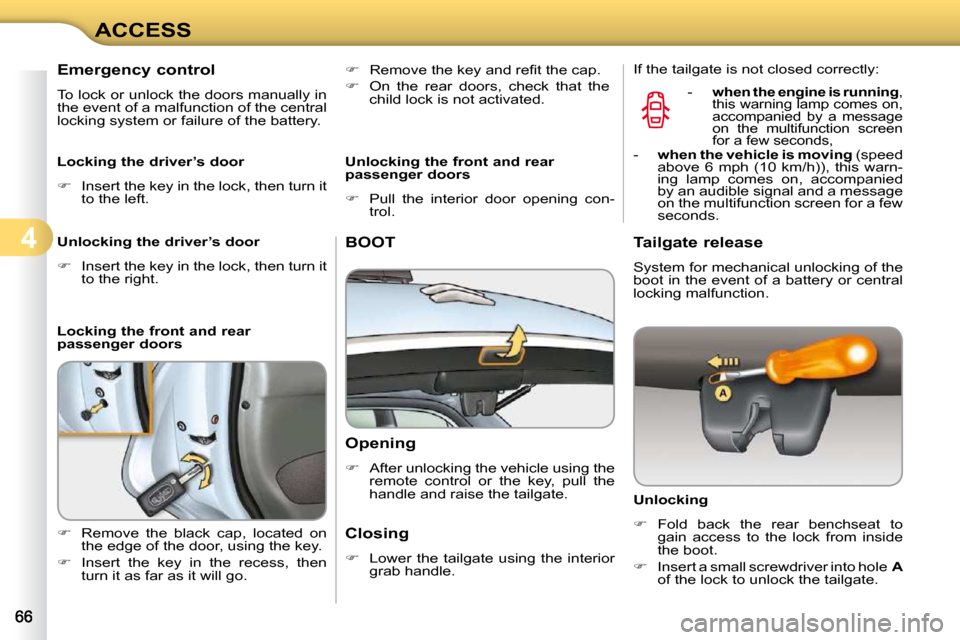

BOOT
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle. -
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
If the tailgate is not closed correctly:
Emergency control
To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or failure of the battery.
Locking the driver’s door
Insert the key in the lock, then turn it
to the left.
Unlocking the driver’s door
Insert the key in the lock, then turn it
to the right.
Remove the black cap, located on
the edge of the door, using the key.
Insert the key in the recess, then
turn it as far as it will go. Unlocking the front and rear
passenger doors
Pull the interior door opening con-
trol.
Locking the front and rear
passenger doors
R e m o v e t h e k e y a n d r e fi t t h e c a p .
On the rear doors, check that the
child lock is not activated.
Page 56 of 205
4
ACCESS
BOOT
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle. -
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
If the tailgate is not closed correctly:
Emergency control
To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or failure of the battery.
Locking the driver’s door
Insert the key in the lock, then turn it
to the left.
Unlocking the driver’s door
Insert the key in the lock, then turn it
to the right.
Remove the black cap, located on
the edge of the door, using the key.
Insert the key in the recess, then
turn it as far as it will go. Unlocking the front and rear
passenger doors
Pull the interior door opening con-
trol.
Locking the front and rear
passenger doors
R e m o v e t h e k e y a n d r e fi t t h e c a p .
On the rear doors, check that the
child lock is not activated.
