VISIBILITY
A. Central courtesy lamp
1. Rear side reading lamps
2. Rear courtesy lamp Central or rear courtesy lamps
Version without Zenith windscreen
Front side reading lamps
W i t h t h e i g n i t i o n o n , t h e fi r s t p r e s s o f
the corresponding switch switches
on the reading lamp concerned in
permanent lighting mode.
Following a second press, it comes on: - when the vehicle is unlocked,
- when the key is removed from
the ignition,
- when a door is opened,
- when the remote control locking button is pressed, in order to
locate your vehicle. In permanent lighting mode, the
lighting duration varies, accord-
ing to the circumstances :
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, un- limited.
Version with Zenith windscreen In this position, the courtesy
lamp comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
-
when the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
To switch off the rear courtesy lamp,
place it in the "permanently off" posi-
tion.
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
Page 90 of 203
8
SAFETY
TRAJECTORY CONTROL
SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
T h e a n t i - s k i d r e g u l a t i o n ( a l s o k n o w n
a s T r a c t i o n C o n t r o l ) o p t i m i s e s t r a c t i o n
t o p r e v e n t s k i d d i n g o f t h e w h e e l s , b y
acting on the brakes of the driving
wheels and on the engine.
T h e e l e c t r o n i c s t a b i l i t y p r o g r a m m e a c t s
o n t h e b r a k e o f o n e o r m o r e w h e e l s a n d
on the engine to keep the vehicle on the
t r a j e c t o r y r e q u i r e d b y t h e d r i v e r , w i t h i n
t h e l i m i t s o f t h e l a w s o f p h y s i c s .
Activation
T h e s e s y s t e m s a r e a c t i v a t e d a u t o m a t i -
c a l l y e a c h t i m e t h e v e h i c l e i s s t a r t e d .
T h e y c o m e i n t o o p e r a t i o n i n t h e e v e n t
o f a g r i p o r t r a j e c t o r y p r o b l e m . T h i s i s i n d i c a t e d b y fl a s h i n g o f
t h i s w a r n i n g l a m p o n t h e i n s t r u -
m e n t p a n e l . Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
v e h i c l e w h i c h i s b o g g e d d o w n , s t u c k
i n s n o w , o n s o f t g r o u n d . . . ) , i t m a y b e
advisable to deactivate the ASR and
E S P s y s t e m s , s o t h a t t h e w h e e l s c a n
m o v e f r e e l y a n d r e g a i n g r i p .
Press the "ESP OFF" b u t t o n , l o c a t e d
on the left below the steering wheel.
I f t h i s w a r n i n g l a m p c o m e s o n i n
t h e i n s t r u m e n t p a n e l a n d t h e i n -
d i c a t o r l a m p o n t h e b u t t o n c o m e s
o n , t h i s i n d i c a t e s t h a t t h e A S R a n d
E S P s y s t e m s a r e d e a c t i v a t e d .
Reactivation
T h e s e s y s t e m s a r e r e a c t i v a t e d a u t o m a t -
i c a l l y e a c h t i m e t h e i g n i t i o n i s s w i t c h e d
b a c k o n o r f r o m 3 0 m p h ( 5 0 k m / h ) .
Press the "ESP OFF" b u t t o n a g a i n
t o r e a c t i v a t e t h e m m a n u a l l y . Operating fault
I f t h i s w a r n i n g l a m p c o m e s o n ,
a c c o m p a n i e d b y a n a u d i b l e s i g -
n a l a n d a m e s s a g e o n t h e m u l t i -
f u n c t i o n s c r e e n , t h i s i n d i c a t e s a
m a l f u n c t i o n o f t h e s e s y s t e m s .
H a v e t h e s y s t e m s c h e c k e d b y a C I T R O Ë N
dealer.
T h e E S P / A S R s y s t e m s o f f e r e x -
c e p t i o n a l s a f e t y i n n o r m a l d r i v i n g ,
b u t t h i s s h o u l d n o t e n c o u r a g e t h e
driver to take extra risks or drive at
high speed.
T h e c o r r e c t f u n c t i o n i n g o f t h e s e
s y s t e m s d e p e n d s o n o b s e r v a t i o n
o f t h e m a n u f a c t u r e r ' s r e c o m m e n -
d a t i o n s r e g a r d i n g t h e w h e e l s ( t y r e s
a n d r i m s ) , t h e b r a k i n g c o m p o -
n e n t s , t h e e l e c t r o n i c c o m p o n e n t s
a n d t h e C I T R O Ë N a s s e m b l y a n d
o p e r a t i o n p r o c e d u r e s .
A f t e r a n i m p a c t , h a v e t h e s e s y s -
t e m s c h e c k e d b y a C I T R O Ë N
dealer.
Page 99 of 203
9
DRIVING
GEAR EFFICIENCY INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
Operation
The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruction with-
out engaging the intermediate gears.
The gear recommended should not
be considered compulsory. In fact, the
c o n fi g u r a t i o n o f t h e r o a d , t h e a m o u n t
o f t r a f fi c a n d s a f e t y r e m a i n d e t e r m i n i n g
factors when choosing the best gear.
Therefore, the driver remains responsi-
ble for deciding whether or not to follow
the advice given by the system.
This function cannot be deactivated. In the case of driving which
makes particular demands on
the performance of the engine
( fi r m p r e s s u r e o n t h e a c c e l e r a t o r
p e d a l , f o r e x a m p l e , w h e n o v e r -
taking...), the system will not
re-commend a gear change.
The system never suggests:
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear.
- You press the accelerator pedal
moderately.
E x a m p l e :
- You are in third gear.
- The system may suggest that you engage a higher gear, if appropriate.
* According to engine. The information appears in the form of an
arrow on the instrument panel display.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.
Page 100 of 203
9
DRIVING
AUTOMATIC GEARBOX
F o u r - s p e e d a u t o m a t i c g e a r b o x w h i c h
offers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Therefore, four driving modes are of-
fered:
- automatic operation for electronic
management of the gears by the
g e a r b o x ,
- sport programme for a more dynamic
style of driving,
- snow programme to improve driving
when traction is poor,
- manual operation for sequential
changing of the gears by the driver.
1. Gear lever.
2. Button "S"
(sport) .
3. Button "
"
(snow).
Gear selection gate
P. Park.
- Immobilisation of the vehicle, parking brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking brake on.
- Starting the engine.
D. Automatic operation.
M. +/- Manual operation with sequential
changing of the four gears.
Push forwards to change up through
the gears.
or
Pull backwards to change down
through the gears.
Gear lever
When you move the lever in the gate
to select a position, the corresponding
indicator is displayed on the instrument
panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S.
Sport programme
.
Snow programme
1, 2, 3, 4
. Gear engaged during manual
operation
-. Invalid value during manual operation
Displays on the instrument panel
Foot on brake
Press the brake pedal when
this indicator lamp is displayed
on the instrument panel (e.g.:
starting the engine).
Page 103 of 203
9
DRIVING
SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
in the normal manner no longer has any
effect.
The speed limiter is switched on man-
ually: it requires a programmed speed
o f a t l e a s t 2 0 m p h ( 3 0 k m / h ) .
The speed limiter is switched off by
manual operation of the control.
The programmed speed can be
e x c e e d e d t e m p o r a r i l y b y p r e s s i n g t h e
a c c e l e r a t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off.
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver. Steering mounted controls
The controls of this system are grouped
together on stalk
A .
1. Speed limiter mode selection thumb
wheel.
2. Value decrease button.
3. Value increase button.
4. S p e e d l i m i t e r o n / o f f b u t t o n . Displays on the instrument panel
The programmed information is
grouped together on the instrument
panel screen.
5. S p e e d l i m i t e r o n / o f f i n d i c a t i o n .
6.
Speed limiter mode selection indication.
7. Programmed speed value.
Page 105 of 203
9
DRIVING
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver.

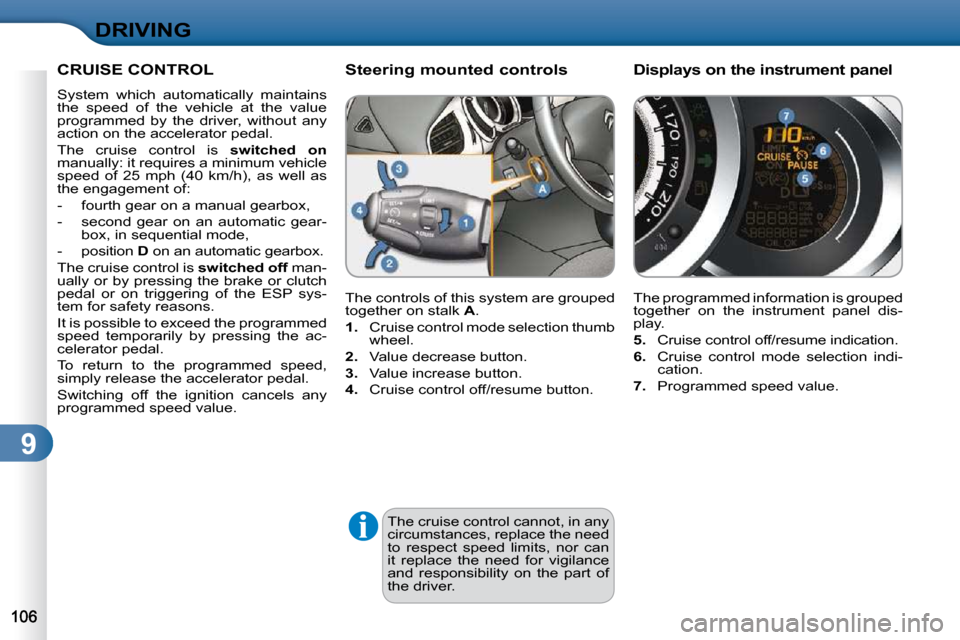

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
s p e e d o f 2 5 m p h ( 4 0 k m / h ) , a s w e l l a s
the engagement of:
- f o u r t h g e a r o n a m a n u a l g e a r b o x ,
- second gear on an automatic gear- b o x , i n s e q u e n t i a l m o d e ,
- position D o n a n a u t o m a t i c g e a r b o x .
The cruise control is switched off man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on stalk
A .
1. Cruise control mode selection thumb
wheel.
2. Value decrease button.
3. Value increase button.
4. C r u i s e c o n t r o l o f f / r e s u m e b u t t o n .
Steering mounted controls Displays on the instrumen
t panel
The programmed information is grouped
together on the instrument panel dis-
play.
5. C r u i s e c o n t r o l o f f / r e s u m e i n d i c a t i o n .
6. Cruise control mode selection indi-
cation.
7. Programmed speed value.
Page 107 of 203
9
DRIVING
REAR PARKING SENSORS
S y s t e m c o n s i s t i n g o f f o u r p r o x i m i t y s e n -
sors, located in the rear bumper. Activation
This detects any obstacle (person, vehi-
cle, tree, gate, etc.) behind the vehicle,
e x c e p t o b s t a c l e s l o c a t e d j u s t b e l o w t h e
bumper. An object, such as a stake, a
roadworks cone or any other
similar object may be detected
at the beginning of the manoeu-
vre, but may no longer be de-
tected when the vehicle comes
close to it. The parking sensor system can-
not, in any circumstances, take
the place of the vigilance and
responsibility of the driver.
The system is activated as soon as re-
verse gear is engaged, accompanied
by an audible signal.
On completion of the manoeuvre,
w h e n y o u e x i t r e v e r s e g e a r , t h e s y s t e m
becomes inactive.
T h e p r o x i m i t y i n f o r m a t i o n i s g i v e n b y :
- an audible signal, which becomes
more rapid as the vehicle approaches
the obstacle.
- a graphic on the multifunction screen, with blocks which become
increasingly closer to the vehicle.
When the distance between the rear of
the vehicle and the obstacle is less than
thirty centimetres, the audible signal
becomes continuous and the "Danger"
symbol appears on the multifunction
screen.
Page 108 of 203
9
DRIVING
The system will be deactivated
automatically when towing a
trailer or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended
by CITROËN). In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.
Programming
You can activate or deactivate the
system by means of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u . T h e s y s t e m
state is memorised when switching off
the ignition.
For more information on access to
the parking sensors menu, refer to
" C o n fi g u r a t i o n / V e h i c l e p a r a m e t e r s " i n
the "Multifunction screens" section cor-
responding to your screen.
Operating faults
If there is an operating fault, when reverse
gear is engaged this warning lamp comes
on on the instrument panel, accompanied
by an audible signal (short beep) and a
message on the multifunction screen.
