8
Interior
INSTRUMENTS AND CONTROLS
1. Lights and direction indicators
stalk.
2. I n s t r u m e n t p a n e l w i t h d i s p l a y .
3. Wipers, wash-wipe, trip
computer controls.
4. I g n i t i o n .
5. Audio equipment.
6. Driver's airbag, horn.
7. Steering wheel height and depth
adjustment.
8. Cruise control, speed limiter
switch.
9. Control pad, parking assistance,
headlamp beam adjustment,
ESP.
10. Bonnet release.
11. Electric exterior mirror
adjustment.
Page 6 of 185
3
3
3
3
9
3
11
1
FAMILIARISATION
Interior
Lights off.
Sidelamps.
Main beam headlamps (blue).
Dipped headlamps (green). 2 fast.
1 normal.
I i n t e r m i t t e n t .
0 off.
single wipe.
AUTO, press the stalk down.
AUTO, automatic
switching on of the lamps.
40 43 I n c r u i s e c o n t r o l m o d e , t h e v e h i c l e s p e e d
must be higher than 25 mph (40 km/h)
with at least 4th gear engaged.
45,
48
39
SEE CLEARLY
DRIVE SAFELY
Motorway function: press up or down
once, without passing the point of
resistance; the corresponding direction
i n d i c a t o r s w i l l fl a s h t h r e e t i m e s . Lights stalk Wipers stalk
Cruise control, Speed limiter
Hill start assist
Audio system
44,
120
Special position of the windscreen
wipers
I n t h e m i n u t e f o l l o w i n g s w i t c h i n g o f f
of the ignition, any action on the wiper
stalk positions the wipers vertically at
the sides of the windscreen.
Page 9 of 185
33
4
4
3
14
Interior VENTILATION
51 53
CHILD SAFETY
88
87
Recommended settings for the Manual Air Conditioning
For optimum use of the system, we recommend:
If I require...
Air
distribution
Temperature
A i r fl o w
Air
recirculation
AC
Heating -
Cooling
De-icing
Demisting 55
With Automatic Air Conditioning, operation in AUTO mode is recommended
irrespective of the requirement.
Remember to switch the system off when the ambient air suits
your requirements.
Airbag deactivation
Child seats
Heating
Air conditioning
Automatic air
conditioning
Page 28 of 185

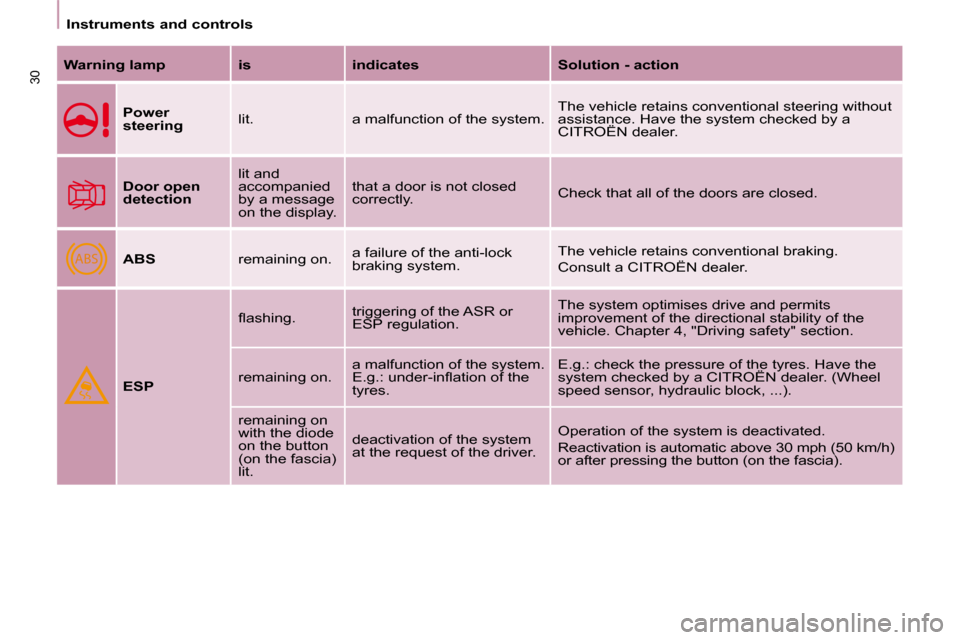

ABS
Instruments and controls
30
Warning lamp is indicates Solution - action
Power
steering lit. a malfunction of the system. The vehicle retains conventional steering without
assistance. Have the system checked by a
CITROËN dealer.
Door open
detection lit and
accompanied
by a message
on the display. that a door is not closed
correctly.
Check that all of the doors are closed.
ABS remaining on. a failure of the anti-lock
braking system. The vehicle retains conventional braking.
Consult a CITROËN dealer.
ESP fl a s h i n g .
triggering of the ASR or
ESP regulation. The system optimises drive and permits
improvement of the directional stability of the
vehicle. Chapter 4, "Driving safety" section.
remaining on. a malfunction of the system.
E . g . : u n d e r - i n fl a t i o n o f t h e
tyres. E.g.: check the pressure of the tyres. Have the
system checked by a CITROËN dealer. (Wheel
speed sensor, hydraulic block, ...).
remaining on
with the diode
on the button
(on the fascia)
lit. deactivation of the system
at the request of the driver.
Operation of the system is deactivated.
Reactivation is automatic above 30 mph (50 km/h)
or after pressing the button (on the fascia).
Page 32 of 185
Instruments and controls
34
Puncture
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible. Sensor(s) not detected
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Contact a
CITROËN dealer to replace the faulty
sensor(s).
This message is also displayed when
one of the tyres is away from the
vehicle (being repaired) or when a
w h e e l w i t h o u t a s e n s o r i s fi t t e d .
All repairs and changing of tyres on a
w h e e l fi t t e d w i t h t h i s s y s t e m m u s t b e
carried out by a CITROËN dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.
This system does not remove the need
to have the tyre pressure checked
regularly (including the spare wheel), to
ensure that the dynamic performance
of the vehicle remains at its best and
to avoid premature wear of the tyres,
in particular in the case of arduous
driving (heavy load, high speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
TYRE UNDER-INFLATION
DETECTION
- C O ( c a r b o n m o n o x i d e ) ,
- HC (unburnt hydrocarbons),
- N O x ( n i t r o g e n o x i d e s ) o r p a r t i c l e s , d e t e c t e d b y o x y g e n s e n s o r s p l a c e d
upstream and downstream of the
catalytic converters.
Therefore, the driver is warned of any
malfunction of this emission control
s y s t e m b y t h e l i g h t i n g o f t h i s s p e c i fi c
warning light on the instrument panel.
There is a risk of damage to the
catalytic converter. Have it checked by
a CITROËN dealer.
EMISSION CONTROL Flat tyre
Check the tyre pressure as soon as
possible.
Refer to the "Changing a wheel"
section of chapter 7.
If the damaged tyre is temporarily
stored inside the vehicle, it will again
emit this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensors check the tyre pressure during
driving (speed higher than 12 mph
[20 km/h]) and trigger a warning in the
event of a malfunction or puncture. EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
Any anomaly detected
( fl a t o r p u n c t u r e d t y r e ,
malfunction of a sensor)
is indicated by visual and
audible information and
is accompanied by a message on the
display.
Page 35 of 185
37
22
Gearbox and steering wheel
GEARBOX
5-speed - reverse gear gearbox
To change gear easily, always press
the clutch pedal fully.
To prevent the mat from becoming
caught under the pedal:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
When driving, avoid leaving your hand
o n t h e g e a r k n o b a s t h e f o r c e e x e r t e d ,
even if slight, may wear the internal
c o m p o n e n t s o f t h e g e a r b o x o v e r t i m e . To engage reverse gear, wait until the
vehicle is stationary then push the gear
lever to the right then down.
The lever should be moved slowly to
reduce the noise on engaging reverse
gear.
This equipment will become available
during the year.
GEAR SHIFT INDICATOR
In order to drive as fuel
e f fi c i e n t l y a s p o s s i b l e w i t h a
m a n u a l g e a r b o x , t h i s i n d i c a t o r
lamp indicates to the driver to
change up.
The driver remains responsible
for deciding whether or not to follow
this indication, since the indicator lamp
comes on without taking into account
t h e c o n fi g u r a t i o n o f t h e r o a d , t h e
a m o u n t o f t r a f fi c a n d s a f e t y f a c t o r s .
The lighting of this indicator lamp
cannot be deactivated.
When reverse gear is engaged
and when changing down whilst
decelerating, the function is disabled.
READY TO GO
Page 37 of 185
Starting and stopping
39
READY TO GO
22
HILL START ASSISTANCE
Operation
With the brake pedal and clutch pedal
pressed, from the time you release the
b r a k e p e d a l y o u h a v e a p p r o x i m a t e l y
2 seconds before the vehicle starts
to roll back and without using the
handbrake within which to move off.
During the moving off phase, the
function is deactivated automatically,
gradually releasing the braking
pressure. During this phase, the typical
noise of mechanical disengaging of
the brakes can be heard, indicating the
imminent movement of the vehicle. Anomaly
The hill start assistance is deactivated
in the following situations:
- when the clutch pedal is released,
- when the handbrake is applied,
- when the engine is switched off,
- when the engine stalls.
If a malfunction of the system
occurs, this warning light
comes on accompanied
by an audible signal and
c o n fi r m e d b y a m e s s a g e o n
the display. Contact a CITROËN dealer
to have the system checked.
This function, linked with the ESP,
makes hill starts easier and is activated
in the following conditions:
- the vehicle must be stationary,
engine running, foot on the brake,
- the gradient of the road must be steeper than 5 %,
- u p h i l l , t h e g e a r b o x m u s t b e i n neutral or in a gear other than
reverse,
- downhill, reverse gear must be engaged.
The HHC (Hill Holder Control) or Hill
Start Assistance function is a driving
comfort feature. It is not an automatic
vehicle parking function or an
automatic handbrake.
Page 73 of 185
Mirrors and windows
71
EASE OF USE and COMFORT
33
Electric exterior mirrors
- M o v e t h e c o n t r o l t o t h e r i g h t o r t o the left to select the corresponding
mirror.
- M o v e t h e c o n t r o l i n a l l f o u r d i r e c t i o n s t o a d j u s t .
- R e t u r n t h e c o n t r o l t o t h e c e n t r a l position. Electric folding/unfolding
T h e m i r r o r s c a n b e f o l d e d o r u n f o l d e d
e l e c t r i c a l l y f r o m t h e i n s i d e , w i t h t h e
v e h i c l e p a r k e d a n d t h e i g n i t i o n o n :
- P l a c e t h e c o n t r o l i n t h e c e n t r a l
position.
- T u r n t h e c o n t r o l d o w n w a r d s .
MIRRORS
Heated mirrors
Manual exterior mirrors
M o v e t h e l e v e r i n a l l f o u r d i r e c t i o n s t o
a d j u s t .
W h e n t h e v e h i c l e i s p a r k e d , t h e
e x t e r i o r m i r r o r s c a n b e f o l d e d b a c k
m a n u a l l y .
T h e m i r r o r s a r e n o t e q u i p p e d w i t h
a u t o m a t i c d e - i c i n g .
T h e e l e c t r i c m i r r o r s c a n b e
h e a t e d . P r e s s t h e r e a r s c r e e n
d e - i c i n g b u t t o n .
