Page 2 of 185
4
2c
2e
7b
7a
2d8
2e
7b
2c
7a4
2d
8
7
1
FAMILIARISATION
Exterior
20
22
R e a r r o o f fl a p
T h e r e a r r o o f fl a p i s o n l y
c o m p a t i b l e w i t h t h e h i n g e d d o o r s .
Changing bulbs 111
106
Spare wheel
Hinged rear doors
Tailgate and rear screen
T h e t o o l s a r e l o c a t e d u n d e r
t h e r i g h t - h a n d s e a t .
R a i s e t h e c a r r i e r w i t h t h e
w h e e l fl u s h a g a i n s t t h e fl o o r . 23
A s y m m e t r i c a l ( 2 / 3 - 1 / 3 ) .
T h i s l o c k m a k e s i t p o s s i b l e
t o k e e p t h e l a r g e d o o r c l o s e d
a n d d r i v e w i t h t h e s m a l l d o o r
o p e n .
T h i s c o n t r o l p e r m i t s o p e n i n g
t o a p p r o x i m a t e l y 1 8 0 ° .
Useable dimensions 122
Parking assistance
75
Page 129 of 185
Page 130 of 185
123

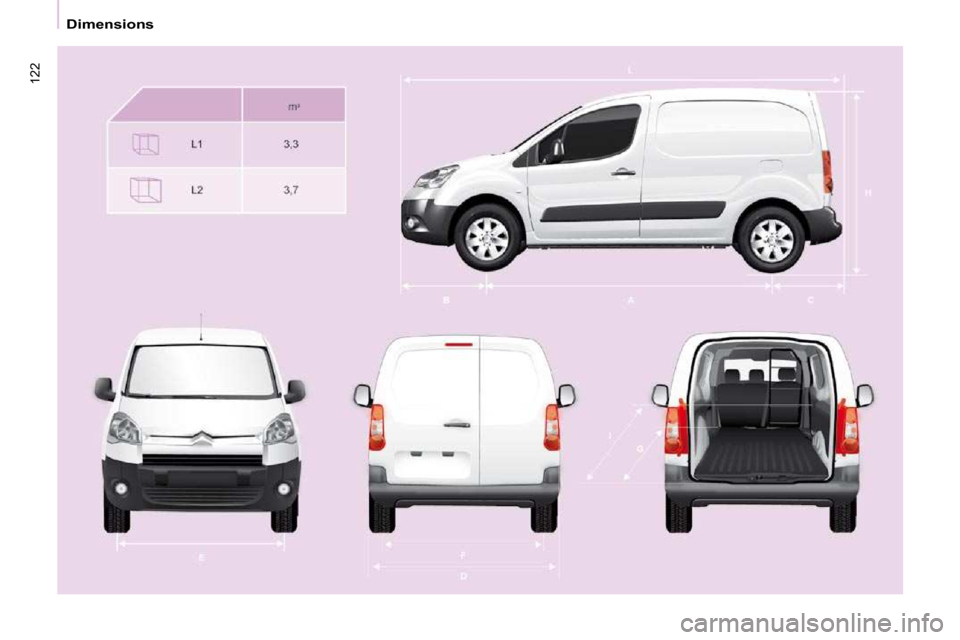

Dimensions
TECHNICAL DATA
8
VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 4 380 4 628
H Overall height 1 805-1 834
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727 975
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505
F Width of rear tracks 1 554
G U s e f u l l e n g t h o f r e a r fl o o r 1 800 2 050
I Useful length with front passenger seat
folded 3 000 3 250 DIMENSIONS DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:
Page 131 of 185
124
Dimensions
REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum threshold with 195/65 R15 tyre 584 609 612
Hinged doors Tailgate
Small Large
N Useful opening height (under panel) 1 148 1 313
O Width 495 543 1 582
Page 132 of 185
Dimensions
TECHNICAL DATA
8
SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892
Page 133 of 185
126
Dimensions
PLATFORM CAB (mm)
L Overall length 4 237
H Overall height 1 821-1 822 A Wheelbase 2 728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1 810 E Width of front tracks 1 505
F Width of rear tracks 1 554
