2010 Citroen BERLINGO FIRST RHD technical data

TECHNICAL DATA102 -
EXTERIOR DIMENSIONS (IN MM)

103TECHNICAL DATA-
Light van Ludospace

L1 4 137

L2 4 437 -

H 1 796 to 1 819 1 810


A 2 693

B 836

C 608

D 570 550

E 1 440 1 440 or 1 452

F 1 960

G 1 420 1 420 or 1 436

I 1 724

TECHNICAL DATA104 -
INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M3) LIGHT VAN

L1 L2

J 1 155

K 1 320

M 1 190

N 1 190

O 568

P 1 340 1 640

m 3
3.25 3.6

105TECHNICAL DATA-
INTERIOR DIMENSIONS (IN MM) LUDOSPACE

L1 L2

Row 2
bench
seat in
position -
normal 1.25 1.75

- fully
folded 2.8 3.25
VOLUMES (IN M3) LUDOSPACE 5 SEAT VERSION

TECHNICAL DATA108 - Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E5 type pet rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Quality of the fuel used for Diesel engine s
The Diesel engines are perfectly compatible with b iofuels which conform to current and future Europea n standards (diesel fuel
which complies with standard EN 590 mixed with a bi ofuel which complies with standard EN 14214) which can be distributed at
the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).

107TECHNICAL DATA-

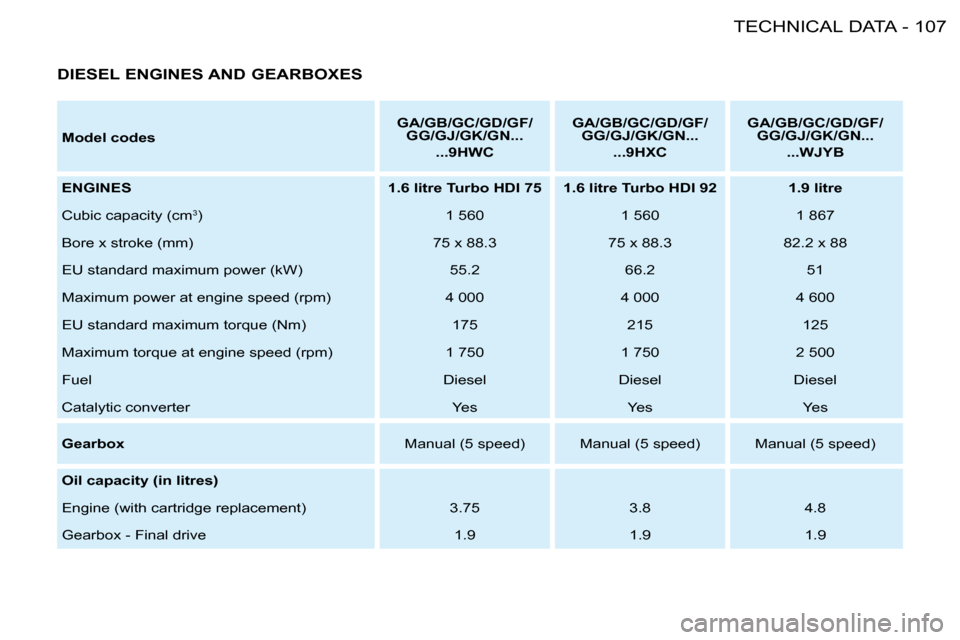

Model codes
GA/GB/GC/GD/GF/
GG/GJ/GK/GN...

...9HWC
GA/GB/GC/GD/GF/
GG/GJ/GK/GN ...
...
9HXC
GA/GB/GC/GD/GF/
GG/GJ/GK/GN...
... WJYB

ENGINES 1.6 litre Turbo HDI 75 1.6 litre Turbo HDI 92 1.9 litre
Cubic capacity (cm 3
) 1 560 1 560 1 867
Bore x stroke (mm) 75 x 88.3 75 x 88.3 82.2 x 88
EU standard maximum power (kW) 55.2 66.2 51
Maximum power at engine speed (rpm) 4 000 4 000 4 60 0
EU standard maximum torque (Nm) 175 215 125
Maximum torque at engine speed (rpm) 1 750 1 750 2 5 00
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes

Gearbox Manual (5 speed) Manual (5 speed) Manual (5 speed)

Oil capacity (in litres)
Engine (with cartridge replacement) 3.75 3.8 4.8
Gearbox - Final drive 1.9 1.9 1.9
DIESEL ENGINES AND GEARBOXES

TECHNICAL DATA108 - Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E5 type pet rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Quality of the fuel used for Diesel engine s
The Diesel engines are perfectly compatible with b iofuels which conform to current and future Europea n standards (diesel fuel
which complies with standard EN 590 mixed with a bi ofuel which complies with standard EN 14214) which can be distributed at
the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).

111TECHNICAL DATA-

Engine
1.4 litre

Gearbox
Manual

Model codes GB KFWC GC KFWC GD KFWC GA KFWC

Length
L1 L2

Version (kg)
600 800 750 1 000
