2010 CHRYSLER SEBRING SEDAN seat adjustment

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 89
▫ Inside Day/Night Mirror ................ 89
▫ Automatic Dimming Mirror — If Equipped . . . 90
▫ Power Mirrors ....................... 90
▫ Adjusting Sideview Mirrors .............. 92
▫ Illuminated Vanity Mirrors — If Equipped . . . 93
 uconnect™ phone — If Equipped ........... 93
 Voice Recognition (VR) System — If Equipped . . 93
 Seats ............................... 94 ▫
Manual Front Seat Adjustment ............ 94
▫ Driver Seat Manual Height Adjuster —
If Equipped ......................... 95
▫ Reclining Bucket Seats .................. 96
▫ Lumbar Support — If Equipped ........... 97
▫ Power Seats — If Equipped .............. 97
▫ Adjusting Active Head Restraints .......... 98
▫ Heated Seats — If Equipped ............ 101
▫ Fold-Flat Passenger Seatback ............ 102
3

SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. They need to be used properly for safe
operation of the vehicle.
WARNING!
•DO NOT allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Front Seat Adjustment
The manual seat adjustment bar is at the front of the seat,
near the floor. Pull the bar upward to move the seat
forward or rearward. Release the bar once the seat is inthe position desired. Then, using body pressure, move
forward and rearward on the seat to be sure that the seat
adjusters have latched.Manual Seat Adjusting Bar
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
the seat only while the vehicle is parked.
Driver Seat Manual Height Adjuster — If
Equipped
A lever style height adjustment feature enhances comfort
for petite as well as tall drivers. A lever with a ratcheting
mechanism, located on the outboard side of the seat,
raises and lowers it. Total travel is 2.2 in (56 mm).
Manual Seat Height Adjustment Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Reclining Bucket Seats
The recliner control is on the side of the seat. To recline,
lean forward slightly before lifting the lever, then lean
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position.WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Seatback Adjustment
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

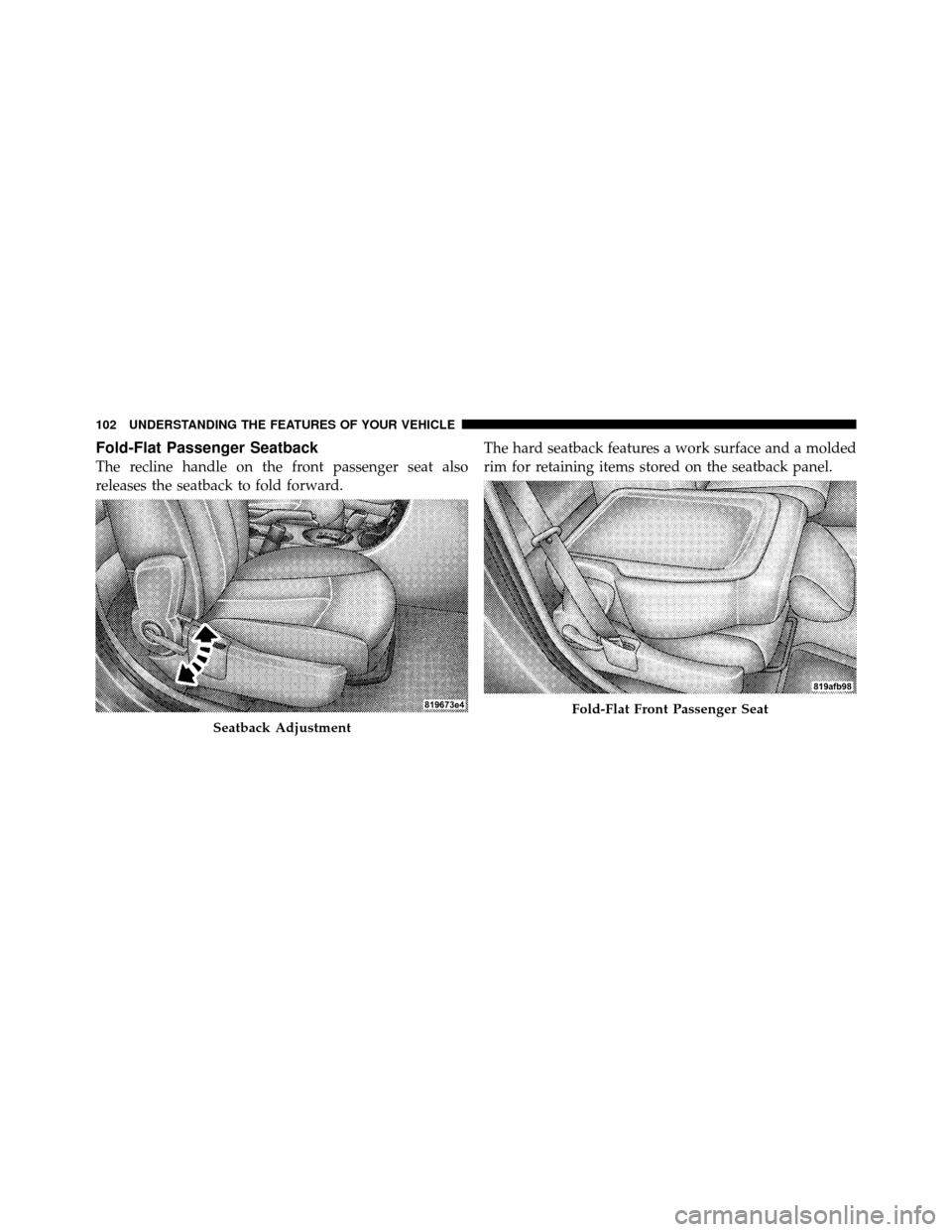

Fold-Flat Passenger Seatback
The recline handle on the front passenger seat also
releases the seatback to fold forward.The hard seatback features a work surface and a molded
rim for retaining items stored on the seatback panel.
Seatback Adjustment
Fold-Flat Front Passenger Seat
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Operation of the system is quite simple.
1. Turn the Mode Control knob (on the right) and the
Blower Control knob (on the left) to AUTO.
NOTE:The AUTO position performs best for front seat
occupants only.
2. Dial in the temperature you would
like the system to maintain by rotating
the Temperature Control knob. Once
the comfort level is selected, the sys-
tem will maintain that level automati-
cally using the heating system. Should
the desired comfort level require air
conditioning, the system will automatically make the
adjustment. You will experience the greatest efficiency by simply
allowing the system to function automatically. Selecting
the “O” (OFF) position on the blower control stops the
system completely and closes the outside air intake.
72°F (22°C) is the recommended setting for maximum
comfort for the average person; however, this may vary.
NOTE:
•The temperature setting can be adjusted at anytime
without affecting automatic operation.
•Pressing the Air Conditioning Control button while in
AUTO mode will cause the LED in the control button
to flash three times and then turn off. This indicates
that the system is in AUTO mode and requesting the
air conditioning is not necessary.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 223

Untwisting Procedure.................... 46
Seat Belts (Sedan) ........................ 39
Seats ................................. 94
Adjustment ........................... 94
Cleaning ............................ 104
Heated ............................. 101
Lumbar Support ....................... 97
Power ............................... 97
Rear Folding ....................... 103,104
Rear Folding (Sedan) ................... 134
Reclining ............................. 96
Security Alarm (Theft Alarm) ................ 18
Selection of Coolant (Antifreeze) ..........355,387
Selection of Oil ......................... 343
Sentry Key (Immobilizer) ................... 15
Sentry Key Programming ................... 16
Service Assistance ....................... 409
Service Contract ......................... 411
Service Manuals ........................ 413 Setting the Clock
.............169,172,186,189,198
Settings, Personal ........................ 167
Shifting Automatic Transaxle .................... 239
Shoulder Belts ........................... 40
Side Airbag ............................. 64
Side Window Demisters (Defrosters) .......... 229
Signals, Turn ......................... 84,381
Slippery Surfaces, Driving On ............... 247
Snow Chains (Tire Chains) ................. 279
Snow Tires ............................ 280
Spare Tire .......................... 275,318
Specifications Oil ................................ 343
Speed Control (Cruise Control) ........... 117,152
Speedometer ........................... 146
Starting ............................... 235
Engine Fails to Start .................... 236
Starting and Operating .................... 235
432 INDEX
